China iModyuli yoQhagamshelwano Factory Direct

Aba baqhagamsheli beemodyuli babonelelwa kuwe nguCDADA, umthengisi othembekileyo nothembekileyo. Njengomvelisi wokuthengisa ngokuthe ngqo, sinezinto ezingaphezulu kweminyaka eyi-15 yamava ngokukodwa ngolu luhlu lweemveliso. Ngaphaya koko, lonke uluhlu lwethu lwezixhobo zombane eziphantsi-eziphuhliswe iminyaka emininzi-zihlala zihambisa umgangatho ophezulu kunye nobomi obude obukhethekileyo; ukuba udibana nayo nayiphi na imiba, wamkelekile ukuba uqhagamshelane nathi nangaliphi na ixesha ngenkxaso ekhawulezileyo emva kokuthengisa.

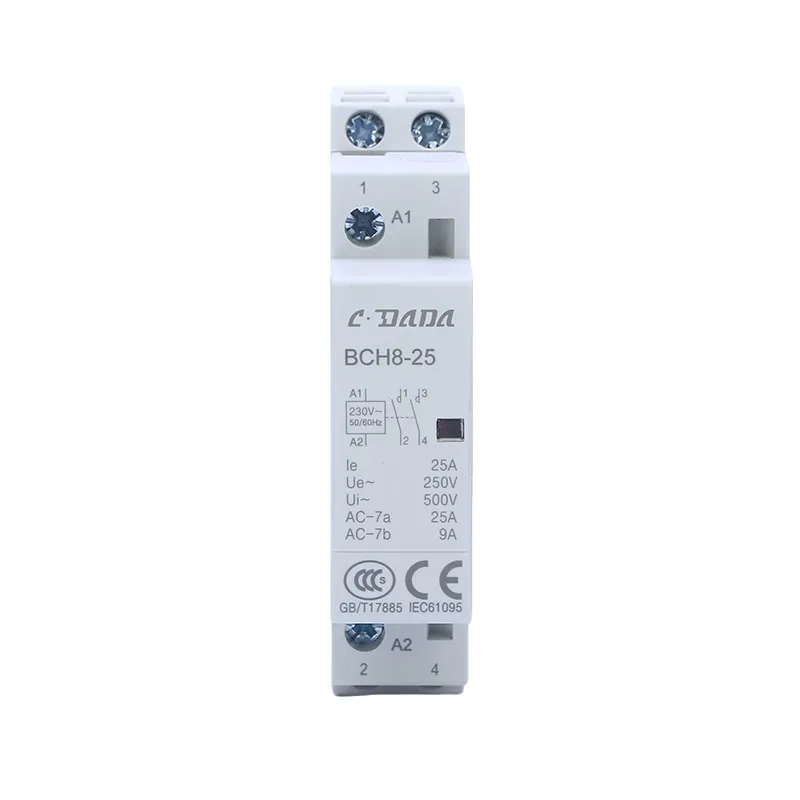

Yintoni uMfowunelwa weModyuli?

A umnxibelelanisi wemodyuli i-compact, i-DIN kaloliwe efakwe kwisixhobo sokutshintsha i-electromechanical eyenzelwe ngokukodwaUfakelo lwezakhiwo kunye nezicelo zasekhaya. Ngokungafaniyo nabafowunelwa kwimizi-mveliso elawulwa yi-IEC 60947-4-1, abafowunelwa beemodyuli bathobelaIEC 61095—umgangatho “oneemfuno ezingqongqo kakhulu, ezihlangabezana nokulindelweyo ngabasebenzisi, ngokumalunga nokhuseleko lwezixhobo nabantu abakumaziko nakwiindawo ezifikelelwa luluntu” .

Ezi zixhobo zibandakanya aububanzi bemodyuli esemgangathweni (ubuninzi be-17.5mm) eyenza udibaniso olungenamthungo kwiiphaneli zokuhambisa ecaleniIi-Ii-MCBs, ii-RCDs, kunye nezinye izixhobo zemodyuli. Iireyithingi zangoku ziqala ukusuka16A ukuya ku-100A, kunye nombane wekhoyili ojikelezayoI-12V DC ukuya kwi-240V AC (kubandakanywa iikhoyili ze-AC / DC zendalo yonke), zizenza zilungele ukutshintshela ukukhanya, ukufudumeza, ukungena komoya, kunye neenjini ezincinci kwiindawo zokuhlala, zorhwebo kunye nezolimo.

Okona kumvaIEC 61095:2023 Uhlelo 3.0 yazisa iimfuno ezihlaziyiweyo zomthwalo wokukhanya kwe-LED (AC-7d), ukhuseleko lwe-EMC olwandisiweyo, kunye nemigaqo engqongqo yokuleyibheli-ebonisa indaleko kubuchwepheshe bokwakha obukrelekrele kunye neenkqubo zolawulo lwamandla.

Iindidi zeeMveliso zeModyuli kunye noLungiselelo

Ukuhlelwa	Uhlobo	Uluhlu lwangoku	Iimpawu eziphambili
ICandelo lokuSebenzisa	AC-7a	16A – 100A	Imithwalo ene-inductive kancinane: izixhobo zasekhaya, ukufudumeza, imithwalo yokumelana (cos φ 0.8)
	I-AC-7b	16A – 63A	Imithwalo yeemoto: iinjini ze-squirrel-cage, izilungisi zomoya, iimpompo (cos φ 0.45)
	AC-7d	16A – 32A	Imithwalo yokukhanyisa i-LED (entsha kwi-IEC 61095: 2023), i-harmonic-rich environments
Uqwalaselo lwePali	Iipali ezi-2 (2NO)	16A – 100A	Ukutshintsha kwesigaba esinye, ukufudumeza / ukukhanya, ukucwangciswa okuqhelekileyo
	Ipali emi-2 (1NO+1NC)	16A – 40A	Usetyenziso lwenguqu, iifeni ezinesantya esimbini, iimotor ezibuyiselwa umva
	4-Ipali (4NO)	16A – 100A	Isigaba sesithathu + sokungathathi hlangothi, ukufudumeza kwesigaba sesithathu, iinjini ezincinci zesigaba sesithathu
	I-4-Pali (2NO+2NC)	16A – 40A	Ukutshintshwa kokutshintsha, ukuhanjiswa kwejeneretha, ukubonelela kabini
Itekhnoloji yeCoil	Ikhoyili ye-AC	24V, 110V, 220-240V	I-50/60Hz eqhelekileyo, i-hum evakalayo ngexesha lokusebenza
	DC Coil	12V, 24V	Ukusebenza okuthe cwaka, iinkqubo ezixhasa ibhetri, iisekethe zokulawula
	AC/DC Universal	24-240V (ukutshintsha okuzenzekelayo)	Ukusebenza kwe-Hum-free, ukunyamezela kwamandla ombane abanzi, ukuncitshiswa kwe-inventory
	Ikhoyili ye-elektroniki	12-240V AC / DC	Ukusetyenziswa okuphantsi (2-4VA), ukukhuselwa kokunyuka okudibeneyo, kuthule
Ukunyuka	I-DIN kaloliwe (TH35)	Zonke iireyithingi	I-35mm yesiporo somnqwazi ophezulu, ukufakwa kwe-snap-on, i-IP20 ikhuselekile ngomnwe
Ukunyuka	I-Panel Mount	16A – 100A	Screw-fixed base, flat surface mounting, anti-vibration
Indawo ebiyelweyo	Vula (IP20)	Zonke iireyithingi	Uyilo lwemodyuli esemgangathweni, ukunyuswa kwephaneli yokuhambisa
Indawo ebiyelweyo	Okuvalelweyo (IP40-IP65)	16A – 63A	I-enclosure eyakhelwe-ngaphakathi, ukukhusela uthuli / umswakama, ukusetyenziswa kwangaphandle

Imigangatho yobubanzi beModyuli:

Imodyuli enye (17.5mm): 16A-25A, i-2-pole

Iimodyuli ezi-2 (35mm): 40A-63A, 2/4-pole

Iimodyuli ezi-3-4 (52.5-70mm):80A-100A, izicelo eziphezulu zamandla

Imisebenzi enguNdoqo kunye noMgaqo wokuSebenza

Inkqubo yokuSebenza koMbane

Icandelo	Umsebenzi	Inkcazo yobuGcisa
Ikhoyili ye-Electromagnetic	Ivelisa indawo yemagnethi yokuvalwa koqhagamshelwano	AC: 24V, 110V, 220-240V (50/60Hz); DC: 12V, 24V; I-AC / DC: 24-240V jikelele; Ukusetyenziswa kwe-4-8VA (AC), 2-4W (DC)
I-Laminated Core	Igxininisa i-magnetic flux, inciphisa imisinga yeeddy	I-Silicon steel E-core, i-insulation surface, i-remanence ephantsi
I-Armature eshukumayo	Utshintshela amandla kazibuthe kwibhulorho yoqhagamshelwano	Ukubuya kwentwasahlobo, i-anti-bounce design, <20ms impendulo
Abafowunelwa abaphambili	Ukuthwala isekethe yangoku yamandla	ISilver-nickel (AgNi) okanye isilivere-cadmium oxide (AgCdO), isenzo sokusula kabini
Qhagamshelana Bridge	Ngomatshini udibanisa iiseti zepali, iqinisekisa ukusebenza ngaxeshanye	I-alloy yobhedu, uxhumano oluguquguqukayo, ukulungelelanisa
Arc Chute	Ucima i-arc eyaphukileyo (izicelo ze-AC-7b)	Iipleyiti ze-Ceramic eziqhekezayo, iigridi ze-deionizing, i-magnetic blowout
Abafownelwa abaNcedisayo	Ukulawula, umqondiso, ukudibanisa (ukhetho)	I-1NO + 1NC okanye i-2NO, i-10A yokukala, i-snap-action

Ulandelelwano lokuSebenza

Ukuvala umsebenzi:

Coil Amandla -Lawula amandla ombane asetyenziswa kwiitheminali zekhoyili (A1-A2)

iiMagnetic Field Generation -Okwangoku kudala i-electromagnetic flux kwi-laminated core

Umtsalane weArmature -Amandla emagnethi aloyisa uxinzelelo lwasentwasahlobo, iintshukumo zezixhobo

Ukuvalwa koQhagamshelwano -Ibhulorho yoQhagamshelwano ibandakanya abafowunelwa abasisigxina kunye nesenzo sokusula (ukuzicoca)

Ukugqitywa kweSekethe – Amandla ahamba ukusuka kwiitheminali zomgca (L) ukulayisha iitheminali (T)

Umsebenzi wokuvula:

Coil De-energization – Ulawulo lombane lususiwe

Ukudilika kweNdawo -Ukubola kweMagnetic flux (AC: zero-crossing; DC: freewheeling diode)

UkuBuyiswa kweNtwasahlobo -Buyisela izixhobo zokuvula i-aratures ukuze uvule indawo

Ukwahlulwa koQhagamshelwano – Ukuqaliswa kwe-arc (ukuba iphantsi komthwalo), izotywe kwi-arc chute

Ukuphela kweArc -I-AC arc izicima ngokwayo kwi-zero yangoku; I-arc ye-DC icinywe ngeepleyiti eziqhekezayo

Hum-Free AC / DC Technology

Abanxibelelanisi bemodyuli bale mihla babonisa uyilo lwekhoyili ye-AC/DC esusa uphawu oluyi-50/60Hz hum:

Itekhnoloji yokujija iDuplex: Ukwahlula iikhoyili ze-AC kunye ne-DC ngokutshintsha kwe-elektroniki

Ukufakwa kwamandla ombane jikelele: Ibhaqa ngokuzenzekelayo unikezelo lwe-AC okanye lwe-DC, luhlengahlengisa imo yokusebenza

Ukusebenza okuthe cwaka: Ilungele amagumbi ehotele, izibhedlele, amagumbi okuhlala, kunye neendawo ezingeva ngxolo

Ukusetyenziswa kwamandla okucuthiweyo: I-50% yamandla okubamba aphantsi xa kuthelekiswa neekhoyili ze-AC eziqhelekileyo

Ubume beSicelo kunye neemeko zokuSetyenziswa

Isicelo	Ukusetyenziswa ngokuthe ngqo	Iimpawu eziqhelekileyo	ICandelo lokuSebenzisa
Ulawulo lokukhanyisa	Izibane ze-LED, izibane ze-fluorescent, izibane zokukhupha	16A-32A, 2NO, AC-7d (LED), AC-7a (discharge), 230V ikhoyili	AC-7a / AC-7d
Iinkqubo zokufudumeza	Iibhoyila zombane, izifudumezi zokugcina, ukufudumeza ngaphantsi	25A-63A, 2NO okanye 4NO, AC-7a, 230V ikhoyili, ukusebenza cwaka kuyakhethwa	AC-7a
Ukungenisa umoya kunye neHVAC	Iifeni ze-Extractor, iiyunithi zokuphatha umoya, iinkqubo zokupholisa	I-16A-40A, i-2NO, i-AC-7b (iimoto), i-coil ye-230V, i-high switching frequency	I-AC-7b
Izixhobo zeMoto	Ii-roller shutters, iingcango zegaraji, amasango, i-awnings	16A-25A, 2NO okanye 1NO+1NC, AC-7b, 24V DC ulawulo (ukhuseleko amandla ombane angaphezulu-phantsi)	I-AC-7b
Iimpompo zamanzi	Iimpompo zokukhuthaza, iimpompo zokujikeleza, iimpompo zamaqula	16A-32A, 2NO, AC-7b, 230V ikhoyili, ubungakanani bomsebenzi wempompo	I-AC-7b
Ulawulo lwamandla	Ukucinywa kwemithwalo, ukutsheva okuphezulu, ukutshintshwa kweentlawulo ezimbini	I-40A-100A, 4NO, i-AC-7a, i-coil ye-230V enexesha / ulawulo lwemitha yamandla	AC-7a
Umoya ovuselelekayo	Ukutshintsha kweSolar PV, ukugcinwa kwebhetri, ukutshaja kwe-EV	I-25A-63A, i-4-pole, i-coil ye-DC okanye i-AC / DC jikelele, uluhlu lobushushu olwandisiweyo	AC-7a / AC-7b
EzoLimo	Iimpompo zokunkcenkceshela, iifeni zokungenisa umoya, ukomisa iinkozo	25A-63A, IP65 ebiyelweyo, enetropiki, 400V inqanaba lesithathu	AC-7a / AC-7b

Izicelo zeRhafu ezimbini: Abafowunelwa bemodyuli bavumela ukutshintsha okuzenzekelayo phakathi kwamaxabiso ombane emini/ebusuku:

Izifudumezi zokugcina (ukutshaja ngexesha lokungabikho kwe-peak, khulula ngexesha lokuphakama)

Izifudumezi zamanzi (ubushushu ngexabiso eliphantsi, gcina ubushushu)

Ukutshaja kwe-EV (ukuqala kulibazisekile kumaxabiso angekho phezulu)

Inkqubo yokuVelisa kunye nokuhamba komsebenzi weMveliso

Ulandelelwano lweMveliso oluchanekileyo lweVolumu ephezulu

I-IQC yeMathiriyeli ekrwada → ISitampu esiLaminated Core → Umoya we-Coil kunye nokuPhuculwa → UQhagamshelwano lweNkqubo yokuFakwa → iNdibano yeArc Chute → Udibaniso lweMechanism → UkuBunjwa kweZindlu okuModyuli → INdibano yokugqibela → Ulungelelwaniso kunye noVavanyo → ukuPakisha

Amanqanaba oMveliso abalulekileyo

Iqonga	Iinkcukacha zeNkqubo	Amanqaku okulawula umgangatho
Imveliso yeLaminated Core	Icwecwe lensimbi yesilicon (0.35-0.5mm) isitampu sokufa esiqhubelekayo, sifakwe kwi-750-800°C kwi-hydrogen emoyeni, i-insulation coating, ukupakisha kunye nokufaka i-riveting.	Ilahleko engundoqo <3 W/kg kwi-1.5T, ukumelana nokufakwa kwe-insulation>100MΩ, ukufikeleleka kwemagnethi>5000
Ukujija iikhoyili	Ucingo lobhedu olune-enameled (0.1-0.4mm), ukujija ngokuzenzekelayo ngolawulo loxinzelelo, ukufakwa kwevacuum ivanishi (ipolyester okanye i-epoxy)	Ijika ± 1%, ukuxhathisa kwe-DC ± 5%, amandla e-dielectric 2kV/1min, ukumiliselwa okufanayo
AC/DC Universal Coil Assembly	Ukucwangciswa kwe-double winding, i-electronic switching circuit, ukudibanisa ukukhuselwa kwe-surge, i-encapsulation	Ukuqinisekiswa kokutshintsha ngokuzenzekelayo i-24-240V, ukubamba amandla <4VA, ukusebenza okuthe cwaka <30dB
Qhagamshelana Fabrication	ISilver-nickel (AgNi 90/10) iingcebiso zoqhagamshelwano, ukubrawuza kubathwali bobhedu, isitampu esiqhubekayo, ukosula ukwenza ijometri.	Ubunzima be-HV 80-120, ukuxhathisa ukunxibelelana <5mΩ, amandla okubrawuza> 50MPa
IModyuli yokuBumba kweZindlu	Impembelelo ephezulu ye-thermoplastic (PA66 GF30 okanye i-PBT GF30), inaliti ye-280-320 ° C, i-17.5mm pitch dimension ibalulekile	Ukunyamezela kwe-Dimensional ± 0.05mm, isalathisi sokulandelela> 600V, UL 94 V-0, ukumelana nobushushu 160 ° C
INdibano yeNkqubo	Inkqubo yokutshaja yentsimbi yasentwasahlobo, i-toggle mechanism, i-DIN kaloliwe yokudityaniswa kwekliphu kaloliwe, ikhonkco lokuphatha	Ukunyamezela komatshini imijikelezo ye-100,000, ukunyanzeliswa kwengcinezelo yoqhagamshelwano, i-snap-on force 50-100N
Ulungelelwaniso lokugqibela	I-voltage ye-Pickup (0.85-1.1 × Us), i-voltage yokuyeka (> 0.2 × Us), ukusetyenziswa kweekhoyili, ixesha loqhagamshelwano	I-100% yovavanyo oluzenzekelayo, ukungena kwedatha, ukulandelwa kwekhowudi ye-QR

IMathiriyeli ekrwada yokuqala kunye neNgcaciso yeCandelo

Icandelo	Inkcazo yezinto	Imigangatho yababoneleli	Iimpawu eziphambili
I-Laminated Core	I-silicon yentsimbi ye-35W300 okanye i-50W470 (0.35-0.5mm)	IEC 60404-8-7, JIS C 2552	Ilahleko engundoqo 2.3-3.0 W/kg kwi-1.5T, ukufikeleleka okuphezulu, i-magnetostriction ephantsi
I-Coil Wire	Ucingo lobhedu olungqukuva olunamelelisiwe, udidi F (155°C) okanye udidi H (180°C)	IEC 60317, NEMA MW 35	I-voltage yokuqhawula> 2kV, i-solderability 390 ° C / 2s, ukuguquguquka
AC / DC Electronic Modyuli	I-PCB enamacandelo e-SMD, i-varistor, isilungisi sebhulorho, iswitshi ye-MOSFET	IEC 60721-3-3, IEC 61000	Uluhlu olubanzi lwe-voltage 24-240V, ukukhuselwa kokunyuka, i-EMC i-immunity Level 3
Abafowunelwa abaphambili	Isilivere-nickel (AgNi 90/10) okanye isilivere-cadmium oxide (AgCdO)	I-ASTM B152, IEC 60368	I-Conductivity ≥100% IACS, ukuchasana nokukhukuliseka kwe-arc, i-anti-welding
Qhagamshelana Bridge	I-alloy yobhedu (CuCr1Zr okanye i-CuNi2Si), i-silver-plated	I-ASTM B187	I-conductivity ephezulu, iipropati zentwasahlobo, ukumelana nokugqoka
Amacwecwe e-Arc Chute	I-steatite ceramic okanye i-alumina (Al₂O₃ 95%)	IEC 60672	Ukumelana nobushushu>1000°C, amandla edielectric>15kV/mm
Izindlu zeModyuli	PA66 GF30 (30% ifayibha yeglasi) okanye PBT GF30	IEC 60664-1, UL 94 V-0	Isalathiso sokulandela umkhondo >600V, amandla empembelelo>7 kJ/m², 17.5mm modularity
Ikliphu ye-DIN kaloliwe	Intsimbi yasentwasahlobo 65Mn okanye insimbi engenasici 304, i-zinc-plated	I-GB/T 1222, ISO 3506	I-Clamp force 50-100N, ubomi bokudinwa> Imijikelezo eyi-10,000, ukumelana nokubola
Izikhululo	I-C36000 yobhedu okanye i-C11000 yobhedu ene-tin plating (5-8μm)	I-ASTM B16/B187	Uxinzelelo lwangoku 1.0-1.2 A/mm², torque ukumelana 1.5-2.5Nm
Buyela iSprings	Ioli ye-oyile ye-carbon steel SWOSC-V okanye i-stainless steel 301	JIS G 3560, ASTM A313	Amandla e-tensile 1800-2200MPa, ubomi bokudinwa> Imijikelo eyi-100,000

UkuThotyelwa kweMigangatho kunye neeProtokholi zoVavanyo

Isakhelo seMigangatho yeHlabathi

Umgangatho	Ububanzi	Amanqaku asebenzayo
IEC 61095:2023 (Uhlelo 3.0)	Abafowunelwa be-Electromechanical kwikhaya kunye neenjongo ezifanayo	Umgangatho ophambili wabafowunelwa beemodyuli, iimfuno ezingqongqo zokhuseleko kwiindawo ezifikeleleka luluntu
IEC 60947-4-1	Abafowunelwa kunye nabaqalisi beemoto - Abanxibelelanisi be-Electromechanical	Umgangatho woshishino, okwasebenza kubafowunelwa beemodyuli eziphezulu zangoku
IEC 60947-5-1	Lawula izixhobo zesekethe kunye nezinto zokutshintsha	Abafowunelwa abancedisayo, imisebenzi yokulawula
GB/T 17885	Umgangatho wesizwe waseTshayina ulingana	Isiqinisekiso seCCC, imakethi yaseTshayina

Umahluko oPhambili: IEC 61095 vs. IEC 60947-4-1

IEC 61095: Ukhuseleko olungqongqo lwekhaya / iindawo zikawonke-wonke, iindidi zokusetyenziswa AC-7a/AC-7b/AC-7d, isinyanzelo sokukhuselwa kweminwe IP20

IEC 60947-4-1:Ukugxila kwimizi-mveliso, iindidi zokusetyenziswa kwe-AC-1 / AC-3, uluhlu oluphezulu lwangoku, ulandelelwano oluhlukeneyo lovavanyo

Iimvavanyo zoHlobo oluSinyanzelo (IEC 61095:2023)

Uluhlu lovavanyo	Uvavanyo oluthile	Iinqobo zokwamkeleka
Ukusebenza kwezinto eziphathekayo	Ukumelana nokuguga (70 ° C / 168h), umswakama (40 ° C / 93% RH / 96h), ukumelana nobushushu (uxinzelelo lwebhola 125 ° C)	Akukho zintanda, akukho deformation <2mm, amandla dielectric agcinwe
IMfezeko yoomatshini	Amandla etheminali (i-torque cycling), ukumelana nempembelelo (0.5J pendulum/2J sphere), ukuqina kokuqina	Akukho monakalo, akukho kukhulula, ukulinganisa kwe-IP kugcinwe
Ukunyuka kobushushu	Ukuqhubekeka kwangoku kwireyithingi ngaphakathi, iitheminali kumoya osimahla	Izitishi ≤65K (ezingenanto), ≤80K (zicwecwe), indawo ebiyelweyo ≤40K
Iipropati zeDielectric	Ukumelana nomthamo wamandla (2kV-2.5kV/1min), ukumelana noxinzelelo (4kV-6kV)	Akukho kuphazamiseka, akukho flashover, ukuvuza okwangoku <2mA
Ukwenza kunye noKwaphula isakhono	I-AC-7a: 1.5 × ekwenzeni / ukuqhekeza; I-AC-7b: 8 × Ukwenza, 1 × Ekuphuleni	Ukusebenza ngempumelelo, akukho welding yoqhagamshelwano, akukho flashover
Intsebenzo yokuSebenza	Oomatshini: 100,000 imijikelo; Umbane: AC-7a 10,000 imijikelo, AC-7b 5,000 imijikelo	<5% iparameter drift, ukunxiba uqhagamshelwano <50%
Overcurrent ukumelana	I-6×In ye-30s (AC-7a), i-10×In ye-30s (AC-7b)	Akukho ukudibanisa i-welding, esebenzayo emva kokupholisa
ULungelelaniso lweSekethe emifutshane	Vavanya nge-SCPD echaziweyo, i-1kA-10kA elindelekileyo yangoku	Akukho monakalo kwindawo ebiyelweyo, akukho ngozi kumqhubi
Okusingqongileyo	I-EMC immunity (ESD 8kV, RF 3V/m, ukugqabhuka), ubushushu obungaqhelekanga/umlilo (ucingo olukhanyayo 960°C)	Ukusebenza ngexesha / emva kovavanyo, akukho ukutshisa

Ulawulo loMgangatho weFactory & neMigangatho yokuHlola

Izinto ezingenayo i-QC (IQC)

Izinto eziphathekayo	Izinto Zokuhlola	Isicwangciso sesampulu	Izixhobo
Amaphepha ensimbi ye-silicon	Ilahleko engundoqo, ukungeneka, ukugquma kwe-insulation, ubukhulu	Ngebhetshi nganye, uvavanyo lwe-COA +	Isakhelo se-Epstein, umvavanyi wephepha elinye
Ucingo olune-enameled	I-diameter, i-voltage yokuqhawula, ukunyusa, ukuthengiselana	I-AQL 0.65	I-Micrometer, i-dielectric tester
Iigranule zeThermoplastic	Umxholo weglasi, i-viscosity, umswakama, ukutsha	Ngebhetshi nganye	Melt flow indexer, DSC, UL 94 izixhobo
Iingcebiso zoqhagamshelwano zesilivere	Ukucoceka, ukuxinana, ubunzima, umgangatho wokugcoba	Ngebhetshi nganye	I-Spectrometer, umvavanyi wobulukhuni
Amacandelo e-elektroniki	Uvavanyo lomsebenzi, ukuqinisekiswa kweparameter, inguqulo ye-firmware	100% AOI	imitha LCR, oscilloscope

Kwinkqubo yoLawulo loMgangatho (IPQC)

Isitishi	Ulawulo lweeParamitha	Ukuphindaphinda	Indlela
Isitampu esingundoqo	Ukunyamezela komda ± 0.02mm, burr <0.01mm	Rhoqo ngemizuzu engama-30	Umlinganisi obonakalayo, i-micrometer
Ukujija ikhoyili	Ujiko lokubala, ukuqina, ukuxhathisa, ukugquma	Yonke iyunithi	Ukujija okuzenzekelayo ngempendulo
Inkqubo yemodyuli ye-AC/DC	Uluhlu lwe-voltage, umgca wokutshintsha, ukusetyenziswa	Yonke iyunithi	Unikezelo lwamandla olucwangcisiweyo, ukungena kwedatha
Uqhagamshelwano lokudibanisa	Ubushushu 780-820 ° C, umoya, amandla adibeneyo	Zonke iiyunithi ezili-100	I-Thermocouple, i-shear tester
Ukubumba izindlu	Iqondo lobushushu 280-320 ° C, uxinzelelo, i-dimensional	Wonke umjikelo	esweni SCADA, iitshathi SPC
Indibano yeMechanism	Guqula amandla, isithuba soqhagamshelwano, amandla ekliphu e-DIN	Yonke iyunithi	Ukunyanzeliswa kwegeyiji, ibhentshi yovavanyo oluzenzekelayo

Ulawulo lomgangatho wokugqibela (FQC) kunye ne-QC ephumayo (OQC)

Into yovavanyo	Umgangatho	Ubungakanani beSampuli
Ukuthatha/ukuyeka umbane	0.85-1.1 × Us pickup, > 0.2 × Us dropout	100%
Ukusetyenziswa kwamandla ekhoyili	Ngaphakathi kwe ±10% yeendlela ezithengisiweyo (AC/DC)	100%
Ukuchasana noqhagamshelwano	<5mΩ ipali nganye	100%
I-Dielectric ukumelana nombane	2kV AC/1min	100%
Ukumelana ne-insulation	>100MΩ @ 500V DC	100%
Ukusebenza koomatshini	I-10 ON-OFF imijikelo, egudileyo, akukho ukuncamathela	100%
DIN kaloliwe onyuka amandla	Snap-on 50-100N, ukususa 30-80N	100%
Ukuhlolwa okubonakalayo kunye nokulinganisa	17.5mm ukumodareyitha, ukumakisha ngokusisigxina	100%
Ukhuseleko lwe-EMC (iikhoyili ze-elektroniki)	I-ESD, ukuqhuma, ukugonywa komzimba	I-AQL 1.0
Ukupakisha ingqibelelo	Uvavanyo lokuwisa, ukungcangcazela (ISTA 3A)	Ngokweqashiso

Izibonelelo zeMveliso kunye nokubanakho ukuVelisa

Izixhobo zoMveliso eziPhezulu

ICandelo leZixhobo	Ukucaciswa komatshini	Umsebenzi	Umthamo
Ukunyathela ngesantya esiphezulu	I-100 yeetoni zokushicilela eziqhubekayo	I-Laminated core stamping, i-contact carrier yenza	3 yezigidi zezitampu/ngosuku
Ukujija okuzenzekelayo	oomatshini bokujija iikhoyili be-CNC	Ukuveliswa kwekhoyili kunye nokubekwa okuchanekileyo	15,000 iikhoyili / ngosuku
Vacuum Impregnation	Inkqubo ye-VPI ene-polyester / epoxy resin	Ukuphelisa i-coil void, ukongezwa kwe-insulation	5,000 iikhoyili / ibhetshi
Ukubumba kweThermoplastic	Iitoni ezingama-80 zokucofa inaliti	Ukuveliswa kwezindlu ngokwemodyuli (17.5mm pitch)	Izindlu ezingama-8,000 / ngosuku
INdibano yeModyuli ye-AC / DC	Umgca we-SMT kunye ne-AOI, i-ICT, uvavanyo olusebenzayo	Ukuveliswa kwemodyuli yekhoyili ye-elektroniki	10,000 iimodyuli / ngosuku
INdibano	Ileyibhile iiseli zendibano	Indibano yeMechanism, ulungelelwaniso, uvavanyo	5,000 iiyunithi / ngosuku ngomgca
Izixhobo zokuvavanya	Ibhentshi yovavanyo lwe-contactor oluzenzekelayo	Ukuthatha / ukuyeka, ixesha, ukunyamezela	I-1,000 yeeyunithi / ngeyure
	Umvavanyi wokunyamezela oomatshini	100,000 ukuqinisekiswa komjikelo	Iiyunithi ezingama-200 ngaxeshanye
	Igumbi lovavanyo lwe-EMC	Uvavanyo lwe-Immunity kwiikhoyili ze-elektroniki	Iiyunithi ezili-100 / ngosuku

Isakhono seMveliso kunye namaxesha okuKhokela

Udidi lweMveliso	Ngenyanga Umthamo	Ixesha elimiselweyo lokukhokela	Umyalelo ongxamisekileyo
Ikhoyili ye-AC eqhelekileyo (16A-25A, 2NO)	100,000 iiyunithi	4-5 iiveki	Iintsuku ezi-3
Ikhoyili yendalo yonke yeAC/DC (16A-40A)	80,000 iiyunithi	4-5 iiveki	Iintsuku ezi-5
Abafowunelwa be-4-Pole (25A-63A)	Iiyunithi ezingama-60,000	4-5 iiveki	Iintsuku ezisi-7
Umgangatho ophezulu (80A-100A)	Iiyunithi ezingama-50,000	4-5 iiveki	Iintsuku ezili-10
Ikhoyili ye-elektroniki ngonxibelelwano	Iiyunithi ezingama-50,000	4-5 iiveki	Iintsuku ezisi-7

Ubunjineli kunye noLwakhiwo lweQela lobuGcisa

ISebe	Abasebenzi	Ubungcali	Uxanduva
Ubunjineli beR&D	Iinjineli ezi-5	Ukwakha i-automation, iteknoloji ye-AC / DC ethuleyo, ukuhlanganiswa kwegridi ehlakaniphile, isayensi yezinto eziphathekayo	Uphuhliso lwemveliso entsha, abafowunelwa abanikwe amandla yi-IoT, ipotifoliyo yelungelo elilodwa lomenzi wechiza (30+ ipatent)
Ubunjineli beNkqubo	Iinjineli ezili-15	Isitampu esichanekileyo, ukujika kweekhoyili, ukubumba i-thermoplastic, ukuveliswa kwe-lean	Ukuphuculwa kwemveliso, ukuzenzela, ukuphuculwa kwesivuno (> 99%)
Uvavanyo kunye noQinisekiso	Iinjineli ezili-12	Ukuthotyelwa kwe-IEC 61095, uvavanyo lwe-EMC, ukulinganisa okusingqongileyo, ubunjineli obuthembekileyo	Ulungelelwaniso lovavanyo lodidi, uhlalutyo lokungaphumeleli, ulawulo lwesatifikethi
Ubunjineli besicelo	Iinjineli ezisi-8	Ukwakhiwa koyilo lombane, ulawulo lokukhanyisa, iinkqubo zeHVAC, ulawulo lwamandla	Inkxaso yobugcisa bomthengi, uyilo lwesikimu, ukugunyaziswa
Ukuqinisekisa umgangatho	25 amagcisa	ISO 9001, ISO 14001, ulawulo lwenkqubo yamanani, ilebhu ye-metrology	Uphicotho lwababoneleli, uphicotho lwenkqubo, inyathelo lokulungisa

Iziqinisekiso kunye noXwebhu lokuThobela

Isiqinisekiso	Umzimba okhuphayo	Ububanzi	Ukunyaniseka
ISO 9001:2015	ZHONGDA HUAYUAN	Inkqubo yolawulo lomgangatho	Uhlolo lonyaka
IEC 61095:2023 Uhlobo lovavanyo	VDE	Ukusebenza komnxibelelanisi wasekhaya	Ngoluhlu lwemveliso
CE Ukumakishwa	Ibhodi eyazisiweyo	Ukufikelela kwimarike ye-EU	Kuxhomekeke kuyilo
Isiqinisekiso se-VDE	VDE Testing Institute	Ileyibhile yomgangatho waseJamani	Ngoluhlu lwemveliso
I-CCC (eTshayina)	CQC	isiqinisekiso esisisinyanzelo saseTshayina	Ukuqinisekiswa kweminyaka emi-5
Inkqubo yeCB	IECEE	Izatifikethi zamazwe ngamazwe	Ngoluhlu lwemveliso

Kutheni uMveliso wethu weModyuli woQhagamshelwano umi ngokwahlukileyo

Indawo yethu yemveliso imele iminyaka eyi-15 yobungcali ekwakheni abafowunelwa be-automation, ukuhambisa abafowunelwa beemodyuli ezidlula imigangatho yehlabathi ngoku:

Ubunkokeli obuthe cwaka bobuchwephesha: Uyilo lwekhoyili ye-AC/DC yendalo yonke enokutshintsha kwe-elektroniki, ukuphumeza ukusebenza kwe-<30dB-ilungele indawo yokuhlala engavaliyo ingxolo kunye nokwamkela iindwendwe

Ukuhlanganiswa ngokuthe nkqo: Isitampu sesiseko se-laminated yangaphakathi, i-coil winding ne-vacuum impregnation, kunye nokubumba kwezindlu ze-thermoplastic eziqinisekisa ulawulo olupheleleyo lomgangatho kunye nokwenza ngokwezifiso ngokukhawuleza

Ukuthotyelwa kwe-IEC 61095:2023: Ukwamkelwa kwangoko komgangatho wamva nje kubandakanya udidi lokukhanyisa lwe-AC-7d lwe-LED, ukomelezwa kokhuseleko lwe-EMC, kunye neemfuno zokuleyibheli ezihlaziyiweyo.

Uvavanyo lweziseko zophuhliso: $2M+ ityale imali kuvavanyo oluzenzekelayo kubandakanya i-100,000 yomjikelo woqinisekiso lonyamezelo lomatshini, uvavanyo lwe-EMC lokugonyeka, kunye nokulinganisa okusingqongileyo.

Isakhiwo esihlakaniphile silungile: Abafowunelwa abanikwe amandla yi-IoT ngemitha yamandla, ulawulo olukude, kunye ne-BACnet/Modbus udibaniso lweenkqubo zolawulo lwezakhiwo zanamhlanje.

CDADA yi Umnxibelelanisi weModyuli umenzi kunye nomthengisi e China. Umzi-mveliso wethu usebenza kumashishini ahlukeneyo afana neenkqubo zamandla, i-automation yokwakha, kunye nokuveliswa kwemizi-mveliso, ukubonelela ngezisombululo ze-OEM / ODM eziguquguqukayo.

Iingcebiso zeNdaba
