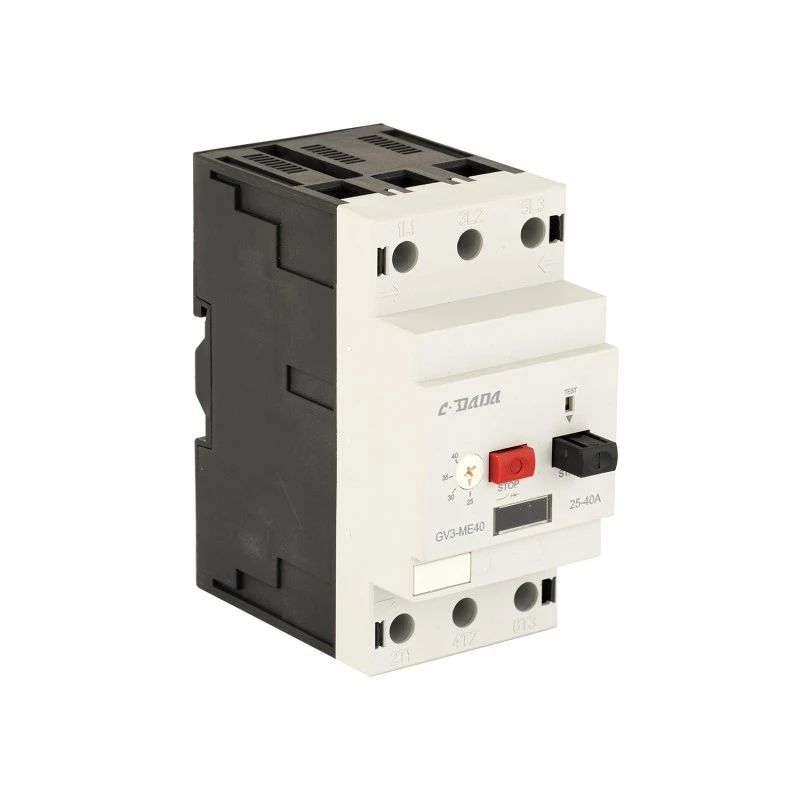

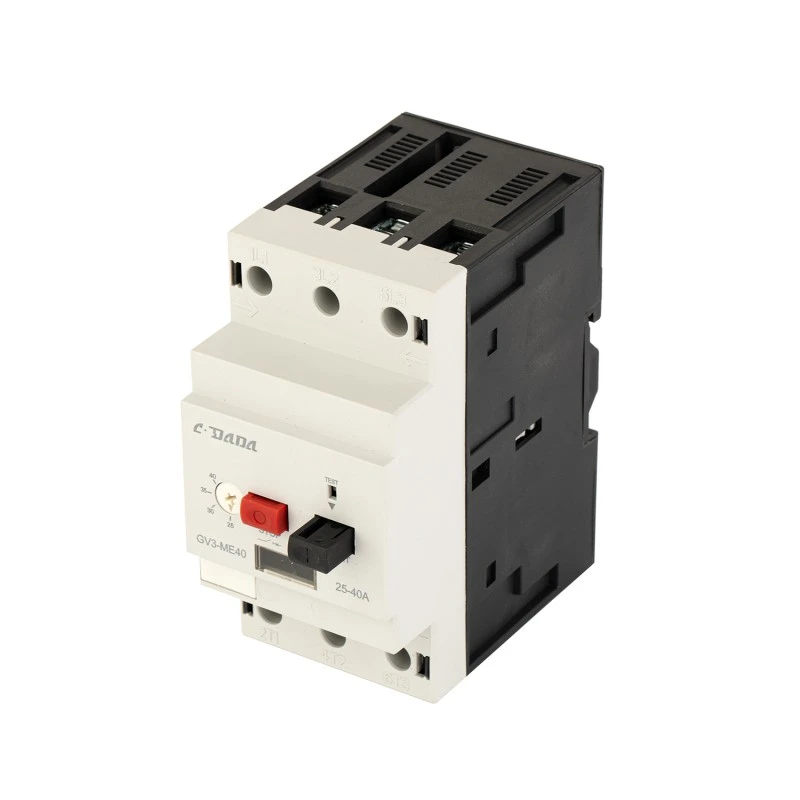

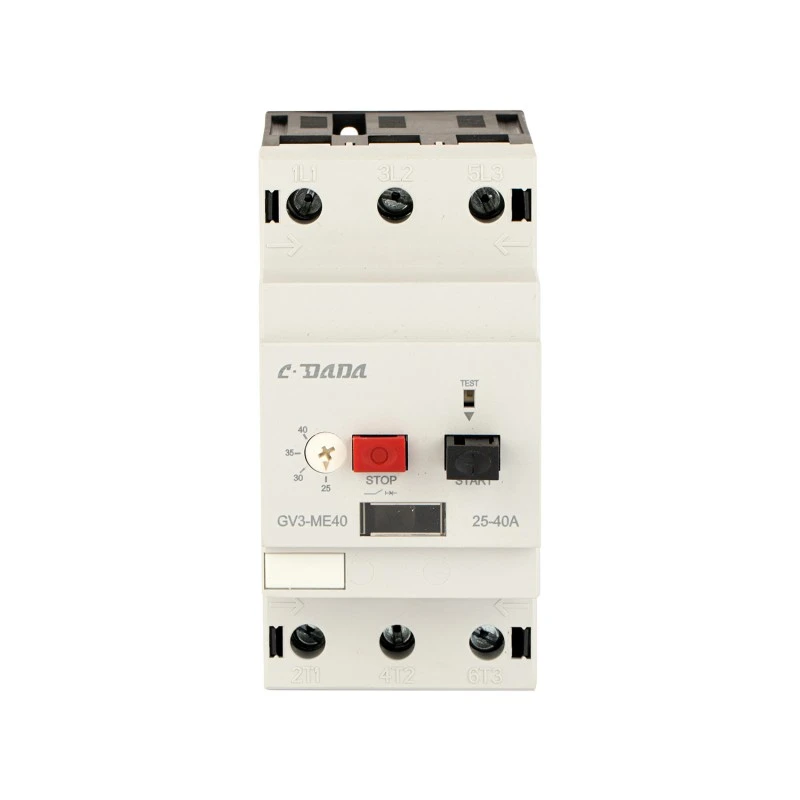

I-GV3 80A yoKhuseleko lweMoto iSaphuli seSekethe

Qinisekisa ukhuseleko lwemoto oluthembekileyo kunye ne-CDADA GV3 80A Motor Protection Circuit Breaker, inxalenye ye-GV2 GV3 series ephezulu eyilwe yi-Shanghai DADA Electric CO., LTD. Eyenziwe kwiqonga letekhnoloji yesizukulwana esilandelayo kusetyenziswa imveliso ezenzekelayo ngokupheleleyo kunye nezixhobo zokuvavanya, le moto yokukhusela i-motor circuit breaker (MPCB) inikezela ngokhuseleko olubanzi lweemotor kwiindawo ezifunayo zoshishino.

Ngokusetwa koluhlu lwangoku lwe-25A ukuya kwi-80A, lubonelela ngokukhuselwa kwe-thermal overload, ukukhuselwa kwexesha elifutshane, ukufumanisa ukulahleka kwesigaba, kunye nomsebenzi wokuzihlukanisa-zonke zihlanganiswe kwisixhobo esinye esinamandla. Iqinisekisiwe kwimigangatho ye-CE, ebonisa i-voltage ye-insulation elinganisiweyo ye-690V kwaye ikwazi ukusebenza nge-110,000 yokusebenza koomatshini kunye nombane, i-GV3 MPCB ifanelekile kwizicelo ezinjengeempompo, iifeni, ii-compressor, abahambisi, kunye neenkqubo ze-HVAC. Imbuyekezo yobushushu bayo iqinisekisa ukusebenza okuthe gqolo kuzo zonke iimeko zendawo eyohlukeneyo, ngelixa izincedisi ezizikhethelayo ezinje ngabancedisi abafowunelwa, ukukhutshwa kwe-undervoltage, kunye ne-shunt trip ziphucula ukusebenza nokhuseleko.

IiNgcaciso eziphambili

Series Model: GV3 MPCB 80A

Uphawu: CDADA | Umenzi: Shanghai DADA Electric CO.,LTD

Isiqinisekiso: CE

Ukumisela uluhlu lwangoku: 25A - 80A (ukulungiswa ngokucofa)

Ukukala kweSakhelo: 80A

Ixabiso lombane wokuSebenza: 690V AC

I-Rated Insulation Voltage (Ui): 690V

I-Impulse Withstand Voltage (Uimp): 6000V

Izakhelo zokuSebenza: 50/60Hz

IKlasi yohambo: 10A (esemgangathweni weenjini zenjongo jikelele)

Imisebenzi yoKhuseleko:

★ Ukhuseleko lokugcwala kweThermal

★ Ukhuseleko lwesiphaluka esifutshane

★ ukhuseleko lwenqanaba lelahleko

★ Umsebenzi wokwahlula (ikhefu elibonakalayo)

★ Imbuyekezo yobushushu eyakhelweyo

Ubomi boomatshini: Ukusebenza kwe-110,000

Ubomi boMbane (AC-3, 400V): 110,000 imisebenzi

Ukuqinisa iTorque: 1.7 N · m

Uhlobo lokuSebenza: Iqhosha lokucofa ON/OFF kunye nesalathisi esicacileyo sohambo

Ukunyuka: 35mm DIN kaloliwe

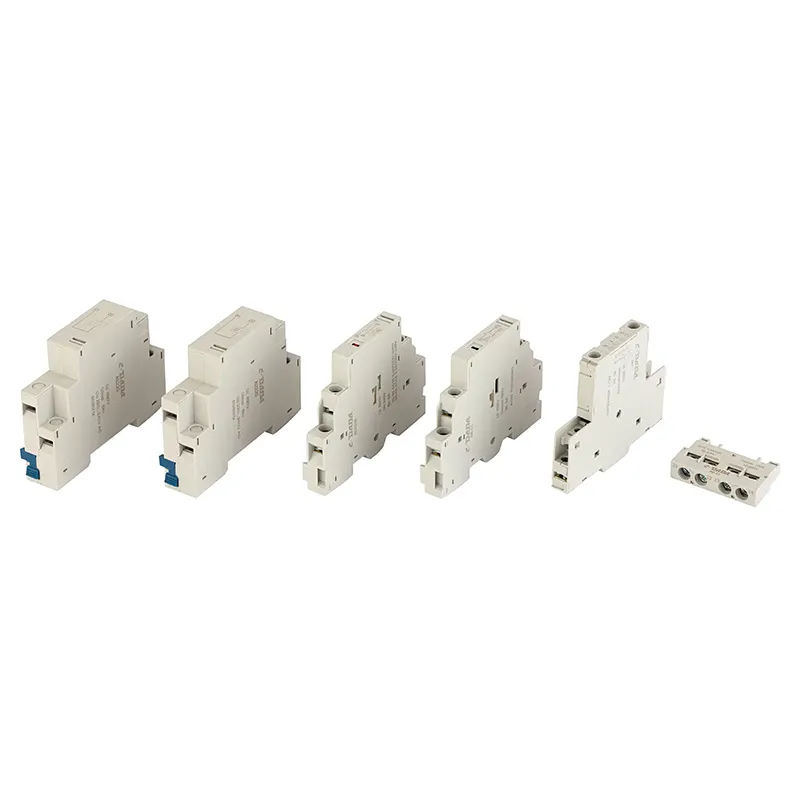

Izincedisi:

I-AE phambili yoqhagamshelwano oluncedisayo

Uqhagamshelwano oluncedisayo olusecaleni

Ukukhutshwa kwe-AU undervoltage

AS ukukhululwa kwe-shunt

Ubungakanani boMda

Kutheni Khetha i-CDADA GV3 80A yoKhuseleko lweMoto iSaphuli seSekethe?

★ Ukhuseleko oluBanzi

Idibanisa isaphuli sesekethe + i-thermal overload relay + isolator kwisixhobo esinye-inciphisa indawo yephaneli kunye nobunzima beingcingo.

★ Ukuqina okuphezulu kunye nokuthembeka

Imijikelezo ye-110,000 yomatshini / yombane iqinisekisa ukusebenza okuhlala ixesha elide naphantsi kweemeko ezinzima.

★ Imbuyekezo yoBuqondo

Imbuyekezo ye-thermal eyakhelwe-ngaphakathi iqinisekisa ukuhamba okuchanekileyo kungakhathaliseki ukuhluka kweqondo lokushisa.

★ Uyilo olugcina isithuba

Uyilo olunyusiweyo lwe-DIN kaloliwe luyenza ilungele iiphaneli zolawulo lwamashishini kunye noomatshini be-OEM apho isithuba siphezulu.

★ Full Accessory Ecosystem

Ixhasa i-AE (umncedisi ohamba phambili), i-AN (i-axiliary side), i-AU (ukukhululwa kwe-undervoltage), i-AS (uhambo lwe-shunt) -ivumela ukubonakaliswa okude, ukuvala ngokuzenzekelayo, okanye ukudibanisa kwe-PLC.

★ Ukuthotyelwa kweHlabathi

I-CE iqinisekiswe nge-690V yokukala-ifanele iimarike zamazwe ngamazwe kuquka iYurophu, i-Asia, i-Afrika kunye ne-Latin America.

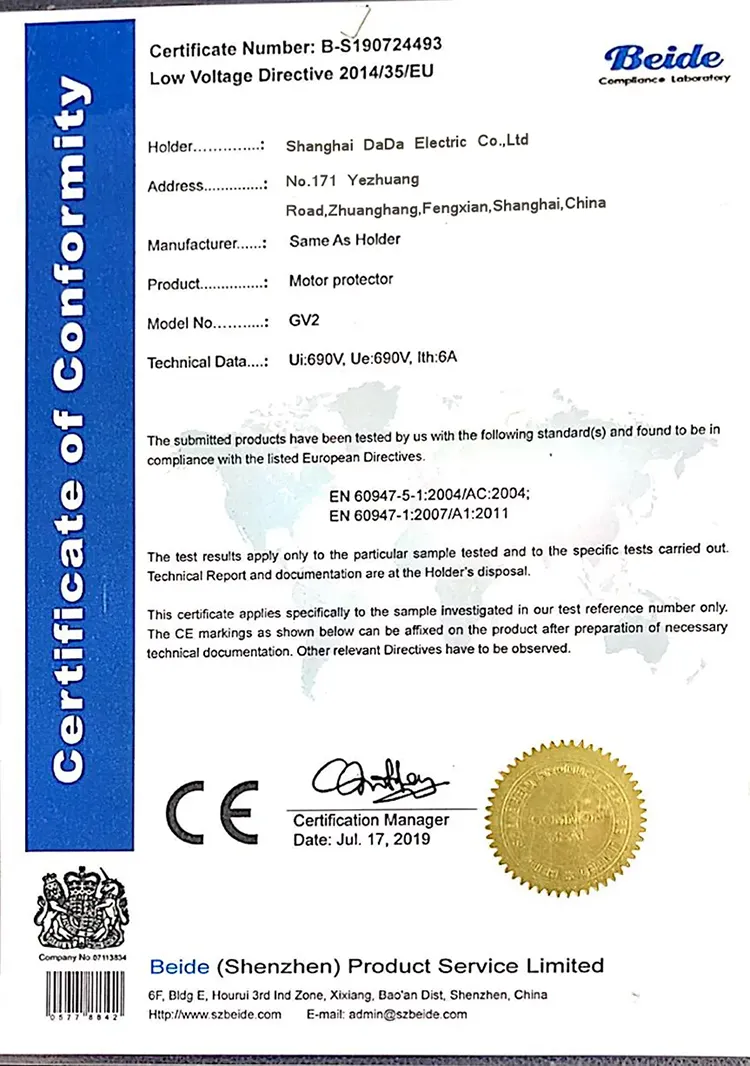

★ iifektri zethu ziphumelele uphicotho-zincwadi zii-arhente ezidumileyo zeqela lesithathu ezifana neSGS/Intertek/TUV/KEMA. Iingxelo zophicotho ziyafumaneka kumaqabane afanelekileyo.

Usetyenziso oluqhelekileyo

IiMoto zoShishino: Iimpompo, iifeni, iicompressors, abahambisi

Iinkqubo ze-HVAC: Iziqhumiso ezinkulu, iiyunithi zokungenisa umoya

Oomatshini be-OEM: oomatshini bokupakisha, izixhobo zokulungisa ukutya

I-Automation yokwakha: Abancedisi be-Elevator, ulawulo olukhulu lokungenisa umoya

IiProjekthi ze-Retrofit: Ukutshintsha i-fuses + ii-thermal relays kunye ne-MPCB edibeneyo

Imibuzo ebuzwa qho

I-Q1: Uthini umahluko phakathi kwe-GV2 kunye ne-GV3 80A yoKhuseleko lweMoto yeSekethe Breakers?

I-A1: Uluhlu lwe-GV3 lwenzelwe ukulinganisa okuphezulu kwangoku (ukuya kwi-80A), kanti uchungechunge lwe-GV2 lugubungela imisinga ephantsi (ukuya kwi-32A). I-GV3 ilungele iinjini ezinkulu kunye nemithwalo enzima.

I-Q2: Ngaba ndingasebenzisa i-GV3 MPCB kwiinjini zesigaba esinye?

A2: Ewe, kodwa ngokuyintloko yenzelwe iimotor zesigaba sesithathu. Ukusetyenziswa kwenqanaba elinye, qwalasela uthotho lwe-GV2 olulungiselelwe ngakumbi iinjini ezincinci.

I-Q3: Ngaba i-GV3 MPCB inembuyekezo yeqondo lokushisa eyakhelwe-ngaphakathi?

A3: Ewe! I-Thermal overload mechanism ibandakanya imbuyekezo yeqondo lobushushu, iqinisekisa ukusebenza ngokungaguquguqukiyo kuluhlu olubanzi lwamaqondo obushushu akwi-ambient-ukusuka kumagumbi okugcina abandayo ukuya kwimizi-mveliso eshushu.

I-Q4: Mingaphi imisebenzi enokwenziwa yi-GV3 phambi kokuba ifune ukutshintshwa?

I-A4: Ubomi bomatshini bulinganiswe kwimisebenzi ye-110,000, kunye nobomi bombane (AC-3, 400V) nayo i-110,000 imisebenzi-oyenza ibe yinto ehlala ixesha elide ukwenzela ukuba isetyenziswe ngokuqhubekayo kwizicwangciso zoshishino.

Q5: Kutheni ukhetha CDADA GV3 ngaphezu kwezinye iibrendi?

A5: CDADA inikeza:

● I-automation ephezulu kwimveliso → umgangatho ophezulu kunye nokuhambelana

● Isatifikethi se-CE esomeleleyo esineengxelo zovavanyo ezineenkcukacha

● Uluhlu olubanzi lwezincedisi (AE/AN/AU/AS) zokuphucula ukusebenza

● Amaxabiso akhuphisanayo ngaphandle kokulalanisa kumgangatho

● Ukuhanjiswa ngokukhawuleza kunye nenkxaso yobugcisa kwii-OEMs kunye nabasasazi
