I-Durable Case Molded Case Breaker Factory
CDADAngumvelisi oyingcali kunye nomthengisi we-Molded Case Circuit Breakers. Olu ngcelele lweemveliso lwenza enye yezinto esizinikezelayo ezingundoqo, ezixhaswa yiminyaka engama-40 yamava asukela emva ekuqaleni kwethu. Ngoluhlu olubanzi lweemodeli ezihambelana nemigangatho emininzi, abathengi behlabathi banokukhetha iimveliso zethu ngokuzithemba okupheleleyo.
Yintoni iCase Molded Circuit Breaker?
A I-Molded Case Circuit Breaker (MCCB)sisixhobo esidityanisiweyo, esivaliweyo sokukhusela i-voltage ephantsi eyenzelwe ukukhusela iinkqubo zokuhambisa umbane ekugqithiseni, kwiisekethe ezimfutshane, kunye neziphene zomhlaba. Ifakwe ngaphakathi aizindlu zeplastiki ze-thermosetting, ii-MCCBs zisebenza kwii-voltages ezilinganisiweyo ukuya kuthi ga690V AC (50/60Hz)ngokulinganisa kwangoku ukusuka kwi10A ukuya ku-2000A, esebenza njengesixhobo sokukhusela ihashe lomsebenzi kuwo wonke ushishino, urhwebo, kunye nosetyenziso lweziseko zophuhliso.
Uphawu oluchazayo lwe-MCCBs lulele kuboukwakhiwa kwetyala elibunjiweyo-i-high-high-power thermosetting enclosure yeplastiki enika i-Class II insulation (insulation double) phakathi kwamacandelo angaphakathi aphilayo kunye ne-interface yokusebenza yangaphandle. Olu yilo luqinisekisa ukhuseleko lwabaqhubi ngelixa ugcina imilinganiselo ehlangeneyo kunye namandla aphezulu okuqhawula ukuya kuthi ga100kA ku-380/415V.
NgokungafaniyoIzaphuli-mthetho zeSekethe yoMoya (ACBs), i-MCCBs ibonakalisauyilo oluzinzileyo, olungagcinekiyo(kwiimeko ezininzi) kunye neendlela zangaphakathi ezitywiniweyo, ezinikezela ngokhuseleko olungabizi kakhulu kwiisekethe zokusasazwa kwesibini apho ukufikelela rhoqo kulondolozo kungafuneki.
Iindidi zeeMveliso ze-MCCB kunye noLungiselelo
| Ukuhlelwa | Uhlobo | Uluhlu lwangoku | Iimpawu eziphambili |
| Trip Unit Technology | I-Thermal-Magnetic | 10A - 800A | I-Bimetallic overload + i-short-circuit yamagnetic, iisetingi ezisisigxina / ezihlengahlengiswayo, ezinoqoqosho |
| I-Electronic LSIG | 100A - 2000A | I-Microprocessor-based, i-curves ehlengahlengiswayo, iyakwazi ukunxibelelana, ukhuseleko oluchanekileyo | |
| Indlela yokuFakela | Ilungisiwe | 10A - 2000A | Uqhagamshelo lwebhasi ethe ngqo, ukufakwa ngokusisigxina, ixabiso eliphantsi |
| Faka iplagi | 100A - 1600A | Umzimba oxhonywe kwisiseko, ukurhoxiswa ukugcinwa, ukunciphisa ixesha lokuphumla | |
| Iyarhoxiswa | 250A - 2000A | Indlela yokutsala, amandla okuzahlula ngokupheleleyo, izivalo zokhuseleko | |
| Uqwalaselo lwePali | 2-Ipali | 10A - 800A | Iinkqubo zesigaba esinye, izicelo zeDC |
| 3-Ipali | 10A - 2000A | Usetyenziso olusemgangathweni lwesigaba sesithathu semizi-mveliso | |
| 4-Ipali | 16A - 2000A | Inqanaba lesithathu kunye nokukhuselwa okungathathi hlangothi, izicwangciso zokungathathi hlangothi ezilungelelanisiweyo (50-100%) | |
| Ukwaphulwa kweSakhono | Umgangatho (S1) | 16kA – 50kA | Ukuhanjiswa ngokubanzi, uthungelwano lwenqanaba eliphantsi leempazamo |
| Phezulu (H1) | 65kA – 85kA | Imiba yoshishino, amaziko olawulo lweemoto | |
| Phezulu kakhulu (H2/H3) | 100kA – 200kA | Ukuveliswa kwamandla, ishishini elinzima, iziseko zophuhliso | |
| ICandelo lokukhetha | Udidi A | ≤400A | Akukho kulibaziseka kwexesha elifutshane ngabom, uhambo olukhawulezileyo |
| Udidi B | ≥400A | Ukumelana kwexesha elifutshane (Icw), ulungelelwaniso olukhethiweyo kunye nokulibaziseka |
Ubungakanani beSakhelo soYilo:
Isakhelo esiChwethekileyo: 10A - 160A (Ukufakwa kwePanelboard, umzila kaloliwe weDIN uyahambelana)
Isakhelo esiPhakathi: 160A - 630A (Ukhuseleko lweeMoto, iibhodi zokuhambisa)
Isakhelo esikhulu: 630A - 1600A (Usasazo oluphambili, iinkqubo zebhasi)
Isakhelo seMaxi: 1600A – 2000A (Iziseko zophuhliso, ukwenziwa kwamandla)
Imisebenzi enguNdoqo kunye neZakhono zoKhuselo
ImiSebenzi yoKhuselo oluSisiseko
| Umsebenzi | Inkqubo | Iiparamitha zobuGcisa |
| uKhuseleko lomthwalo ogqithisiweyo (L) | Bimetallic strip ukwanda thermal | 0.7 – 1.0 × Kwisetingi, ijika lexesha eliguqukileyo, 40°C ireference ambient |
| ISekethe emfutshane ngoko nangoko (I) | Electromagnetic solenoid plunger | Fixed: 5-10 × In, Adjustable: 2-15 × In, <20ms operation |
| Ulibaziso lweSekethe emfutshane (S) | Isekethe yexesha le-elektroniki | 0.1s - 0.5s ukulibaziseka, 2-10 × Kwilungiselelo, ulungelelwaniso olukhethiweyo |
| Impazamo ephantsi (G) | Vector sum ivamring yangoku | 20-100% ye-In, 0.1s-1.0s ukulibaziseka, ibhalansi engundoqo okanye indlela eshiyekileyo |
| Unyino lwangoku | Inkqubo yoqhagamshelwano yesantya esiphezulu | <10ms ixesha lokuvula (≤630A), <15ms (≤1600A), ukuvumela ngokunciphisa amandla |
| Ukukhutshwa kwe-Undervoltage | Ikhoyili yokuva amandla ombane | I-35-70% i-Un tripping, i-0.1s-3s ukulibaziseka okulungelelanisiweyo |
Iimpawu zeYunithi yoHambo lwe-Eletroniki oluPhambili
Ukukhutshwa kwangoku kwe-microprocessor-based ibonelela:
Imvakalelo yokwenyani yeRMS: Umlinganiselo ochanekileyo weeforms ezigqwethekileyo zamaza
I-I-Zone Selective Interlocking (ZSI): Ibhasi kunye nolungelelwaniso lwesixhobo esingenayo
Iiprothokholi zonxibelelwano: I-Modbus, i-Profibus, i-Ethernet / IP, ukuhlanganiswa kwe-BACnet
Ukujongwa komgangatho wamandla: I-voltage, yangoku, into yamandla, i-harmonics, ukulinganisa amandla
Ugcino oluqikelelweyo: Isalathiso sokunxiba soqhagamshelwano, ikhawuntari yokusebenza, ukujonga ubushushu
Ubume beSicelo kunye neemeko zokuSetyenziswa
| Icandelo loShishino | Isicelo esikhethekileyo | Iimpawu eziqhelekileyo |
| Izakhiwo zorhwebo | Iibhodi zokusasaza eziphambili, iipaneli zepaneli, ukulinganisa iimitha zabaqeshi | I-125A-800A, i-thermal-magnetic, i-plug-in, i-25-65kA Icu |
| Amaziko eenkcukacha | Ukuhanjiswa kwe-UPS, ukukhuselwa kwe-PDU, i-busbar tap-offs | I-250A-1600A, i-LSIG ye-elektroniki, i-100kA+ Icu, unxibelelwano olusebenzayo |
| Ukuvelisa izityalo | Amaziko olawulo lweemoto, izixhobo zoomatshini, izixhobo zokuwelda | I-63A-630A, i-curves yokukhusela i-motor, umda wangoku, i-65kA Icu |
| I-oyile neGesi | Iirigi zokomba, iindawo zokucoca, amaqonga angaphesheya konxweme | 400A-1600A, iTropicalized (T2), i-corrosion-resistant, 85kA Icu |
| Umoya ovuselelekayo | Iibhokisi zokuhlanganisa i-solar, i-wind turbine switchgear, ukugcinwa kwebhetri | 250A-1250A, 1000V DC ekwaziyo, uluhlu lobushushu olwandisiweyo (-25°C ukuya +70°C) |
| Iziseko zophuhliso | Amandla okutsalwa kweMetro, iinkqubo zemithwalo yesikhululo seenqwelomoya, ukucocwa kwamanzi | 800A-2000A, ukurhoxiswa, ukunyamezela komatshini ophezulu (imijikelo eyi-10,000+) |
| Ukhathalelo lwempilo | Ukuhanjiswa okuphambili kwesibhedlele, izixhobo zokucinga zonyango, amandla kaxakeka | I-400A-1600A, i-4-pole kunye nokukhusela okungathathi hlangothi, ukuhambelana kokudluliselwa kwemithombo emibini |
Inkqubo yokuVelisa kunye nokuhamba komsebenzi weMveliso
Ulandelelwano lweMveliso oluchanekileyo
I-IQC yeMathiriyeli ekrwada → Ukubunjwa kwePlastiki ye-Thermosetting → Ukwenziwa kweNkqubo yoQhagamshelwano → INdibano ye-Arc Chute → Udibaniso lweMechanism → Ufakelo lweYunithi yohambo → INdibano ePhambili → Ulungelelwaniso kunye noVavanyo → iQC yokugqibela → ukuPakisha
Amanqanaba oMveliso abalulekileyo
| Iqonga | Iinkcukacha zeNkqubo | Amanqaku okulawula umgangatho |
| Ukubumba iPlastiki yeThermosetting | I-BMC (I-Bulk Molding Compound) yokubumba inaliti kwi-150-180 ° C, i-1500-3000 yoxinzelelo lwebar, i-60-120s yokunyanga ixesha | Ukunyamezela kwe-Dimensional ± 0.1mm, ukuphela komphezulu we-Ra 1.6, isalathisi sokulandelela> 600V, UL 94 V-0 ukutsha |
| Qhagamshelana System Fabrication | Uqhagamshelo lweSilver-plated copper (i-AgNi 90/10 okanye i-AgCdO), iingalo zoqhagamshelwano ezenziwe ngoomatshini be-CNC, ukugqabhuka kwi-nitrogen emoyeni | Ubunzima beSilver 8-12μm (XRF iqinisekisiwe), ukumelana noqhagamshelwano <100μΩ, ubulukhuni HV 100-150 |
| Arc Chute Construction | Iipleyiti eziqhekezayo zentsimbi (i-ferromagnetic), iigridi ze-ceramic arc, amagumbi e-deionizing, umgijimi we-arc ophuculweyo wejometri. | Ungqinisiso lweMagnetic flux density, amandla edielectric 2.5kV, dimensional consistency ±0.05mm |
| INdibano yeNkqubo yokuSebenza | Iinkqubo zokutshaja zentsimbi yasentwasa-ntwasa, ukwenza ngokukhawuleza/iindlela zokuqhawuka ngokukhawuleza, ukudlula ngaphandle kohambo, imithombo yokugcina amandla | Torque consistency ± 5%, ukunyamezela komatshini imijikelo ye-10,000, amandla ohambo 5-15N |
| Trip Unit Integration | I-Thermal bimetal calibration (Inconel/copper), i-coil yamagnetic, indibano yePCB yombane, inkqubo ye-firmware | Ukuqinisekiswa kwexesha le-curve, ± 10% ukuchaneka kwangoku, ± 20% ukuchaneka kwexesha kwi-2×In |
| INdibano yokugqibela | Ulwakhiwo lwemodyuli, ukuphawulwa kwetorque ye-terminal, ukutywinwa kwezigqubuthelo zohlengahlengiso, ukudityaniswa kwendlela yokuphatha | I-Dielectric ukumelana ne-3kV/1min, ukumelana nokugquma > 100MΩ, ukuqinisekiswa koqhagamshelwano |
IMathiriyeli ekrwada yokuqala kunye neNgcaciso yeCandelo
| Icandelo | Inkcazo yezinto | Imigangatho yababoneleli | Iimpawu eziphambili |
| Izindlu ezibunjiweyo zeCase | I-BMC (i-Bulk Molding Compound) i-DMC-2 okanye i-SMC fiberglass-reinforced polyester | IEC 60664-1, UL 94 V-0 | Isalathiso sokulandela umkhondo>600V, ukumelana nobushushu 180°C, amandla edielectric>15kV/mm |
| Abafowunelwa abaphambili | Electrolytic copper (Cu-ETP) C11000 + Silver-nickel plating (AgNi 90/10) | I-ASTM B152, IEC 60368 | I-Conductivity ≥100% IACS, ukumelana nokhukuliseko lwe-arc, ukuzinza kwe-oxidation |
| Arcing abafowunelwa | I-Silver-tungsten carbide (AgWC 70/30) okanye iCopper-tungsten (CuW 80/20) | I-ASTM B702 | Ukumelana nokukhukuliseka kwe-arc ephezulu, ukuthambekela kwe-welding ephantsi, ukuxhathisa uqhagamshelwano <200μΩ |
| Qhagamshelana noSprings | I-Beryllium yobhedu (CuBe2 C17200) okanye i-Stainless steel 301 | I-ASTM B196, i-ASTM A240 | Ubomi bokudinwa > imijikelo engama-20,000, uxinzelelo loqhagamshelwano olungaguqukiyo 8-12N/mm² |
| Iipleyiti ze-Arc Splitter | Intsimbi epholileyo i-SPCC-SD ene-ceramic coating | JIS G 3141 | Ukungena kwemagneti>2000, ukumelana nobushushu>1000°C, ukusebenza kakuhle kokucinywa kwe-arc |
| Operating Springs | Ioli ye-oyile ye-carbon steel SWOSC-V okanye i-17-7PH insimbi engenasici | JIS G 3560 | Amandla e-Tensile 1800-2000MPa, ukumelana nokuphumla <5% kwiminyaka eyi-20 |
| Izinto zeBimetallic | I-Inconel / i-composite yobhedu (i-ASTM TM2) okanye i-Passivated steel / ubhedu | I-ASTM B388 | Izinga lokuphambuka 0.15-0.25mm/°C, uzinzo ± 3% kwiminyaka engama-20 |
| Izixhobo zombane | IiPCB zodidi lwemizi-mveliso, izinzwa zeHolo-empembelelo, iiprosesa ze-ARM Cortex | IEC 60721-3-3, IEC 61000 | Ukushisa okusebenzayo -25 ° C ukuya +70 ° C, i-EMC immunity Level 3 |
| Izikhululo | T2 ubhedu (C11000) kunye ne-tin okanye i-nickel plating | I-ASTM B187 | Uxinzelelo lwangoku 1.2-1.5 A/mm², torque ukumelana 15-50Nm |
UkuThotyelwa kweMigangatho kunye neeProtokholi zoVavanyo
Isakhelo seMigangatho yeHlabathi
| Umgangatho | Ububanzi | Amanqaku asebenzayo |
| IEC 60947-2 | I-low-voltage switchgear - I-Circuit-breakers | Isiseko sehlabathi soyilo lwe-MCCB, ukusebenza, uvavanyo |
| EN 60947-2 | Uguqulelo olulungelelanisiweyo lwaseYurophu | Ukumakishwa kwe-CE, ukuthotyelwa kwemarike ye-EU |
| I-I-GB/T 14048.2 | Umgangatho wesizwe waseTshayina ulingana | Isiqinisekiso seCCC, imakethi yaseTshayina |
Iimvavanyo zoHlobo oluSinyanzelo (IEC 60947-2)
| Uluhlu lovavanyo | Uvavanyo oluthile | Iinqobo zokwamkeleka |
| Ukusebenza kweDielectric | Ukuqina kwamandla ombane (2kV-3kV/1min) | Akukho kuphazamiseka, akukho flashover, ukuvuza okwangoku <2mA |
| Impembelelo yombane yokumelana (8kV 1.2/50μs) | Akukho kukhutshwa kokuphazamiseka | |
| Ukunyuka kobushushu | Uqhubekeko lwangoku kwireyithwe kwi | Itheminali ≤80K (isiliva-icwecwe), ≤65K (ubhedu olungenanto), ikesi ≤40K |
| Ukuqhawulwa kweSekethe emfutshane | Umthamo wokugqibela wokuqhawula (Icu) - imisebenzi emi-3 | Ukuphazamiseka okuphumelelayo, akukho monakalo osisigxina, ukubuyiswa kwe-dielectric |
| Umthamo wokophulwa kwenkonzo (Ics = 50-100% Icu) | Imisebenzi ye-3, ukuqhubeka kwenkonzo, ukunxitywa koqhagamshelwano <50% | |
| Ukumelana nexesha elifutshane | I-Icw ye-0.5s okanye 1s (Udidi B kuphela) | Akukho deformation, contact welding, okanye umonakalo insulation |
| Ukunyamezela ngoomatshini | Akukho mthwalo wemisebenzi (ngokuqhelekileyo imijikelo eyi-8,000-20,000) | <5% iparameter drift, akukho kusilela komatshini, ukuhambelana kwetorque |
| Ukunyamezela koMbane | Layisha imisebenzi kwireyithingi yangoku (ngokuqhelekileyo 1,000-6,000 imijikelo) | Iingubo zoqhagamshelwano <50%, iimpawu zohambo zigcinwe |
| Trip Unit Verification | Ukukhutshwa okugqithisiweyo kwi-1.05 × In (akukho hambo), 1.3 × In (uhambo <2h) | Ukuthotyelwa kwexesha eliqhelekileyo lokuhamba |
| Ukukhutshwa kwexesha elifutshane kwi-5 × In, 10 × In | Ukusebenza kwangoko <0.1s | |
| Unyino lwangoku | Ukuqinisekisa ngokuvumela amandla (I²t). | Incopho yonyino lwangoku, ukuncitshiswa kwamandla xa kuthelekiswa nabalindelekileyo |
Ulawulo loMgangatho weFactory & neMigangatho yokuHlola
Izinto ezingenayo i-QC (IQC)
| Izinto eziphathekayo | Izinto Zokuhlola | Isicwangciso sesampulu | Izixhobo |
| Ikhompawundi yeplastiki yeBMC | Umxholo wefiber yeglasi, i-viscosity, iimpawu zokunyanga | Ngebhetshi nganye, ukuqinisekiswa kwe-COA | I-Rheometer, i-DSC analyzer |
| Abafowunelwa bobhedu | Ukucoceka kweekhemikhali (≥99.9%), ukuqhuba, ubunzima | I-AQL 0.65, ISO 2859 | I-Spectrometer, imitha ye-conductivity |
| Ukucwenga kwesilivere | Ubukhulu be-8-12μm (XRF), ukunamathela (uvavanyo lwe-tape), i-porosity | I-100% ebonakalayo, i-5% i-XRF check | I-X-ray fluorescence, i-metallurgical microscope |
| Imichilo yeBimetallic | Izinga lokuphambuka, ukuzinza, ukuchasana | Ngebhetshi nganye, uvavanyo lwesampulu | I-oven ye-Thermal, ibhulorho yokumelana |
| Amacandelo ensimbi | Ubunzima be-HRC 38-45, ukunyamezela komlinganiselo | I-AQL 1.0 | Rockwell ubulukhuni umvavanyi, CMM |
| Amacandelo e-elektroniki | Uvavanyo lomsebenzi, ukuqinisekiswa kweparameter, ukuthengiselana | 100% AOI, 5% esebenzayo | imitha LCR, oscilloscope, X-ray ukuhlolwa |
Kwinkqubo yoLawulo loMgangatho (IPQC)
| Isitishi | Ulawulo lweeParamitha | Ukuphindaphinda | Indlela |
| Isitofu sokubumba | Ubushushu 150-180 ° C, uxinzelelo 1500-3000 bar, ixesha lokunyanga | Wonke umjikelo | esweni SCADA, iitshathi SPC |
| Indibano yoqhagamshelwano | Umsantsa woqhagamshelwano, uxinzelelo, ulungelelwaniso, ubukhulu besilivere | Zonke iiyunithi ezili-100 | Isilinganisi sokunyanzelisa, isithelekisi sokukhanya, XRF |
| Indibano yeArc chute | Isithuba sepleyiti eqhekezayo, imfezeko yesekethe yemagnethi | Zonke iiyunithi ezingama-50 | I-Go/no-go gauges, i-flux density meter |
| Ulungelelwaniso lweInkqubo | Amandla okuhlawula entwasahlobo, umsebenzi ongahambelaniyo, umsebenzi wokuguqula | Yonke iyunithi | Ibhentshi yovavanyo oluzenzekelayo, iigophe zokufuduka ngenkani |
| Uvavanyo lweyunithi yohambo | Ukuqinisekiswa kwexesha langoku, imbuyekezo ye-ambient | 100% | Iseti yovavanyo olusisiseko (500A-10,000A), ukungena kwedatha |
Kwinkqubo yoLawulo loMgangatho (IPQC)
| Into yovavanyo | Umgangatho | Ubungakanani beSampuli |
| I-Dielectric ukumelana nombane | 2.5kV AC/1min (≤690V ikaliwe) | 100% |
| Ukumelana ne-insulation | >100MΩ @ 500V DC | 100% |
| Ukuchasana noqhagamshelwano | <100μΩ ngepali nganye kwi-rated In | 100% |
| Iimpawu zexesha | Ukuvala / ixesha lokuhamba, ukunyamezela ngomatshini 5 imijikelezo | 100% |
| Uqinisekiso lwegophe lohambo | 1.05×In (akukho hambo), 1.3×In okanye 2.5×In (uhambo) | 100% |
| Ukuhlolwa okubonakalayo kunye nokulinganisa | Iziphene zero kwimilinganiselo ebalulekileyo (umlinganiselo we-IP, ukumakishwa) | 100% |
Izibonelelo zeMveliso kunye nokubanakho ukuVelisa
Izixhobo zoMveliso eziPhezulu
| ICandelo leZixhobo | Ukucaciswa komatshini | Umsebenzi | Umthamo |
| Thermosetting Isitofu Molding | Iitoni ezingama-300 zeBMC zokucofa inaliti (Buhler/Engel) | MCCB case, cover, arc chute imveliso yezindlu | 2,000 iimeko / ngosuku |
| CNC Machining Centre | Iziko lomatshini elithe nkqo eli-5 (Mazak/DMG Mori) | Ukuchaneka koqhagamshelwano ngomatshini, iijiyometri ezintsonkothileyo | 8,000 iiseti zoqhagamshelwano/ngenyanga |
| Isitampu kunye noKwakha | I-100 yeetoni zokushicilela eziqhubekayo | Ukwenziwa kwebhasi yobhedu, ukuveliswa kwemveliso yasentwasahlobo | 15,000 amacandelo / ngosuku |
| Unyango loMphezulu | Umgca wokucwenga wesilivere ozenzekelayo | Qhagamshelana ngokutyabeka ulawulo ubukhulu 8-12μm | 3,000 kg / ngosuku |
| INdibano | Iiseli zendibano zabasebenzi | Indibano yeMechanism, ukuhambelana kwemisebenzi ebalulekileyo | 1,000 iiyunithi / ngosuku ngomgca |
| Izixhobo zokuvavanya | Uvavanyo olusisiseko lwesitofu lusete umthamo we-10,000A | Ukuqinisekiswa kohambo lwangoku, ukurekhoda kwegophe | Iiyunithi ezingama-300 / ngosuku |
| Ibhentshi yovavanyo lokunyamezela ngoomatshini (imijikelo engama-20,000 iyazenzekela) | Uvavanyo lobomi, ukunxiba esweni | Iiyunithi ezili-100 ngaxeshanye | |
| Igumbi lovavanyo lwe-EMC (3m/10m, Teseq/Keysight) | Ukuqinisekiswa kokuhambelana kwe-electromagnetic | Iiyunithi ezingama-50 / ngosuku |
Isakhono seMveliso kunye namaxesha okuKhokela
| Udidi lweMveliso | Ngenyanga Umthamo | Ixesha elimiselweyo lokukhokela | Umyalelo ongxamisekileyo |
| ICompact MCCB (10A-160A) | Iiyunithi ezingama-50,000 | Iiveki ezi-4-5 | Iintsuku ezi-3 (amalungu esitokhwe) |
| I-MCCB ephakathi (160A-630A) | Iiyunithi ezingama-20,000 | Iiveki ezi-4-5 | Iintsuku ezi-5 |
| I-MCCB enkulu (630A-1600A) | 8,000 iiyunithi | Iiveki ezi-4-5 | Iintsuku ezisi-7 |
| I-Maxi MCCB (1600A-2000A) | Iiyunithi ezingama-2,000 | Iiveki ezi-4-6 | Iintsuku ezili-10 |
| Iiyunithi zohambo lwe-elektroniki | 15,000 iiyunithi | Iiveki ezi-4-5 | Iintsuku ezi-3 |
Ubunjineli kunye noLwakhiwo lweQela lobuGcisa
| ISebe | Abasebenzi | Ubungcali | Uxanduva |
| Ubunjineli beR&D | Iinjineli ezi-5 | Iinkqubo zamandla, uyilo lwe-electromagnetic, isoftware efakwe ngaphakathi, isayensi yezinto | Uphuhliso lwemveliso entsha, ukwenza ngokwezifiso, ipotfoliyo yelungelo elilodwa lomenzi wechiza (50+ amalungelo awodwa omenzi wechiza) |
| Ubunjineli beNkqubo | Iinjineli ezingama-20 | Ukubumba i-Thermosetting, ukuchaneka komatshini, ukuzenzekelayo, ukuveliswa kwemveliso | Ukulungiswa komgca wemveliso, amaxwebhu eSOP, ukuphuculwa kwesivuno (> 98%) |
| Uvavanyo kunye noQinisekiso | Iinjineli ezili-15 | Uvavanyo lwamandla aphezulu, ukulinganisa okusingqongileyo, ubunjineli obuthembekileyo, i-EMC | Ulungelelwaniso lovavanyo lodidi, uhlalutyo lokungaphumeleli, ulawulo lwesatifikethi (IEC, UL, CCC) |
| Ubunjineli besicelo | Iinjineli ezili-12 | Ukukhuselwa kwenkqubo yamandla, ulungelelwaniso olukhethiweyo, ukuqala kweemoto, ukuthunyelwa kwentsimi | Inkxaso yobugcisa bomthengi, uyilo lwesikimu, ukugunyaziswa kwendawo |
| Ukuqinisekisa umgangatho | 25 amagcisa | ISO 9001, ISO 14001, IATF 16949, ulawulo lwenkqubo yamanani (SPC) | Uphicotho lwababoneleli, uphicotho lwenkqubo, ulawulo lwentshukumo yokulungisa, ilebhu ye-metrology |
Iziqinisekiso kunye noXwebhu lokuThobela
| Isiqinisekiso | Umzimba okhuphayo | Ububanzi | Ukunyaniseka |
| ISO 9001:2015 | TÜV SÜD / SGS / Bureau Veritas | Inkqubo yolawulo lomgangatho | Uhlolo lonyaka |
| Uvavanyo lodidi lwe-IEC 60947-2 | I-KEMA/DEKRA, i-Entertek | Ukhuseleko lwemveliso kunye nokusebenza | Ngoluhlu lwemveliso |
| I-CCC (eTshayina) | I-CQC (iZiko leSiqinisekiso soMgangatho waseTshayina) | isiqinisekiso esisisinyanzelo saseTshayina | Ukuqinisekiswa kweminyaka emi-5 |
| CE Ukumakishwa | I-Body Intertek eyazisiwe | Ukufikelela kwimarike ye-EU | Kuxhomekeke kuyilo |
Kutheni iMveliso yethu ye-MCCB yahlukile
Indawo yethu yokuvelisa imeleIminyaka engama-40 yobungcalikwimeko ebunjiweyo yokwenziwa kwesaphuli sesekethe, ukuhambisa iimveliso ezidlula imigangatho yehlabathi ngale:
Ukuhlanganiswa ngokuthe nkqo: Ukudityaniswa kwe-BMC yangaphakathi, ukuchaneka koqhakamshelwano, kunye nokuveliswa kweyunithi yohambo lwe-elektroniki kuqinisekisa ulawulo olupheleleyo lomgangatho kunye nokulungiswa kweendleko.
Ubuchwephesha bokubumba obuphezulu: Iitoni ezingama-300 zokucofa inaliti ye-thermosetting ene-automated material handling kunye ne-real-time monitoring process (ukuhlanganiswa kwe-SCADA)
Uvavanyo lweziseko zophuhliso: I-$3M+ ityalwe kwiilabhoratri ezinamandla amakhulu ezikwazi ukuqinisekiswa kwe-200kA yesekethe emfutshane kunye nokulinganisa okupheleleyo kokusingqongileyo
Isicwangciso sesiqinisekiso sehlabathi: Ukuthotyelwa kwemigangatho emininzi kuvumela ukungena kwimarike ngaphandle komthungo kumazwe angama-100+ ngaphandle kovavanyo olungafunekiyo
Ubunakho bokwenza ngokwezifiso: Ukusuka kwiingubo ezikhethekileyo zeTropiki ukuya kwiiprothokholi zonxibelelwano kunye nolungelelwaniso olulodwa, sinobunjineli ngokweenkcukacha zakho.
Kwiinkcukacha zobugcisa, izifundo ezikhethiweyo zokulungelelaniswa, iigophe zokukhusela iimoto, okanye ukucwangciswa kophicotho-zincwadi lwasefektri, iqela lethu lobunjineli libonelela ngokuthethana ngokuthe ngqo ukuqinisekisa ukuba uyilo lwakho lokuhambisa amandla luhlangabezana neemfuno zokhuseleko kunye neenjongo zokuqhubeka nokusebenza.
- View as
Uhlobo oluzinzileyo lweCase Molded Circuit Breaker
Umthombo womgangatho ophezulu kunye nodidi oluphezulu olusisigxina lweCase Molded Circuit Breaker (MCCB) ukusuka eShanghai DADA Electric-certified (CE, CB, ASTA), ukhuseleko lwe-thermal-magnetic, 12.5A-1600A. Ilungele iiphaneli zeshishini kunye nezorhwebo. Easy DIN-kaloliwe okanye panel entabeni. I-OEM kunye nee-odolo ezininzi zamkelekile, khetha i-CDADA njengomthengisi wakho ngokuzithemba.

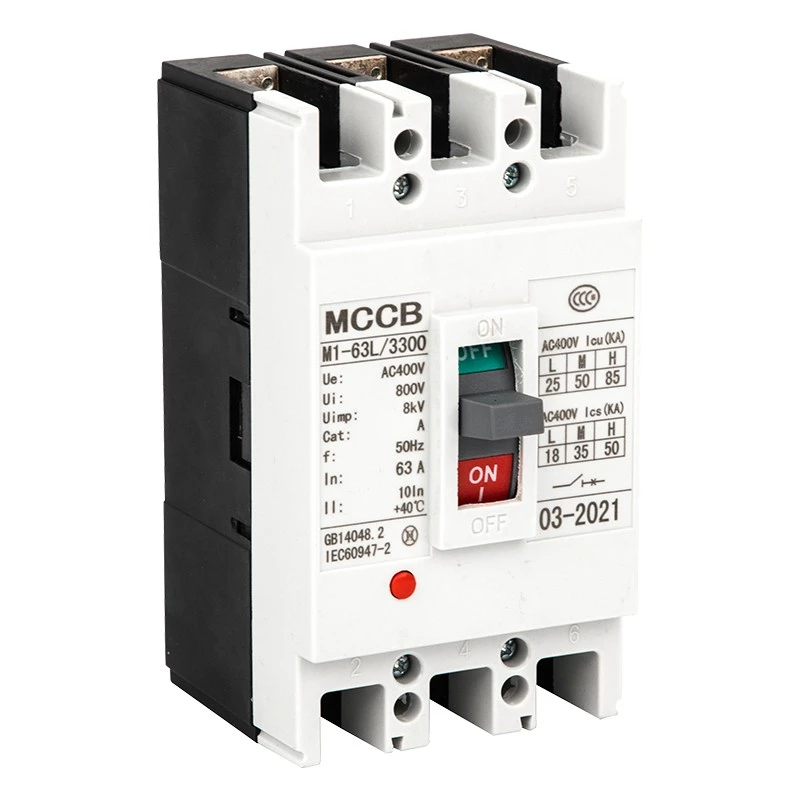

CM1 Molded Case Circuit Breaker
Le CDADA CM1 Molded Case Circuit Breaker (MCCB) yakhelwe ukuthengwa kwezinto ezininzi, kunye ne-IEC60947-2 isatifikethi kunye nokusebenza okuzinzileyo kwiinkqubo zamandla zoshishino. I-CM1 MCCB isebenzisa isakhiwo esinamandla aphezulu kunye neendlela ezithembekileyo zokuhamba, kulula ukuyifaka kunye nokugcina. Idibanisa ukukhuselwa okuhlakaniphile kunye noyilo oluzinzileyo, ukuqinisekisa ubomi benkonzo ende ekuhanjisweni kwamandla kunye nezicelo ezinzima zoshishino.

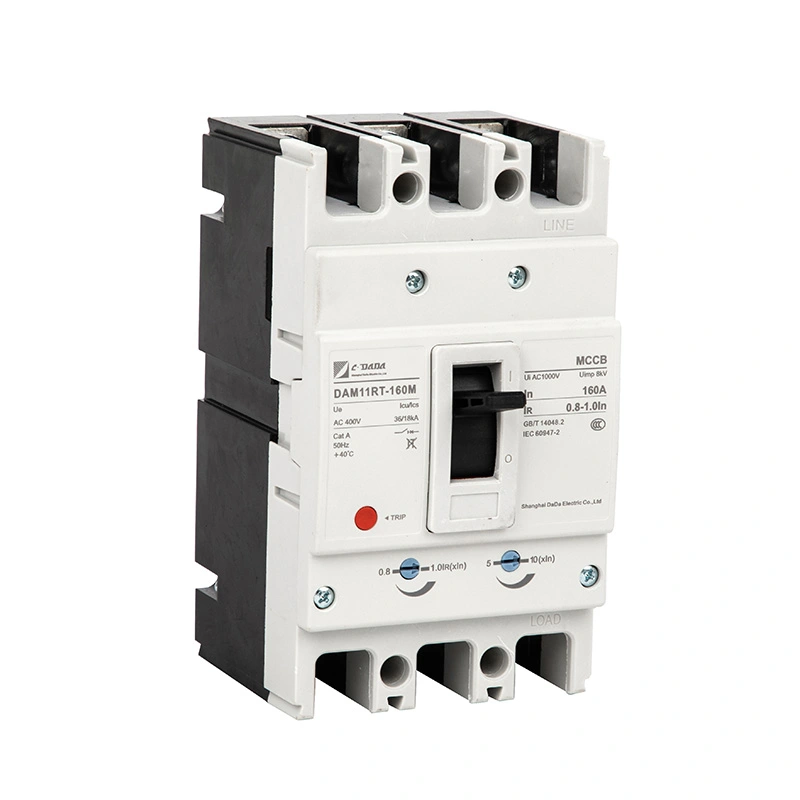

160A Thermal Magnetic Adjustable MCCB
I-CDADA ngumenzi we-160A we-Thermal magnetic adjustable MCCB, imveliso yethu ilungele ukuthengwa kwempahla eninzi, i-high-performance molded case sesekethe breaker eqinisekisiweyo nge-IEC60947-2 yokusasazwa kwamandla oshishino. Le MCCB isebenzisa ubume bomda wangoku kunye nezincedisi zeemodyuli, kulula ukuzifaka nokugcina. Idibanisa ukuhamba okuhlengahlengiswayo kunye noyilo loqhagamshelwano olunelungelo elilodwa lomenzi, ukufezekisa ubomi obude kunye nokukhuselwa kwesekethe okuzinzileyo.

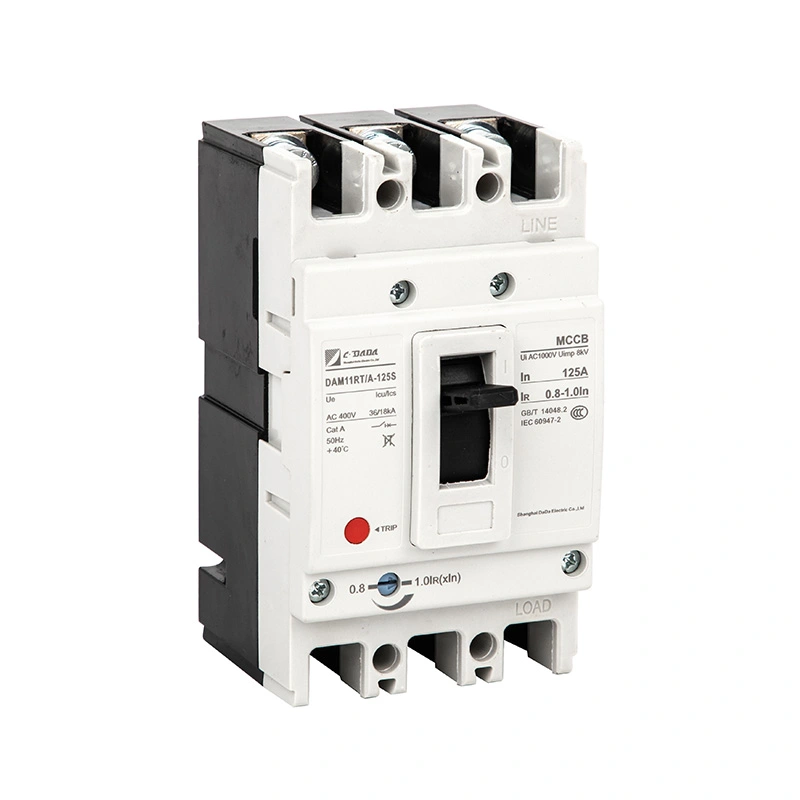

125A Adjustable Moldable Case Circuit Breaker
I-125A i-Adjustable Molded Case Circuit Breaker yenye yeemveliso ze-CDADA, njengefektri yobuchwephesha, imveliso yethu ikwintsebenzo ephezulu kunye nesiqinisekiso se-IEC60947-2 sokuhanjiswa kwamandla okuthembekileyo. Ibonisa uyilo olunyibilikayo lwangoku kunye nezixhobo zemodyuli, kulula ukuyifaka kunye nokugcina. Idibanisa ukuhamba okuhlengahlengiswayo kunye nesakhiwo soqhagamshelwano olunelungelo lobunikazi, ukufezekisa ubomi obude kunye nokukhuselwa okuzinzileyo kwiisekethe zoshishino.

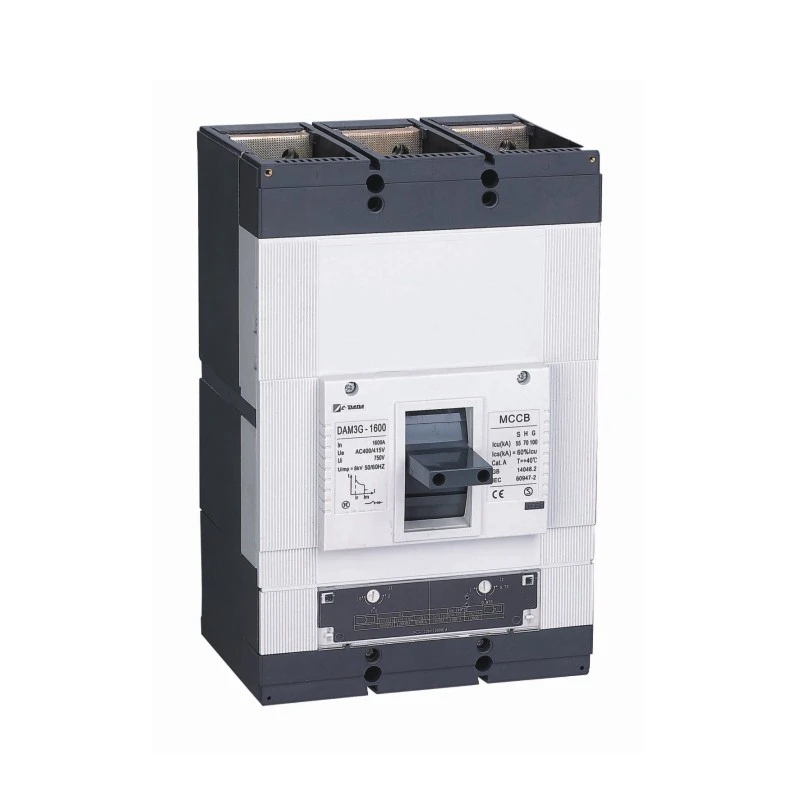

Thermal Magnetic Adjustable MCCB
Umthombo okumgangatho ophezulu we-Thermal Magnetic Adjustable MCCB ovela eShanghai DADA Electric, umenzi oqeqeshiweyo oneminyaka engama-40+ yamava. Imveliso yethu iqinisekisiwe (CE, CB, ASTA), kunye ne-thermal adjustable (70-100% In) kunye ne-magnetic (5-10 × In) izicwangciso. Ilungele ukukhuselwa okuchanekileyo kwiipaneli zoshishino. 250A ukuya ku-1600A, 3P/4P, icompact & iyahambelana nehlabathi jikelele.
Thermal Adjustable Moldable Case Circuit Breaker
Fumana iCDADA DAM1 Series Thermal Adjustable Molded Molded Case Circuit Breaker esuka 贴imveliso ethembekileyo, iShanghai DADA Electric-certified (ASTA, KEMA, CE) kunye nesetingi ezilungelelanisiweyo zokushisa (70-100% In). Ilungele ukhuseleko oluchanekileyo lomthwalo ogqithisiweyo kwizicelo zamashishini. Ifumaneka kwi-3P / 4P ulungelelwaniso ukuya kwi-1600A kwi-400V / 415V. Igqibelele kwii-OEMs kunye nabathengi abaninzi.
CDADA yi I-Case Molded Circuit Breaker umenzi kunye nomthengisi e China. Umzi-mveliso wethu usebenza kumashishini ahlukeneyo afana neenkqubo zamandla, i-automation yokwakha, kunye nokuveliswa kwemizi-mveliso, ukubonelela ngezisombululo ze-OEM / ODM eziguquguqukayo.
