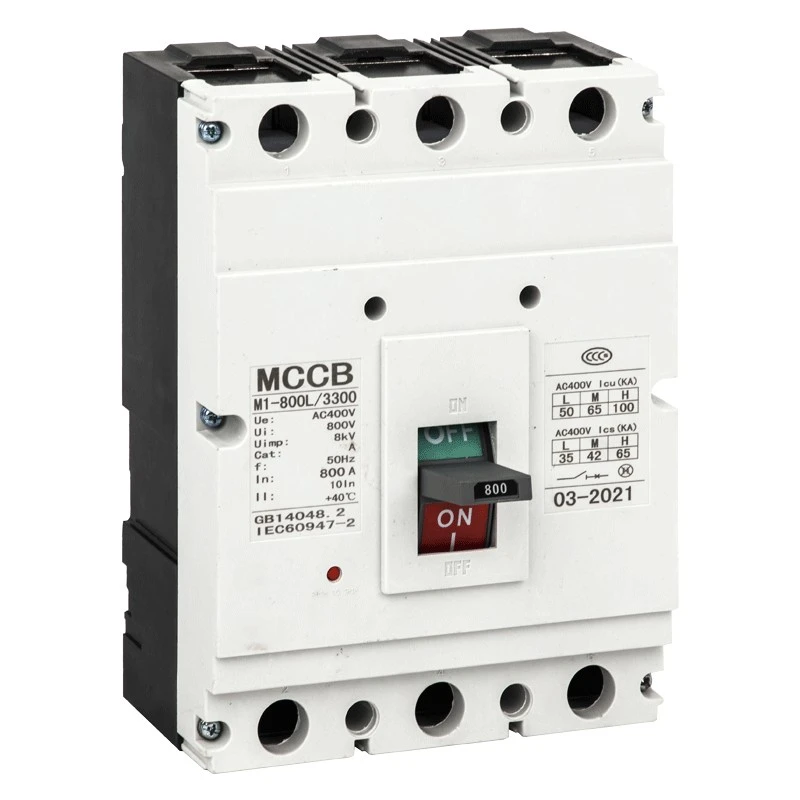

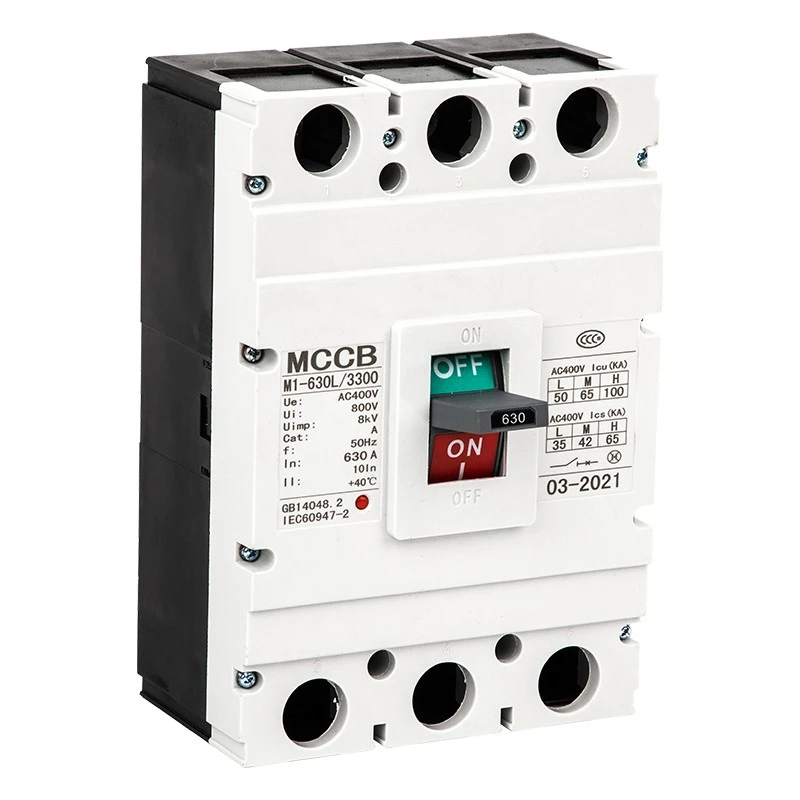

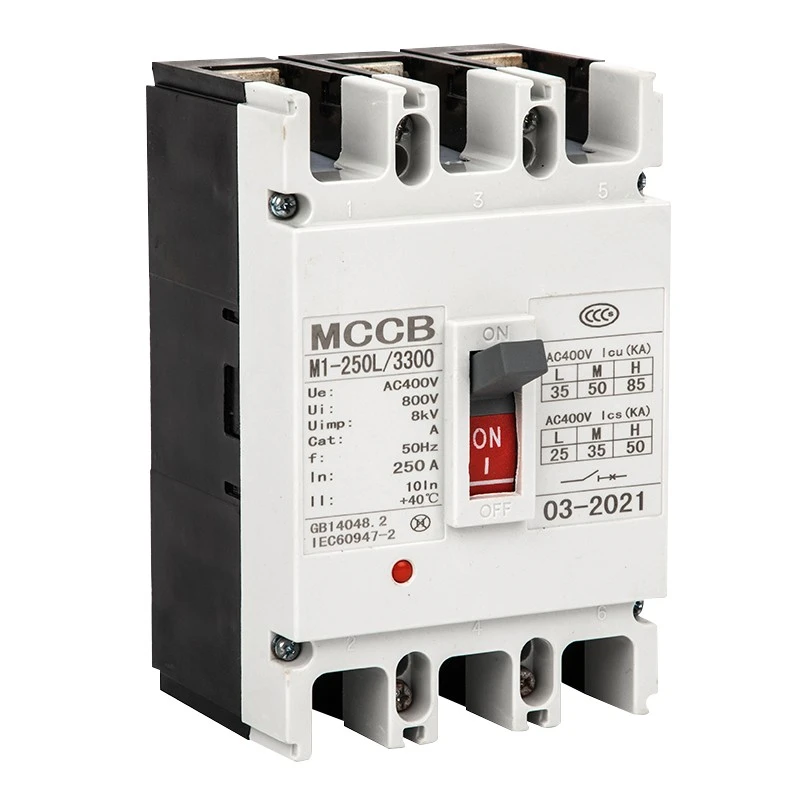

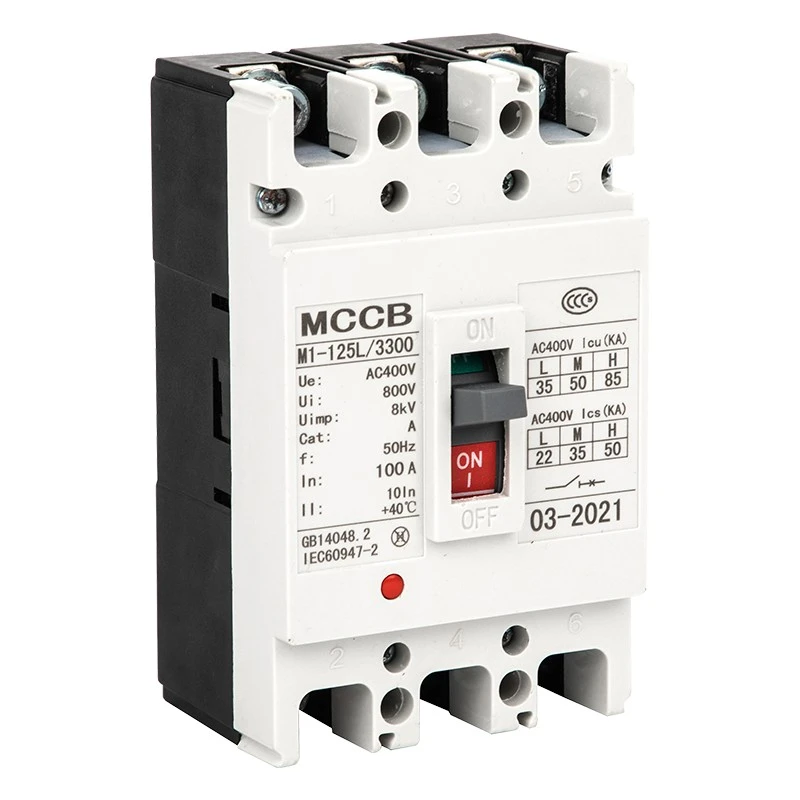

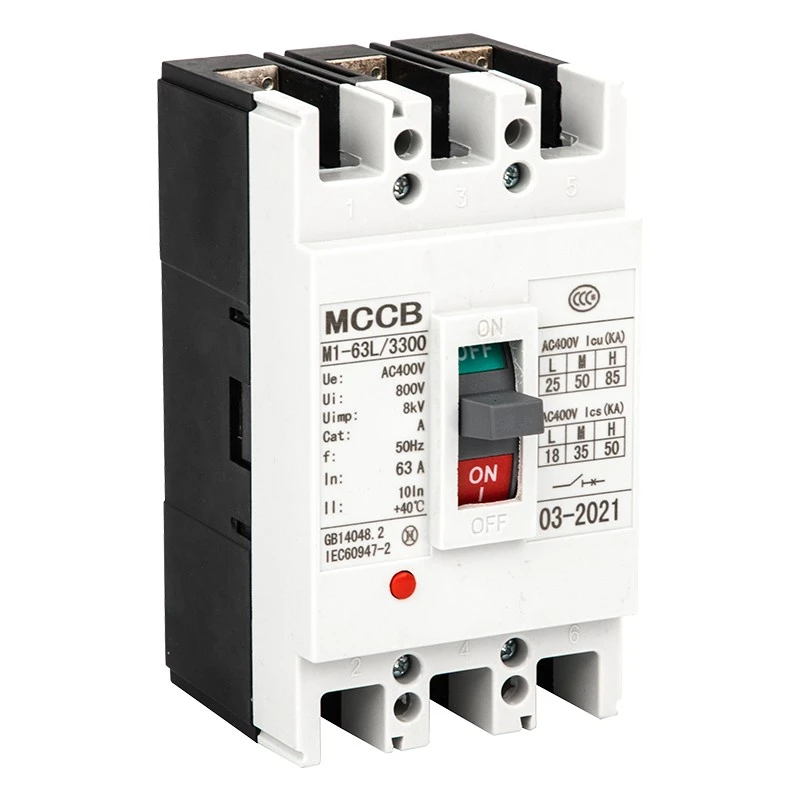

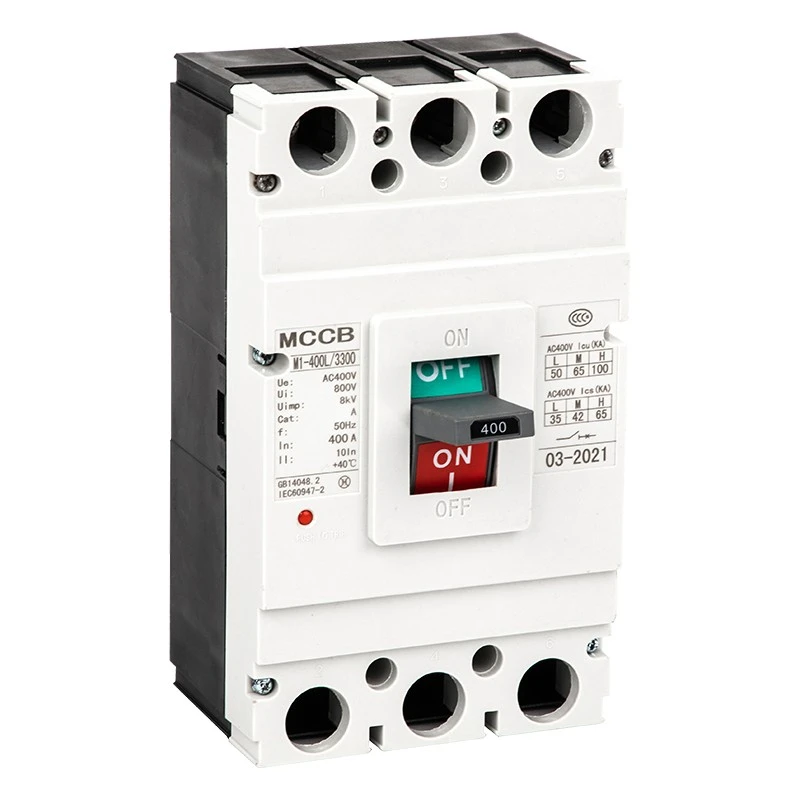

CM1 Molded Case Circuit Breaker
Model:DAM2 (CM1) Series
Le CDADA CM1 Molded Case Circuit Breaker (MCCB) yakhelwe ukuthengwa kwezinto ezininzi, kunye ne-IEC60947-2 isatifikethi kunye nokusebenza okuzinzileyo kwiinkqubo zamandla zoshishino. I-CM1 MCCB isebenzisa isakhiwo esinamandla aphezulu kunye neendlela ezithembekileyo zokuhamba, kulula ukuyifaka kunye nokugcina. Idibanisa ukukhuselwa okuhlakaniphile kunye noyilo oluzinzileyo, ukuqinisekisa ubomi benkonzo ende ekuhanjisweni kwamandla kunye nezicelo ezinzima zoshishino.
Olu chungechunge lwe-DAM2 (CM1) lwe-CM1 Molded Case Circuit Breaker sisixhobo sokukhusela esisezantsi se-voltage esiveliswe yi-Shanghai DADA Electric Co., Ltd., umenzi othembekileyo kunye nomthengisi e-China. Ngombane olinganisiweyo wokugquma ukuya kuthi ga kwi-800V, umbane osebenzayo olinganisiweyo 400V/690V, kwaye ulinganiswe ngoku ukusuka kwi-63A ukuya kwi-1600A, isetyenziselwa ukuhanjiswa kwamandla, ukhuseleko lwesekethe, ulawulo lwemoto kunye nokutshintsha okungaqhelekanga.
Olu chungechunge luxhasa ukufakela ngokuthe nkqo kunye nokuthe tye, kuhambelana nomgangatho we-IEC60947-2, kwaye ibonelela ngokugcwala okupheleleyo, i-short-circuit kunye nokhuseleko olungaphantsi kwe-voltage yezixhobo zamandla.
Iimpawu zeMveliso
★ Umlinganiselo wombane wokugquma: 800V; Umbane osebenzayo: 400V/690V
★ Uluhlu lwangoku: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ Ukuqhawula umthamo: umgangatho we-L, u-M ophakathi, uhlobo lwe-H oluphezulu lokuqhawula
★ I-Thermal-magnetic & electromagnetic iindlela zokukhupha ezimbini
★ Ufakelo oluthe nkqo / oluthe tye, olulungele ukusetyenziswa kwedwa
★ Uluhlu olubanzi lobushushu be-ambient: -5℃~+40℃
★ Umphakamo ≤2000m, iqondo longcoliseko 3
Usetyenziso
I-CDADA CM1 I-Molded Case Circuit Breaker isetyenziswa ngokubanzi kwiinkqubo zokusasaza amandla oshishino kunye noluntu, kubandakanywa neefektri, izakhiwo, amaziko edatha, izikhululo zamandla, iziseko, izixhobo zoomatshini, kunye neekhabhinethi zokuhambisa amandla. Ikwasetyenziselwa ukhuseleko lweemoto, ukuguqulwa kwesekethe, kunye nokunikezelwa kombane ngokukhuselekileyo kulwakhiwo, isinyithi, i-petrochemical kunye namanye amashishini.
Iiparamitha zobuGcisa
★ Imigangatho: IEC60947-2, GB14048.2
★ Ukuphindaphinda: AC 50Hz/60Hz
★ Ipali: 1P, 2P, 3P, 4P
★ Ukukhutshwa: I-Thermal-magnetic (iphindwe kabini), i-electromagnetic (ngoko nangoko)
★ Ukusetwa kwangoko: Uhlobo losasazo 10In±20%; Uhlobo lweMoto 12In±20%
★ Ufakelo: Iingcingo zangaphambili, iingcingo zangasemva, uhlobo lweplagi
★ Ukusebenza: Incwadi, indlela yokusebenza yombane
|
Umzekelo |
Ipali |
Ikalwe ngoku (A) |
Ikaliwe ukusebenza amandla ombane (V) |
Ikaliwe ukugquma amandla ombane (V) |
Ilinganiswe ngowona wokugqibela omfutshane-umthamo wokwaphulwa kwesekethe (Icu) |
I-Flashover umgama (mm) |
||
|
Uvavanyo lombane (V) |
Icu (kA) |
Ics (kA) |
||||||
|
I-DAM2L-63 |
3 |
10, 16, 20, 25, 32, 40, 50, 63 |
400 |
500 |
400×1.10 |
25 |
18 |
0 |
|
I-DAM2M-63 |
3, 4 |
50 |
35 |
|||||
|
I-DAM2L-100 |
3, 4 |
16, 20, 25, 32, 40, 50, 63, 80, 100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
I-DAM2M-100 |
2, 3,4 |
50 |
35 |
|||||
|
I-DAM2H-100 |
3 |
85 |
50 |
|||||
|
I-DAM2L-100 |
3, 4 |
690 |
10 |
5 |
||||
|
I-DAM2M-100 |
2, 3,4 |
20 |
10 |
|||||
|
I-DAM2L-225 |
3, 4 |
100, 125, 140, 160, 180, 200, 225 |
400 |
800 |
35 |
25 |
||
|
I-DAM2M-225 |
2, 3,4 |
50 |
35 |
|||||
|
I-DAM2H-225 |
3 |
85 |
50 |
|||||
|
I-DAM2L-225 |
3, 4 |
690 |
10 |
5 |
||||
|
I-DAM2M-225 |
2, 3,4 |
20 |
10 |
|||||
|
I-DAM2L-400 |
3 |
225, 250, 315, 350,400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
I-DAM2M-400 |
3, 4 |
65 |
42 |
|||||
|
I-DAM2H-400 |
3 |
100 |
65 |
|||||
|
I-DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
I-DAM2M-400 |
3, 4 |
20 |
10 |
|||||
|
I-DAM2L-630 |
3 |
400, 500, 630 |
400 |
800 |
50 |
35 |
||
|
I-DAM2M-630 |
3, 4 |
65 |
42 |
|||||
|
I-DAM2H-630 |
3 |
100 |
65 |
|||||
|
I-DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
I-DAM2M-630 |
3, 4 |
20 |
10 |
|||||
|
I-DAM2M-800 |
3 |
630,700,800 |
400 |
800 |
75 |
50 |
||
|
I-DAM2H-800 |
3 |
100 |
65 |
|||||
|
I-DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
I-DAM2-1250 |
3 |
800, 1000, 1250 |
400 |
800 |
85 |
42 |
||
|
I-DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Ulwandlalo kunye nemilinganiselo yoFakelo
I-CM1 yethu ye-MCCB ibonelela ngedatha epheleleyo yobungakanani beemodeli ze-63A-1600A, kubandakanywa i-wiring yangaphambili, i-wiring yangasemva kunye nohlobo lwe-plug-in. Ubungakanani befreyimu ehlukeneyo (63/100/225/400/630/800/1250/1600) ifanise i-H, H1, i-H2 imilinganiselo yokufakelwa kwekhabhinethi eqhelekileyo. Ubude besixhobo sokusebenza seManuwali kunye nombane bukwabekwe emgangathweni ukuze kube lula ukuhlanganisa.
Izincedisi & Imisebenzi
Izincedisi zangaphakathi
★ Ukukhutshwa kweShunt: 70% -110% amandla ombane alinganiswe ngokukhubeka okuthembekileyo
★ Ukukhutshwa okungaphantsi kombane: 35% -70% ukwehla kwamandla ombane ukwenzela ukhuseleko oluzenzekelayo
★ Uqhagamshelwano oluncedisayo kunye noqhagamshelwano lwe-alarm: Ingxelo yesignali kunye ne-alarm ephosakeleyo
★ Ukukhutshwa okunikezelweyo kwemitha ehlawulwa kwangaphambili: Ukulibazisa ukuhamba nge-0.5–2s
Izincedisi zangaphandle
★ Indlela yokusebenza ngesandla
★ Isixhobo sokusebenza sombane (imoto).
★ izahluli zeSigaba, izikrufu zokuxhoma, iikiti zeebhasi

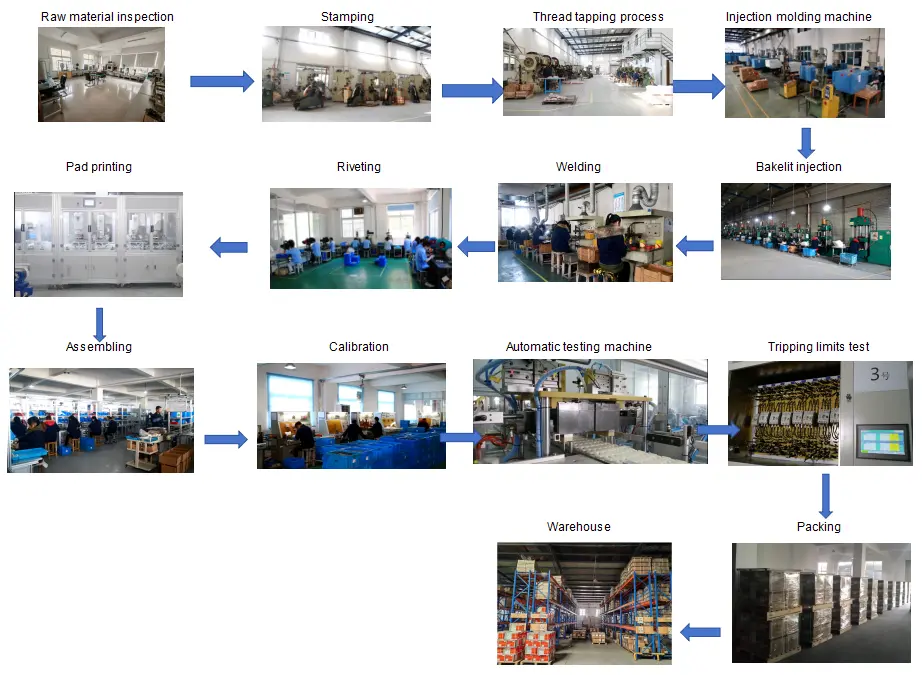

Ukuhamba koLawulo loMgangatho
Ukuhlolwa kwemathiriyeli ekrwada → Ukwenziwa kwemveliso → Umgca weNdibano → Uvavanyo lweempawu zohambo → Uvavanyo lokunyuka kobushushu → Uvavanyo lwesekethe emfutshane → Uvavanyo lokuguga → Ukukhangela inkangeleko kunye nobukhulu → Ukupakishwa → Ukuhlolwa kokugqibela ngaphambi kokuthunyelwa
Ukupakishwa kunye nokuThunyelwa
★ Ibhokisi yokuthumela ngaphandle eqhelekileyo + ipalethi yeplanga yothutho olukhuselekileyo
★ Ilebula: imodeli, yangoku, ipali, ubuninzi, isatifikethi
★ Ilungele ulwandle, umoya kunye nolungiselelo lomhlaba
Iziqinisekiso
IEC60947-2, GB14048.2, CE, CB, ROHS kunye nezinye iimvume zamazwe ngamazwe.

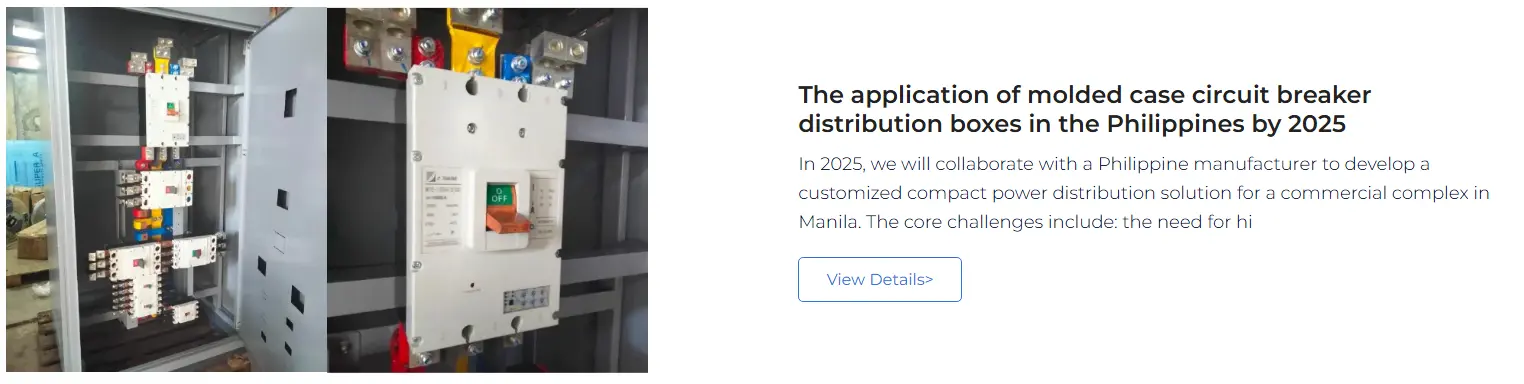

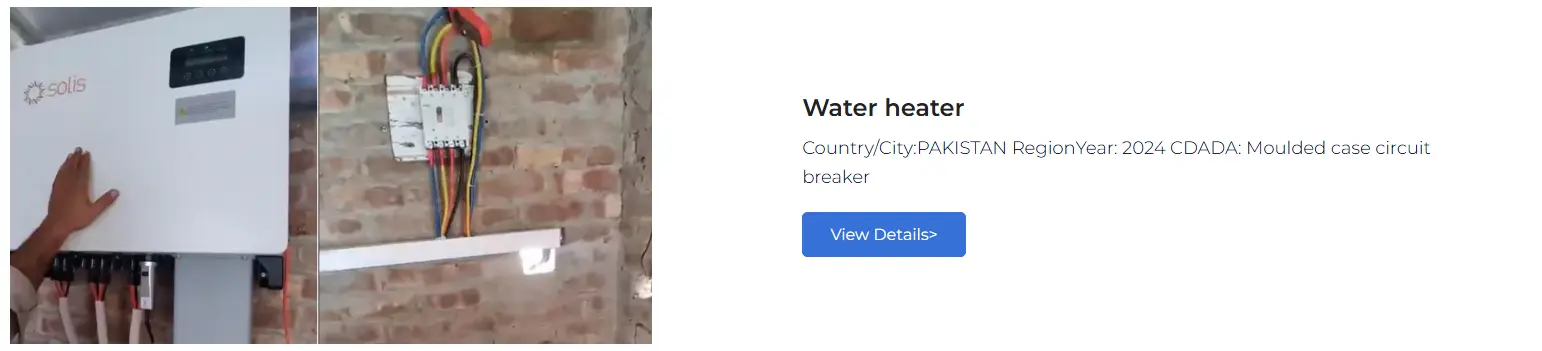

Amatyala eNtsebenziswano yabaThengi
ICDADA DAM2 series MCCB ibonelelwe kubathengi behlabathi, kubandakanywa abahlanganisi benkqubo yokuhambisa amandla, abavelisi bezixhobo zoshishino, iifektri zokutshintsha, iikontraka zokwakha kunye neempawu ze-OEM eYurophu, eMzantsi-mpuma Asia, kuMbindi Mpuma, e-Afrika naseMzantsi Melika. Sinikezela ngokubonelela ngobuninzi obuzinzileyo kunye nezisombululo ezilungiselelwe amaqabane exesha elide.
