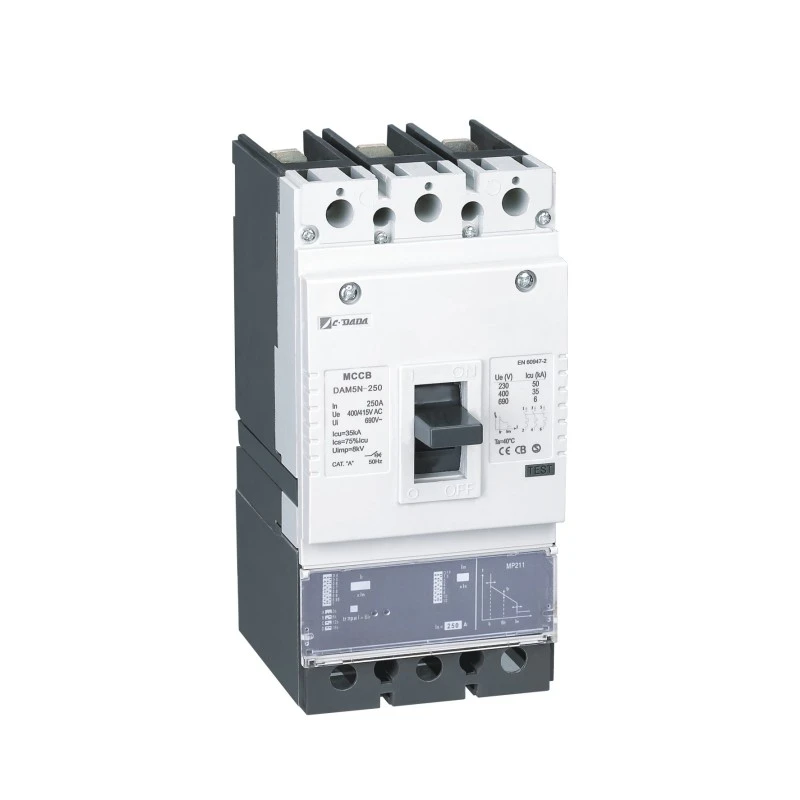

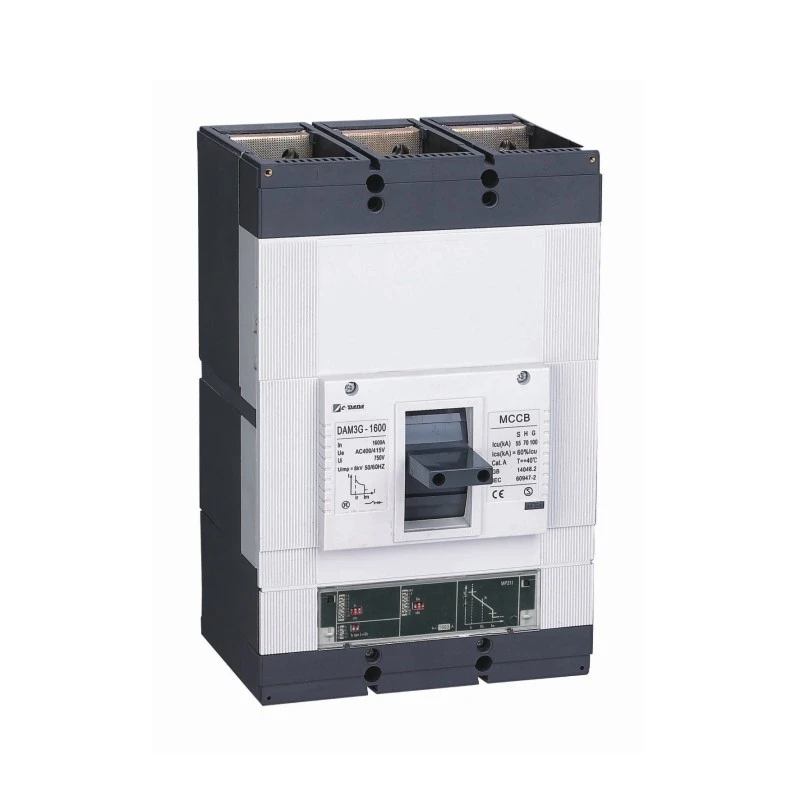

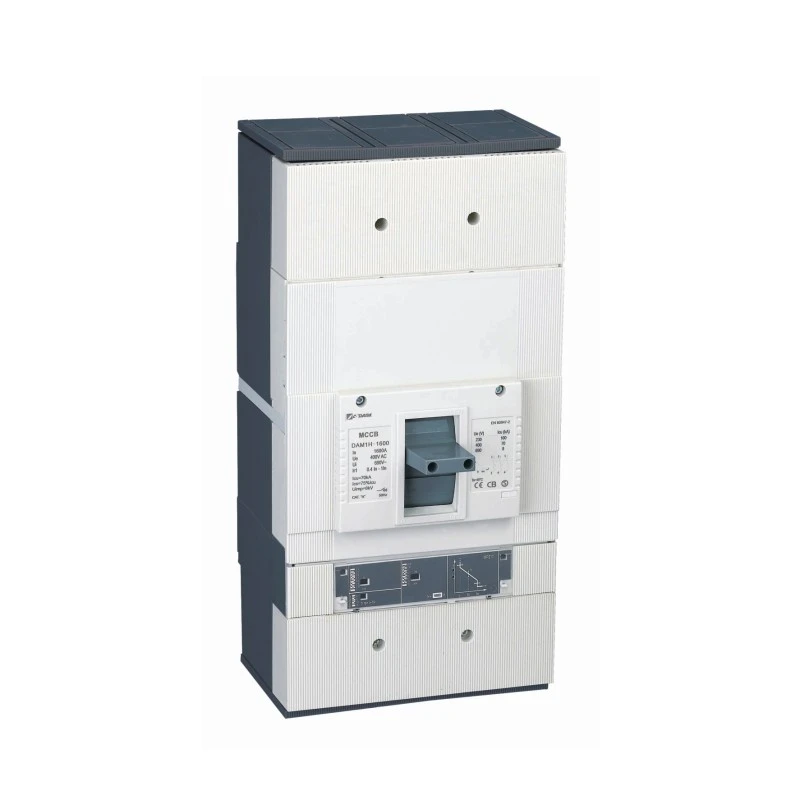

Uhlobo lombane olubunjiweyo lweSekethe Breaker

Kwiinkqubo zanamhlanje zamandla ezifuna ukuchaneka, ubukrelekrele, kunye nokuthembeka, i-Electronic Type Molded Case Circuit Breaker yi-Shanghai DADA Electric CO., LTD. ibeka umgangatho omtsha ekukhuselweni kwe-voltage ephantsi. Ngokungafaniyo nezaphuli ze-thermal-magnetic eziqhelekileyo, le MCCB ikrelekrele isebenzisa iyunithi yohambo lwe-elektroniki esekwe kwi-microprocessor ukuhambisa ukhuseleko oluchanekileyo, olucwangcisiweyo olugqithisiweyo-amajoni omzimba ukuya kuguquguquka kweqondo lobushushu.

Ngezicwangciso eziguquguqukayo ukusuka kwi-40% ukuya kwi-100% kwi-(thermal) kunye ne-1.5 × ukuya kwi-12 × ku-(magnetic), inika ukuguquguquka okungahambelaniyo kokulungelelaniswa okuyinkimbinkimbi kumaziko eenkcukacha, izityalo zoshishino, izibhedlele, kunye neenkqubo zamandla avuselelekayo. Ilinganiswe ukusuka kwi-100A ukuya kwi-1600A kwi-400V / 415V, idibanisa i-compact design kunye nokusebenza okuphezulu-kwaye ibandakanya ukungaphumeleli-uhambo oluthe ngqo ngexesha leempazamo ezigqithiseleyo, nangona i-electronics ingaphumeleli.

IiNgcaciso eziphambili

Umzekelo: CDADA DAM2 / DE Series (Electronic Type Molded Case Circuit Breaker)

Uhlobo: I-Electronic Molded Case Circuit Breaker

Iipali: 3P / 4P

I-Voltage elinganisiweyo (Ue): 400V / 415V AC

Ilinganiswe ngoku (Ku): 100A - 1600A

Iyunithi yohambo: Ukukhutshwa kwe-elektroniki okusekwe kwiMicroprocessor

Ukulungiswa kweThermal (Ir): 40% - 100% ye-In

Ukulungiswa kweMagnetic (Im): 1.5× - 12× Ngaphakathi

Iingenelo

★ Uluhlu olubanzi:100A ukuya ku-1600A(AC)

★ Imilinganiselo ehlangeneyo

★ Ukusetwa kwe-thermal elungiswayo (40-100%)In.

★ Ukusetwa kwemagnethi ehlengahlengiswayo(1.5-12times)In.

★ Ulungiselelo lweqhosha lokucofa ukuya kuhambo.

★ Yahlula abafowunelwa abaphambili kunye ne-arcing

★ Uluhlu olubanzi lwezincedisi.

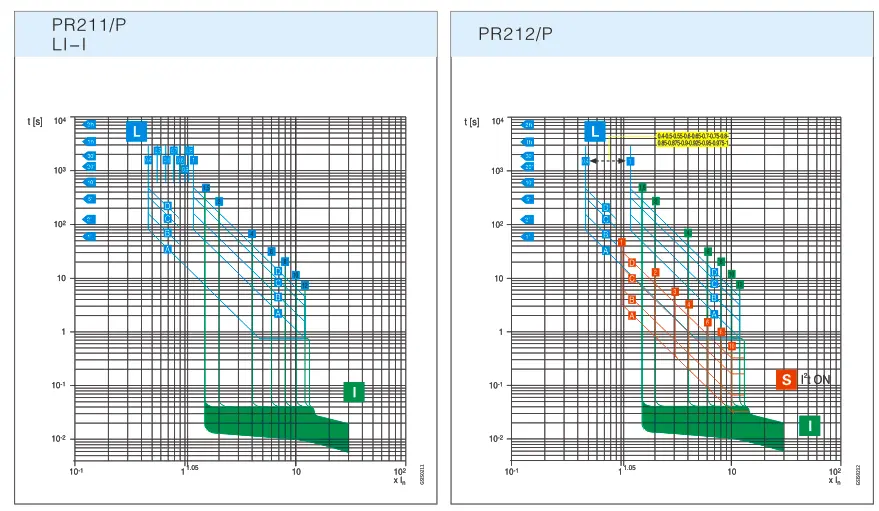

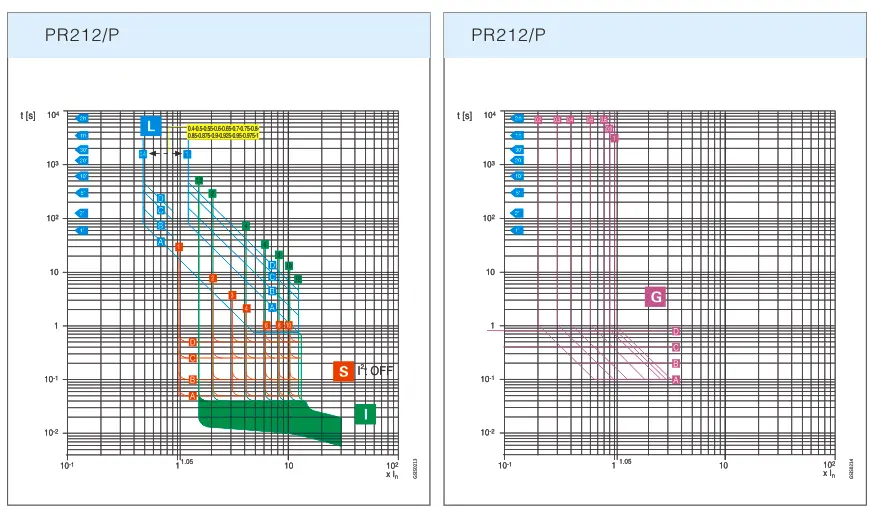

Ijika leempawu zokukhutshwa kwe-elektroniki

Iiparamitha zombane

Itheyibhile 1 PR211 uhlobo

S.No.

Umsebenzi

Iisetingi

Uhlobo

PR211

PR211

PR211

PR211

Ukuseta ngokutsha i-factroy

Iipali

3P

3P

3P

3P

Ukala (A)

250

400

800

1600

1

L

Isetingi yangoku yokuLayisha (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

1.0Ngaphakathi

2

Ulibaziseko lwexesha kwiSetingi yangoku yokuLayisha

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Ulungiselelo lwangoku lwangoku

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

10Ngaphakathi

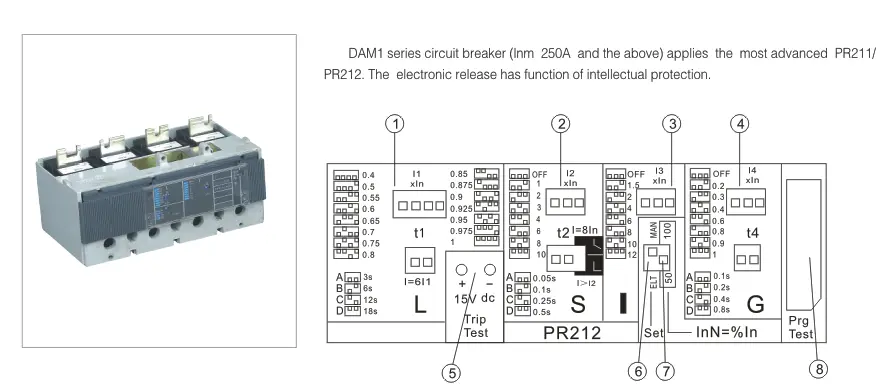

Itheyibhile 2 PR212 uhlobo

S.No.

Umsebenzi

Iisetingi

Uhlobo

PR212

PR212

PR212

PR212

Ukuseta ngokutsha i-factroy

Iipali

3P

3P

3P

3P

Ukala (A)

250

400/630

800

1600

1

L

Isetingi yangoku yokuLayisha (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

1.0Ngaphakathi

2

Ulibaziseko lwexesha kwiSetingi yangoku yokuLayisha

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Mfutshane - Useto lwangoku lweSekethe (A)

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

(1, 2, 3, 4, 6, 8, 10, OFF)xIn

6Ngaphakathi

4

Ukulibaziseka kwexesha kwiSekethi eFutshane yokuSeta ngoku

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Ulungiselelo lwangoku lwangoku

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF)xIn

10Ngaphakathi

6

G

Umiselo lwangoku oluyimpazamo (A)

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF)xIn

1.0Ngaphakathi

7

Ukulibaziseka kwexesha kwiSeti yeFault eGround

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

Ukukhethwa kombane okanye i-electronic parameters set

ISETI yoMsebenzi (tshintsha iELT/MAN)

9

Isetyenziselwa ukuseta iiparamitha zokutshintsha kwediphu yomgca we-zero

INN=%In,tshintsha 50/100

10

Isokethi yesixhobo sokulinganisa uqhagamshelwano

Isiseko sepaneli

Kutheni Khetha iCDADA Electronic MCCB?

★ Intelligence yokwenyani, Hayi nje Automation
I-microprocessor ihlalutya ngokuqhubekayo iifom zamaza zangoku, ivumela ukuchaneka kwexesha elichanekileyo, ixesha eliqinisekileyo, kunye nokukhuselwa kwangoko-ngaphandle kokukhukuliseka ngenxa yobushushu okanye ukuguga.

★ Ukungaphumeleli-uYilo oluKhuselekileyo
Nokuba isekethe ye-elektroniki iyasilela, i-latch ye-electromagnetic ethe ngqo iqinisekisa ukuba i-breaker trips ngexesha lee-circuits ezimfutshane ezinzima-idibana ne-IEC 60947-2 yokhuseleko lwe-redundancy iimfuno.

★ Ulungelelwaniso oluPhezulu
I-Ultra-wide adjustment ranges (40-100% Ir, 1.5-12 × Im) ivumela ukulungelelaniswa okugqibeleleyo kunye nezixhobo eziphezulu / ezisezantsi-ukunciphisa iindawo zokucima.

★ Izibonelelo zobungqina bexesha elizayo
Ihambelana neemodyuli zonxibelelwano ezikhethiweyo (iModbus RTU, iProfibus) yokudibanisa kwiiNkqubo zoLawulo lweZakhiwo (BMS) okanye iigridi ezihlakaniphile.

★ Umgangatho wehlabathi, ixabiso loKhuphiswano
Yenziwe phantsi kwe-ISO 9001 e-Shanghai, kunye nezatifikethi zamazwe ngamazwe-ezinikezela ukusebenza kwe-European-level kwi-Asian cost performance.

★ Sineqela elizinikeleyo leenjineli ezili-15 ezigxile kuphuhliso lwemveliso, ukuphuculwa, kunye nokwenza ngokwezifiso.

Izicelo ezifanelekileyo

AmaZiko eeNkcukacha: Thintela ukungaphumeleli kwe-cascading ngokukhetha okuchanekileyo

Izibhedlele: Ukuqinisekisa amandla angaphazanyiswa kwiinkqubo zokuxhasa ubomi

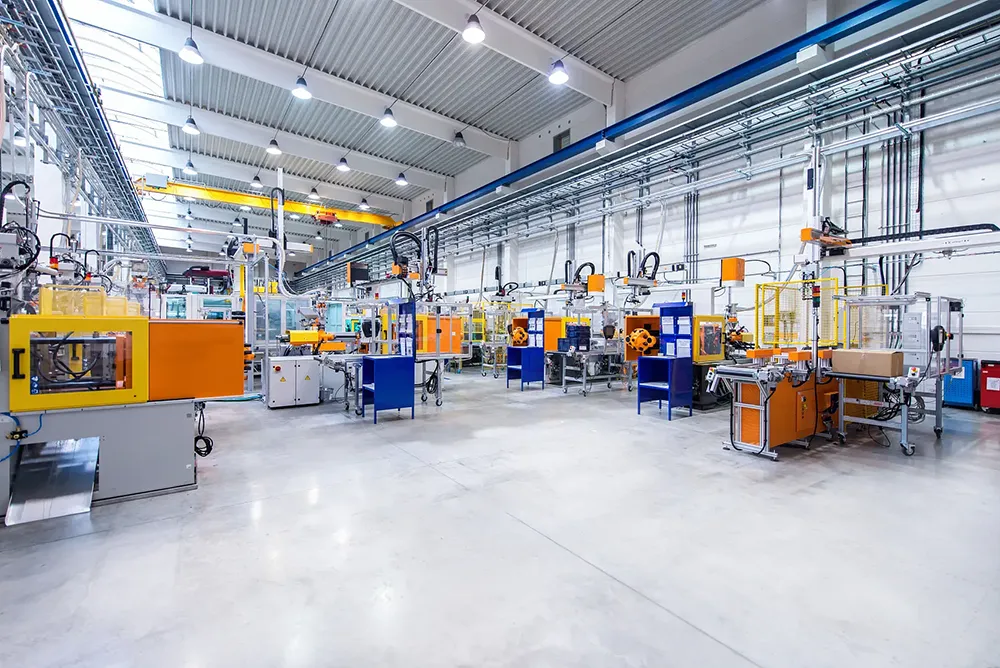

I-Industrial Automation: Lungelelanisa neeVFDs, iziqalisi ezithambileyo, kunye neerobhothi

Iifama zeSolar/Umoya: Ziqhelanisa neeprofayile zokuvelisa

IZakhiwo zoRhwebo eziSmart: Yenza ukuba kubekwe iliso kumandla ngaphandle kweemitha ezongezelelweyo

Imibuzo Ebuzwa Rhoqo (FAQ)

I-Q1: Yintoni eyenza i-MCCB ye-elektroniki yahluke kwi-thermal-magnetic?

I-A1: I-Electronic Type Molded Case Circuit Breakers isebenzisa i-microprocessor ukuhlalutya yangoku kunye nokukhupha iihambo ngokuchaneka okuphezulu. Abachatshazelwa bubushushu be-ambient, banikezela ngohlengahlengiso olubanzi, kwaye banokubonelela ngokungena kwedatha yomthwalo-ngokungafaniyo neentlobo ze-bimetal/solenoid-based thermal-magnetic.

I-Q2: Ngaba i-1600A ye-elektroniki ye-MCCB ifumaneka kwi-4-pole configuration?

I-A2: Ewe-zonke ii-CDADA ze-elektroniki ze-MCCBs ukusuka kwi-250A ukuya kwi-1600A zifumaneka kuzo zombini iinguqulelo ze-3P kunye ne-4P.

Q3: Kwenzeka ntoni ukuba iyunithi yohambo lwe-elektroniki ayiphumelelanga ngexesha lesekethe emfutshane?

I-A3: I-breaker ibandakanya i-backup mechanical: ngexesha leempazamo ezigqithisileyo (> 12 × In), i-latch magnetic ibangela ukuvula ngokuthe ngqo-ukuqinisekisa ukhuseleko nakwi-electronics offline.

I-Q4: Ngaba ndiyakwazi ukubeka iliso kwixabiso lexesha langoku?

I-A4: Ewe-iyunithi yohambo lwe-elektroniki ibonisa ngokukhawuleza, i-max, min, kunye ne-avareji yangoku kwiifestile zexesha elikhethiweyo (umzekelo, i-24h), iluncedo kulawulo lwamandla.

Q5: Kutheni ukhetha CDADA ngaphezu kwezinye iibrendi MCCB ezikrelekrele?

A5: CDADA inikeza:

● Ulungelelwaniso lokwenyani loluhlu olukabini (abaninzi abakhuphisanayo banciphisa i-Im ukuya ku-≤10×)

● Ukugcinwa kokhuseleko koomatshini (hayi zonke ii-MCCB “ze-elektroniki” ezinale nto)

● Ubungakanani obubambeneyo—bungena iiphaneli zelifa ngaphandle kokuguqulwa

● Ipotfoliyo eyomeleleyo yezatifiketi zehlabathi (ASTA, KEMA, CE)

● Ixabiso le-OEM-friendly ngenkxaso yobugcisa ngesiNgesi
