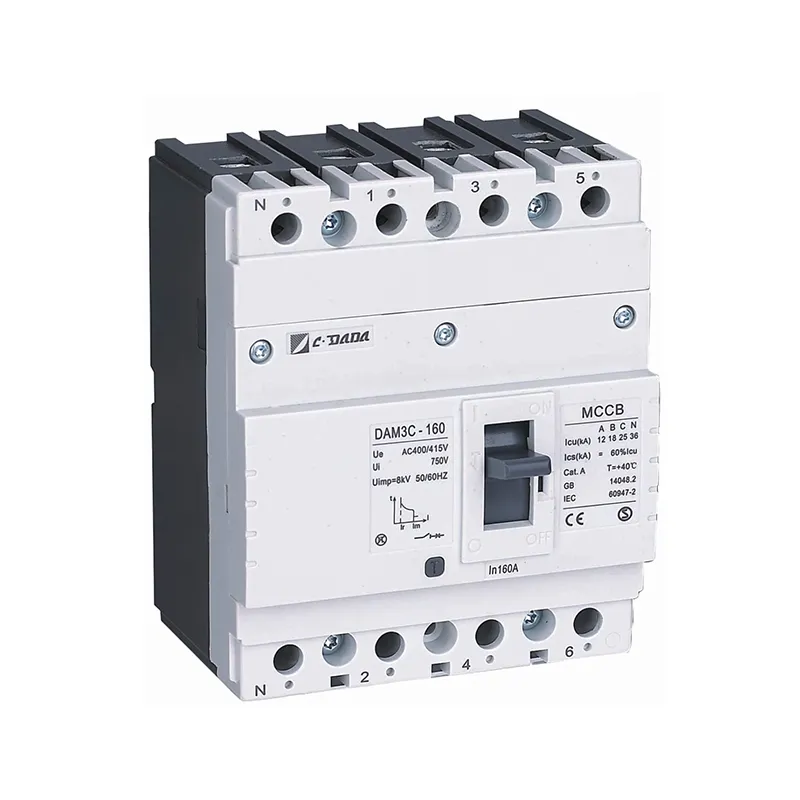

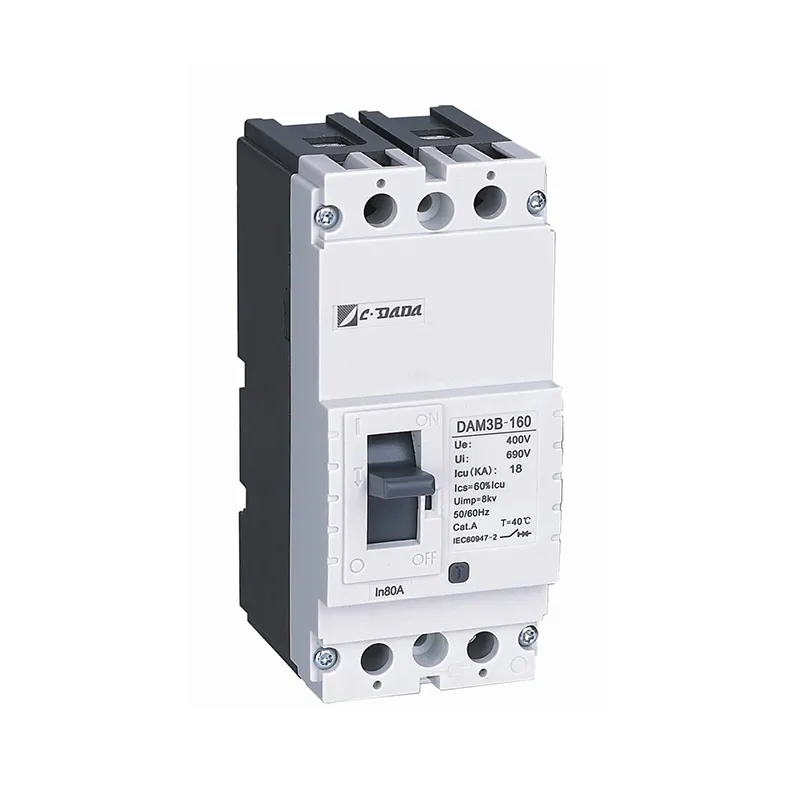

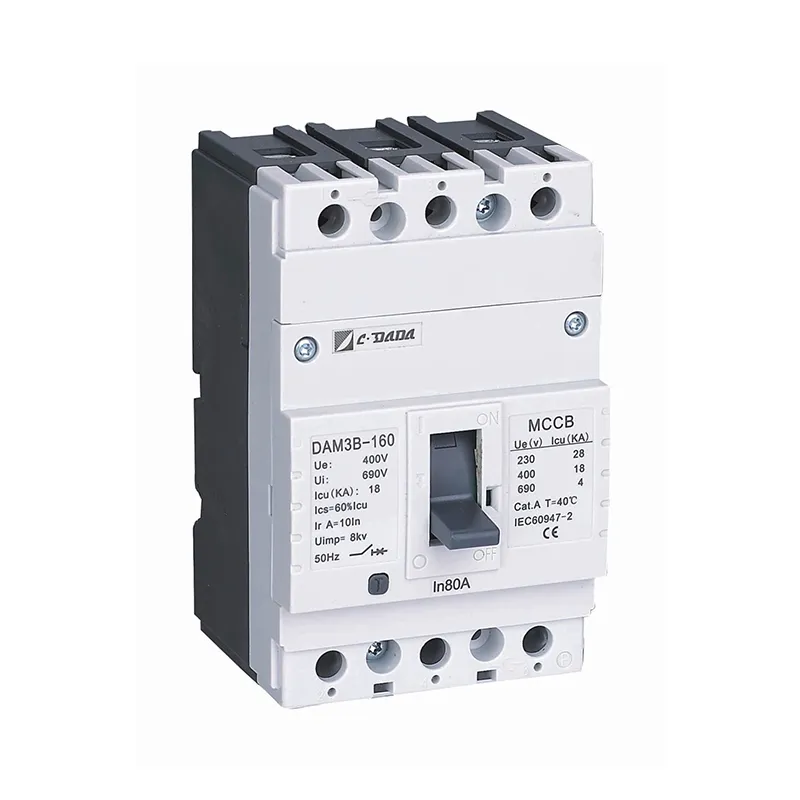

Din Rail Molded Case Circuit Breaker
Model:DAM3-160
Umthombo ophucukileyo weDIN kaloliwe oBunjiweyo weCase Breaker (DAM3-160) evela eShanghai DADA Electric, singumthengisi oqeqeshiweyo nomzi-mveliso wethu. Le MCCB inobungakanani obubambeneyo, ukuya kuthi ga kwi-160A, i-16kA yokuqhawula umthamo. I-DIN kaloliwe inyusiwe, i-IP30, i-IEC/EN 60947-2 iqinisekisiwe. Ilungele iiphaneli zokuhlala kunye nezorhwebo. OEM & imiyalelo bulk wamkelekile.
Ukwandisa indawo ngaphandle kokukhusela ukhuseleko kunye ne-CDADA DAM3-160 DIN Rail Molded Case Circuit Breaker. Yenzelwe iibhodi zokuhambisa zale mihla, le meko incinci ibunjiweyo yecasi yebreaker ikhwela ngokuthe ngqo kuloliwe oqhelekileyo we-DIN oyi-35mm, eyenza udibaniso olungenamthungo ecaleni kwezixhobo zemodyuli ezifana nee-RCD kunye nabafowunelwa.
Ngamajelo alinganisiweyo ukusuka kwi-10A ukuya kwi-160A, ukuphula amandla ukuya kwi-16kA, kunye nokuthotyelwa kwe-IEC / EN 60947-2, i-DAM3-160 ihambisa i-overload overload, i-short-circuit, kunye nokukhuselwa kwe-undervoltage-efanelekileyo kwiindawo zokuhlala ezingaphantsi kweepaneli, izakhiwo zorhwebo, iikhabhinethi zokulawula ii-motor circuits, kunye neekhabhinethi zokulawula iimoto. I-25mm ngepali nganye ububanzi iyenza ibe yeyona MCCB encinci ye-160A kwimarike, ngelixa iimpawu zokhuseleko ezinelungelo elilodwa lomenzi ziqinisekisa ukhuseleko lokuchukumisa kunye nokubonwayo.
IiNgcaciso eziphambili
| Umzekelo: | I-DAM3-160 Series |
| Uhlobo: | I-DIN kaloliwe iMounted Case Circuit Breaker (MCCB) |
| Iipali: | 2P / 3P / 4P |
| Ikalwe ngoku (kwi): | 10A – 160A |
| I-Voltage elinganisiwe (Ue): | I-400V / 415V AC, ukuya kuthi ga kwi-750V (ixhomekeke kwinkqubo) |
| Ukwaphulwa kwesakhono (Icu): | 10kA / 16kA (imodeli-ixhomekeke) |
| Ukunyuswa: | 35mm DIN kaloliwe (i-patent-ekhuselwe ikliphu indlela) |
| Imilinganiselo: | I-25mm ububanzi ngepali nganye - i-industry slimmest kwiklasi ye-160A |
| Ubomi boomatshini: | Ukuya kuthi ga kwi-10,000 yokusebenza |
| Amazinga oKhuseleko: | Izikhululo: |
| IP20 | Guqula: |
| IP30 Uyilo lwe-insulation kabini |
Iziqinisekiso: |
| IEC / EN 60947-2, i-RoHS, i-Pollution Degree III |
|
Kutheni Khetha i-CDADA DIN Rail MCCB?
★ i-Space-Saving Champion
Ngepali nje eyi-25mm ngepali nganye, iDAM3-160 DIN Rail Molded Case Circuit Breaker igcina ukuya kutsho kwi-30% indawo yephaneli vs. Ii-MCCBs eziqhelekileyo—ibaluleke kakhulu kwizivalo ezixineneyo kumagumbi okuhlala, iikhabhathi zonxibelelwano, okanye iiprojekthi zokubuyisela imali.
★ Inyaniso yeDIN kaLoliwe iyahambelana

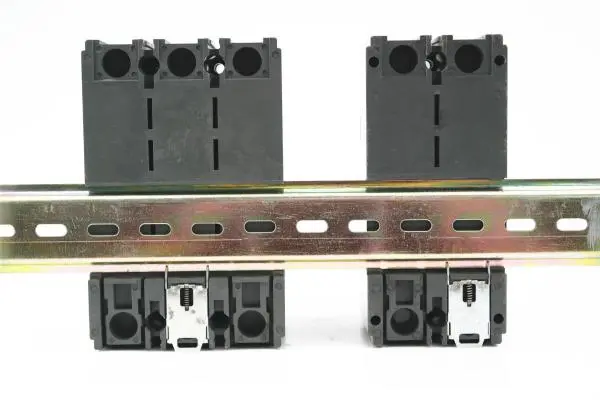

Ngokungafaniyo ne-"DIN-ehambelanayo" i-breakers ezifuna i-adapters, i-clip yangasemva ye-CDADA enelungelo elilodwa lomenzi ivumela ukunyuswa ngokuthe ngqo kwe-snap-akukho zikrini, akukho zibiyeli.
★ Ukhuseleko olomeleziweyo ngoYilo
● Akukho zikrufu zentsimbi eziveziweyo ngaphambili
● Isalathisi sohambo olubonwayo: Mnyama = ikhutshiwe, cacisa IVULIWE/KUVALIWE imibala
● Amalungu aphilayo ahlala ekhuselekile nokuba kuqhawuke itoggle
● Izincedisi zifakela ngaphandle kokuveza iiconductors
★ Flexible & Ikamva-Ukulungele
● Amandla anokondliwa ukusuka kumgca okanye kwicala lomthwalo
● Ixhasa phezulu-phantsi okanye ukuxhoma okuthe tye
● Izincedisi ozikhethayo: uhambo lwe-shunt, abafowunelwa abancedisayo, isiphatho esijikelezayo (sokudibanisa ucango)
★ Ukusebenza okuphezulu, ixabiso eliphantsi
Ihambisa i-16kA yokuqhawula umthamo kwipakethe ekhaphukhaphu, eyonga amandla-igqithise amaqhekeza amaninzi amakhulu ngexabiso elikhuphisanayo.
Usetyenziso oluqhelekileyo
★ Indawo yokuhlala: Ummkeli-mali ongundoqo okanye ulwabiwo-mali kwiindawo zokuhlala
★ Urhwebo: Izibane & iiphaneli zeHVAC kwiiofisi, iihotele, izikolo
★ Ishishini lokuKhanya: Iiphaneli zokulawula umatshini, izitishi zokumpompa
★ Iziseko zophuhliso: Iindawo zokuhlala zeTelecom, izikhululo zokutshaja ze-EV, iibhokisi zokuhlanganisa amandla elanga
★ IiProjekthi zeRetrofit: Faka endaweni yezaphuli zelifa elikhulu ngaphandle kokuphinda kufakwe iiwiri
Imibuzo ebuzwa qho
I-Q1: Ngaba i-DAM3-160 ingakwazi ukunyuka ngokuthe ngqo kwi-35mm DIN kaloliwe?
A1: Ewe! Ibonisa ikliphu yangasemva ekhuselwe kwilungelo elilodwa lomenzi wechiza-vele uyithathele kuloliwe osemgangathweni we-35mm we-top-hat (IEC 60715). Akukho adaptha ifunekayo.
I-Q2: Yintoni eyona nto iphezulu yokuqhawula amandla akhoyo?
I-A2: Ukuya kwi-16kA kwi-400V, kuxhomekeke kwimodeli (izinketho ze-10kA / 16kA).
I-Q3: Ngaba ifanelekile ukukhuselwa kwemoto?
I-A3: Ewe-i-motor infrequent infrequent (umzekelo, iimpompo, abalandeli), ibonelela ngokugqithiswa kunye nokukhusela i-short-circuit kwimigangatho ye-IEC.
I-Q4: Ndiyazi njani ukuba ikhutshiwe?
A4: Ifestile yesalathisi esibonakalayo ijika ibemnyama ngokupheleleyo xa ikhutshiwe. Izikhundla eziqhelekileyo ze-ON / OFF zibonisa iilever ezinemibala.
Q5: Kutheni ukhethe CDADA ngaphezu kwezinye DIN Rail Molded Case Circuit Breaker brand?
A5: CDADA inikeza:
● Eyona nto incinci ye-160A DIN kaloliwe ye-MCCB kwihlabathi jikelele (25mm/pole)
● Ufakelo oluthe ngqo lweDIN (akukho zongezo)
● Uyilo olukumgangatho ophezulu (i-IP30 toggle, akukho zikrufu zivuliweyo)
● Ukusebenza okuqinisekisiweyo kwe-IEC nokuthotyelwa kwe-RoHS
● Amaxabiso alungele i-OEM kunye nenkxaso yobugcisa yesiNgesi
