Thermal Adjustable Moldable Case Circuit Breaker

I-DAM1 Series Thermal Adjustable Moldable Case Circuit Breaker yi-Shanghai DADA Electric CO., LTD. yenzelwe ukuhlangabezana nemigangatho yodidi lwehlabathi, ibonelela ngokhuseleko oluluqilima ngokuchasene nomthwalo ogqithisileyo kunye neemeko zesekethe emfutshane. Ngoluhlu lwe-thermal setting range of 70% ukuya kwi-100% ye-In, le breaker inokulungiswa kakuhle ukuhambelana neemfuno zakho zesicelo.

Ifumaneka kwi-3P kunye ne-4P yokucwangciswa, ihlelwe ukuya kwi-1600A kwi-400V / 415V, iza nezitifiketi zehlabathi ezifana ne-ASTA, i-KEMA, i-CE, i-CB, i-SEMKO, kunye ne-RoHS, iqinisekisa ukuthotyelwa kwimimandla emininzi.

Iiparamitha zoMbane zeDAM1 Thermal Adjustable Molded Case Circuit Breaker

IiNgcaciso eziphambili

Umzekelo: DAM1 Series Thermal Adjustable MCCB

Uhlobo: Ityala elibunjiweyo leSaphuli seSekethe (MCCB)

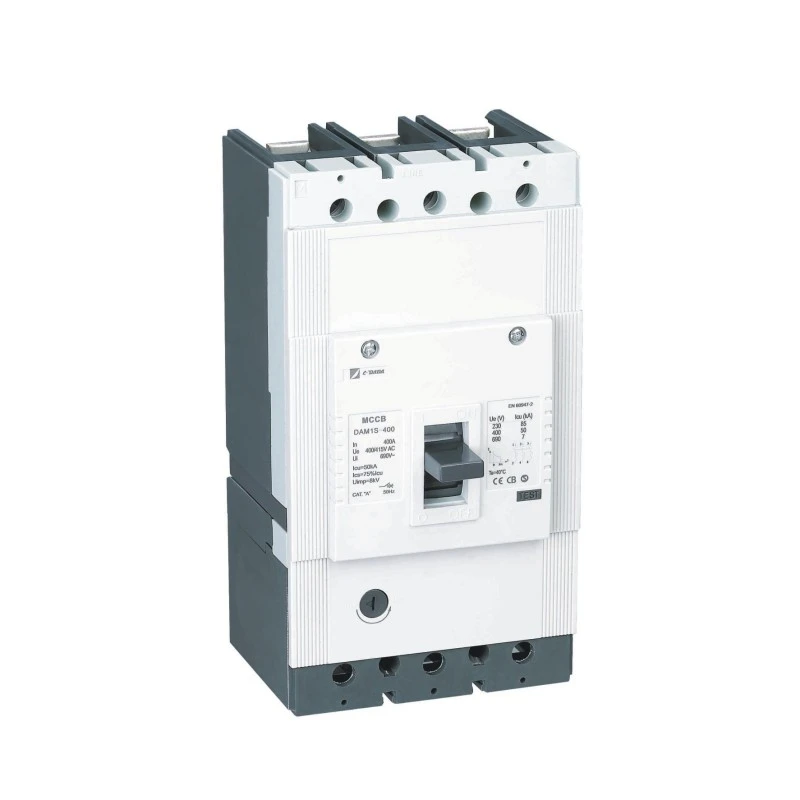

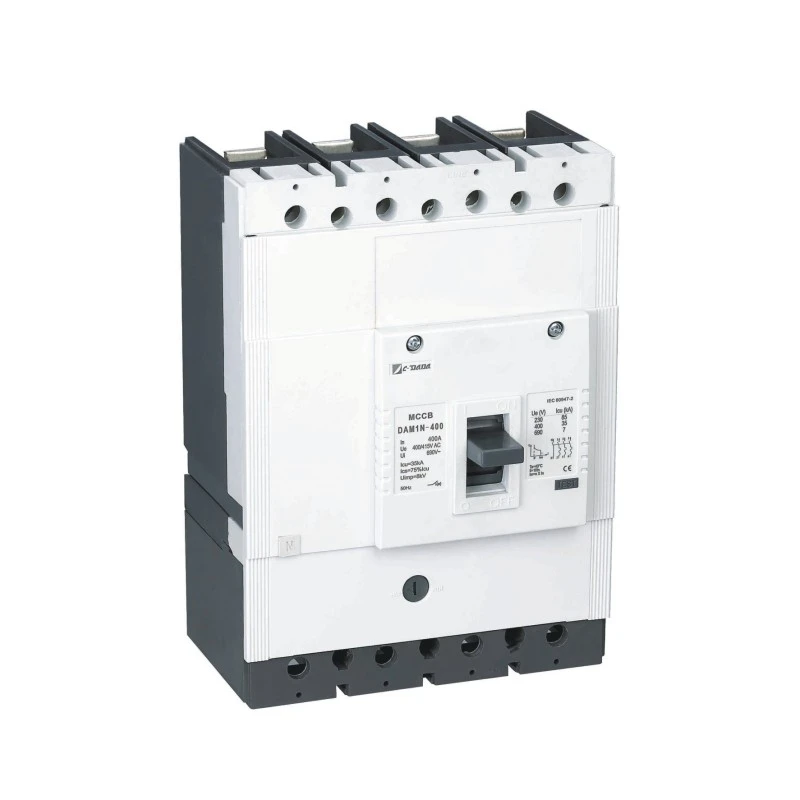

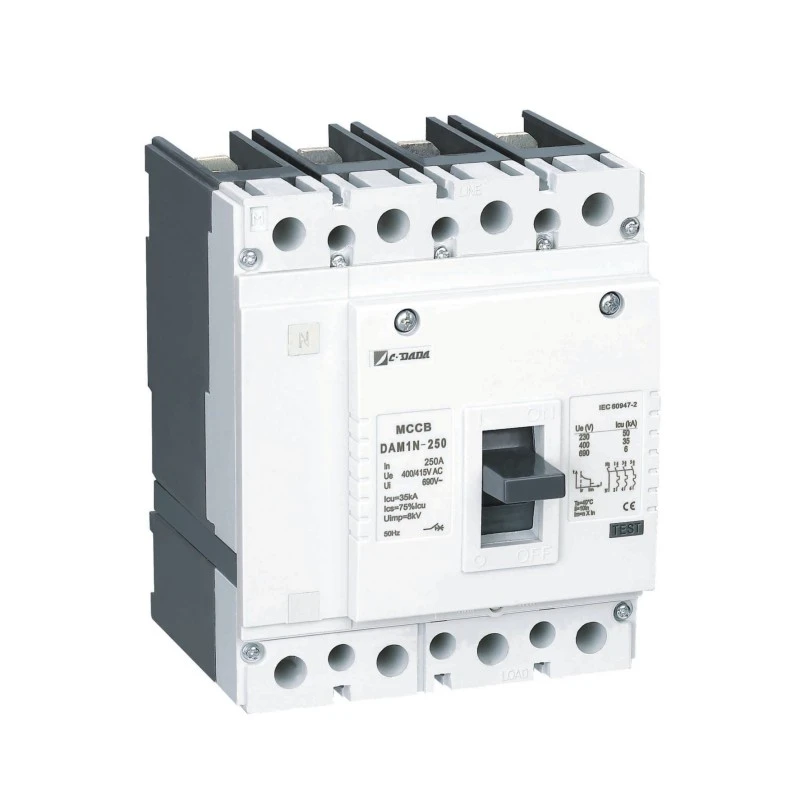

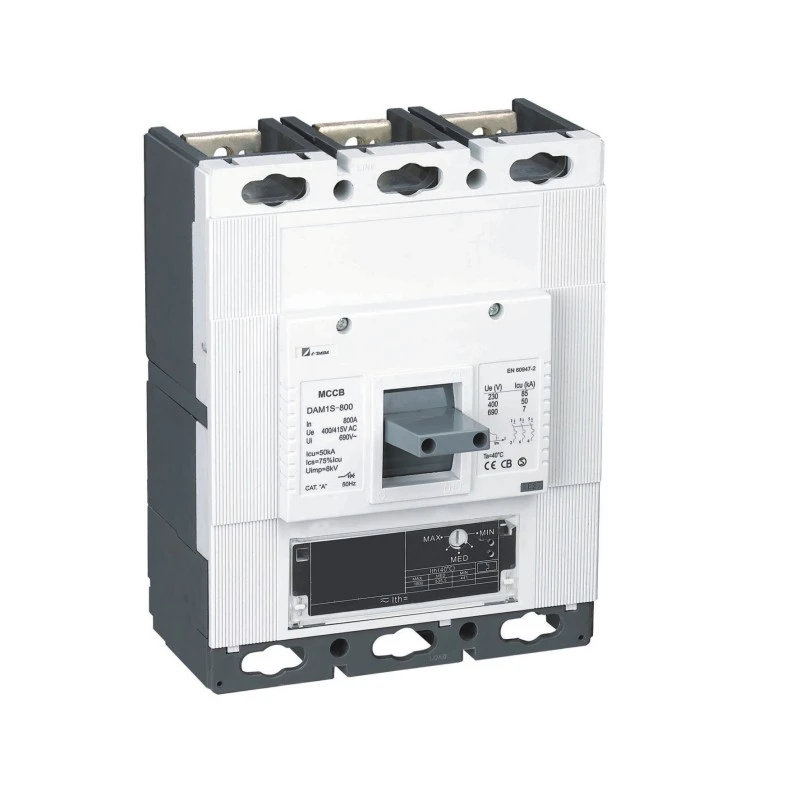

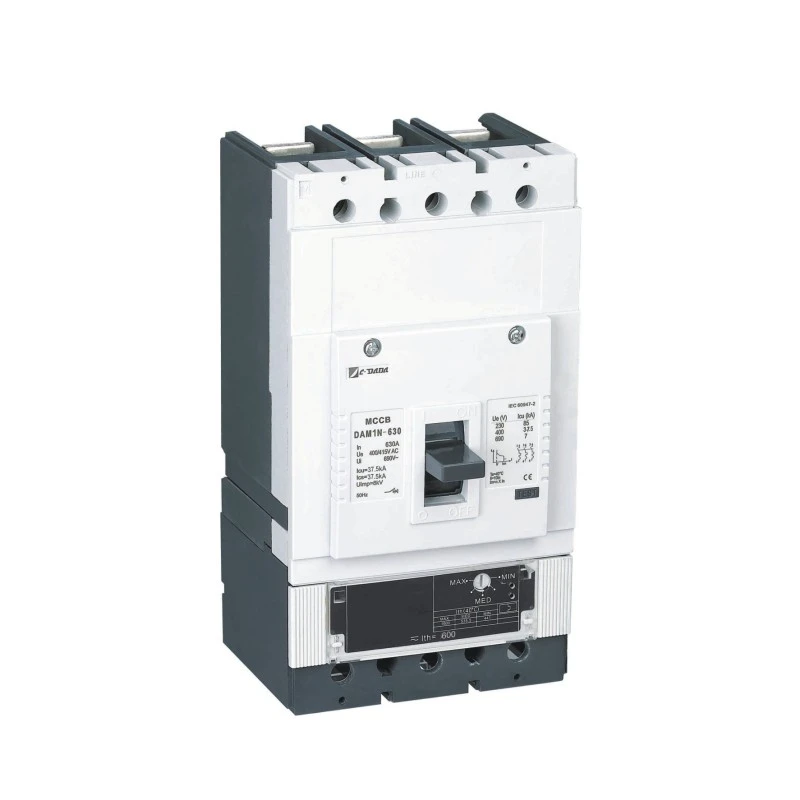

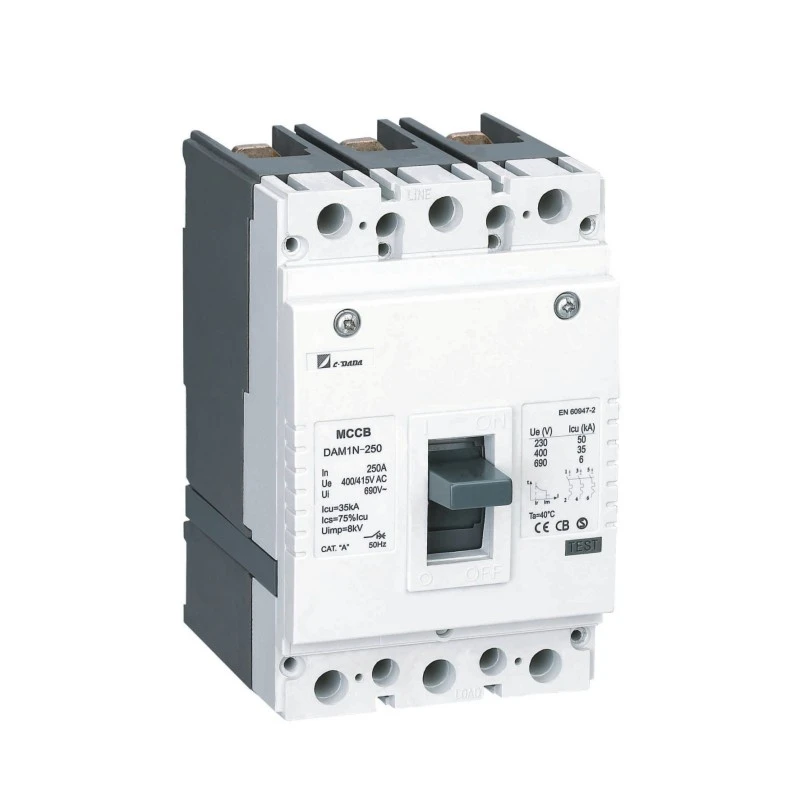

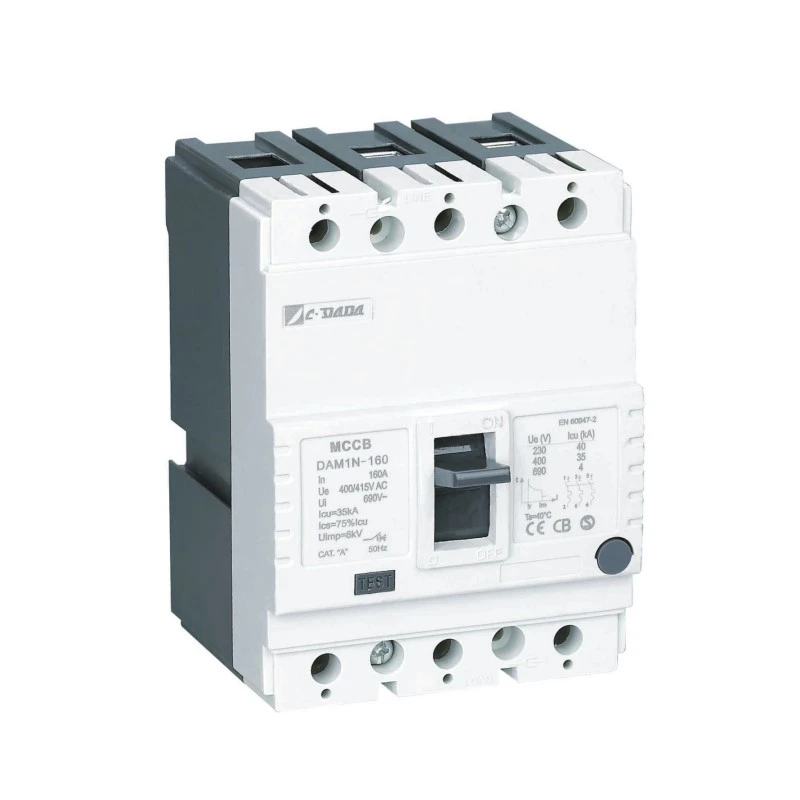

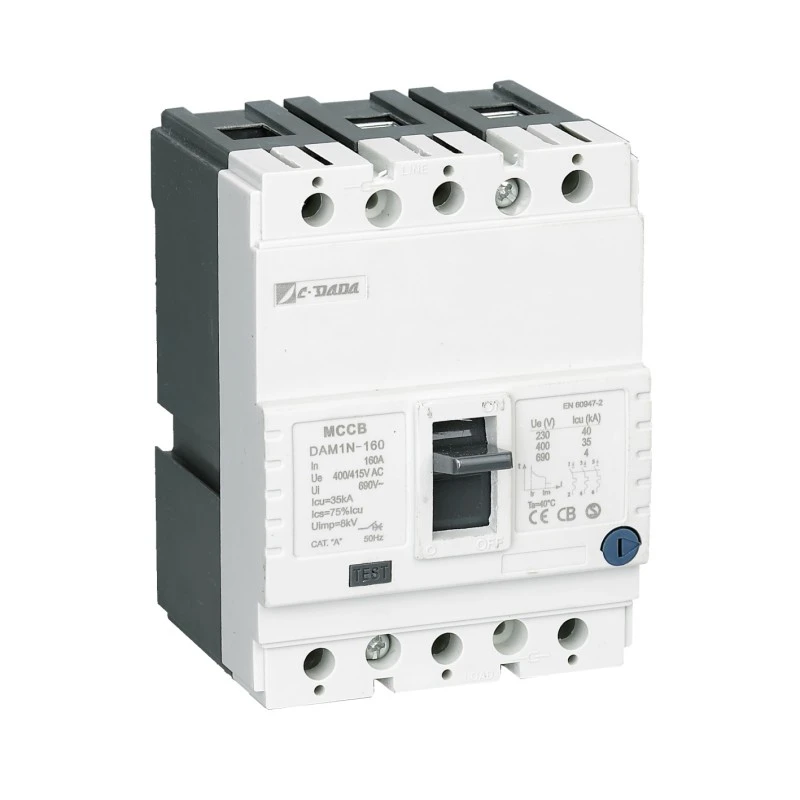

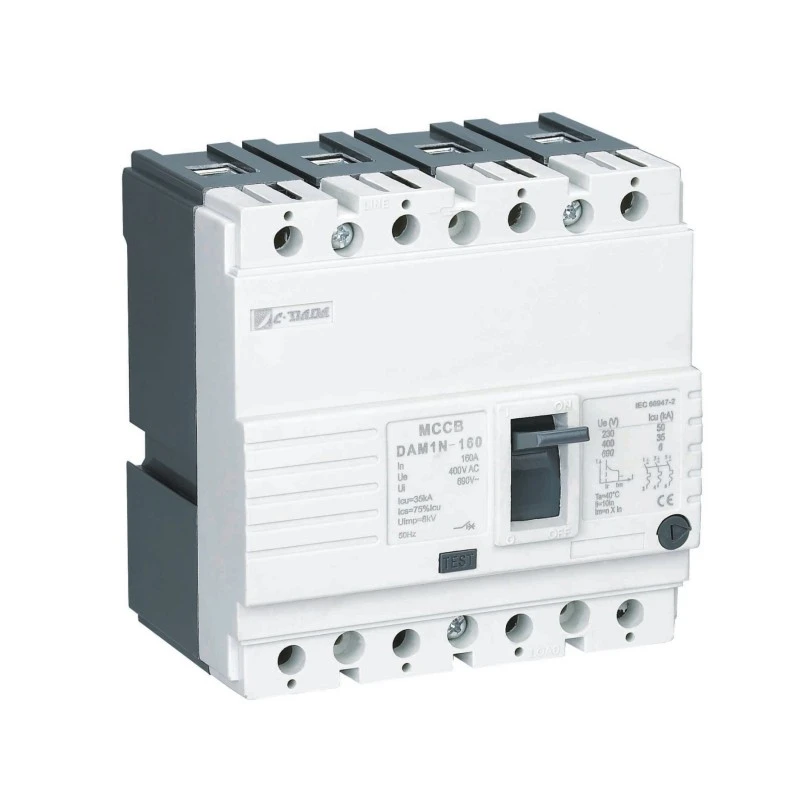

Iipali: 3P / 4P

I-Voltage elinganisiweyo (Ue): 400V / 415V AC

Ilinganiswe ngoku (Ku): 16A - 1600A

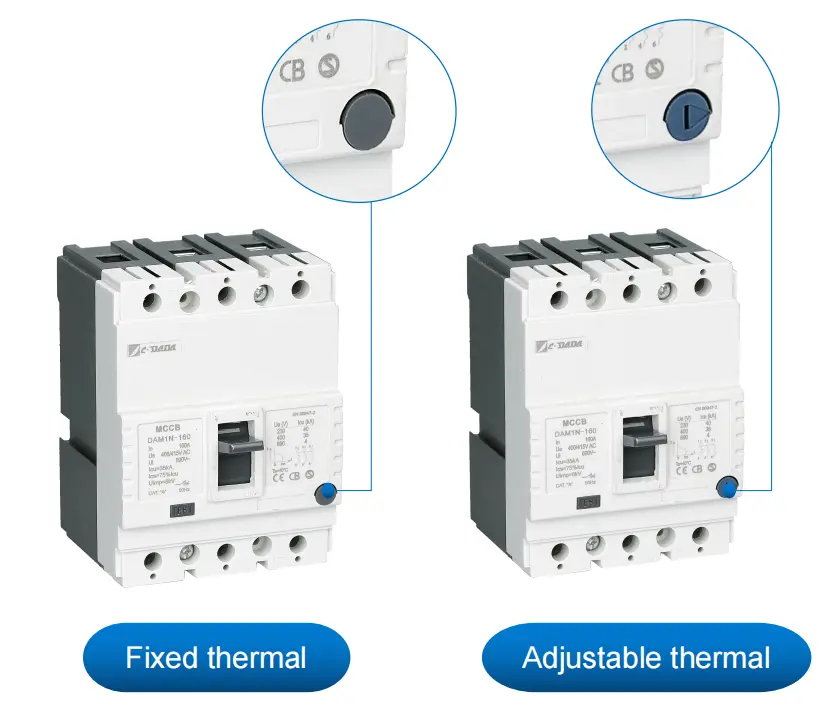

Ukusetwa kweThermal eLungisayo: 70% - 100% Ngaphakathi

Iziqinisekiso: ASTA, KEMA, CE, CB, SEMKO, RoHS

Ubungakanani besakhelo: 6 ubungakanani besakhelo

Iimpawu ezongezelelweyo: Iqhosha lokutyhala-ukuya-uhambo, hlula abafowunelwa abaphambili kunye ne-arcing

Imigaqo yoMsebenzi kunye neNkqubo yokuKhusela

★ Ukhuseleko lobushushu (Ukulayisha ngaphezulu)

Isixhobo se-thermal ngaphakathi koluhlu lwe-DAM1 lusebenzisa i-bimetallic strip egoba xa ishushu ngokuqhubekayo (> i-rated current). Ngokuhlengahlengisa ukusetha kwe-thermal phakathi kwe-70% kunye ne-100% ye-In, abasebenzisi banokulungisa ixesha lokuphendula i-breaker ukuthintela uhambo oluphazamisayo ngelixa beqinisekisa ukukhuselwa okusebenzayo.

★ Push-to-Trip Iqhosha

Ngeenjongo zokuvavanya, iqhosha lokutyhala-ukuya-kuhambo livumela ukukhubeka ngesandla kwesaphuli, siqinisekisa ukuthembeka kwayo kokusebenza ngaphandle kokufuna ukubangela imeko yokwenyani.

★ Ukwahlula abaNxibelelwano abaPhambili kunye neArcing

Ukomeleza ukuqina kunye nokusebenza, uthotho lwe-DAM1 lubonisa abafowunelwa abaphambili abahlukeneyo kunye ne-arcing. Olu luyilo luqinisekisa ukuba abafowunelwa abaphambili bakhuselekile ngexesha leziganeko eziphezulu, ukwandisa ixesha lokuphila kwe-breaker.

Iimeko zeSicelo

I-DAM1 Thermal Adjustable Molded Case Circuit Breaker (MCCB) ifanelekile kuluhlu olubanzi lwezicelo apho ulawulo oluchanekileyo lokukhusela ukugqithiswa kubalulekile. Ezi ziquka:

★ Izityalo ze-Industrial: Ukuqinisekisa ukusebenza okuzinzileyo kwiindawo zokusila zentsimbi, izityalo zemichiza, kunye namaqonga e-oyile.

★ IZakhiwo zokuRhweba: Ukukhusela iinkqubo zombane kudederhu lweevenkile, kwizakhiwo zeeofisi, nakwiihotele.

★ Izinto eziluncedo: Ukuhanjiswa okuthembekileyo kwizitishi ezincinci kunye neegridi zamandla.

★ Amaziko eeNkcukacha: Ukugcina ixesha lokuphumla kwiziseko ezingundoqo ze-IT.

Kutheni ukhetha CDADA?

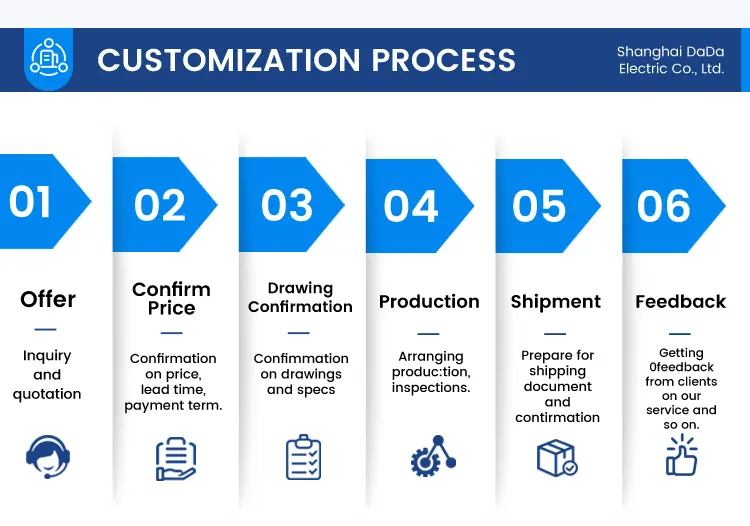

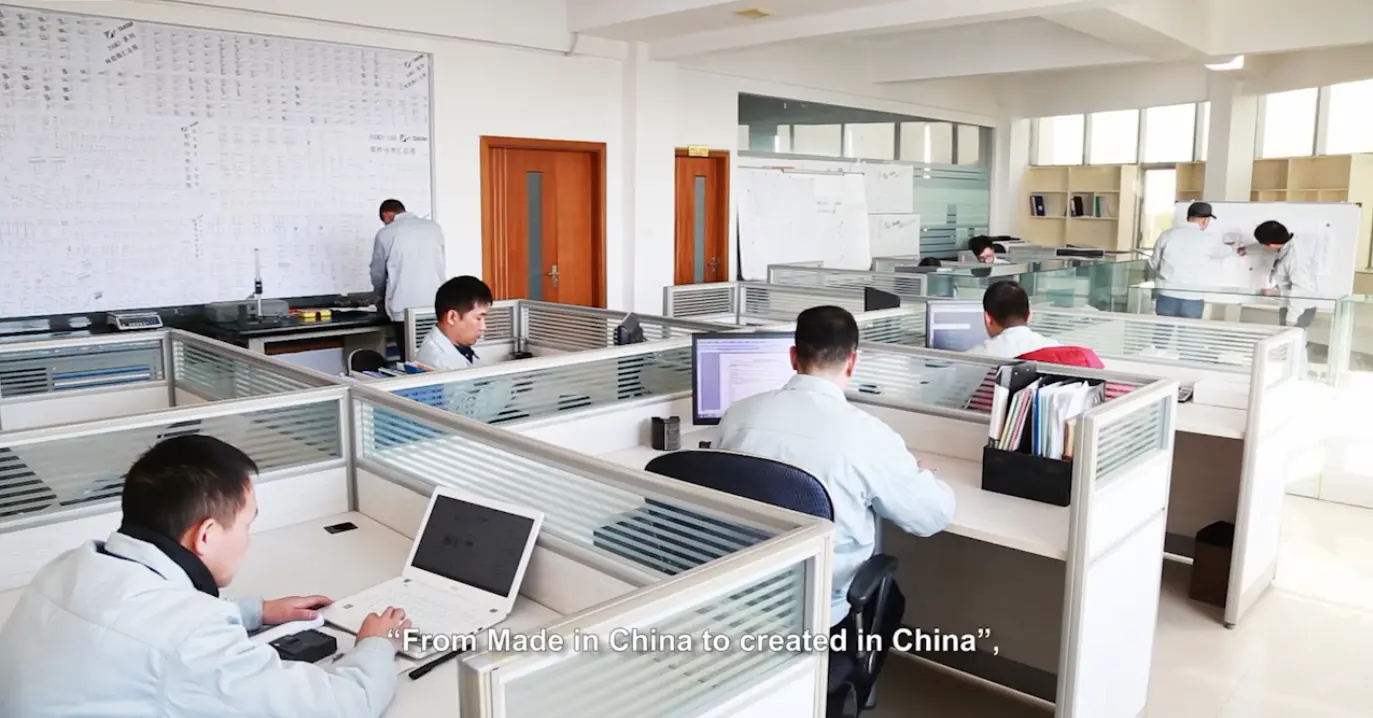

1. Sineqela le-R & D eliqeqeshiweyo, sinenkqubo yophuhliso olusemgangathweni. Inokubonelela ngenkonzo elungiselelweyo ebalaseleyo.

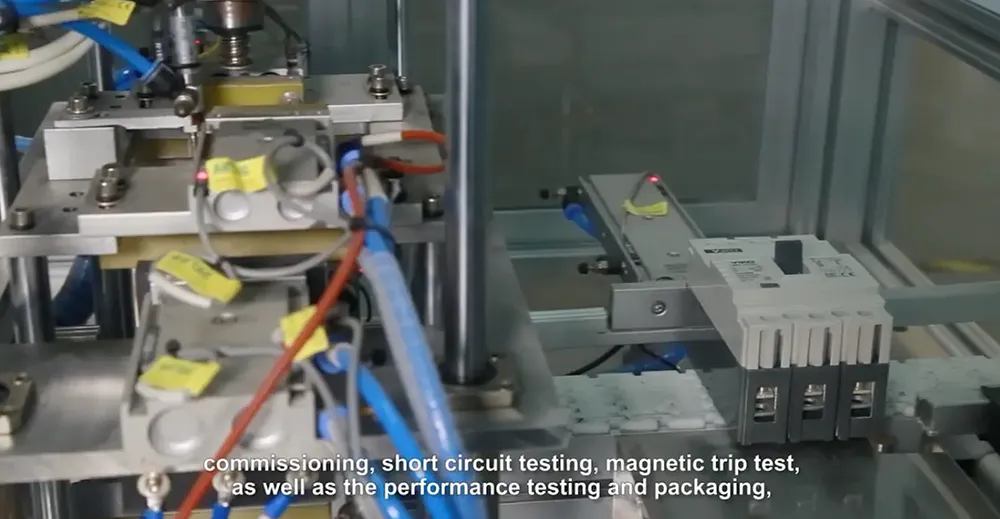

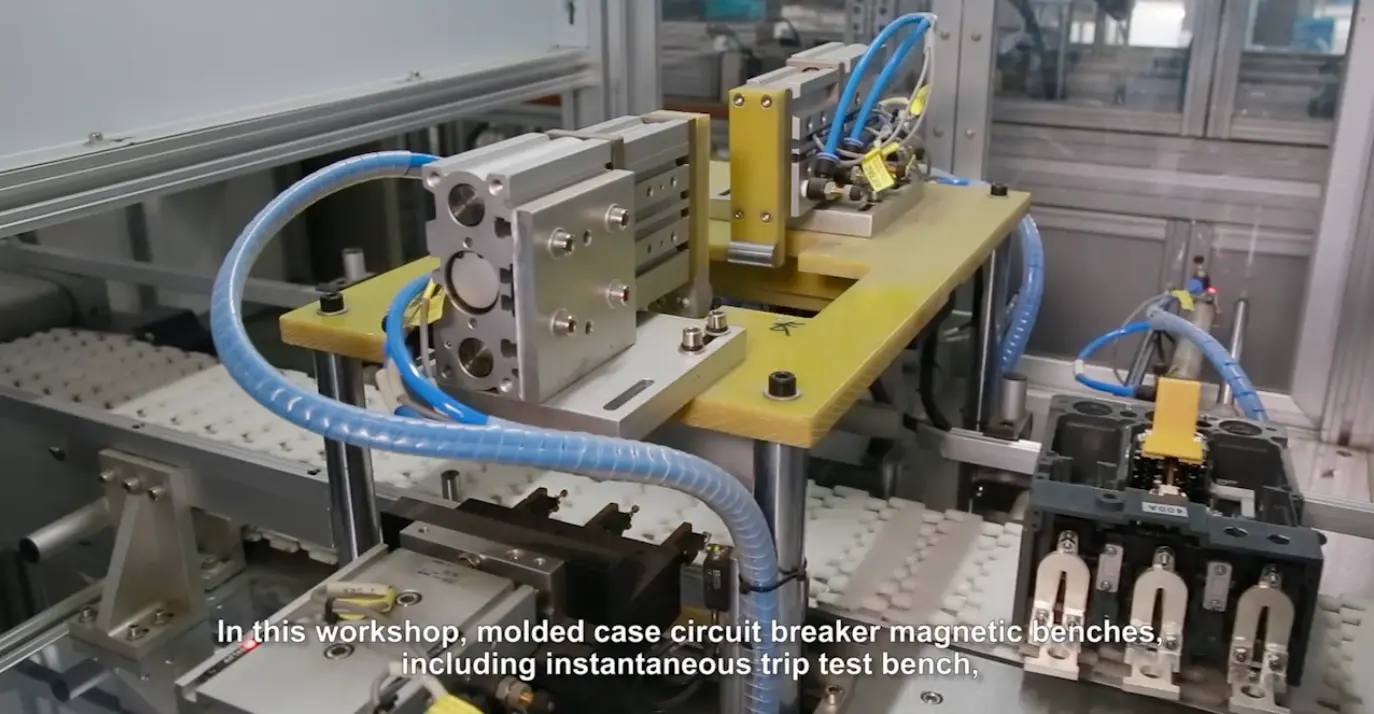

2. Sivelisa i-circuit breaker ngomgca wokuvelisa ngokuzenzekelayo, Ngoku, sinemizila ye-6 yokuvelisa ngokuzenzekelayo. Kwaye umthamo wemihla ngemihla ungaphezulu kwe-1000pcs.

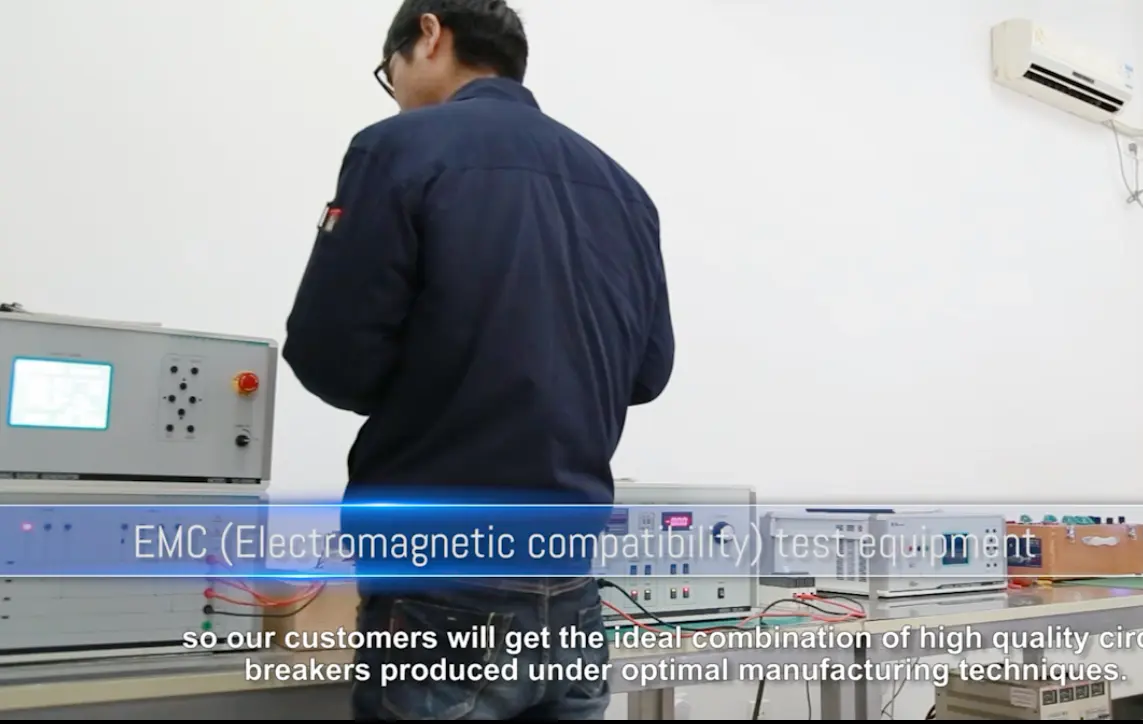

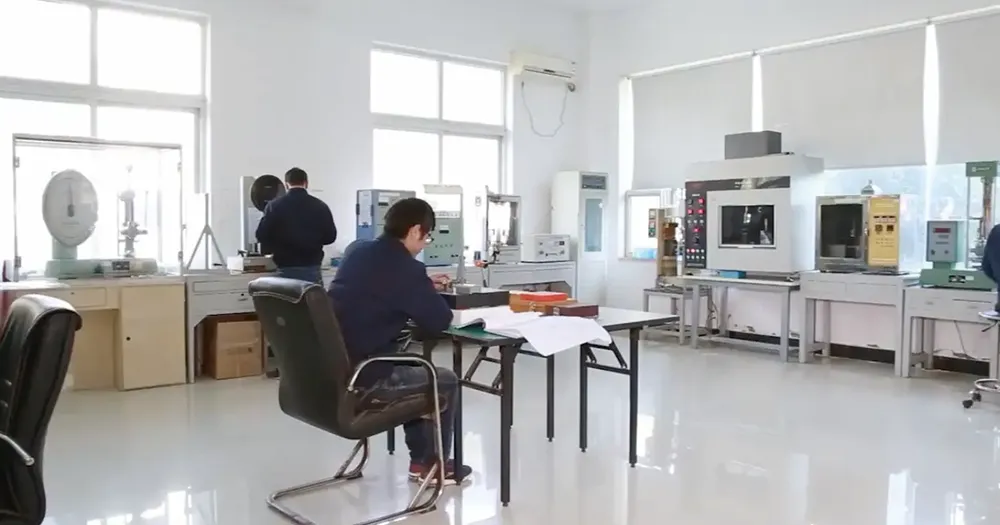

3. Sinebhubhoratri esebenza ngokupheleleyo, ilabhoratri yethu inokungqina kwilebhu, sinokwenza umthwalo oshushu, imagnethi, kunye nomda wokuhamba, ubomi bomatshini, i-EMC kwilebhu yethu.

4. Emva kokufumana iCB,CE,SEMKO,KEMA,ASTA,ROHS,SASO,CCC yehlabathi jikelele

Ii-FAQs

I-Q1: Luluphi uluhlu lwe-thermal oluhlengahlengiswayo lwe-DAM1 MCCB?

I-A1: Ukumiswa kwe-thermal kwi-series ye-DAM1 inokulungelelaniswa phakathi kwe-70% kunye ne-100% ye-In, ivumela ulawulo oluchanekileyo lokukhuselwa komthwalo.

I-Q2: Ngaba i-DAM1 i-Thermal Adjustable Molded Molded Case Circuit Breaker ingasetyenziselwa zombini i-3-pole kunye ne-4-pole configuration?

I-A2: Ewe, uchungechunge lwe-DAM1 lufumaneka kuzo zombini i-3P kunye ne-4P uqwalaselo, okwenza ukuba lulungele izicelo ezahlukeneyo.

I-Q3: Ngaba i-DAM1 MCCB iza nazo naziphi na iimpawu ezongezelelweyo zokuvavanya okanye ukugcinwa?

I-A3: Ewe, uchungechunge lwe-DAM1 lubandakanya iqhosha lokutyhala-ukuya-uhambo lokuvavanya lula kunye nokuqinisekiswa kokusebenza kwe-breaker ngaphandle kokwenza imeko ephosakeleyo.

I-Q4: I-DAM1 MCCB iziphatha njani iisekethe ezimfutshane?

I-A4: Uchungechunge lwe-DAM1 lubandakanya indlela yohambo lwamagnetic olunika ukhuseleko olukhawulezayo kwiisekethe ezimfutshane, ukuqinisekisa ukuqhawulwa ngokukhawuleza kwee-fault currents.

I-Q5: Ngaba kukho naziphi na izincedisi ezikhoyo kwi-DAM1 MCCB?

I-A5: Ewe, uluhlu olubanzi lwezixhobo ezikhoyo, kubandakanywa oonxibelelwano lwe-alamu, oonxibelelwano abancedisayo, ukukhutshwa kwe-undervoltage, kunye neendlela zokusebenza zombane, ukuphucula ukuguquguquka kunye nokusebenza kwe-breaker.
