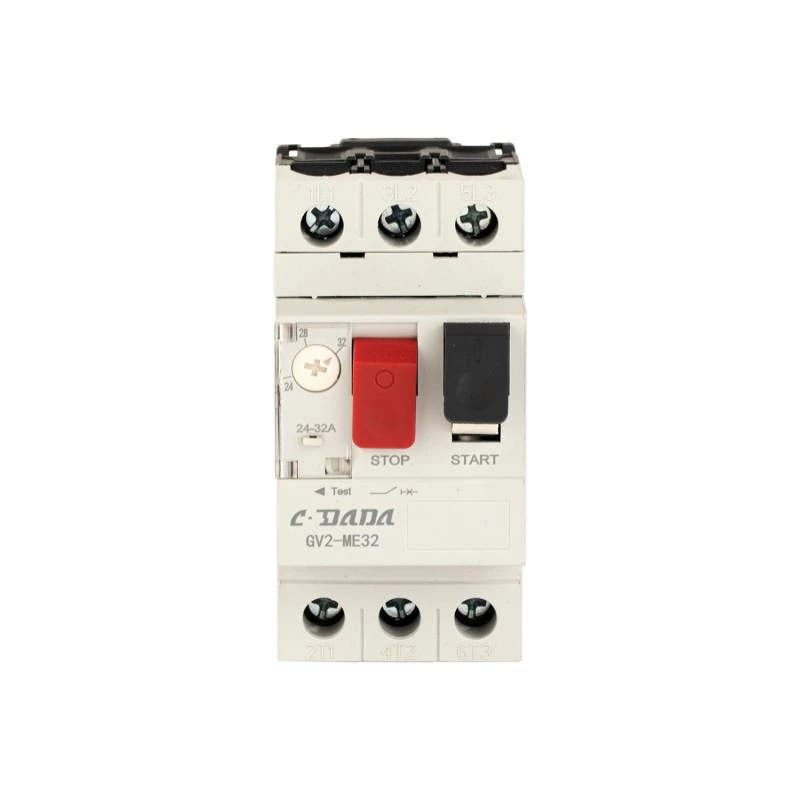

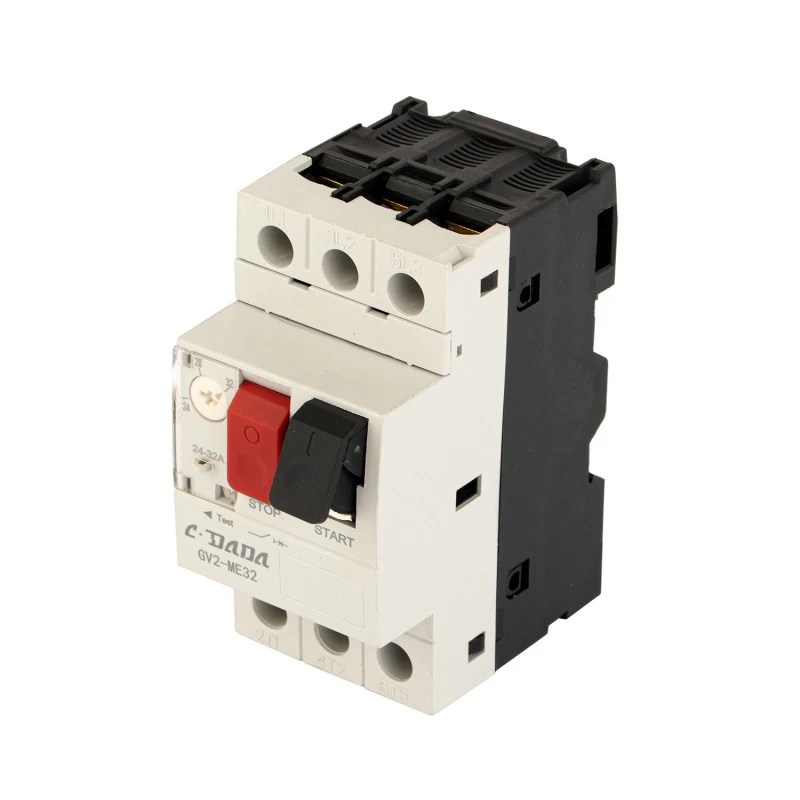

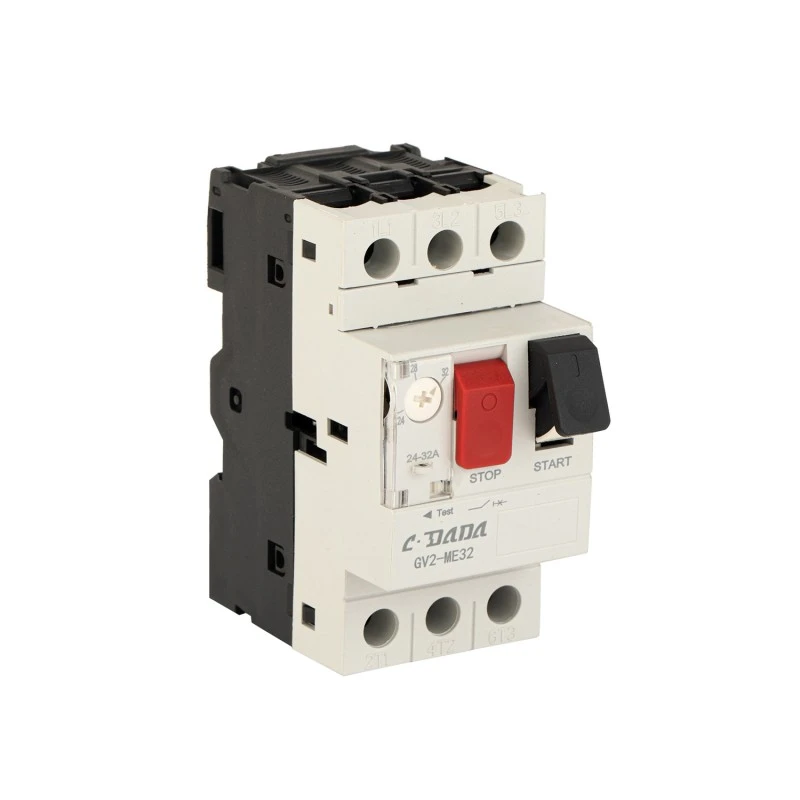

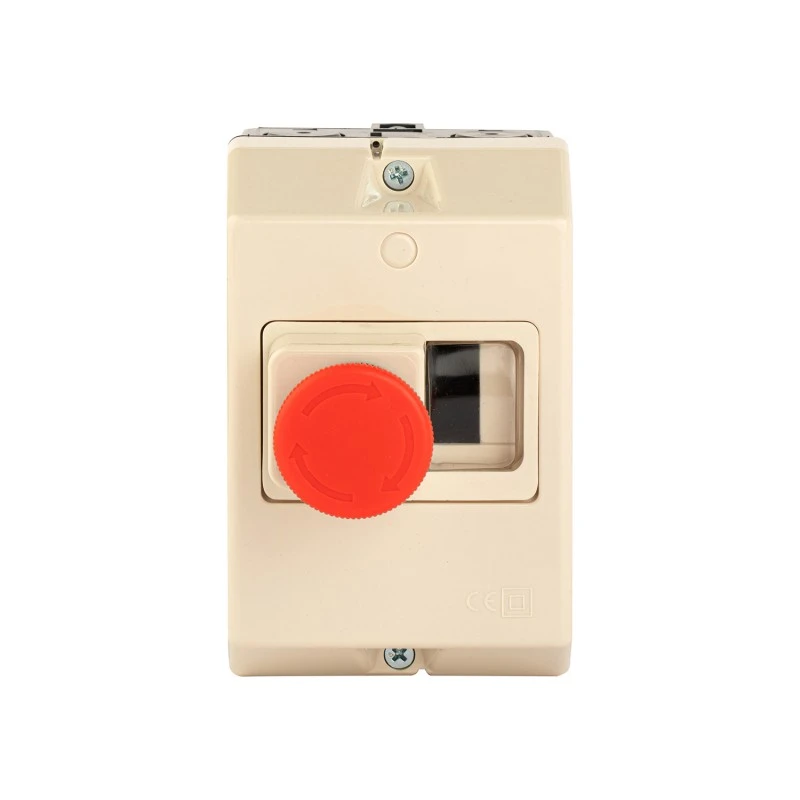

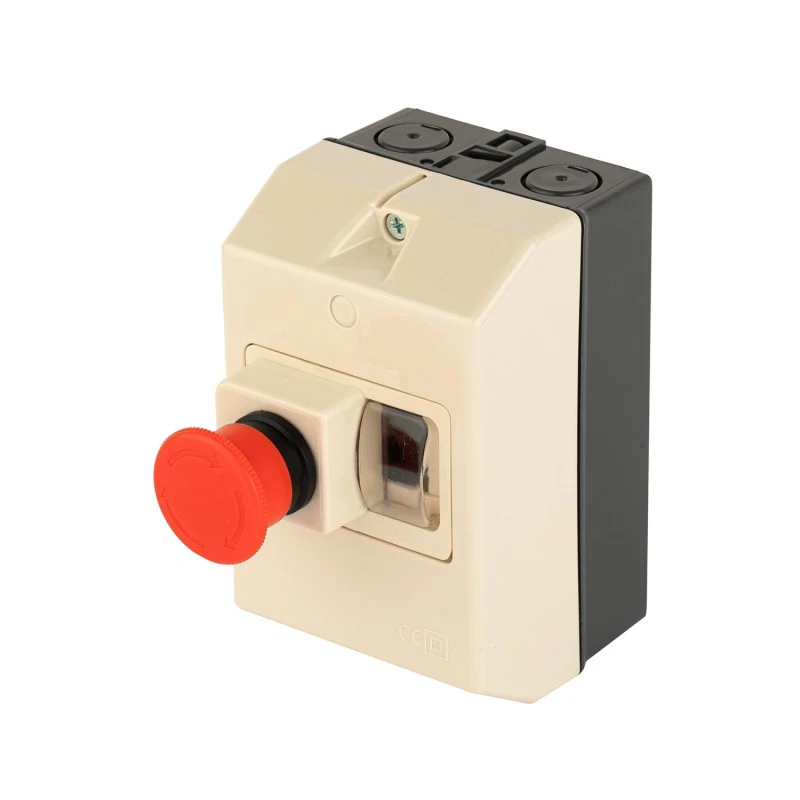

GV2 2P Motor Protection Circuit Breaker

Lula ukukhuselwa kwemoto kunye ne-CDADA GV2 2P Motor Protection Circuit Breaker (MPCB) isisombululo esiphezulu, esine-compact eyenziwe yi-Shanghai DADA Electric CO., LTD. usebenzisa iqonga leteknoloji yesizukulwana esilandelayo kunye nemveliso ezenzekelayo ngokupheleleyo. Eyenzelwe i-motor phase okanye i-motor-phase-motor circuits, i-GV2 2P idibanisa ukugqithiswa, i-short-circuit, i-phase-losss (kwi-3-phase-applications xa isetyenziswe kwiisethi), kunye nemisebenzi yodwa kwisixhobo esinye esifakwe kwi-DIN-rail.

Ngoluhlu lokumisela oluhlengahlengiswayo lwe-0.1A ukuya kwi-32A, imbuyekezo ye-thermal yokutshintsha kweqondo lokushisa, kunye ne-voltage ye-insulation elinganisiweyo ye-690V, iqinisekisa ukukhuselwa okuthembekileyo kweemoto ezincinci kwiimpompo, iifeni, i-compressor, abahambisi, kunye neenkqubo ze-HVAC. Ukuqinisekiswa kwimigangatho ye-CE, ene-110,000 yokusebenza koomatshini kunye nombane, kunye nezixhobo ezikhethiweyo ezifana noonxibelelwano abancedisayo, ukukhutshwa kwe-shunt, kunye nokukhutshwa kwe-undervoltage, i-CDADA GV2 MPCB ihambisa ukusebenza kwe-industrial-grade kwifomathi yokulondoloza indawo ye-2-pole.

IiNgcaciso eziphambili

Model Series: GV2 2P MPCB

Uphawu: CDADA | Umenzi: Shanghai DADA Electric CO.,LTD

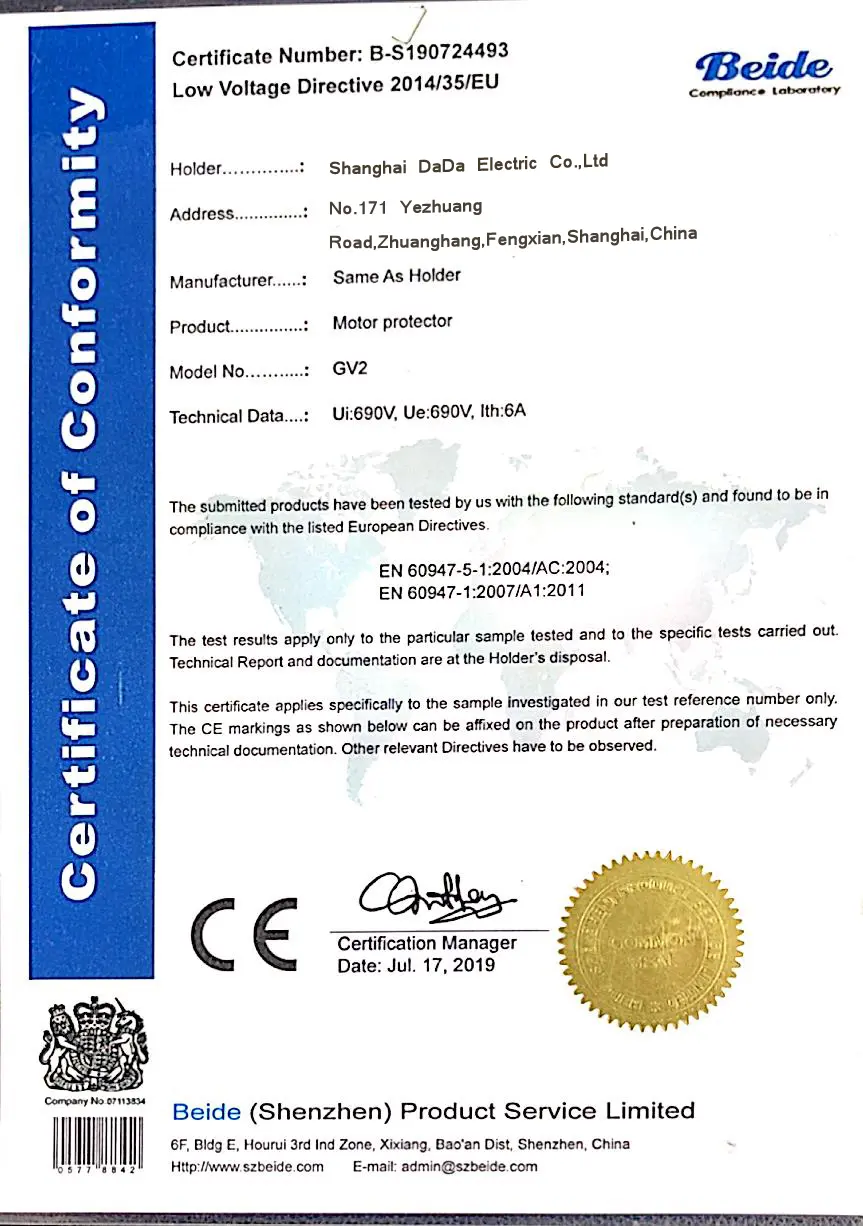

Isiqinisekiso: CE

Iipali: I-2P (ilungele iimotor zesigaba esinye okanye njengenxalenye ye-3-phase yokukhusela iseti)

Ukumisela uluhlu lwangoku: 0.1A - 32A (ukulungiswa ngokucofa)

Ukukala kweSakhelo: 32A

Ixabiso lombane wokuSebenza: 690V AC

I-Rated Insulation Voltage (Ui): 690V

I-Impulse Withstand Voltage (Uimp): 6000V

Izakhelo zokuSebenza: 50/60Hz

IKlasi yohambo: 10A (esemgangathweni weenjini zenjongo jikelele)

Imisebenzi yoKhuseleko:

★ Ukhuseleko lokugcwala kweThermal

★ Ukhuseleko lwesiphaluka esifutshane

★ Ukhuseleko lwenqanaba lelahleko* (*xa lusetyenziswa kubumbeko lweepali ezi-3 okanye iseti elungelelanisiweyo)

★  Ukwahlula umsebenzi (ikhefu elibonakalayo)

★ Imbuyekezo yobushushu eyakhelweyo

Ubomi boomatshini: Ukusebenza kwe-110,000

Ubomi boMbane (AC-3, 400V): 110,000 imisebenzi

Ukuqinisa iTorque: 1.7 N · m

Uhlobo lokuSebenza: Iqhosha lokucofa ON/OFF kunye nesalathisi esicacileyo sohambo

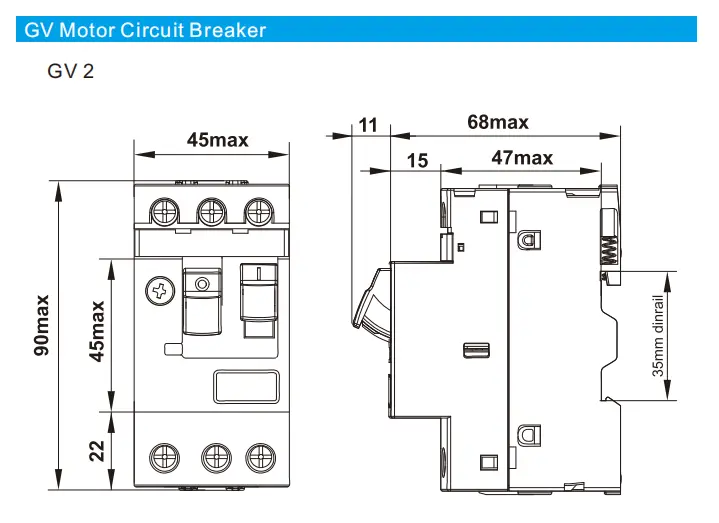

Ukunyuka: 35mm DIN kaloliwe

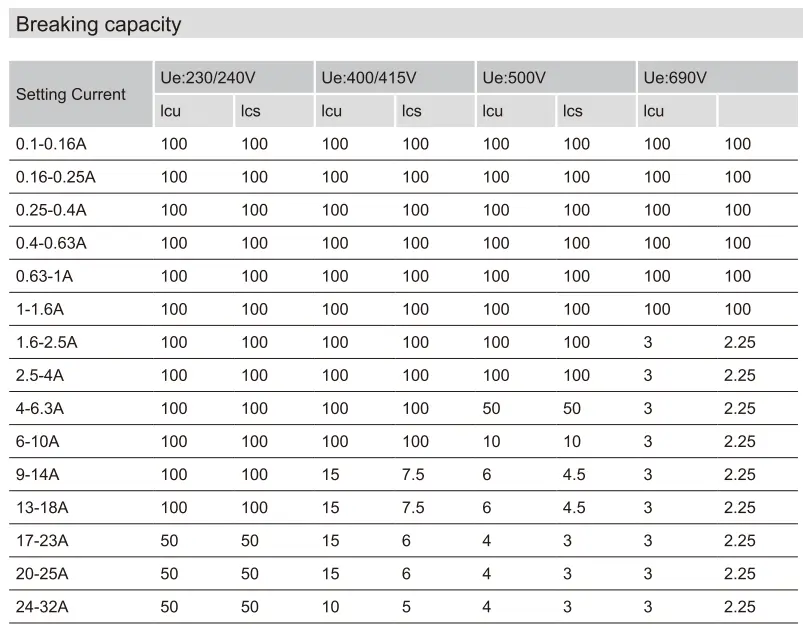

Iphepha leDatha lobuGcisa

Kutheni Khetha i-CDADA GV2 2P yoKhuseleko lweMoto iSaphuli seSekethe?

★ All-in-One Motor Protection

Idibanisa i-breaker circuit + i-thermal overload relay + isolator-isusa imfuno yamacandelo ahlukeneyo.

★ Ukuchaneka nozinzo

Indlela yokuhlawula iqondo lobushushu iqinisekisa ukukhubeka ngokungaguqukiyo kungakhathaliseki utshintsho olukhoyo (umzekelo, iindibano zocweyo ezishushu okanye amagumbi angaphantsi abandayo).

★ Ukuqina okuphezulu

I-110,000 imijikelezo yomatshini / yombane-ukugqithisa abaninzi abakhuphisanayo ekuthembekeni kwexesha elide.

★ Space-Saving 2P Design

Ilungele iiphaneli zolawulo oludibeneyo, oomatshini be-OEM, kunye neeprojekthi zokubuyisela kwakhona apho ipaneli yendawo yokuhlala ilinganiselwe.

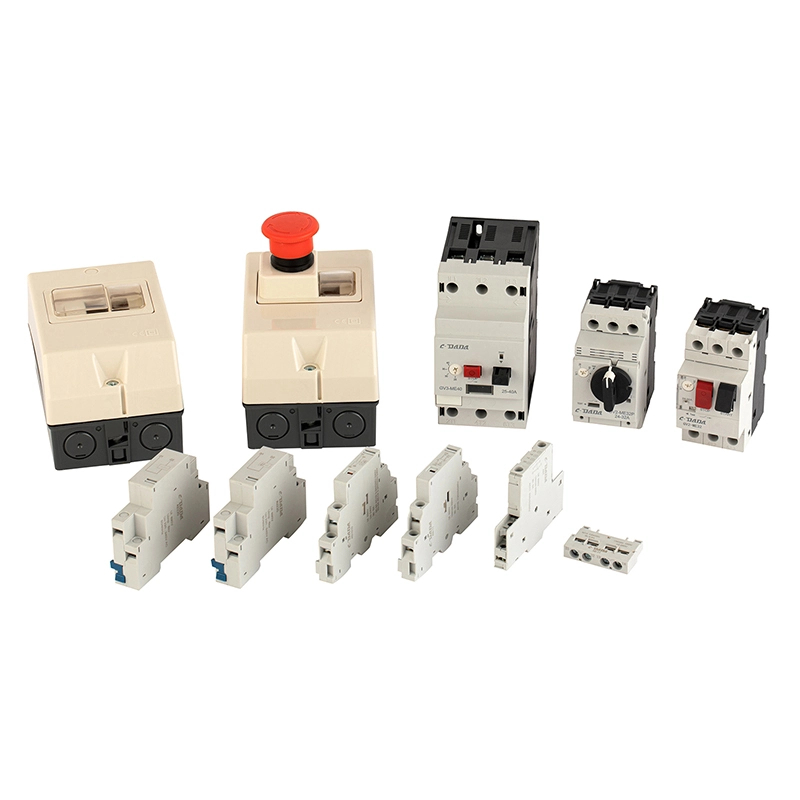

★ Full Accessory Ecosystem

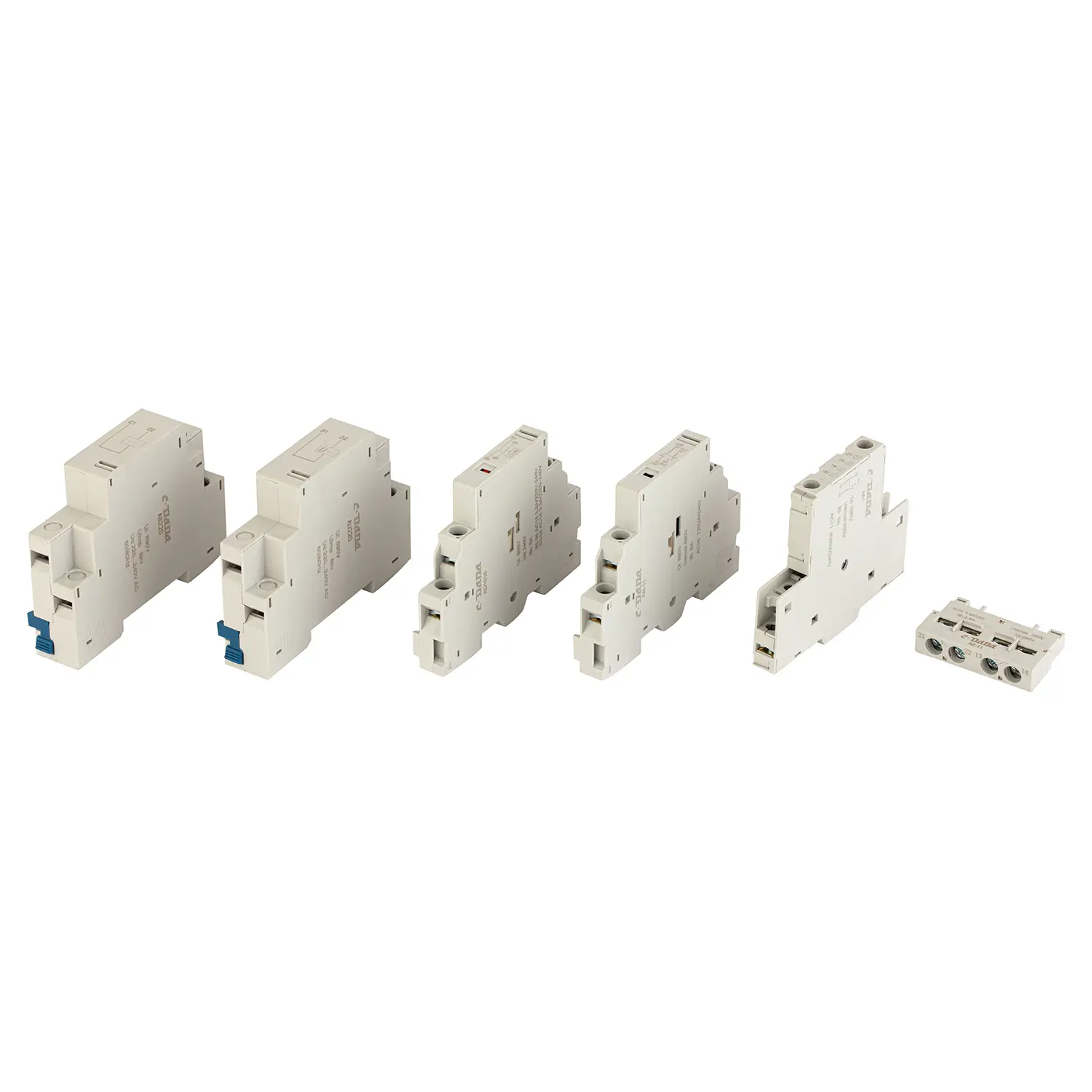

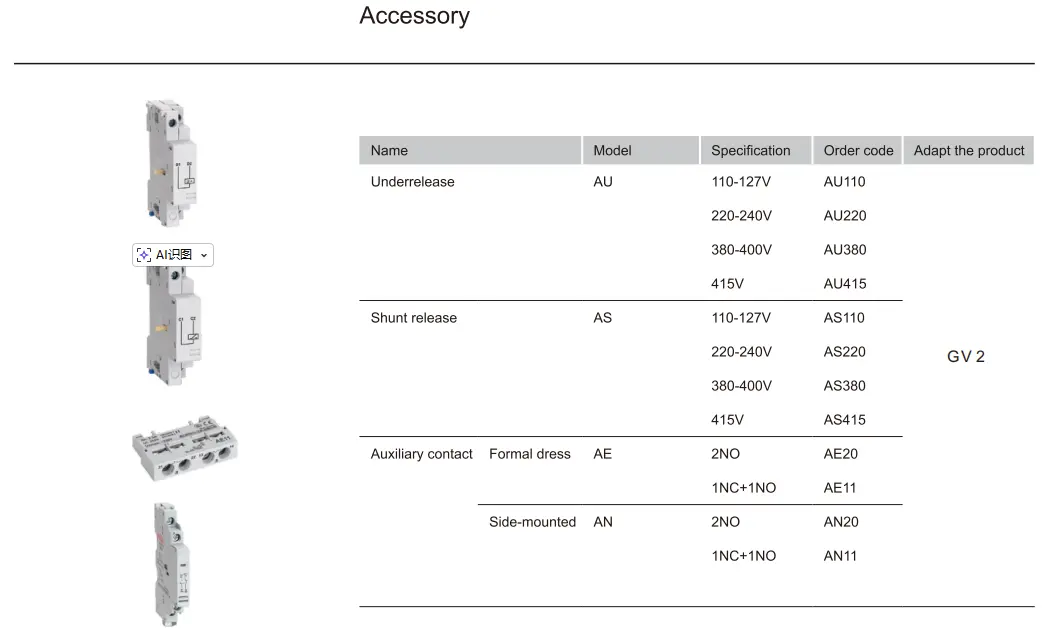

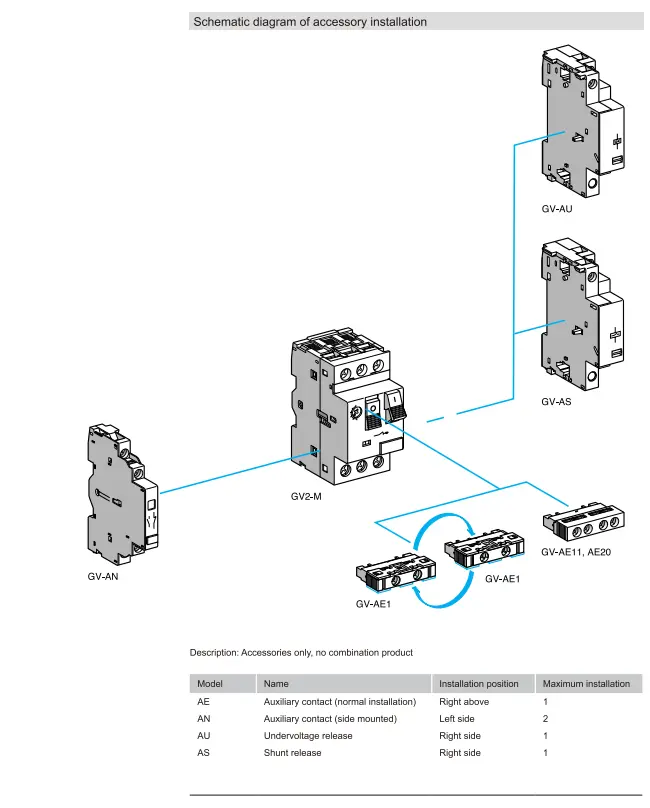

Ixhasa i-AE (i-axiliary yangaphambili), i-AN (i-axiliary side), i-AU (i-undervoltage release), i-AS (uhambo lwe-shunt) -ivumela ukubonakaliswa okude, ukuvala ngokuzenzekelayo, okanye ukudibanisa kwe-PLC.

★  UkuThotyelwa kweHlabathi

I-CE iqinisekisiwe nge-690V yokukala-ifanelekile kwiimarike zaseYurophu, zaseAsia, zaseAfrika, naseLatin America.

★ Ukuhambelana kuqinisekiswa ngezixhobo zokuvelisa ezizenzekelayo, iinkqubo zokusebenza ezisemgangathweni, ukuhlolwa kwezinto ezingenayo ngokungqongqo, uvavanyo lwenkqubo, kunye novavanyo lokugqibela olusebenzayo lwe-100% kwiiparamitha ezibalulekileyo.

Usetyenziso oluqhelekileyo

IiMotor zeSigaba esinye: Iimpompo, izivula umnyango wegaraji, iicompressor ezincinci

Oomatshini be-OEM: oomatshini bokupakisha, izixhobo zokulungisa ukutya

Iinkqubo ze-HVAC: Iiyunithi zeekhoyili zeFan, ii-chillers ezincinci

I-Automation yokwakha: Abancedisi be-Elevator, ukulawula umoya

IiProjekthi ze-Retrofit: Ukutshintsha i-fuses + ii-thermal relays kunye ne-MPCB edibeneyo

Imibuzo ebuzwa qho

I-Q1: Uthini umahluko phakathi kwe-MPCB kunye ne-standard circuit breaker?

I-A1: I-Motor Protection Circuit Breaker (MPCB) njenge-GV2 ibonelela:

● Ukhuseleko oluhlengahlengiswayo lokugcwala kwe-thermal (ehambelana nemoto FLC)

● Ukhuseleko lwemagnethi yendlela emfutshane

● Ukufunyanwa kwelahleko yesigaba (kwiinguqulelo ze-3P)

● Umsebenzi wokwahlula

→ Ii-MCBs ezisemgangathweni zibonelela kuphela ngokhuseleko lwendlela emfutshane kunye nolusisigxina—hayi ukuphuculwa kwemoto.

I-Q2: Ngaba i-2P GV2 ingakhusela i-motor yesigaba se-3?

A2: Hayi yedwa. Kwiimotor zesigaba esi-3, udinga iiyunithi ezintathu ze-GV2 (enye ngesigaba ngasinye) zilungelelaniswe kunye, okanye sebenzisa i-3P MPCB. Nangona kunjalo, i-2P GV2 ifanelekile kwiinjini zesigaba esinye okanye iisekethe zokulawula.

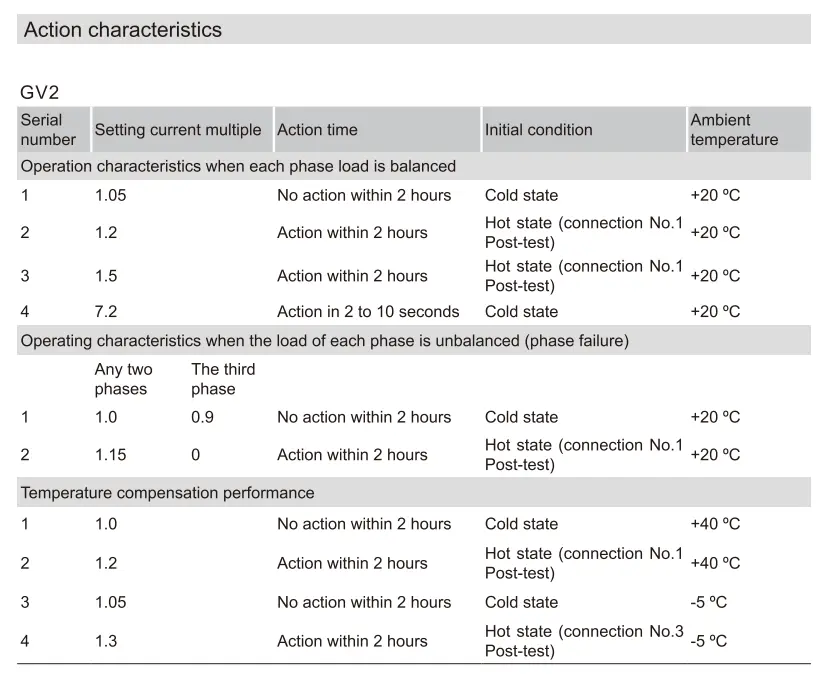

I-Q3: Ithetha ukuthini "iKlasi yohambo lwe-10A"?

I-A3: Ichaza ukuba i-breaker ihamba ngokukhawuleza kangakanani phantsi komthwalo ogqithisiweyo. I-Class 10A ithetha ukuba iya kuhamba phakathi kwemizuzwana ye-10 kwi-7.2 × isethi yangoku-ilungele iinjini eziqhelekileyo ze-squirrel-cage ngaphandle kwe-torque ephezulu.

I-Q4: Ngaba ngokwenene ihlawulela ubushushu?

A4: Ewe! Umcu we-bimetallic uhlawulelwa ngokushushu, ngoko ke ukukhubeka kuhlala kuchanekile nokuba kufakwe kwindawo yokugcina 0°C okanye 50°C ebiyelweyo.

I-Q5: Kutheni ukhetha i-CDADA GV2 ngaphezu kwezinye iimpawu?

A5: CDADA inikeza:

● Isiqinisekiso se-CE esiyinyani esineengxelo zovavanyo

● Imveliso ezenzekelayo → umgangatho ongaguqukiyo kunye neziphene eziphantsi

● I-accessory ehambelanayo epheleleyo (AE/AN/AU/AS)

● Amaxabiso akhuphisanayo kwii-OEMs kunye nabasasazi

● Inkxaso yobugcisa ngokukhawuleza kunye namaxwebhu ngesiNgesi
