1600A Iqhekeza leSekethe yoMoya

Model:DAW2-1600 Series

I-CDADA ngumenzi othembekileyo we-1600A Air Circuit Breaker, eqinisekisiwe yi-CB ngokukhuselwa okuhlakaniphile, eyakhelwe kwiimfuno ezinzima zokuhambisa amandla oshishino. Yenziwe ngamacandelo aphezulu kunye nokwakhiwa okuqinileyo, le ngqungquthela yomoya wesiphaluka kulula ukuyisebenzisa kwaye igcinwe, ifaneleka ngokungenamthungo kwiinkqubo zamandla oshishino. Lolona khetho luphezulu lokuthengwa kwevenkile kunye ne-OEM, ukuhambisa okuzinzileyo, ukusebenza okuthembekileyo kuzo zonke iimfuno zokhuseleko lwamandla kwimizi-mveliso.

Thumela uMbuzo

Ingcaciso yeMveliso

I-CDADA yifektri yobungcali enokubonelela nge-1600A Air Circuit Breaker (DAW2-1600 Series), ilungele ukuthengwa kwezinto ezininzi, kunye nesiqinisekiso se-CB kunye nokuthotyelwa kwemigangatho ye-IEC60947-2. Isebenza kwi-AC 50Hz, i-690V inethiwekhi, inikezela ngokugqithiswa okuchanekileyo, i-short-circuit, i-undervoltage kunye nokukhusela ukuvuza.

Yenzelwe ukusetyenziswa kwimizi-mveliso, ixhasa ukubekwa esweni okude, kulula ukuyifaka, kwaye ihambelana neemfuno zabasasazi besixhobo sokutshintsha esine-smart low-voltage.

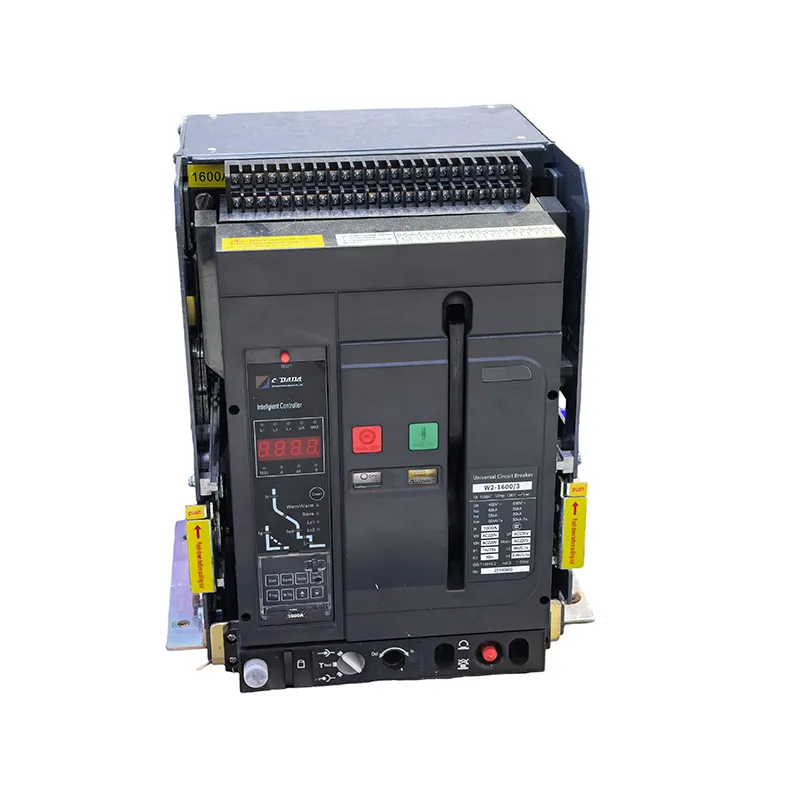

1600A Air Circuit Breaker

IParameter yeMveliso (Inkcazo)

Umzekelo: DAW2-1600 Series

Isakhelo esikalisiweyo sangoku (Inm): 1600A

Ilinganiswe ngoku (Ku): 200A / 400A / 630A / 800A / 1000A / 1250A / 1600A

I-Rated Insulation Voltage (Ui): 690V

I-Rated Working Voltage (Ue): 400V / 690V

Ukuthotyelwa kweMigangatho: IEC 60947-2

Iimpawu zoKhuseleko: Ukulayisha ngaphezulu, iSekethe esifutshane, i-Undervoltage, iFault yeGround (kunye ne-transformer yokuvuza ekhethiweyo)

Unxibelelwano: Iprothokholi evulekileyo yodibaniso lwebhasi (ixhasa imisebenzi “emine ekude”)

Uphawu lokuzahlula: “-x_”

Umzekelo						DAW2-1600
Ireyithiwe yangoku ye-shell frame grade Inm (A)						1600
Ilinganiswe ngoku ln (A)						200, 400, 500, 630, 800, 1000, 1250, 1600
Ulinganiso lwamandla ombane osebenzayo i-Ue(V)						AC400,AC690
Ukusebenza rhoqo (Hz)						50Hz/60Hz
Umgangatho wombane wokugquma i-Ui(V)						1000
Ulinganiso lwempembelelo yokunyamezela amandla ombane i-Uimp(kV)						12
Amandla okunyamezela amaza ombane U(V)1min						3500
Inani le						3, 4
I-N-pole ikale kwi-(A) yangoku						100%cln
Sebenzisa udidi			GB14048.2			B
Umlinganiselo olinganiselweyo wesekethe emfutshane yokwaphuka umthamoLcu (kA)(ixabiso elisebenzayo)			I-AC400V			65
			I-AC690V			50
			I-AC400V			55
Ireyithwe kwi-short circuit breaking capacity			AC690v			42
LCS (kA)(ixabiso elisebenzayo)			I-AC400V			143
			I-AC690V			105
Ilinganiswe kwisakhono soqhagamshelwano lwesekethe emfutshane			I-AC400V			50
			AC690v			42
Ixesha lokuphumla elipheleleyo (akukho kulibaziseka okongeziweyo)(MS)						25
Ixesha lokuvala (MS)						Ubuninzi 70
Ubomi bombane (amaxesha)	I-AC400V			ln=200A~630A		1500
				Kwi=800A~1250A		1000
				Kwi=160OA		800
	AC690v			ln=200A~630A		100o
				ln=80OA~1250A		650
				ln=1600A		500
Ubomi bomatshini (amaxesha)	Ukugcinwa kwasimahla					15000
	Yiba nesondlo					20000
Imilinganiselo (ububanzi X ubude X ubunzulu)mm	Uhlobo olusisigxina	3P			260×310×240	Uhlobo lwedrowa	3P	275×345×330
		4P			330×310×240		4P	345×345×330

Uphawu lweMveliso kunye neSicelo

I-CDADA 1600A Air Circuit Breaker igqwesa kwizicelo ezinzima ezifana nezityalo zamandla, amaziko edatha, kunye neziseko zophuhliso zikamasipala. Umlawuli wayo okrelekrele wenza ucalucalulo oluchanekileyo, ukunciphisa ixesha lokuphumla-kubaluleke kakhulu kubathengi ukubeka phambili ukuzinza kwegridi. Ngomgangatho ovalekileyo we-IP20 kunye noyilo lwemodyuli, kulula ukudibanisa kwiiphaneli ezikhoyo zokutshintsha.

Izinto eziluncedo ezingundoqo:

★ iminyaka emi-5 yokusebenza phantsi komthwalo opheleleyo

★ Ukhuseleko lokuvuza ngokuzikhethela ukwenzela ukhuseleko oluphuculweyo

★ Ixhasa ukhuseleko lwemoto (≤1600A imifuziselo)

★ Ukungakwazi ukutshintshela rhoqo xa ukuqaliswa kweemoto

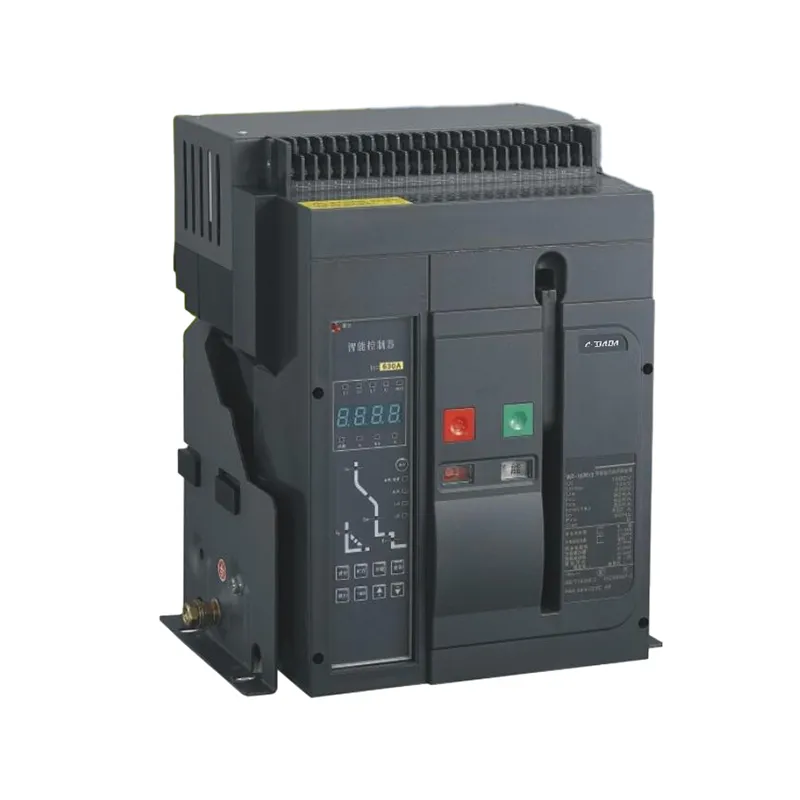

1600A Air Circuit Breaker

Iinkcukacha zeMveliso

Yenziwe ngu-SHANGHAI DADA ELECTRIC CO., LTD., Yonke i-1600A ACB ifumana uvavanyo oluqinileyo lwe-thermal kunye ne-dielectric. Umgca wethu wokuvelisa ngokuzenzekelayo uqinisekisa ± 2% ukunyamezela kwiisethingi zohambo-ukugqithisa abakhuphisana begeneric. Izindlu ze-aluminium alloy zibonelela ngokutshatyalaliswa kobushushu obuphezulu, ngelixa uqhagamshelwano olufakwe ngesilivere luqinisekisa ukuchasana okuphantsi kwexesha.

Xa kuthelekiswa nezaphuli eziqhelekileyo, iiyunithi zeCDADA zibonelela:

★ 30% impendulo ngokukhawuleza kwiimpazamo zomhlaba

★ Ukulungela ukuqinisekiswa kabini (CE ngesicelo)

★ Custom uleyibheli & ukupakishwa kwabathengi babucala-ileyibhile

1600A Air Circuit Breaker

Kutheni uDada's 1600A Air Circuit Breaker igqwesa abakhuphisana

Xa ithelekiswa nabo sikhuphisana nabo, imveliso yethu ineengenelo ezahlukeneyo.

Iindleko ezingaphezulu - zisebenza ngaphandle kokuncama umgangatho.

Ixesha lokuphendula ngokukhawuleza xa kukho iimpazamo zombane.

Inkqubo yenkonzo ebanzi emva kwentengiso.

Inzuzo:Unceda abathengi ukuba benze isigqibo esinolwazi, bekhetha imveliso edibanisa ukusebenza okuphezulu, ukuthembeka, kunye neendleko-ezisebenzayo.

E Shanghai DADA Electric CO., Ltd, siyaqonda ukuba ishishini ngalinye lineemfuno ezizodwa. Isipho sethu sokwenza ngokwezifiso siyilelwe ukukunika isisombululo somntu. Nokuba ufuna imveliso eneempawu ezithile, izinto zophawu, okanye ukusebenza, iqela lethu likulungele ukwenza isithembiso esilungiselelwe wena.

1600A Air Circuit Breaker
