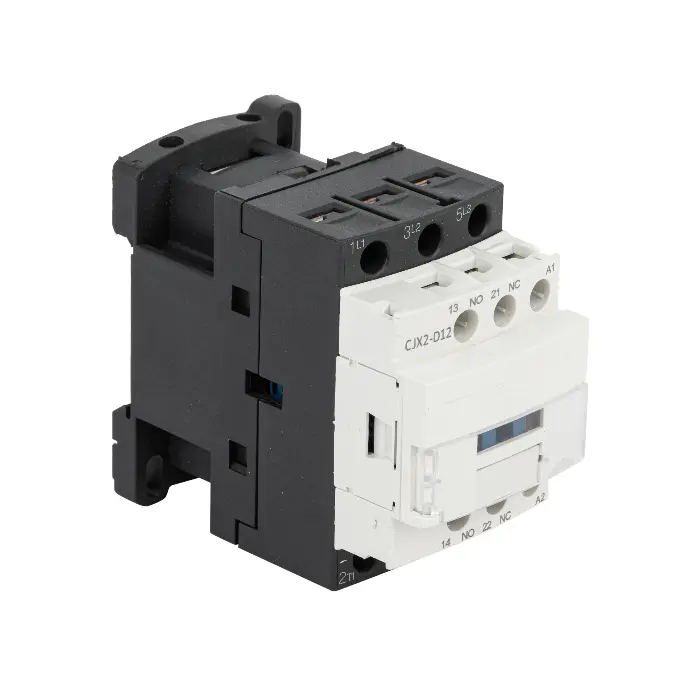

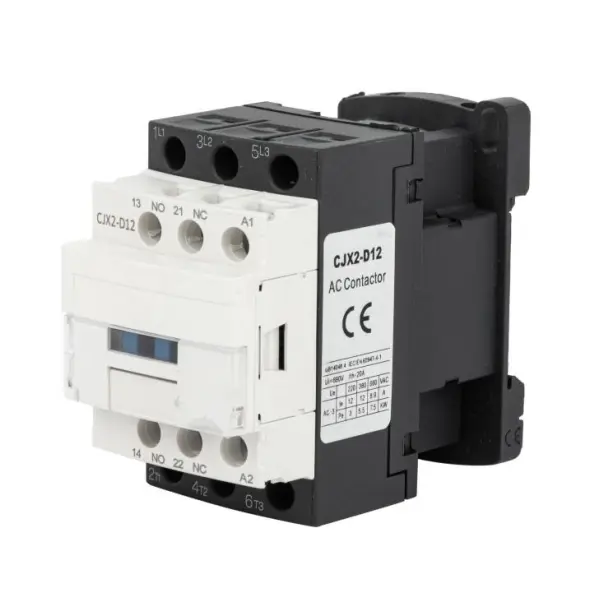

D Umnxibelelanisi

Model:LC1-D Series

I-Shanghai DADA Electric ngumenzi othembekileyo kwaye sineempawu zethu, i-CDADA. Umnxeba wethu we-D (i-LC1-D Series) yi-IEC 60947-4-1 eqinisekisiweyo, i-3P / 4P, ukuya kwi-620A, i-AC-3 / AC-4 ilinganiswe. Iinketho zombane obanzi wekhoyili. Sincoma le mveliso yolawulo lweemoto kunye ne-automation ye-industrial, qhagamshelana nathi ngentelekelelo.

Thumela uMbuzo

Ingcaciso yeMveliso

Ubunjineli obuthembekileyo bolawulo lweemoto kunye nokutshintsha kwamandla kunye neCDADA LC1-D Series D Contactor i-AC yoqhagamshelwano ephezulu eyenziwa yi-Shanghai DADA Electric CO., LTD ukuhlangabezana nemigangatho ye-IEC / EN 60947-4-1. Eyakhelwe ushishino, urhwebo, kunye nosetyenziso lweziseko ezingundoqo, uchungechunge lwe-LC1-D luxhasa ulungelelwaniso lwe-3-pole okanye i-4-pole kunye nemisinga elinganisiweyo ukusuka kwi-9A ukuya kwi-95A (ukuya kwi-620A kwizinto ezinobunzima obunzima) kunye nokulawula i-3-phase squirrel-cage motors ukuya kwi-45kW (kwi-13-AC4-AC4).

Ixhotyiswe nge-1NO + 1NC abafowunelwa abancedisayo, idibanisa ngaphandle komthungo kunye ne-thermal overload relays ukhuseleko olupheleleyo lwemoto. Ngokhetho lwe-coil ye-AC okanye ye-DC (24V-600V), i-AC-3 kunye ne-AC-4 iindidi zokusetyenziswa, kunye noyilo olomeleleyo olulinganiselwe kwi-690V ukugquma, i-CDADA D Contactor ihambisa ukusebenza okuthembekileyo kwimijikelo yokuyeka rhoqo, iinkqubo zokuhambisa, iimpompo, i-compressors, kunye neeyunithi ze-HVAC-nakwiindawo ezifunayo ze-40 ° ukuya kwi-altitude ye-0 ° C ukuya kwi-altitude ye-0.

D Contactor

IiNgcaciso eziphambili

Uthotho: D Umnxibelelanisi

Uphawu: CDADA | Umenzi: Shanghai DADA Electric CO.,LTD

Umgangatho: IEC/EN 60947-4-1

Isiqinisekiso: CE

Iipali: 3P okanye 4P (ikhethiwe)

Ilinganiswe ngokuSebenza ngoku (AC-3): 9A - 95A (ukuya kuthi ga kwi-620A kuluhlu olwandisiweyo)

Ulawulo lwaMandla eMoto (AC-3):

380/415V: 4kW – 45kW

660/690V: ukuya kuthi ga ku-45kW

Iindidi zokusetyenziswa: AC-3 (i-squirrel-cage motors), i-AC-4 (iplagi kunye ne-inching)

Ukulinganisa i-Insulation Voltage: 690V AC

Ubushushu be-Ambient: -5°C ukuya +40°C

Ukuphakama: ≤ 2000m

Ukunyuswa: Inqwelomoya ethe nkqo ±5 °, udidi lwesithathu lokuFaka

AbaNcedisi abaNcedisayo: 1NO + 1NC (esemgangathweni kuzo zonke iimodeli)

Ukhetho Lwekhoyili:

Iikhoyili ze-AC: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

Iikhoyili zeDC: 24V, 36V, 48V, 110V, 220V

Iphepha leDatha lobuGcisa

Izinto		Umzekelo	I-LC1-D09	I-LC1-D12	I-LC1-D18	I-LC1-D25	I-LC1-D32
Ipali			3/4	3/4	3/4	3/4	3/4
Uqhagamshelwano oluncedisayo			1HAYI+1NC	1HAYI+1NC	1HAYI+1NC	1HAYI+1NC	1HAYI+1NC
Ilinganiswe ngokufudumeza okuqhelekileyo ngoku (A) AC-1			20	20	30	40	50
Ilinganisiwe ukusebenza yangoku (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	AC-3 AC-4	1.5	2	3.8	4.4	7.5
Ixabiso lombane wokugquma (V AC)			690	690	690	690	690
Amandla olawulo Isigaba esi-3 Injini yekheji (AC-3)	kW	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
Ikhoyili ye-AC(V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC ikhoyili(V)			24,36,48,110,220

Izinto		Umzekelo	I-LC1-D40	I-LC1-D50	I-LC1-D65	I-LC1-D80	I-LC1-D95
Ipali			3/4	3/4	3/4	3/4	3/4
Ikati yeSekethe eNcedisayo:AC-15,Ue=4 15V le=0.95A Ith=10A			1HAYI+1NC	1HAYI+1NC	1HAYI+1NC	1HAYI+1NC	1HAYI+1NC
Ilinganiswe ngokufudumeza okuqhelekileyo ngoku (A) AC-1			60	80	80	110	110
Ilinganisiwe ukusebenza yangoku (A)	380/400V	AC-3 AC-4	40	50	65	80	95
	380/400V	AC-3 AC-4	18.5	24	28	37	44
	660/690V	AC-3 AC-4	34	39	42	49	49
	660/690V	AC-3 AC-4	9	12	14	17.3	21.3
Ixabiso lombane wokugquma (V AC)			690	690	690	690	690
Amandla olawulo Isigaba esi-3 Injini yekheji (AC-3)	KW	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
Ikhoyili ye-AC(V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC ikhoyili(V)			24,36,48,110,220

Izinto			Umzekelo		I-LC1-D115		I-LC1-D150		I-LC1-D170		I-LC1-D205		I-LC1-D245
Ipali					3		3		3		3/4		3/4
Ilinganiswe ngokufudumeza okuqhelekileyo ngoku (A) AC-1					200		200		200		275		280
Ilinganisiwe ukusebenza yangoku (A)	380/400V		AC-3 AC-4		115		150		170		205		245
					50		65		70		75		85
	660/690V		AC-3 AC-4		70		90		100		108		115
					25		32		35		38		40
Ixabiso lombane wokugquma (V AC)					690		690		690		690		690
Amandla olawulo Isigaba esi-3 Injini yekheji (AC-3)	kW		380/415V AC 660/690V AC		55		75		75		90		110
					80		100		100		110		140
Ikhoyili ye-AC(V)					110,127,220,240,380,415,440,480,500,600
Izinto				Umzekelo		LC1-D300		I-LC1-D410		I-LC1-D475		I-LC1-D620
Ipali						3/4		3/4		3/4		3/4
Ilinganiswe ngokufudumeza okuqhelekileyo ngoku (A) AC-1						360		430		580		850
Ilinganisiwe ukusebenza yangoku (A)		380/400V		AC-3 AC-4		300		410		475		620
						124		150		185		188
		660/690V		AC-3 AC-4		190		235		290		360
						60		72		85		170
Ixabiso lombane wokugquma (V AC)						690		690		690		690
Amandla olawulo lwe-3-phase Injini yekheji (AC-3)		kW		380/415V AC 660/690V AC		160		200		250		335
						220		280		330		450
Ikhoyili ye-AC(V)						110, 127,220,240,380,415,440,480,500,600

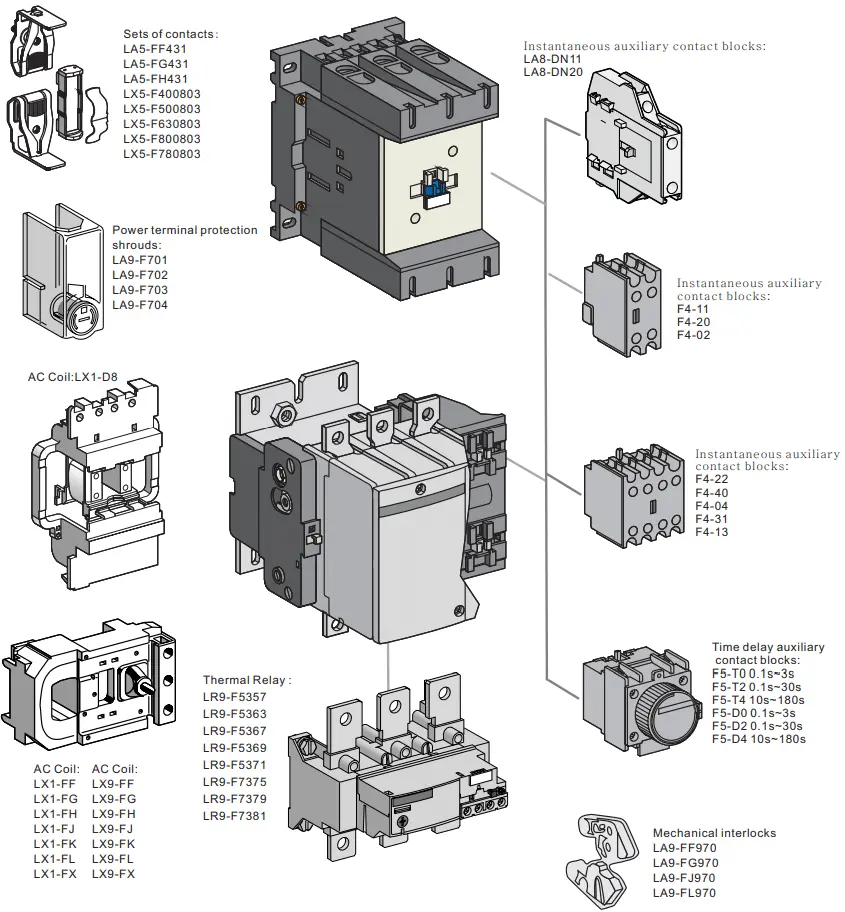

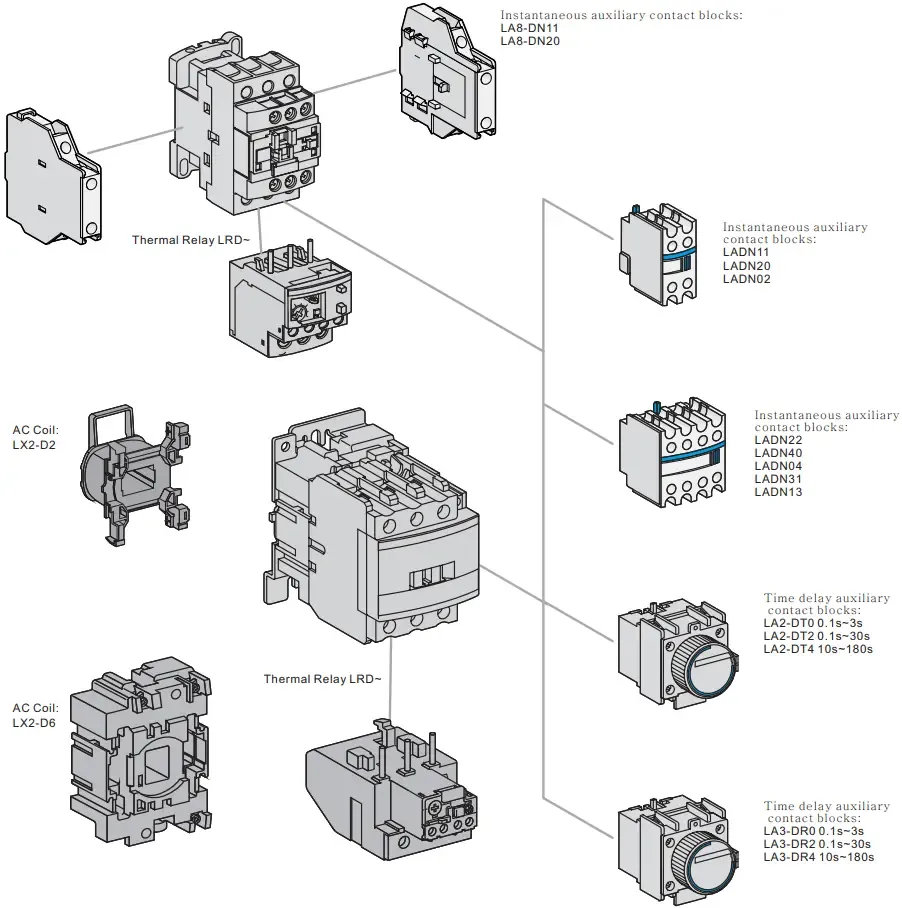

Izincedisi

D Contactor

Kutheni Khetha uMfowunelwa weCDADA D?

★ Ukuthotyelwa kwe-IEC yokwenyani

Idizayinwe kwaye ivavanywe kwi-IEC/EN 60947-4-1-ukuqinisekisa ukwamkelwa kwehlabathi kunye nokusebenzisana.

★ Isisombululo esipheleleyo soLawulo lweeMoto

Dibanisa ne-CDADA yokulayishwa kwe-thermal overload relay kwiindibano ezipheleleyo zokuqalisa iimoto-umthwalo ogqithisileyo + omfutshane wesekethe + ukubekwa wedwa.

★ Wide Voltage Flexibility

Khetha kwi-13 AC kunye ne-5 DC coil voltages-efanelekileyo kwiiprojekthi zehlabathi okanye iipaneli ezixubeneyo.

★ Womelele kuMsebenzi oNzima

Ixhasa umsebenzi we-AC-4 (ukubuyisela umva / ukuplaga rhoqo) -ilungele i-cranes, i-elevators, kunye nabahambisi.

★ Iplagi-kunye-Dlala Indibaniselwano

Abafowunelwa abancedisayo abakumgangatho we-1NO+1NC benza ukuba kube lula ukuvala, umqondiso, okanye impendulo ye-PLC.

★ Ukuthembeka kweBanga loShishino

Uvavanyelwe ukunyamezela kombane ophezulu, ukuchasana okuphantsi koqhagamshelwano, kunye noxinzelelo oluzinzileyo lwe-arc-ukunciphisa ixesha lokuphumla.

★ Iinzuzo zethu eziphambili zezi: 1) Gcwalisa iziqinisekiso zamazwe ngamazwe, 2) I-OEM / ODM enamandla amandla, 3) Umlinganiselo ophezulu weendleko zokusebenza, 4) Umgangatho othembekileyo wokuvelisa umthamo omkhulu, 5) Amava amaninzi angaphandle.

D Contactor

★ Iimveliso zethu zithunyelwa ngempumelelo kuMzantsi-mpuma we-Asia, kuMbindi Mpuma, eMzantsi Melika, e-Afrika, eYurophu, nakumazwe e-CIS, ngokugxininisa ngamandla kwiimarike zeBhanti kunye neNdlela.

D Contactor

Usetyenziso oluqhelekileyo

D Contactor Iziqalisi zeeMoto: iimpompo, iifeni, iicompressors, abaxubi

D Contactor Iinkqubo zeHVAC: I-Chiller kunye nolawulo lokuvuthela

D Contactor I-Industrial Automation: Imigca yokuhambisa, oomatshini bokupakisha

D Contactor Ulawulo lweZakhiwo: Ulawulo lwe-elevator, iibhanki zokukhanyisa

D Contactor Amandla naManzi: Ukucocwa kwamanzi amdaka, iinkqubo zokunkcenkceshela

Imibuzo ebuzwa qho

I-Q1: Ithetha ukuthini "i-D Contactor"?

I-A1: "D" ibhekiselele kuluhlu olukhethiweyo (LC1-D) olusetyenziswa kwihlabathi jikelele kule modyuli, iqonga eliqhelekileyo loqhagamshelwano lwe-AC. Ayilohlelo lobuchwephesha-kodwa lwamkelwa ngokubanzi kwisakhiwo sephaneli ngokuhambelana kwayo nezixhobo ezinje ngokulayishwa okugqithisiweyo kunye nokunxibelelana koomatshini.

Q2: Uthini umahluko phakathi kwe-AC-3 kunye ne-AC-4 yomsebenzi?

A2:

● I-AC-3: Ukuqala okuqhelekileyo / ukumisa i-squirrel-cage motors (umzekelo, iimpompo, iifeni). Uxinzelelo oluphantsi.

● I-AC-4: Ukuplaga rhoqo, uku-intshing, okanye ukubuyisela umva (umzekelo, iikhreyini, ii-hoists). Uxinzelelo oluphezulu lombane → kufuna abafowunelwa abomelele ngakumbi. → I-CDADA LC1-D ithelekelwe zombini, iyenza isebenziseke ngeendlela ezininzi.

I-Q3: Ngaba ndingasebenzisa lo mfowunelwa ngaphandle kwe-relay yokulayisha ngaphezulu?

A3: Ayikhuthazwa imithwalo yemoto. Umnxibelelanisi utshintsha amandla kuphela-ayikhuseli ngokugqithiswa. Soloko udibanisa ne-thermal okanye i-electronic overload relay yokhuseleko lwemoto.

I-Q4: Ngaba iinguqulelo ze-4-pole zikhoyo?

A4: Ewe! Zonke iimodeli ze-LC1-D zixhasa ulungelelwaniso lwe-3P okanye i-4P-elungele ukutshintshwa kwezicelo ezingathathi hlangothi okanye iinkqubo ze-4-wire.

I-Q5: Kutheni ukhetha i-CDADA ngaphezu kwabanye abafowunelwa be-D-series?

A5: CDADA inikeza:

● Ukuthotyelwa kwe-IEC 60947-4-1 yokwenene kunye neengxelo zovavanyo

● Uluhlu lwamandla ekhoyili ebanzi (kuquka i-415V, 480V, 600V yokuthumela ngaphandle)

● Umgangatho ohambelanayo kunye noqhagamshelwano lwesilivere-alloy kunye ne-arc chutes

● Ixabiso le-OEM-friendly kunye nokuguqulwa kwesampuli ngokukhawuleza

● Izitifiketi zehlabathi (CE) kunye namaxwebhu esiNgesi
