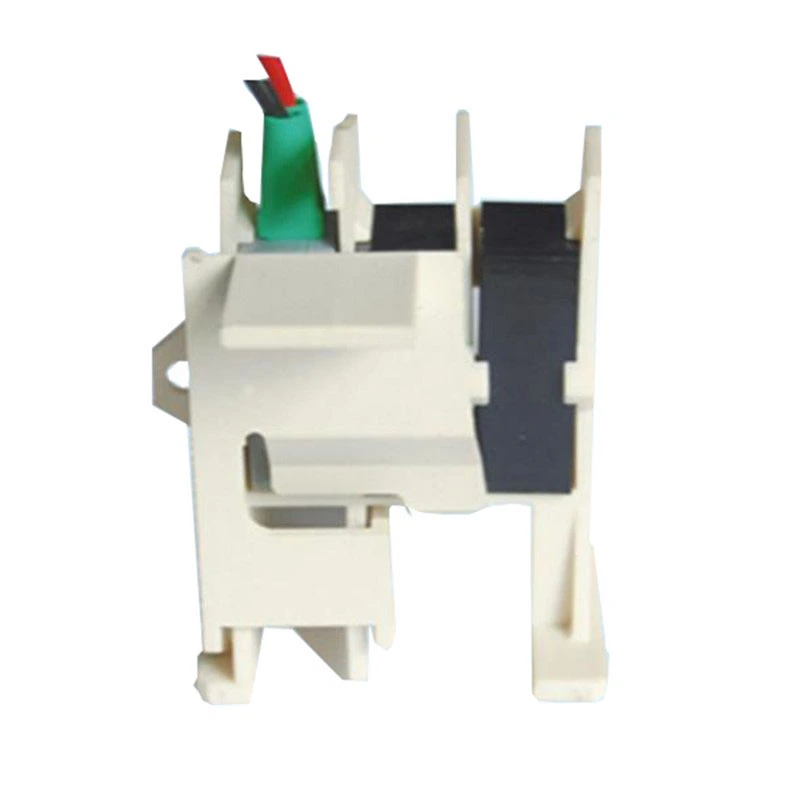

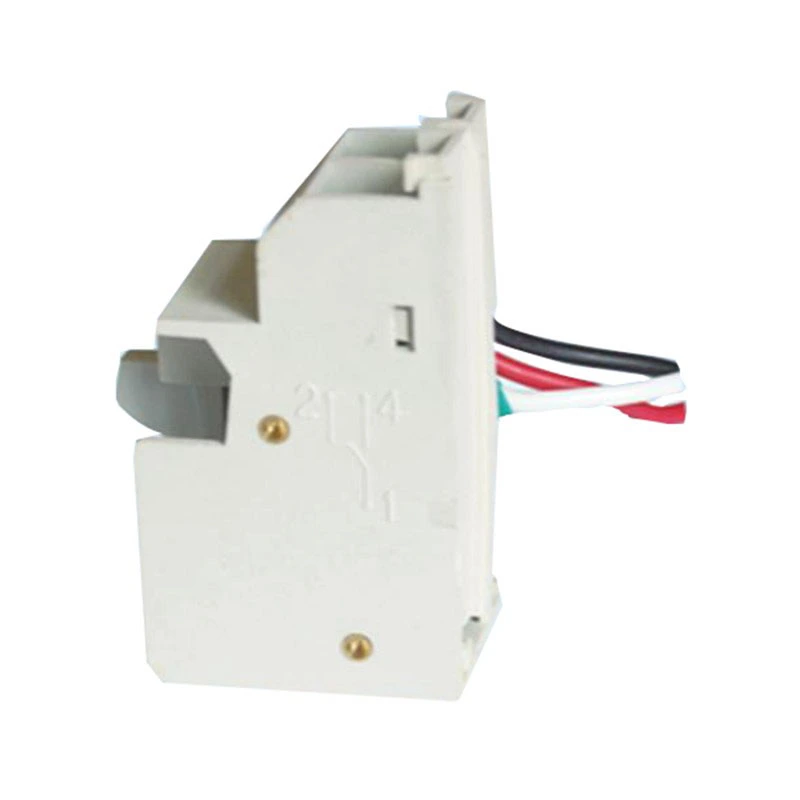

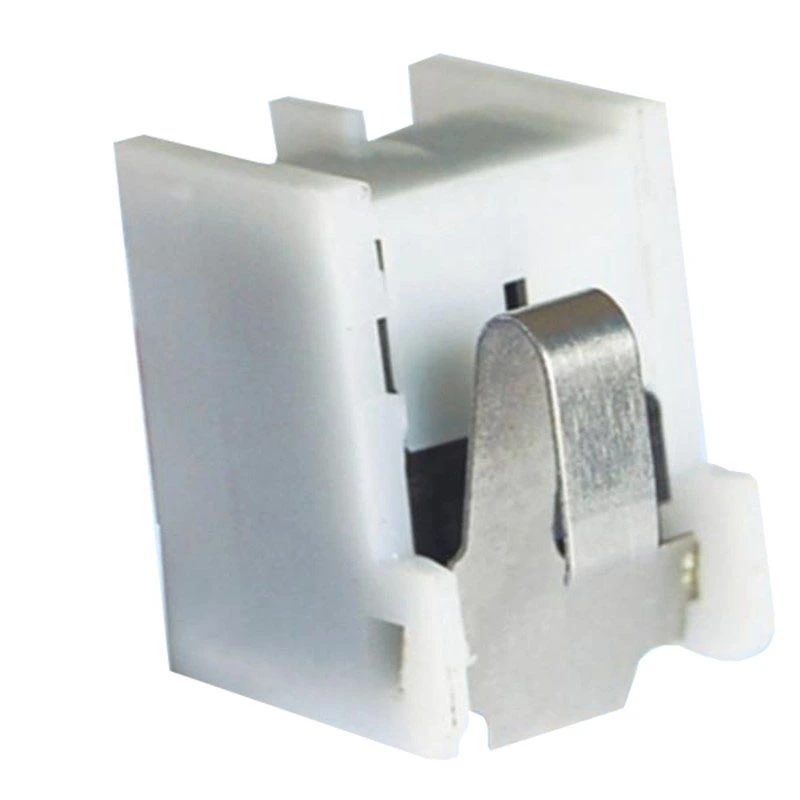

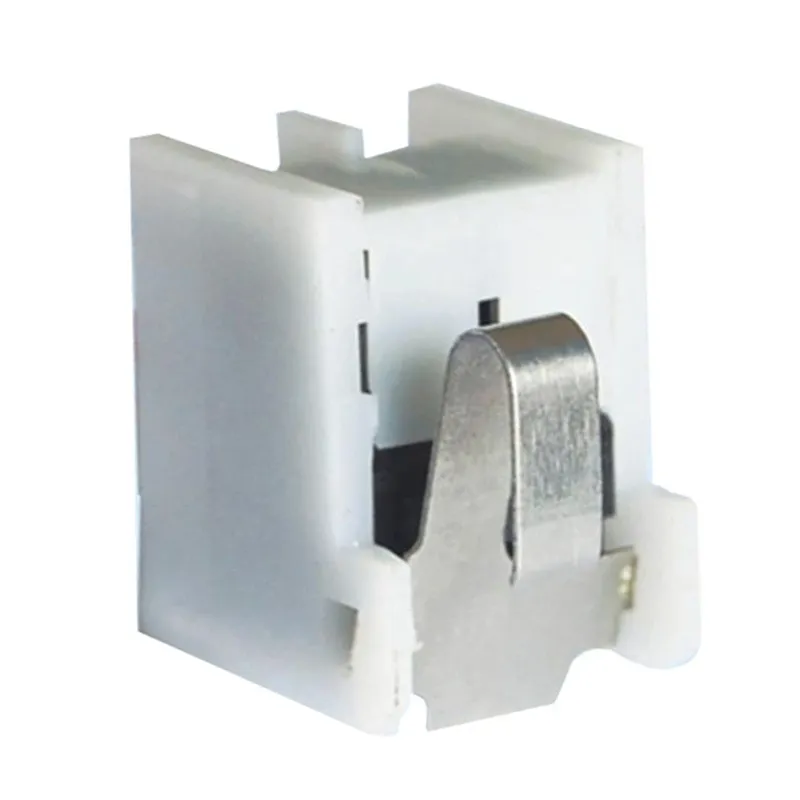

UQhagamshelwano oluNcedisayo lwe-MCCB

I-CDADA ngumboneleli othembekileyo kwaye siyaqonda ukuba abafowunelwa abancedisayo abathembekileyo babalulekile ekuqinisekiseni ukhuseleko kunye nokusebenza kakuhle kweenkqubo zakho zombane. AbaNxibelelwano bethu abaNcedisayo be-CDADA MCCB babonelela ngengcaciso echanekileyo yeemeko ezivulelekileyo nezivaliweyo zee-MCCBs zakho (Ii-Molded Case Circuit Breakers), zibenza zibe yimfuneko kuzo zombini izicelo zoshishino kunye nezorhwebo. Nokuba uyila inkqubo entsha okanye uphucula esele ikhona, abafowunelwa abancedisayo babonelela ngokuguquguquka kunye nokuthembeka okudingayo.

Iimbalasane zeMveliso

Injongo: Ukubeka iliso kunye nokulawula imeko yee-MCCBs.

Ukucwangcisa: Ifumaneka kwi-1NO / 1NC, 2NO / 2NC, kunye ne-4NO / 4NC iinketho.

Ukuhambelana: Yenzelwe ukusebenza ngaphandle komthungo kunye neCDADA MCCBs, kodwa iyahambelana nezinye iimpawu ezininzi.

Ukufakela ngokulula: Ifakwe ngaphambili iintambo ukuseta ngokukhawuleza nangokulula.

Ukuqina: Yakhelwe ukumelana neemeko ezingqongileyo kunye nokusetyenziswa rhoqo.

Isincomo sethu: Kwizicelo ezininzi, ukucwangciswa kwe-2NO / 2NC kunika indlela elungeleleneyo phakathi kokusebenza kunye nokusebenza kakuhle kweendleko.

IiNgcaciso zobuGcisa

Ukufakela kunye neSikhokelo sokuSebenzisa

Ukuqinisekisa ukusebenza okufanelekileyo kunye nobomi obude be-CDADA MCCB yakho yoNcedo abaNxibelelwano, landela ezi zikhokelo:

★ Qinisekisa Ukuhambelana: Qinisekisa uqwalaselo loqhagamshelwano luhambelana neemfuno zakho zesicelo kunye nemodeli yeMCCB.

★ Ufakelo: Qhagamshela ngokomzobo wocingo onikiweyo.

● Kwi-Inm = 63A-225A, sebenzisa isethi e-1 yabafowunelwa abancedisayo (kodwa iiseti ezi-2 zinikezelwe).

● Kwi-Inm = 250A-1600A, sebenzisa iiseti ezi-2 zabafowunelwa abancedisayo (kodwa iiseti ezi-4 zinikezelwe).

★ Uvavanyo: Ngaphambi kokuthunyelwa ngokupheleleyo, vavanya abafowunelwa abancedisayo phantsi kweemeko ezilawulwayo ukuze uqinisekise umsebenzi ofanelekileyo.

Ingcebiso kwiSondlo: Rhoqo jonga imidibaniso ukuze ubone iimpawu zokuguga okanye ukudleka. Gcina indawo icocekile ukuthintela ukufumba kothuli okunokuchaphazela ukusebenza.

Wiring Diagram Overview

Umzobo wocingo uyahluka kancinci ngokuxhomekeke kukalisho lwangoku lwe-MCCB:

★ Kwi-Inm = 63A-225A:

★ Isikhundla esivaliweyo: Sebenzisa iseti e-1 yabafowunelwa abancedisayo (iiseti ezi-2 zinikezelwe).

★ Isikhundla esivulekileyo: Ngokufanayo, sebenzisa isethi e-1 yabafowunelwa abancedisayo (iisethi ezi-2 zinikezelwe).

★ Kwi-Inm = 250A-1600A:

★ Isikhundla esivaliweyo: Sebenzisa iiseti ezi-2 zabancedisi (iiseti ezi-4 zinikezelwe).

★ Vula iNdawo: Ngokufanayo, sebenzisa iiseti ezi-2 zabafowunelwa abancedisayo (iisethi ezi-4 zinikezelwe).

★ Inqaku loFakelo: Soloko ubhekisa kwidayagramu yocingo ethile ebandakanyiweyo nemveliso yakho ukuze ufumane uqhagamshelwano oluchanekileyo.

FAQ

I-Q1: Yintoni uqhagamshelwano oluncedisayo lwe-MCCB olusetyenziselwa?

I-A1: Uqhagamshelwano oluncedisayo lusetyenziselwa ukubeka iliso kunye nokubonisa imeko evulekileyo / evaliweyo ye-MCCB, eyenza ukubeka iliso kude kunye nokulawula i-breaker circuit.

I-Q2: Ngaba ndingayifaka le fowuni yokuncedisa kuyo nayiphi na i-MCCB?

A2: Ngelixa yenzelwe ukuhambelana neCDADA MCCBs, zinokulingana nezinye iimpawu. Qinisekisa iinkcukacha kwaye udibane neqela lethu lobugcisa ukuba awuqinisekanga.

I-Q3: Ndikhetha njani phakathi koqhagamshelwano lwe-NO kunye ne-NC?

I-A3: Ngokuqhelekileyo Vula (NO) abafowunelwa bavale xa i-MCCB ivala, ngelixa abafowunelwa be-Normal Vala (NC) abafowunelwa bevula. Khetha ngokusekwe kwiimfuno zenkqubo yakho yokusayina kunye nolawulo.

Q4: Kutheni ukhethe abaQhagamshelwa abaNcedisayo be-CDADA MCCB?

A4: Kwi-CDADA, sigxila kwi:

● Uqinisekiso loMgangatho: Iyunithi nganye ivavanywa ngokuqatha.

● Ukulula ukudibanisa: Ufakelo olulula kunye nokuhambelana ne-MCCB ezahlukeneyo.

● Inkxaso yoMthengi: Ukufikelela ngokuthe ngqo kwiqela lethu lobugcisa elinamava.

● Iindleko-zokusebenza: Amacandelo akumgangatho ophezulu kumaxabiso akhuphisanayo.

Inqaku lokugqibela elivela kwi-CDADA

Ukukhetha uqhagamshelwano oluncedisayo olufanelekileyo kunokwandisa kakhulu ukuthembeka kunye nokusebenza kweenkqubo zakho zombane. Nge-CDADA, utyala imali kwiimveliso ezisemgangathweni ezixhaswa yinkxaso yeengcali. Masikuncede ufezekise ukusebenza kwenkqubo ephezulu kunye nokhuseleko kunye nezisombululo zethu ezithembekileyo.
