Chwetheza iResidual Current Circuit Breaker

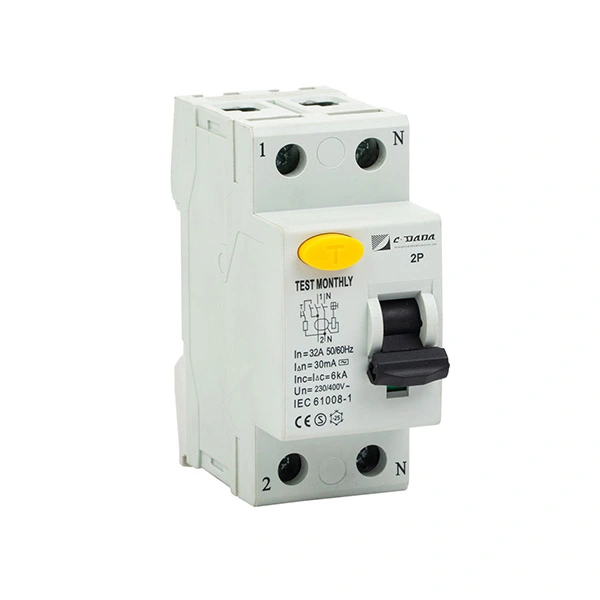

Thenga i-CDADA Uhlobo lwe-Residual Current Circuit breaker evela e-Shanghai DADA Electric, sineminyaka engaphezu kwama-40 yamava, ingaba ngumthengisi wakho. I-EN / IEC 61008-1 eqinisekisiweyo, i-2P / 4P, i-16-100A, i-30mA / 100mA iinketho. Ibona i-AC + pulsating DC evuzayo. IP20, iDIN kaloliwe yokunyusela, iyaxhathisa. Ilungele amakhaya anamhlanje kunye neepaneli zorhwebo.
Qinisekisa ukhuseleko olubanzi lomntu kunye nomlilo kwiindawo ezityebileyo ze-elektroniki kunye neCDADA Uhlobo lwe-Residual Current Circuit Breaker (RCCB), sinokunikezela ngexabiso elithe ngqo kwifektri. Ihamba ngaphaya kokufunyanwa kokuvuza okusisiseko kwe-AC-ihamba ngokuthembekileyo kuzo zombini i-sinusoidal AC kunye ne-pulsating DC intsalela yemisinga eyenziwe zizixhobo eziqhelekileyo ezifana neetshaja zefowuni, abaqhubi be-LED, iikhompyuter, kunye nezixhobo eziguqukayo zesantya.

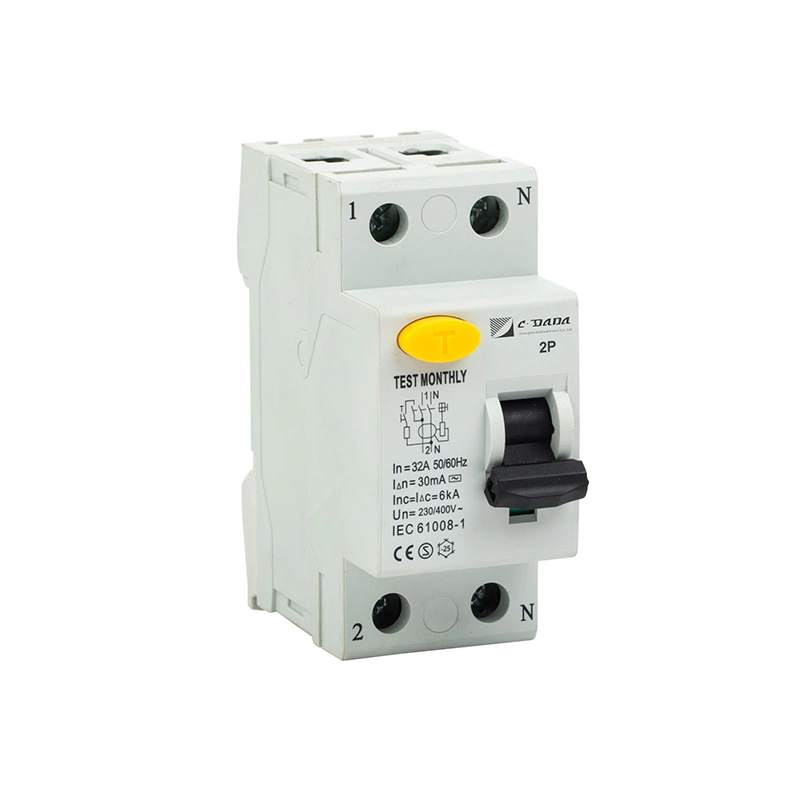

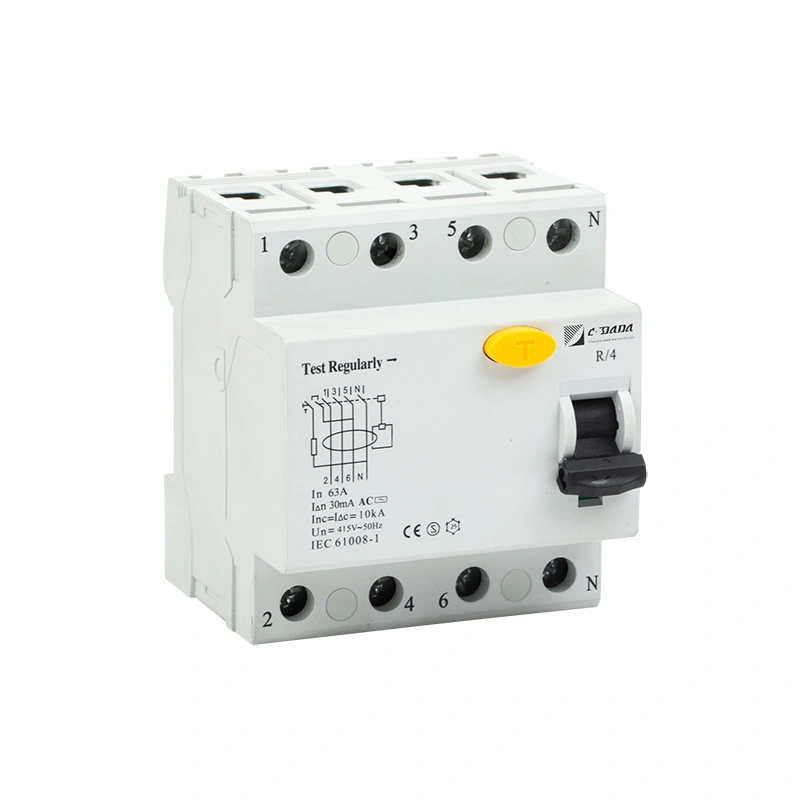

Ifumaneka kwi-2P (1+N) kunye no-4P (3+N) ulungelelwaniso olunomlinganiselo olinganisiweyo ukusuka kwi-16A ukuya kwi-100A kunye nobuthathaka be-10mA, 30mA, 100mA, okanye i-300mA, yenzelwe indawo yokuhlala yangoku, iofisi, kunye nofakelo olulula lwentengiso.
Ngomlinganiselo we-6kA we-short-circuit rating, ukhuseleko lwe-IP20, kunye nezinketho ze-terminal ezimbini (i-lug / pin), i-CDADA Uhlobo lwe-RCCB ludibanisa ukhuseleko, ukuthembeka, kunye noyilo olulungele i-installer-zonke zixhaswa ngokuthotyelwa kwehlabathi.
IiNgcaciso eziphambili
| Uhlobo lweMveliso: | Chwetheza i-RCCB (iNxaxheba yeSekethe yeNdawo eseleyo ngaphandle kokukhuselwa ngokugqithisileyo) |
| Umgangatho: | EN/IEC 61008-1 |
| Iipali: | 2P (1+N) okanye 4P (3+N) |
| Ikalwe ngoku (kwi): | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Ulinganiso lombane: | 2P: |
| 230V AC | 4P: |
| 230/400V AC | Ubuthathaka obushiyekileyo (I△n): |
| 10mA, 30mA, 100mA, 300mA | UkungaHambi ngoku: |
| 0.5 × I△n | Ixesha lohambo e-I△n: |
| ≤ 0.1 isekhondi | ISekethe eMfutshane eneMiqathango yangoku (Inc): |
| 6kA | Ukwenza kunye noKwaphula isakhono (I₄m): |
| 500A (ye Kwi ≤ 40A) 630A (ye Kwi ≥ 63A) |
Impulse Melana neVoltage (Uimp): |
| 6000V | Ubushushu bokusebenza: |
| -25°C ukuya +40°C | Isidanga soKhuselo: |
| IP20 | Ukunyuswa: |
| 35mm DIN kaloliwe (EN 60715 iyahambelana) | Izikhululo: |
| Uhlobo lweLug okanye uhlobo lwePin, luxhasa iintambo ukuya kuthi ga kwi-35mm² | Isalathisi Esibonakalayo: |
| Obomvu = IVULIWE (abafowunelwa bavaliwe), Luhlaza = VALIWE (abafowunelwa bavuliwe) | Inkqubo yohambo: |
| Ukukhutshwa kwe-Electromagnetic-ukungakhuseleki kwiinguqu zombane |
|
Kutheni Khetha iCDADA Uhlobo A RCCB?
★ Ichonga iiNgoyi zokuvuza zeLizwe lokwenyani
Ngokungafaniyo nezixhobo ezisisiseko zoHlobo lwe-AC, i-CDADA yohlobo lwe-A iphendula kuzo zombini i-AC kunye ne-pulsating DC-ibalulekile kukhuseleko kumakhaya kunye neeofisi ezizaliswe yi-switch-mode power supply, inverters, kunye neetshaja ze-EV.
★ Akukho Uhambo lwenkathazo
Ukuhluza okukwinqanaba eliphezulu kuqinisekisa ukungakhuseleki kwi-voltage spikes kunye nemisinga edlulayo engenabungozi, ngelixa sisaqinisekisa <0.1s ixesha lohambo ngovakalelo olulinganiselweyo.
★ Sula ubume obubonakalayo
Isalathisi esibomvu / esiluhlaza soqhagamshelwano sivumela ukuqinisekiswa kwangoko kwe-breaker state-ibaluleke kakhulu ngexesha lokugcinwa okanye ukutshekisha ngokukhawuleza.
★ I-Flexible Wiring & High Compatibility

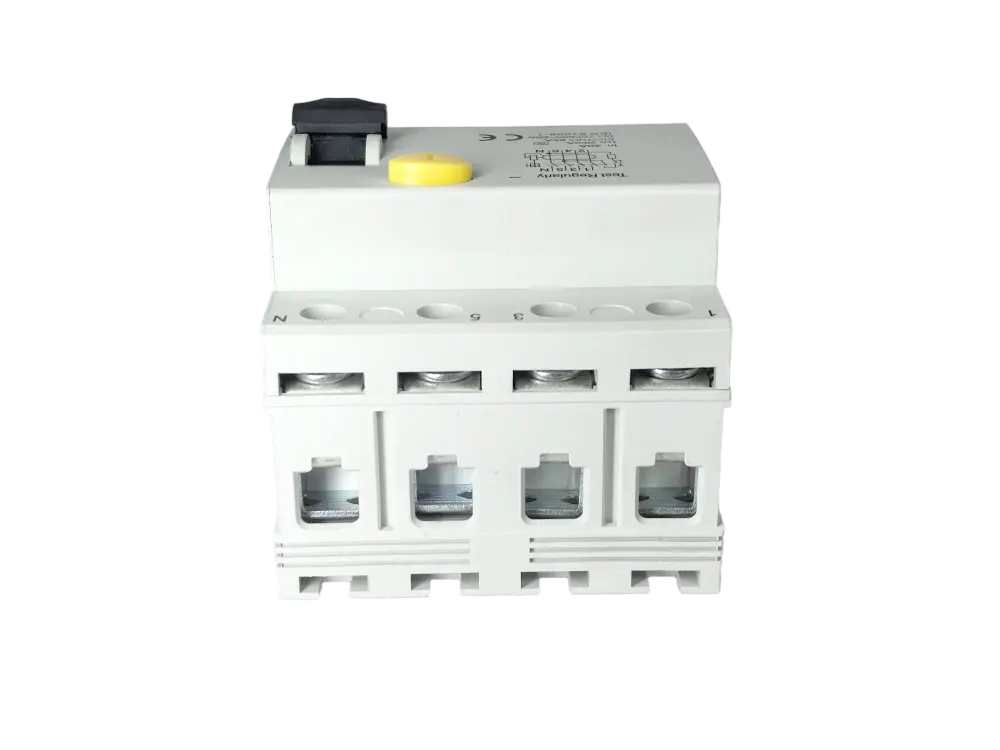

Ixhasa iitheminali zelug okanye zephini kunye neentambo eziyi-35mm², iyenza ihambelane neebhasi zebhasi kunye nezikhondatha eziguqukayo kwiiphaneli zale mihla.
★ Iirivet ezimbini ezongezelelweyo
ukonyuka kokuqina kwe-casing kwindawo yokudibanisa i-conductor ngenxa yee-rivets ezimbini ezongezelelweyo kunye ne-faceplate eqinile

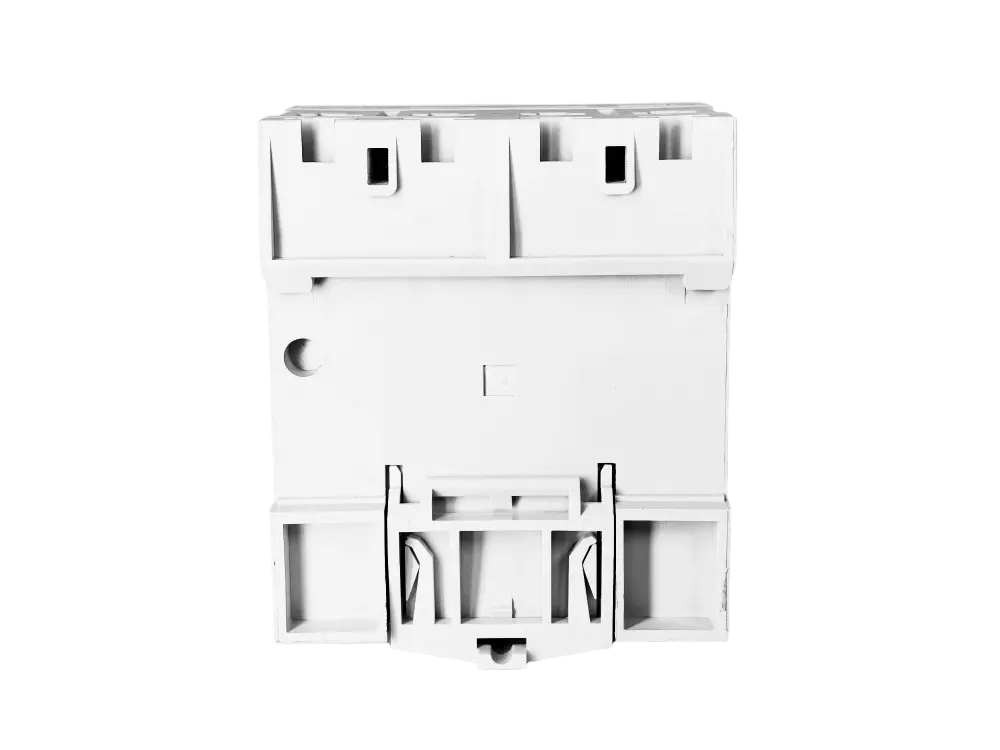

★ DIN kaloliwe ibamba
Ufakelo olukhawulezayo kunye nokuthembeka okongeziweyo kokungena kwi-DIN kaloliwe ngenxa yelatshi ngokutshixa kabini
★ Ukuthotyelwa kweHlabathi, Ixabiso leNdawo
Iqinisekisiwe kwi-IEC/EN 61008-1, ifanelekile kwi-EU, kuMbindi Mpuma, iAfrika, kunye neemarike zaseAsia-kunye namaxabiso akhuphisanayo avela kumenzi othembekileyo waseTshayina.
Usetyenziso oluqhelekileyo
Amakhaya angoku: Iisekethi ezinee-TV, iilaptops, izixhobo zombane zasekhitshini
Iiofisi: Amagumbi e-IT, iintambo zamandla okusebenza
Ukuthengisa: Iinkqubo ze-POS, iimpawu zedijithali, ukukhanya kwe-LED
Amanqaku okuTjaja e-EV: Umaleko wokhuseleko osisiseko (udityaniswe nesixhobo esisebenza ngokugqithisileyo)
Ufakelo oluHlaziywayo: Iziguquli zelanga ezivelisa ukuvuza okuvuzayo kwe-DC
FAQ
I-Q1: Uthini umahluko phakathi koHlobo A kunye noHlobo lwe-AC RCDs?
I-A1: Uhlobo lwe-AC lubona kuphela ukuvuza okugudileyo kwe-sinusoidal AC. Uhlobo A lubhaqa zombini i-AC kunye ne-pulsating DC (umzekelo, kwii-rectifiers kwiitshaja zefowuni, abaqhubi be-LED, okanye oomatshini bokuhlamba). Kuyo nayiphi na isekethe ene-electronics, Uhlobo A lufunwa ngeekhowudi zombane zanamhlanje.
I-Q2: Ngaba i-30mA Uhlobo lwe-RCD lwanele ukukhuselwa komntu?
A2: Ewe. I-30mA ngumgangatho oqhelekileyo wokhuseleko lokothuka olusindisa ubomi ngokwe-IEC nganye. Udidi lwe-CDADA lwe-A luqinisekisa ukuba lusebenza nokuba impazamo ibandakanya amacandelo e-DC-oyenza ikhuseleke kunoHlobo lwe-AC kwiimeko zangempela zehlabathi.
I-Q3: Ngaba le RCCB ibonelela ngokugqithiswa okanye ukhuseleko lwesekethe emfutshane?
I-A3: Hayi. Le yi-RCCB ecocekileyo (akukho khuselo olugqithisiweyo). Kufuneka isetyenziswe kuthotho kunye ne-MCB okanye i-fuse ukukhusela ukugqithiswa kunye neesekethe ezimfutshane.
I-Q4: Ngaba ndingayisebenzisa kwi-TT systeming system?
I-A4: Ewe-Uhlobo lwe-Residual Current Circuit Breakers lusetyenziswa ngokuqhelekileyo kwiinkqubo ze-TT, ngakumbi nge-100mA okanye i-300mA yokukhusela umlilo kumntu ongenayo, kunye ne-30mA kwiisekethe zokugqibela.
I-Q5: Kutheni ukhetha i-CDADA ngaphezu kwezinye iintlobo ze-A?
A5: CDADA inikeza:

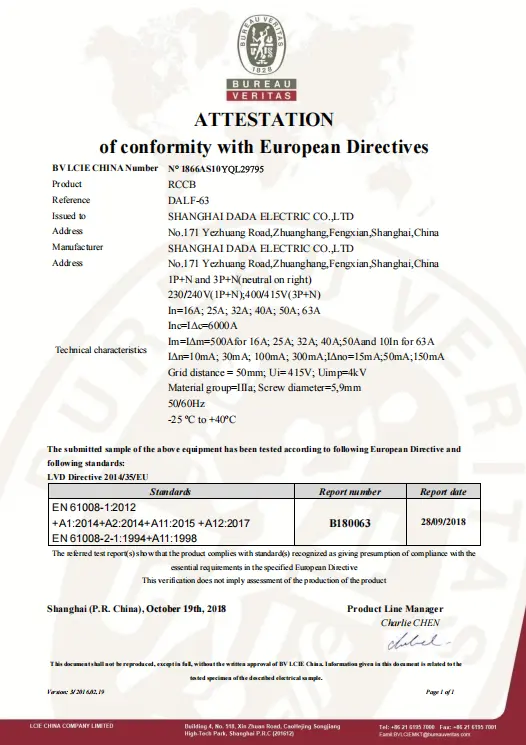

● Inyaniso ye-IEC 61008-1 yokuthobela iingxelo zovavanyo
● Iinketho ezimbini zetheminali (ilugi/iphini) kwiingcingo eziguquguqukayo
● Imo yoqhagamshelwano enekhowudi yombala (obomvu/luhlaza)
● Uyilo lwe-Surge-immune-akukho hambo lobuxoki
● Ukulungelelaniswa kwe-OEM: amaxabiso amaninzi, amaxwebhu esiNgesi, isampuli ngokukhawuleza
