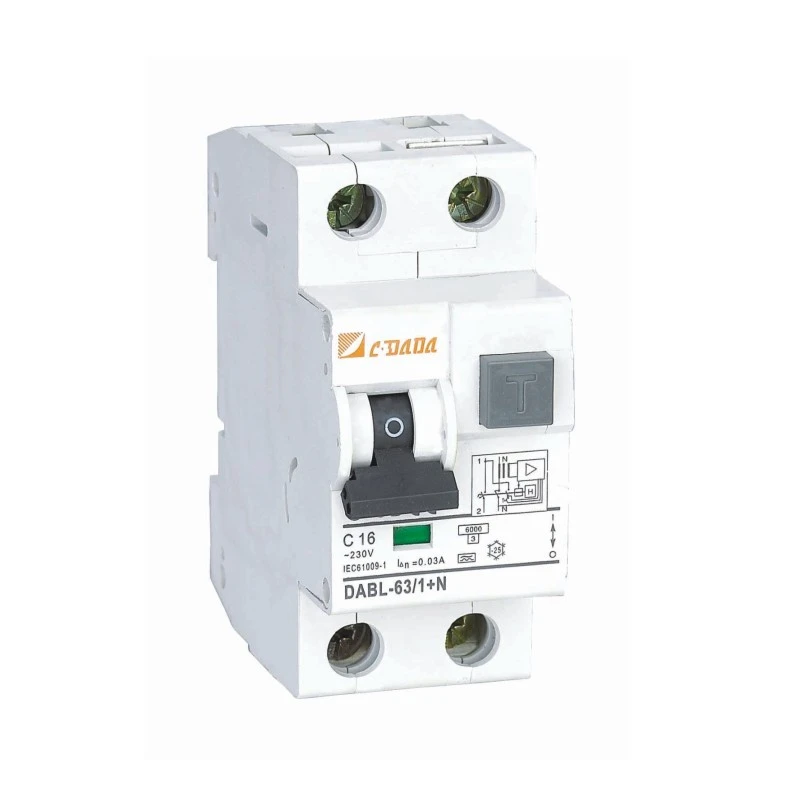

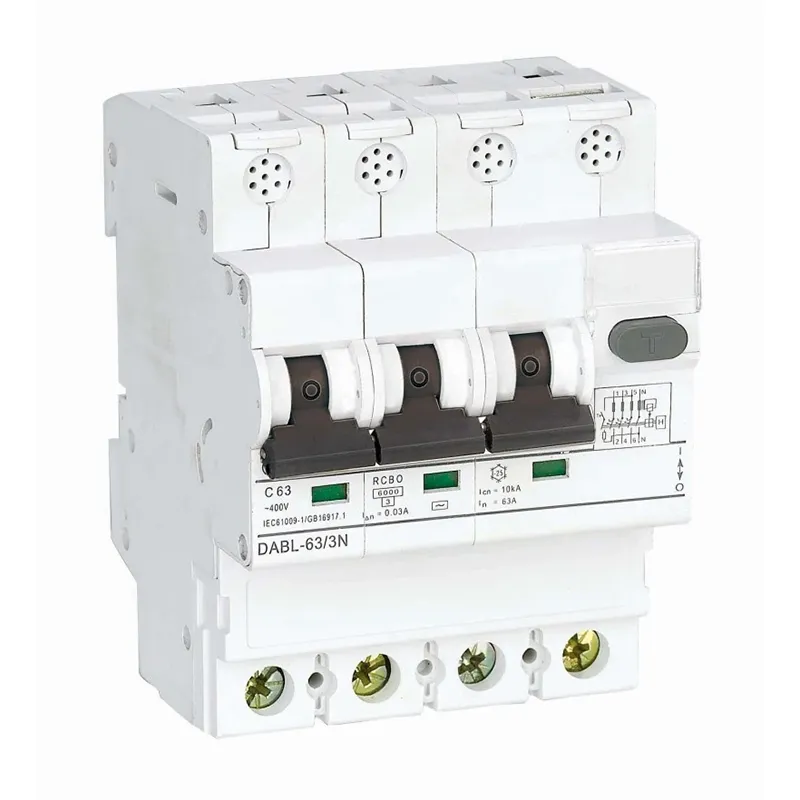

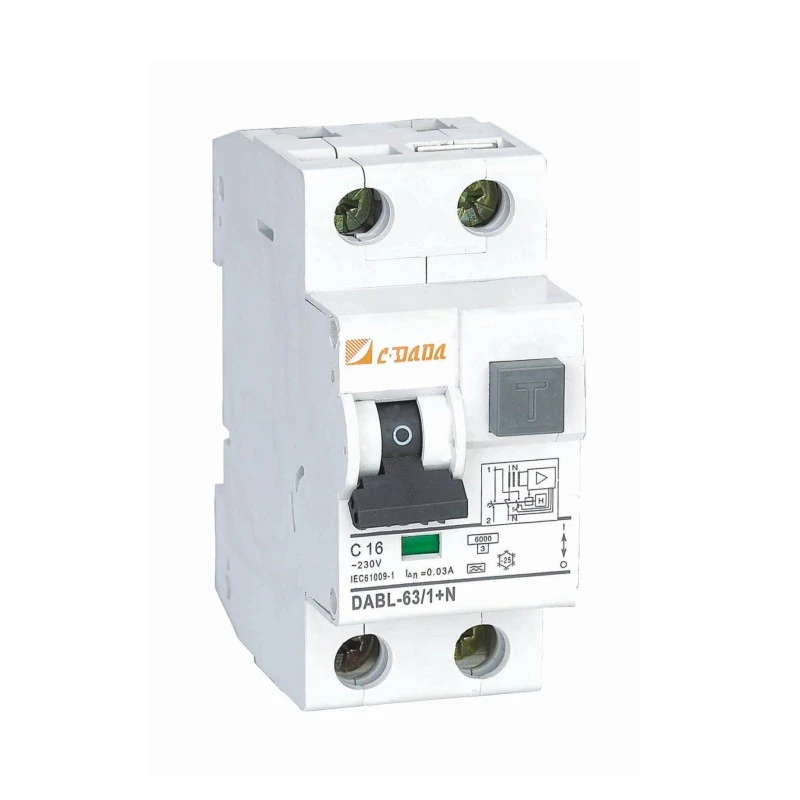

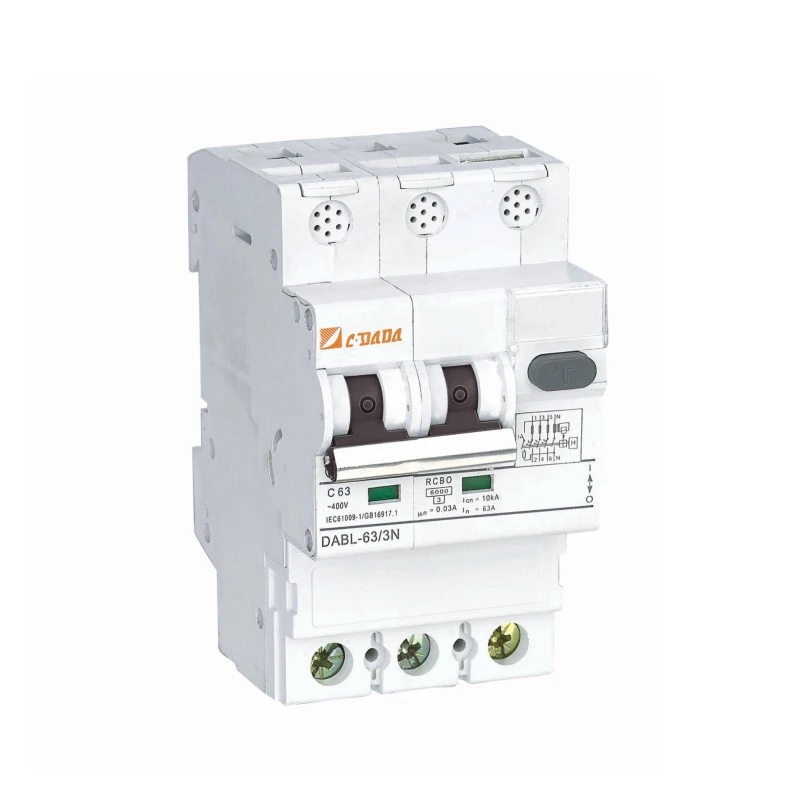

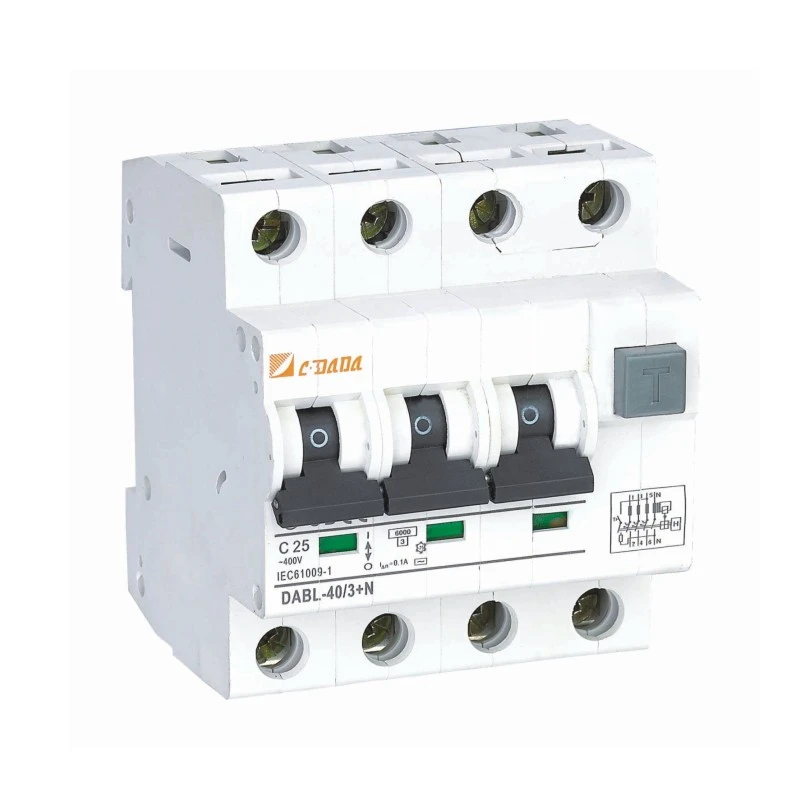

2P 4P Electronic Uhlobo RCBO
Model:DABL-63
Unokuqiniseka ukuba ukhethe i-CDADA njenge-2P 4P ye-Electronic Type RCBO (DABL-63) umenzi kunye nomthengisi. Imveliso yethu yiCE/CB/RoHS eqinisekisiweyo. Idibanisa ukuvuza kwe-30mA + ukulayisha ngaphezulu + ukhuseleko lwesekethe emfutshane. 6kA, -25 ° C ukuya +40 ° C, ilungele iisekethe zangaphandle / igaraji.
Ukwandisa ukhuseleko kwiifakelo zombane zanamhlanje kunye ne-CDADA DABL-63 2P 4P Electronic Type RCBO-i-compact, intelligent residual current circuit breaker kunye ne-overcurrent yokukhusela eyenziwe yi-Shanghai DADA Electric CO., LTD. Yenzelwe izicelo ze-2P (1+N) kunye ne-4P (3+N), le RCBO ye-elektroniki inikezela ngokhuseleko olune-in-one:
Ukuthintela ukothuka kombane (nge-30mA yokubona okushiyekileyo ngoku),
Ukhuseleko lomthwalo ogqithisileyo,
Ukuphazamiseka kwexesha elifutshane (6kA ukophula umthamo),
Ukunyanzeliswa kwe-Surge (i-varistor edibeneyo ye-D-class).
Ilungele iisokethi zangaphandle, ukukhanya kwegaraji, iisekethe ezisezantsi, kunye nezixhobo zokuncedisa, i-DABL-63 idibana ne-CE, CB, kunye nemigangatho ye-RoHS kwaye ibonisa imodyuli yokwahlukana kwe-elektroniki yokufumanisa i-ultra-sensitive fault. Ngobubanzi be-DIN ye-module ye-2, isalathisi soqhagamshelwano esizimeleyo, kunye ne-25 ° C ukuya ku-40 ° C uluhlu olusebenzayo, lwakhiwe ukuthembeka kwiindawo ezahlukeneyo zemozulu kunye neendawo zokuhlala / zorhwebo.
IiNgcaciso eziphambili
Umzekelo: DABL-63 Series
Uhlobo: I-RCBO ye-Electronic (iSaphuli sangoku esiSisalelayo esinoKhuseleko olungaphaya)
Iipali: 2P (1+N) okanye 4P (3+N)
Ilinganiswe ngoku (Ku): Ngokuqhelekileyo i-6–63A (esekelwe kwi-DAB7-63 iqonga)
Uvakalelo olushiyekileyo (I△n): 30mA (umgangatho wokhuseleko lomntu)
Ukuqhawula amandla: 6kA, 10kA
Imisebenzi yoKhuseleko:
Intsalela yangoku (evuzayo)
Ukulayisha ngaphezulu (i-thermal)
Isiphaluka esifutshane (i-electromagnetic)
I-Surge overvoltage (ngokwakhela-ngaphakathi kwe-D-class varistor)

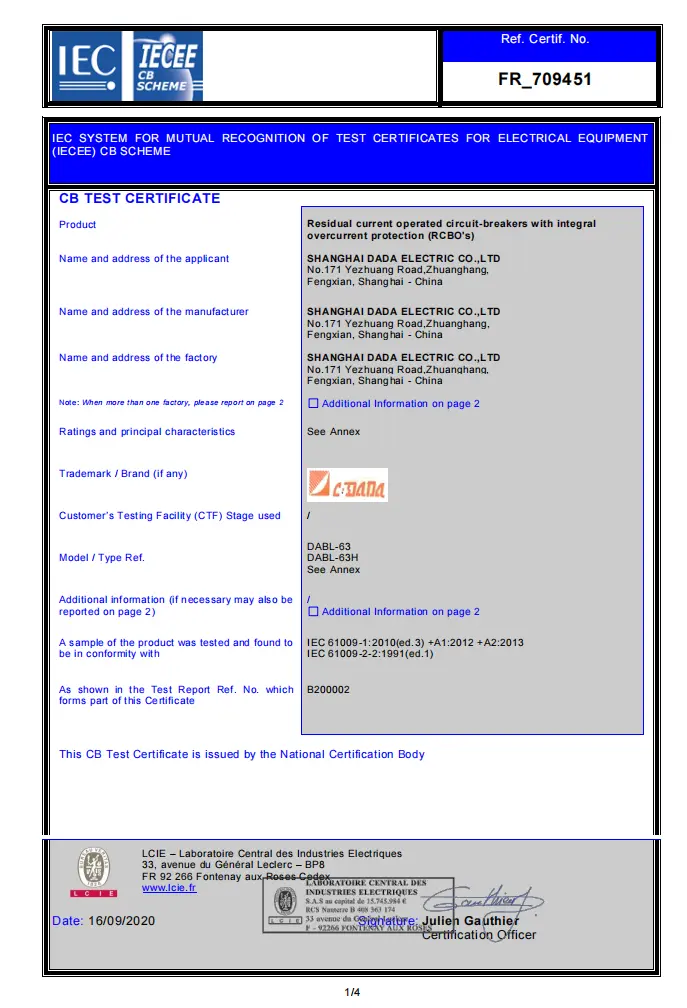

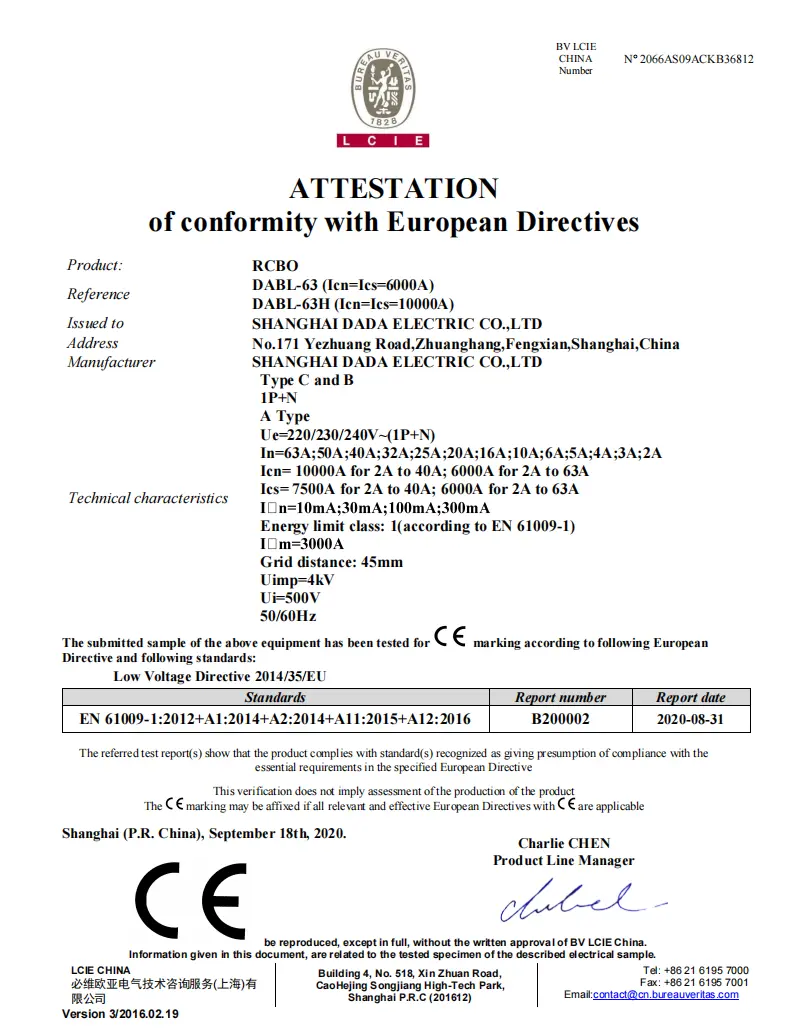

Iziqinisekiso: CE, CB, RoHS
Ubushushu bokusebenza: -25°C ukuya +40°C
Ukunyuswa: 2-modyuli ububanzi kuloliwe 35mm DIN
Iphepha leDatha lobuGcisa
|
I-RCBO DABL-63 Uhlobo lwe-elektroniki |
||
|
Ukukhusela ukuhanjiswa kwamandla ngokubanzi (IEC/EN 61009) |
|
|
|
Iipali zenani |
1P+N |
|
|
Ukusebenza kombane |
||
|
Ilinganiswe ngoku kwi( A ) |
6,10,16,20,25,32,40,50,63A |
|
|
Uhlobo lokukhutshwa |
Uhlobo lwe-elektroniki |
|
|
Imisebenzi |
Ukukhuselwa kwisekethe emfutshane, ukuvuza, ukugcwala, umbane ongaphezulu, ukubekwa wedwa |
|
|
Uhlobo lwentsalela yangoku |
AC kunye no-A |
|
|
Ilinganiswe rhoqo f ( Hz) |
50-60Hz |
|
|
Amandla ombane osebenzayo alinganiselweyo i-Ue (V) AC |
230/400 |
|
|
Ilinganiswe kwintshukumo yangoku eyintsalela I△n( mA) |
10,30,100,300 |
|
|
Ireyilwe intsalela yangoku akukho-ntshukumo I△no( mA) |
5,15,25,50,300 |
|
|
icosф |
0.5 |
|
|
I-Insulation voltage Ui |
500V |
|
|
Impembelelo elinganisiweyo imelana nombane we-Uimp |
6KV |
|
|
Uhlobo lokuhamba kwangoko |
B/C/D |
|
|
Ilinganiswe kwisekethe emfutshane Icn(kA) |
6kA kunye ne-10kA |
|
|
Ubomi benkonzo(O~C) |
Oomatshini |
12000 |
|
Umbane |
6000 |
|
|
Uqhagamshelo kunye nofakelo |
|
|
|
Isidanga soKhuseleko |
IP40 |
|
|
ucingo mm² |
1-25 |
|
|
Ubushushu bokusebenza (ngemihla ngemihla≤35℃) |
-5 ～+40℃ |
|
|
Ukumelana nokufuma kunye nobushushu |
Iklasi yesi-2 |
|
|
Ukuphakama phezu kolwandle |
≤2000 |
|
|
Ubuntu bezizalwane |
+20℃ , ≤90% ;+40℃ , ≤50% |
|
|
Isidanga songcoliseko |
2 |
|
|
Indawo yofakelo |
Kuphephe ukothuka okucacileyo kunye nokungcangcazela |
|
|
Iklasi yokufakela |
Iklasi Ⅱ , iKlasi Ⅲ |
|
|
Ukudibanisa kunye nezixhobo |
||
|
Uqhagamshelwano oluncedisayo |
Ewe |
|
|
Ukuqhagamshelana ne-alam |
Ewe |
|
|
ALT+AUX |
Ewe |
|
|
Shunt ukukhululwa |
Ewe |
|
|
Ukukhutshwa kwe-undervoltage |
- |
|
|
Ukukhutshwa kwe-overvoltage |
Ewe |
|
|
Imilinganiselo(mm) (WxHxL) |
a |
35 |
|
b |
80.4 |
|
|
c |
72 |
|
Ezona mpawu:
★ Imodyuli yolwahlulo lombane → ubuntununtunu obuphezulu & nempendulo ekhawulezayo
★ Isalathisi soqhagamshelwano esizimeleyo (sibonisa inyaniso ON / OFF / isimo sohambo)
★ "TEST" iqhosha lokujonga ukusebenza kwenyanga
★ Izibambiso zetheminali ezinophawu → ubushushu obuphantsi, ukubamba ngamandla
★ Izikrufu ezisebenza ngokunqamlezayo (+/–) → ukufakwa lula, akukho malungu awisiweyo
★ I-Silver-bearing contact alloy → ubomi obude, ukuxhathisa okuphantsi
Kutheni Khetha iCDADA Electronic RCBO?
★ Ukhuseleko lwe-All-in-One kwiiModyuli ezi-2
Ithatha indawo eyahlukileyo ye-MCB + RCCB + umkhuseli wotyando-ukugcina indawo, iindleko, kunye nobunzima bocingo.★ Ukhuseleko olomeleziweyo kunye nokuNcitshiswa kweSurgery
Isekethe edibeneyo kunye nemodyuli ye-elektroniki yokukhusela okwahlukileyo, i-D-class varistor kunye ne-circuit breaker edibeneyo ye-DAB7-63 series iqinisekisa iindidi ezi-4 zokukhusela: ukusuka kwi-residual current (ukuvuza kwangoku), isiphaluka esifutshane; ukulayisha ngaphezulu kunye nokunyuka kombane.★ Ukubonakala kwesimo sokwenyani
Ngokungafaniyo nabaqhekezi abaqhelekileyo, isalathisi soqhagamshelwano esizimeleyo sibonisa imeko yoqhagamshelwano yokwenene-nokuba isibambo sibanjwe ngesandla.★ Uyilo oluHloniphekileyo lokuFakela
● Uluhlu olubanzi lweqondo lobushushu → olulungele iigaraji ezingafudunyezwanga okanye ii-attics ezishushu
● Iitheminali ezinophawu → uqhagamshelo olukhuselekileyo, olunoxhathiso oluphantsi
● Izikrufu ezisebenza kabini → isebenza ngezixhobo ezisicaba okanye zePhillips
★ Certified Global
I-CE, CB, kunye ne-RoHS imvume iqinisekisa ukuthotyelwa eYurophu, e-Asia, e-Afrika, nangaphaya-ilungele iipaneli zokuthumela ngaphandle.
★ Igqibelele kwiiNdawo ezinoMngcipheko ophezulu
Icetyiswa kwiindawo ezingaphandle, iindawo ezimanzi, iigaraji, kunye namagumbi angaphantsi apho ukothuka kunye nemingcipheko yomlilo iphakanyisiweyo.★ Ngamava eminyaka emininzi yokuthumela ngenqanawa ukuya eRashiya nakwilizwe laseYurophu ukongeza kuwo wonke uMzantsi Melika, iYurophu, iAsia, neAustralia, iCDADA ikugubungele!

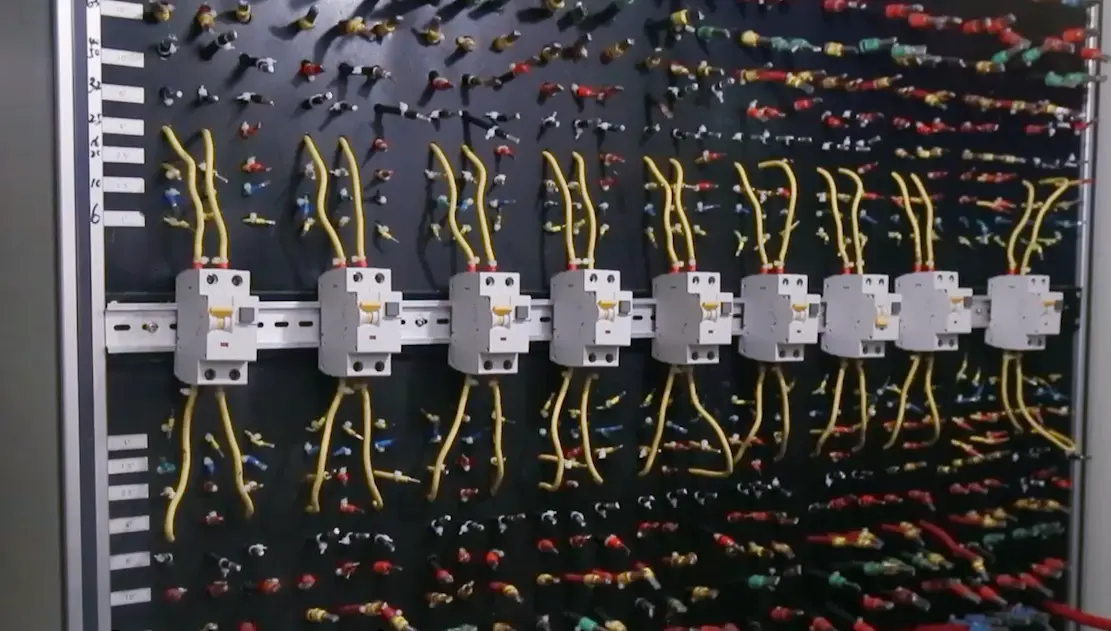

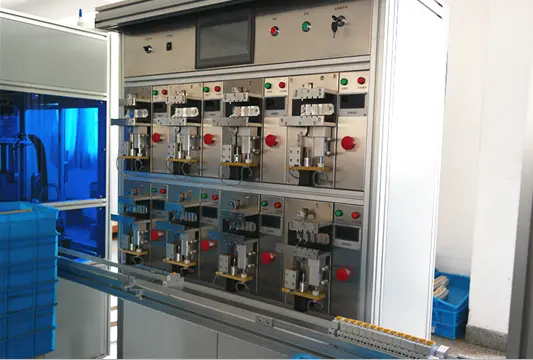

★ Ekubeni ingumgaqo-nkqubo wethu ukuba i-100% ihlole zonke iimveliso ezishiya indawo yethu, sinokuqinisekisa ngokuqinisekileyo ukuba imveliso iyasebenza 100% ichanekile ngaphambi kokuba ishiye indawo yethu.
★ Siyavuya ukuba usindwendwele nangaliphi na ixesha! Le kuphela kwendlela esinokuthi sibe nolawulo olupheleleyo kumaxesha emveliso kunye nenkqubo yokuphuma.
Usetyenziso oluqhelekileyo
Iisokethi zangaphandle: Kwizixhobo zegadi, iitshaja ze-EV, izibane zeeholide
Igaraji kunye neBasement Lighting: Ubumanzi, iindawo ezibandayo
IiSekethe zeSixhobo: Oomatshini bokuhlamba, oomatshini bokuhlamba izitya, iifriji
Amandla eworkshop: Apho izixhobo kunye nokufuma kuhlangana khona
IiPaneli eziNcane zokuHlala: I-Compact, isisombululo sokhuseleko oluninzi
Imibuzo Ebuzwa Rhoqo (FAQ)
I-Q1: Uthini umahluko phakathi kwe-RCCB kunye ne-RCBO?
I-A1: I-RCCB ibona kuphela i-residual (leakage) yangoku-ayikhuseli ngokugqithiswa okanye kwiisekethe ezimfutshane. I-RCBO (njenge-DABL-63) idibanisa i-RCCB + MCB kwisixhobo esinye-inika ukuvuza + ukugqithiswa + ukukhuselwa kwesiphaluka esifutshane.
I-Q2: Ngaba le RCBO ikhusela ngokwenene kwi-surges?
A2: Ewe! Iquka i-varistor eyakhelwe-ngaphakathi ye-D-class ecinezela ukugqithiswa kwe-overvoltages (umzekelo, ukusuka ekukhanyeni kombane okanye ukutshintshwa kwee-surges) -into enqabileyo kwi-RCBOs eqhelekileyo.
I-Q3: Kutheni ukhetha i-RCBO ye-elektroniki ngaphezu kwe-electromagnetic? A3:
● Ii-RCBO zombane zibonelela ngovakalelo oluphezulu, ubukhulu obuncinci, kwaye zinokudibanisa imisebenzi eyongezelelweyo (njengokhuseleko lokutya).
● Bafuna amandla ombane ukuze asebenze—ngoko ayifanelekanga ukuba i-unit ayithembekanga.
● Iindidi ze-electromagnetic zisebenza kwi-0V kodwa zinkulu kwaye azinazo iimpawu ezikrelekrele.
→ Kwiigridi zokuhlala ezizinzileyo, ii-RCBO zombane ezifana ne-DABL-63 zezona zifanelekileyo.
I-Q4: Ngaba i-30mA yanele ukukhusela umntu?
A4: Ewe. I-30mA ngumgangatho wamazwe ngamazwe (i-IEC) wokhuseleko olusindisa ubomi bomothuko kwiisekethe zokuhlala.
Q5: Kutheni ukhetha i-CDADA ye-RCBO ye-elektroniki?
A5: I-CDADA igqamile ngenxa yokuba:
● Ukhuseleko lwenyani lwe-4-in-1 (ukuvuza + ukulayisha ngaphezulu + isiphaluka esifutshane)
● Uyilo olubambeneyo lwemodyuli ezi-2 lugcina indawo yolawulo
● Isalathisi soqhagamshelwano esizimeleyo siqinisekisa ubume obuchanekileyo
● Iziqinisekiso zehlabathi (CE/CB/RoHS)
● Ukulungelelaniswa kwe-OEM: umgangatho ohambelanayo, inkxaso yesiNgesi, amaxabiso amaninzi
