Esi sikhokelo sichaza indlela i-6kA AC i-circuit breaker miniature isebenza ngayo, yintoni i-6kA rating ithetha ngokwenene, indlela i-B, C, kunye ne-D ye-curves yohambo echaphazela ngayo ukusebenza, kunye nendlela yokukhetha ulungelelwaniso olufanelekileyo lwangoku kunye neepali. Ikwachonga iimpazamo eziqhelekileyo zokuthenga kwaye ibonelele ngoluhlu olusebenzayo lweenjineli, iikontraka, kunye nabathengi abavavanya izisombululo zeMCB ezivela kubavelisi abafanaIIIIShanghai DaDa Electric Co., Ltd.
Isiqulatho
- Yintoni i-6kA AC Miniature Circuit Breaker?
- Kutheni i-6kA yoKwaphulwa kweSakhono ibalulekile?
- Ingaba i-AC Miniature ye-Circuit Breaker iyikhusela njani iSekethe?
- Zeziphi iiParameters zobuGcisa ekufuneka abathengi bazijonge?
- Iigophe ze-B, C, kunye no-D zohambo ziluchaphazela njani uKhetho?
- Ingaba i-6kA AC Miniature ye-Circuit Breakers idla ngokusetyenziswa phi?
- Zeziphi iingxaki ezinokuthi zithintelwe yi-MCB eLungileyo?
- Abathengi Bangayikhetha Njani i-6kA MCB efanelekileyo?
- Iimpazamo zokuKhetha eziQhelekileyo ekufuneka uziphephe
- Kutheni Usebenza noMenzi we-MCB onamava?
- Imibuzo ebuzwa qho
- Qhagamshelana neIIIShanghai DaDa Electric Co., Ltd.

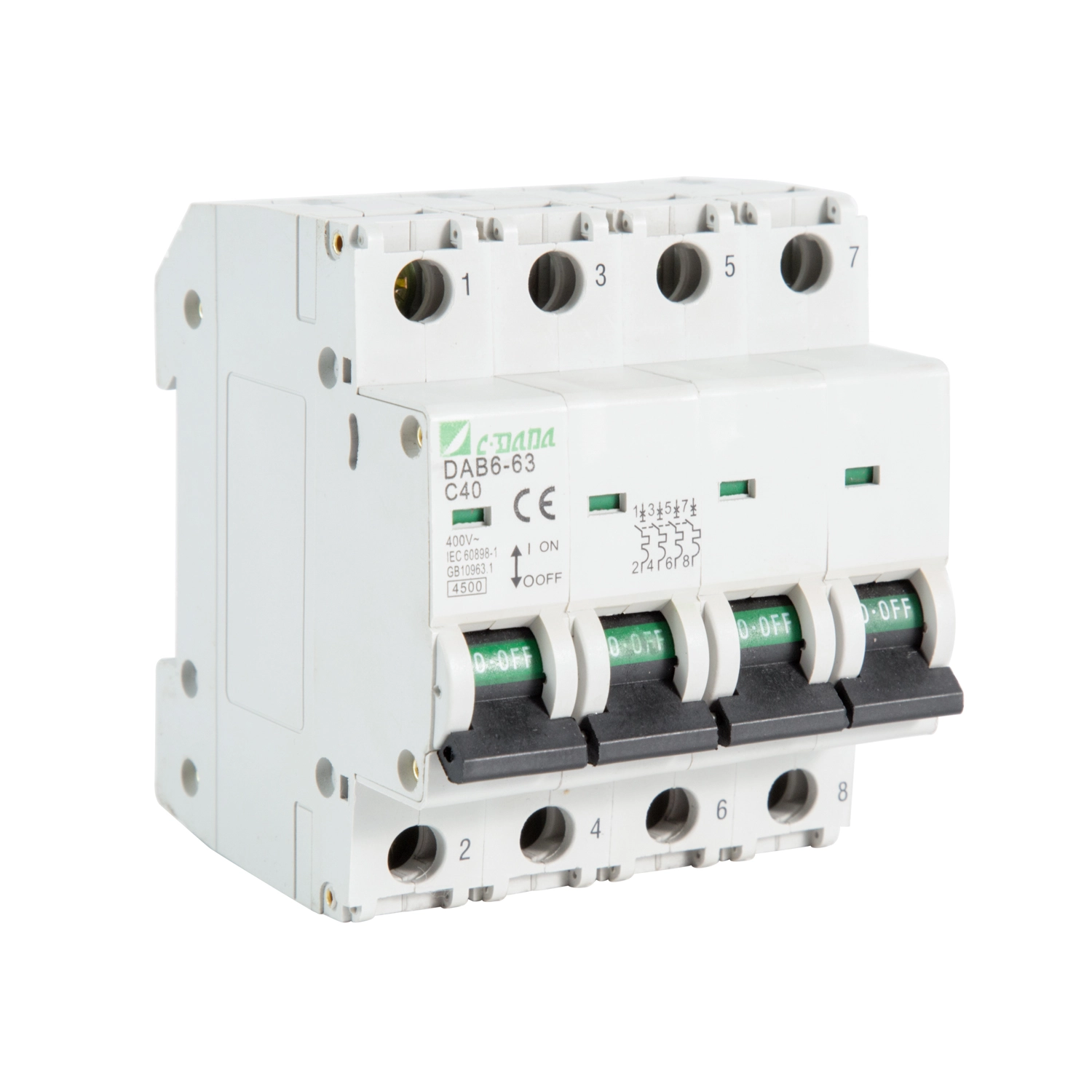

Yintoni i-6kA AC Miniature Circuit Breaker?
Isaphuli sesekethe esincinci, esiqhele ukubizwa ngokuba yi-MCB, sisixhobo sokutshintsha esikhuselayo esenzelwe ukukhupha ngokuzenzekelayo isekethe yombane xa iimeko zangoku ezingaqhelekanga zisenzeka. Ngokungafaniyo ne-fuse yesiko, i-MCB iqhele ukusetwa kwakhona emva kokuba isiphene sisusiwe, nto leyo eyenza kube lula ukusebenza ngokuphindaphindiweyo kunye nokugcinwa.
Igama elithile6kAibhekisela kwi-breaker's rated short-circuit breaking capacity phantsi kweemeko zovavanyo olusebenzayo. Ngamagama alula, i-6kA MCB yenzelwe ukuphazamisa ngokukhuselekileyo i-current short-circuit current ukuya kwi-6,000 amperes xa iimfuno ezichaziweyo zidibene.
Iimveliso ezithobela i-IEC/EN 60898-1 zihlala zichaza iiparamitha ezinje ngokureyithwa kwangoku, amandla ombane alinganisiweyo, amaza, ukophuka, kunye neempawu zokukhubeka ngoko nangoko. Iindidi zeMCB yoRhwebo zinokubonelela nge-6kA kwiireyithingi ezahlukeneyo zangoku kunye nolungelelwaniso lwepali.
I-6kA ayiyiyo i-current yokusebenza yesiqhelo ye-breaker. I-16A MCB, umzekelo, ijonge ukuthwala isantya sayo esilinganisiweyo phantsi kweemeko ezichaziweyo, ngelixa i-6kA figure ichaza amandla ayo okuphazamisa i-short-circuit. Ezi nkcukacha zimbini ziphendula imibuzo yobunjineli eyahlukileyo ngokupheleleyo.
Kutheni i-6kA yoKwaphulwa kweSakhono ibalulekile?
Iisekethe ezimfutshane zinokuvelisa imisinga ephezulu kakhulu ngexesha elifutshane kakhulu. Ukuba isixhobo sokukhusela asikwazi ukuphazamisa ngokukhuselekileyo i-fault current ekhoyo kwindawo yofakelo, iziphumo zingabandakanya umonakalo onzima wokudibanisa, ukushisa okugqithisileyo, ukungasebenzi kwezixhobo, okanye ukubethelwa kombane okuyingozi.
Ke ngoko, umthamo wokwaphuka akufuneki ukhethwe nje kuba i-6kA luphawu oluqhelekileyo olufumanekayo. I-current short-circuit current kwindawo yofakelo kufuneka ihlolwe, kwaye i-breaker ekhethiweyo kufuneka ibe nekhono lokuphazamiseka okwaneleyo kweso sistim.
| Ipharamitha | Ithetha ukuthini | Isizathu Sokuba Kubalulekile |
|---|---|---|
| 6kA | Ireyithwe umthamo wokophuka kwesekethi emfutshane | Imisela ukuba i-breaker inokuphazamisa inqanaba elichaziweyo lesiphoso-yangoku ngokukhuselekileyo |
| Ikalwe ngoku (kwi) | Ireyithingi eqhelekileyo yangoku ye-MCB | Kufuneka iququzelele umthamo womqhubi kunye nomthwalo olindelekileyo |
| Ulinganiso lombane (Ue) | Umbane osebenzayo wosetyenziso | Kufuneka ihambelane nenkqubo yombane |
| Ijika lohambo | Ichaza udederhu lwemagnethi olukhawulezayo | Inceda ukuthintela ukukhubeka kwenkathazo ngelixa ugcina ukhuseleko lwempazamo |
| Inani leePali | Inani lee-conductors ezitshintshiweyo/ezikhuselweyo | Kufuneka ifanise ubumbeko lwesekethe |
Iinkcukacha zomenzi zibonisa ukuba ii-MCB ze-6kA ziyafumaneka kuluhlu lwemilinganiselo yangoku kunye nokulungelelaniswa kombane, kubandakanywa ne-230V eqhelekileyo kunye ne-400V yeenkqubo zokusasazwa kwe-AC.
Ingaba i-AC Miniature ye-Circuit Breaker iyikhusela njani iSekethe?
I-MCB eqhelekileyo idibanisa iindlela zokukhusela ezishushu kunye nemagnethi. Le misebenzi mibini ijongana neengxaki ezahlukeneyo zombane.
- Ukhuseleko lobushushu:Umthwalo ogqithisileyo ozinzileyo ufudumeza i-bimetallic element. Xa iqondo lokushisa lifikelela kumda wokusebenza, indlela ikhupha kwaye ivule isiphaluka.
- Ukhuseleko lwemagnethi:Umsinga omfutshane omfutshane wenza impembelelo enamandla yamagnetic eyenza indlela yokuhamba ngokukhawuleza, ikhuphe isiphaluka ngokukhawuleza.
- Ukutshintsha ngesandla:I-MCB ngokuqhelekileyo ingatshintshwa ngesandla ukwenzela ukwahlulwa kwesekethe ngexesha lolondolozo okanye lofakelo.
Le ndibaniselwano yenza i-MCB ilungele iisekethe apho zombini ukulayisha ngaphezulu kwexesha elide kunye neempazamo zesekethe ezimfutshane ngequbuliso kufuneka ziqwalaselwe. Uluhlu lwemveliso ye-MCB yanamhlanje ludla ngokudibanisa ukukhutshwa kwe-thermal kunye nemagnethi kwaye inokubonelela ngeempawu ze-B, C, okanye D ngokuxhomekeke kumthwalo ocetywayo.
Zeziphi iiParameters zobuGcisa ekufuneka abathengi bazijonge?
Abathengi bahlala begxila kukalisho lwangoku kunye nexabiso ngelixa bejonge ezinye iiparamitha. Ukucaciswa kweprojekthi ethembekileyo, ezi mpawu zilandelayo kufuneka zihlolwe kunye.
| Inkcazo | Ingqwalaselo eqhelekileyo | Indawo yokujonga umthengi |
|---|---|---|
| Ukwaphulwa kweSakhono | 6kA | Qinisekisa ukuba yanele impazamo yangoku |
| Ikalwe ngoku | Isicelo sixhomekeke | Ukulungelelanisa nomthwalo kunye nomthamo womqhubi |
| Ulinganiso lweVoltage | Amandla ombane osasazo e-AC aqhelekileyo | Tshatisa umbane wenkqubo |
| Ukuphindaphinda | I-50/60Hz ichazwe ngokuqhelekileyo | Qinisekisa ukuhambelana negridi yendawo |
| Trip Uphawu | B / C / D | Tshatisa igophe ukulayisha iimpawu zokutyhalela phambili |
| Uqwalaselo lwePali | 1P, 1P + N, 2P, 3P, 4P kuxhomekeke kwimveliso | Tshatisa ulungiselelo lweengcingo |
| Ukunyuka | I-DIN kaloliwe ixhaphakile | Qinisekisa ukuhambelana nebhodi yokuhambisa |
| Imigangatho | IEC/EN 60898-1 okanye omnye umgangatho osebenzayo | Cela amaxwebhu obugcisa kunye nesiqinisekiso apho kuyimfuneko |
Amaxwebhu emveliso avela kubavelisi abasekiweyo abonelela ngezi parameters kunye endaweni yokuphatha ukophuka kwamandla njengengcaciso ezimeleyo.
Iigophe ze-B, C, kunye no-D zohambo ziluchaphazela njani uKhetho?
Ijika lohambo sesinye sezona zigqibo zibalulekileyo xa ucacisa i-MCB. Le leta ichaza uluhlu oluqikelelweyo apho ukukhutshwa kwamagnetic ngoko nangoko kusebenza ngokunxulumene ne-breaker's current rated current.
| Igophe | Uluhlu lokuHamba lweMagnetic oluqhelekileyo | Usetyenziso oluqhelekileyo |
|---|---|---|
| B | 3–5 × Ngaphakathi | Imithwalo ephantsi-inrush, ukukhanya, iisekethe ezichasayo |
| C | 5–10 × Ngaphakathi | Injongo ngokubanzi kunye nemithwalo ephakathi |
| D | 10–20 × Ngaphakathi | Imithwalo ephezulu ye-inrush efana neenjini ezithile kunye neziguquli |
Olu luhlu luqhelekileyo ludibaniswa neempawu ze-IEC 60898-1 MCB.
Umzekelo, ukuba i-motor ivelisa amandla okuqalisa okwexeshana ngokuphindwe kaninzi kunomjelo oqhelekileyo wokusebenza, igophe elinovakalelo oluphezulu linokuhamba ngokungeyomfuneko ngexesha lokuqalisa. Isixhobo se-C-curve okanye i-D-curve sinokufaneleka ngakumbi, kuxhomekeke kwisixhobo kunye noyilo olupheleleyo lwesekethe.
Ingaba i-6kA AC Miniature ye-Circuit Breakers idla ngokusetyenziswa phi?
I-6kA AC i-breaker circuit encinci inokufaneleka kwiinkqubo ezininzi ze-low-voltage xa inqanaba lokwenyani lempazamo, i-voltage, yangoku, kunye neemfuno zofakelo ziwela ngaphakathi kweenkcukacha zesixhobo.
- Ukwabiwa kwendawo yokuhlala:izijikelezi-langa zokukhanyisa, iisekethe zesokhethi, izixhobo zombane zasendlwini, neziphaluka zamasebe.
- Izakhiwo zorhwebo:iibhodi zokuhambisa iofisi, iinkqubo zokukhanyisa, izibonelelo zokuthengisa, kunye neesekethe zezixhobo ezincinci.
- Iiphaneli zolawulo lwemizi-mveliso:iisekethe ezincedisayo, izixhobo zokulawula, iimoto ezincinci, kunye neminye imithwalo ephantsi yombane efanelekileyo.
- Iinkonzo zokwakha:Iisekethe ezincedisayo ezinxulumene ne-HVAC, iimpompo, ukukhanya, kunye nokuhanjiswa kwamandla ngokubanzi apho iinkcukacha zifanelekile.
- Iikhabhathi zokuhambisa umbane:ukhuseleko lwesebe-sesekethe kunye neenkqubo zokuhambisa iimodyuli.
Esona sicelo kufuneka sisoloko singqinwa ngokuchasene namaxwebhu emveliso yomenzi kunye neemfuno zofakelo. Umlinganiselo we-6kA kufuneka ungaze ucingelwe ukuba ufanelekile kwindawo nganye yombane.
Zeziphi iingxaki ezinokuthi zithintelwe yi-MCB eLungileyo?
Enye yezona zinto zixhalabisayo zokuthenga ayikona nje ukuba i-breaker iyasebenza, kodwa ingaba isebenza ngokuthe gqolo phantsi kweemeko ebesikhethelwe yona.
1. UkuZingisa okuZingileyo
Isekethe ephethe umsinga ogqithisileyo ixesha elide inokubangela ubushushu bomqhubi kunye nokonakala kwezixhobo ngaphambi kwexesha. Ukukhutshwa kwe-thermal yenzelwe ukuphendula kwiimeko ezizinzileyo zokugcwala.
2. Umonakalo weSekethe emfutshane
Umthamo ofanelekileyo wokophuka uvumela i-MCB ukuba iphazamise ngokugqithisileyo impazamo yangoku ngaphandle kokugqithisa isakhono esikhankanyiweyo sokuphazamiseka kwesixhobo.
3. UkuHamba Kwenkathazo
Ijika lokuhamba elingafanelekanga linokubangela ukuphazamiseka okungeyomfuneko xa izixhobo ziqala. Ukuthelekisa B, C, okanye D iimpawu kumthwalo kunceda ukulungisa le ngxaki.
4. ULondolozo olunzima
Imodyuli ye-MCB inokubonelela ngokusetyenziswa kwezandla okukodwa, ukunceda abo basebenza ngombane ukuba bachonge kwaye basebenze kwiisekethe ezizimeleyo ngaphandle kokuvala yonke inkqubo yokuhambisa.
5. Ukungaqiniseki kokuthengwa kweempahla neenkonzo
Kwiiprojekthi ze-B2B, iinkcukacha zobugcisa ezingaphelelanga zingakhokelela kwiimveliso ezingalunganga, ukuvunywa okulibazisekayo, okanye iindleko zokutshintshwa. I-database ecacileyo yemveliso kunye neeparitha zobugcisa ezichaziweyo zinciphisa le mingcipheko.
Abathengi Bangayikhetha Njani i-6kA MCB efanelekileyo?
Inkqubo yokhetho ebonakalayo inokwahlulwa ibe ngamanyathelo amaninzi. Oku kunceda iinjineli kunye namaqela abathengi banqande ukukhetha imveliso kuphela kwisihloko sekhathalogu.
-
Qinisekisa umbane wenkqubo.
Qinisekisa i-voltage ye-AC kunye nokuba isicelo sisigaba esinye okanye isigaba sesithathu. -
Bala okanye qinisekisa uyilo lwangoku.
Umlinganiselo olinganisiweyo we-MCB kufuneka ulungelelaniswe nomthwalo wesiphaluka olindelekileyo kunye nombane ovumelekileyo womqhubi. -
Ukumisela umsinga olindelekileyo wesekethe emfutshane.
Khangela impazamo ekhoyo ngoku kwindawo yofakelo kwaye uqinisekise ukuba i-6kA ekhethiweyo yokuqhawula amandla anele. -
Vavanya umthwalo wokungena.
Chonga ukuba isekethe iqulethe iimotor, i-transformers, izixhobo ze-capacitive, izixhobo zombane ezitshintshayo, okanye eminye imithwalo evelisa ukuqalisa okubalulekileyo okwangoku. -
Khetha ijika lohambo elifanelekileyo.
Khetha u-B, u-C, okanye u-D ngokusekwe kowona mthwalo kunye neemfuno zokhuseleko kunokuba ukhethe nje olona khetho luqhelekileyo. -
Khetha ubumbeko lwepali.
Qinisekisa ukuba iprojekthi ifuna i-1P, 1P + N, 2P, 3P, 3P + N, okanye olunye uqwalaselo oluxhaswa luchungechunge lwemveliso. -
Qinisekisa imigangatho kunye namaxwebhu.
Cela idatha yedatha esebenzayo, ulwazi lovavanyo, izatifikethi, imizobo enobukhulu, kunye nemiyalelo yokufakela. -
Jonga ukuhambelana kwendawo yolawulo.
Qinisekisa imilinganiselo ye-DIN-kaloliwe, ulungiselelo lwetheminali, uluhlu lwe-conductor, izincedisi, kunye nendawo yofakelo ekhoyo.
- □ Amandla ombane aqinisekisiweyo
- □ Ireyishiwe yangoku iqinisekisiwe
- □ 6kA amandla okuqhawuka aqinisekisiwe
- □ Ijika le-B/C/D elikhethwe ngokomthwalo
- □ Ubume bepali buqinisekisiwe
- □ Umgangatho osebenzayo uqinisekisiwe
- □ Imilinganiselo kunye neDIN-umzila kaloliwe oxhonyiweyo
- □ Isiqinisekiso kunye namaxwebhu ovavanyo aceliweyo
- □ Uphononongo lwemeko-bume yokusebenza
- □ Ulungelelwaniso kunye nokhuseleko olusuka phezulu/emazantsi omlambo luqwalaselwe
Iimpazamo zokuKhetha eziQhelekileyo ekufuneka uziphephe
Nokuba iinkcukacha ezisisiseko zibonakala zichanekile, iimpazamo ezininzi zinokudala iingxaki emva kofakelo.
| Impazamo | Ingxaki enokwenzeka | Ukuziqhelanisa Ngcono |
|---|---|---|
| Ukukhetha kuphela nge-amperage | Ezinye iiparameters ezibalulekileyo zisenokungahambelani | Vavanya amandla ombane, ijiko, umthamo wokwaphuka, iipali, kunye nemigangatho kunye |
| Kucingelwa ukuba yonke i-6kA breaker iyatshintsheka | Iimveliso ezahlukeneyo zinokuba nemilinganiselo eyahlukeneyo kunye neenkcukacha zokusebenza | Thelekisa uxwebhu olupheleleyo |
| Ukusebenzisa ijika yohambo engalunganga | Ukukhubeka kwenkathazo okanye ukufaneleka kwesicelo esingafanelekanga | Vavanya umthwalo woqobo wokungena |
| Ukungahoyi impazamo yangoku | Ukuqhawula amandla kunokungonelanga | Qinisekisa inqanaba lesiphoso kwindawo yokufakela |
| Ulungelelwaniso lomqhubi ojongeneyo | Ukhuseleko lusenokungahambelani ngokufanelekileyo nenkqubo yocingo | Ukulungelelanisa umlinganiselo we-MCB kunye namandla omqhubi |
| Ukuthenga ngaphandle kwamaxwebhu | Ukwamkelwa kunye nokufakela kunokuba nzima | Cela amaxwebhu obugcisa kunye nokuthotyelwa ngaphambi kokuthenga |
Ulungelelwaniso oluchanekileyo phakathi kwangoku ukulinganisa, umthamo womqhubi, uphawu lohambo, kunye nenqanaba lesiphoso lingundoqo kukhetho oluthembekileyo lwe-MCB.
Kutheni Usebenza noMenzi we-MCB onamava?
Ukuthengwa komthamo omkhulu, iiprojekthi ze-OEM, intsebenziswano yokusabalalisa, kunye nokuveliswa kweepaneli zombane, umgangatho wemveliso yinto enye kuphela yokuqwalaselwa. Abathengi nabo bafuna iinkcukacha ezihambelanayo, imveliso ezinzileyo, unxibelelwano lobugcisa oluphendulayo, kunye namaxwebhu axhasa ukuvunywa kweprojekthi.
IIIIShanghai DaDa Electric Co., Ltd.inokuthathwa njengeqabane lemveliso kubathengi abafuna izisombululo zomqhekezi wesekethe encinci kunye nemveliso yokhuseleko lombane oluphantsi lombane. Kubathengi be-B2B, olona vavanyo luluncedo lomboneleli kufuneka lugxininise kulwazi olunokumetwa lobugcisa endaweni yamabango okuthengisa kuphela.
- Sula iinkcukacha zemveliso kunye neerameters zobugcisa
- Ukuchazwa koluhlu lwangoku kunye noluhlu lombane
- Iinketho ezikhoyo zokuqhawula amandla
- Ulwazi lwe-Trip-curve kwiimeko ezahlukeneyo zomthwalo
- Imizobo yemveliso kunye nolwazi lofakelo
- Isiqinisekiso esisebenzayo kunye namaxwebhu okuthotyelwa
- Imveliso ezinzileyo kunye neenkqubo zokulawula umgangatho
- Unxibelelwano lobuchwephesha kwiimfuno ezithile zeprojekthi
- Inkxaso ye-OEM/ODM apho kufanelekileyo
Kubathengi kunye nabasasazi bombane, le miba inokubaluleka ngakumbi xa iimveliso kufuneka zidityaniswe kwiinkqubo ezahlukeneyo zokusasaza okanye zithengiswe kwiimarike ezininzi.
Imibuzo ebuzwa qho
I-6kA ibhekiselele kumthamo wokuqhawulwa kwesekethe emfutshane ereyithiweyo phantsi kweemeko zovavanyo ezisebenzayo. Imele i-6,000 amperes kwaye akufanele ibhidaniswe ne-MCB yesiqhelo yangoku.
Hayi. Ukufaneleka kuxhomekeke kumbane olindelekileyo wesekethe emfutshane, amandla ombane enkqubo, ireyithingi yangoku, uphawu lohambo, ulungelelwaniso lwepali, iimeko zofakelo, kunye nemigaqo esebenzayo. Impazamo ekhoyo yangoku kufuneka ihlolwe ngaphambi kokukhetha i-breaker.
Amanani amabini achaza iiparamitha ezahlukeneyo. I-6kA yireyithi yomthamo wokuqhawuka, ngelixa i-6A lixabiso langoku. I-breaker inokuba ne-6A elinganiselwe ngoku kunye ne-6kA yokuphulwa kwamandla.
Bachonga iimpawu ezahlukeneyo zokukhubeka ngoko nangoko. Ngaphantsi kwe-IEC 60898-1, i-B ngokuqhelekileyo idityaniswa malunga namaxesha angama-3-5 alinganiselwe ngoku, i-C malunga namaxesha angama-5-10, kunye ne-D malunga namaxesha angama-10-20.
IiMotor zinokuba nesiqalo esikhulu sangoku, ngoko ke iimpawu ze-C okanye ze-D zinokufaneleka ngokuxhomekeke kwimotor kunye nesekethe. Ukukhethwa kokugqibela kufuneka kuthathelwe ingqalelo ukuqala okwangoku, impazamo yangoku, i-cable impedance, kunye nokulungelelaniswa nezinye izixhobo zokukhusela.
Ayizenzekeli. Ukuba umbane olindelekileyo we-short-circuit current ugqithise umthamo we-breaker rated rated breaking, isixhobo se-6kA sisenokungafaneleki. I-breaker kufuneka ikhethwe ngokwenqanaba lesiphoso kunye neemfuno zofakelo olusebenzayo.
Abathengi kufuneka baqhele ukucela idatha eneenkcukacha, iinkcukacha zobugcisa, imizobo enobukhulu, imiyalelo yofakelo, uvavanyo olusebenzayo okanye amaxwebhu esiqinisekiso, kunye nemigangatho efanelekileyo yemveliso. Iimfuno ezingqamene neprojekthi zinokufuna amaxwebhu awongezelelweyo.
Ukuhambelana phakathi kweebhetshi zokuvelisa, ukulandelwa, amaxwebhu obugcisa, ukulawula umgangatho, amandla okuhambisa, kunye nenkxaso yobugcisa emva kokuthengisa kunokuchaphazela kakhulu iindleko ezipheleleyo kunye nokuthembeka kweprojekthi yombane ye-B2B.
Yakha isisombululo soKhuseleko lweSekethe esithembeke ngakumbi
Ukukhetha a6kA AC Miniature Circuit Breakerkufuneka iqale ngeemeko zombane zesicelo kuneleyibhile yemveliso yodwa. Ireyithingi yangoku, umthamo wokwaphuka, ijika lokuhamba, umbane, ulungelelwaniso lwepali, indawo yofakelo, kunye namaxwebhu obugcisa zonke zinegalelo kwisisombululo esithembekileyo sokhuseleko.
Ukuba ukhangela ii-MCBs zeeprojekthi zokuhambisa umbane, iipaneli zolawulo, izakhiwo zorhwebo, izicelo zokuhlala, okanye ukuhanjiswa kwehoseyile,IIIIShanghai DaDa Electric Co., Ltd.inokukunceda ukuba uvavanye imilinganiselo yemveliso efanelekileyo ngokweemfuno zeprojekthi yakho.
Ngaba ufuna iinkcukacha zobugcisa, ulwazi lwemveliso, okanye inkxaso yeprojekthi yokuthenga isambuku?Qhagamshelana nathiukuxoxa ngesicelo sakho kwaye ufumane isisombululo esifanelekileyo se-circuit breaker.
