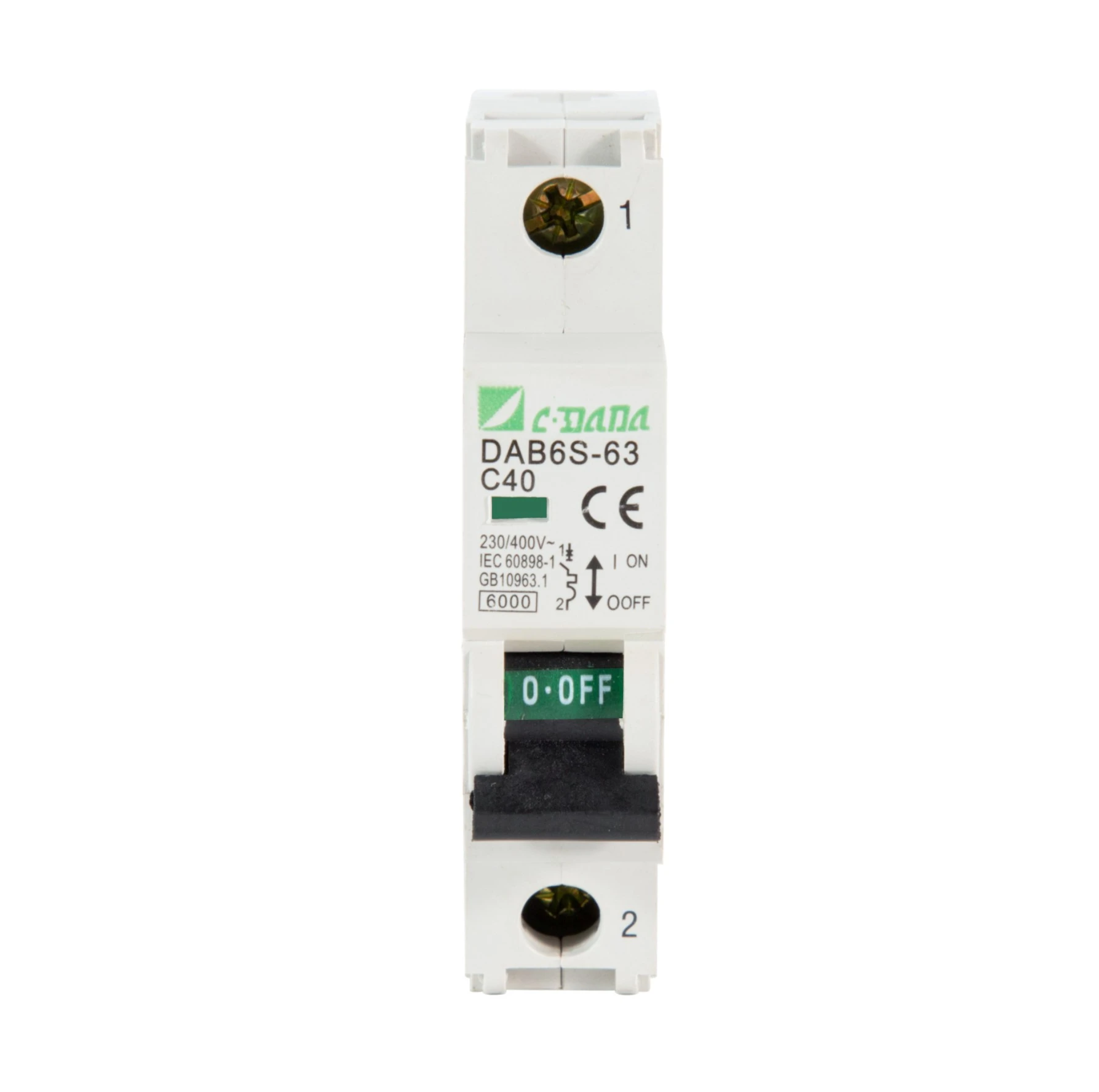

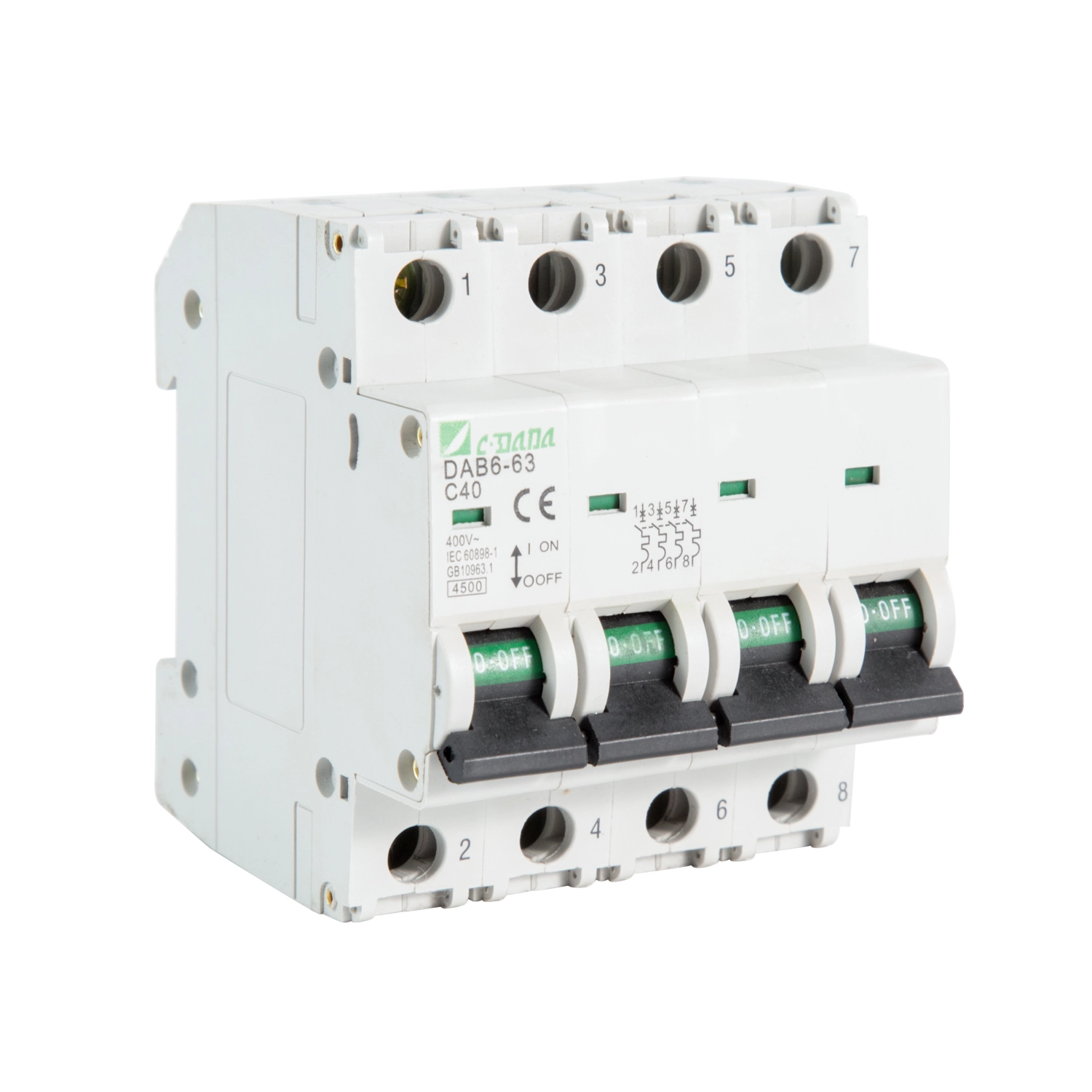

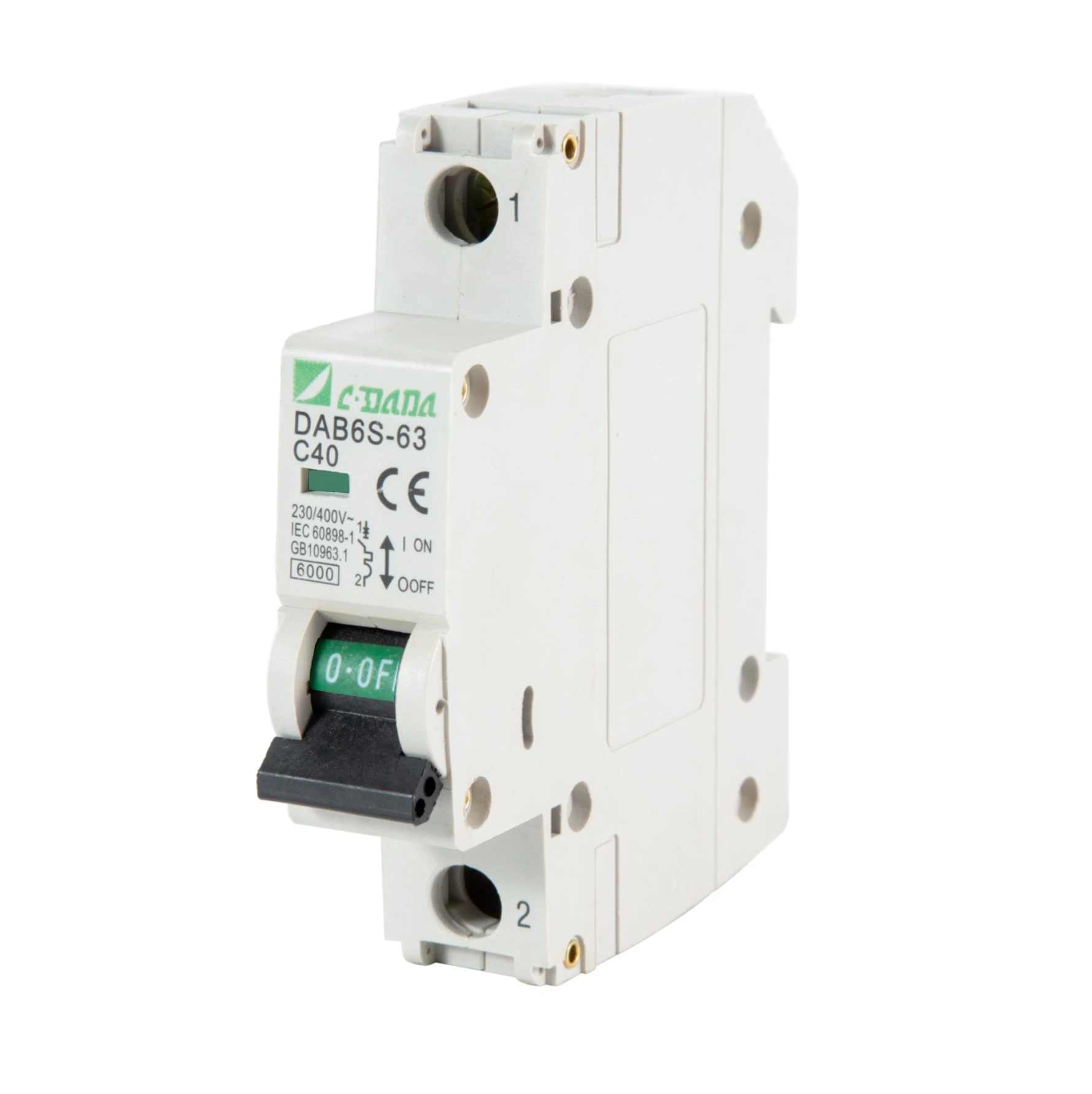

6kA AC Miniature Circuit Breaker

Qinisekisa ukukhuselwa kwesekethe okuthembekileyo, okukhuselekileyo, kunye nokusebenzayo kumakhaya kunye nezakhiwo ezincinci zorhwebo kunye neCDADA DAB6-63 6kA AC Miniature Circuit Breaker. Idizayinelwe iipaneli zokusasaza zokuhlala, le 6kA i-breaker circuit miniature inikezela ngokugqithiswa okuchanekileyo kunye nokukhusela i-short-circuit kwimithwalo eyahlukeneyo-ukusuka ekukhanyeni kunye nezixhobo zokusebenza (i-B curve) ukuya kwii-motor ezine-inrush currents eziphezulu njengeempompo kunye ne-hoists (i-D curve).

Ngezatifikethi ze-CE kunye ne-CB, uyilo lwe-terminal elomeleleyo, kunye neqondo lokushisa elisebenzayo -40 ° C ukuya ku-50 ° C, i-DAB6-63 inikezela ukusebenza okuthembekileyo kuyo nayiphi na imozulu. I-lever yayo ehlaziyiweyo ebanzi iqinisekisa ukusebenza okukhuselekileyo, ngelixa ii-clamps ezingabonwanga zinciphisa ukwakhiwa kobushushu kwaye ziphucula uzinzo loqhagamshelo-iyenza ibe lukhetho olunobulumko kubasebenzi bombane, abakhi, kunye nabahlanganisi bephaneli ye-OEM.

IiNgcaciso eziphambili

Umzekelo: DAB6-63 Series

Uhlobo: I-AC Miniature Circuit Breaker (MCB)

Ukuqhawula umthamo: 6kA @ 230/400V AC

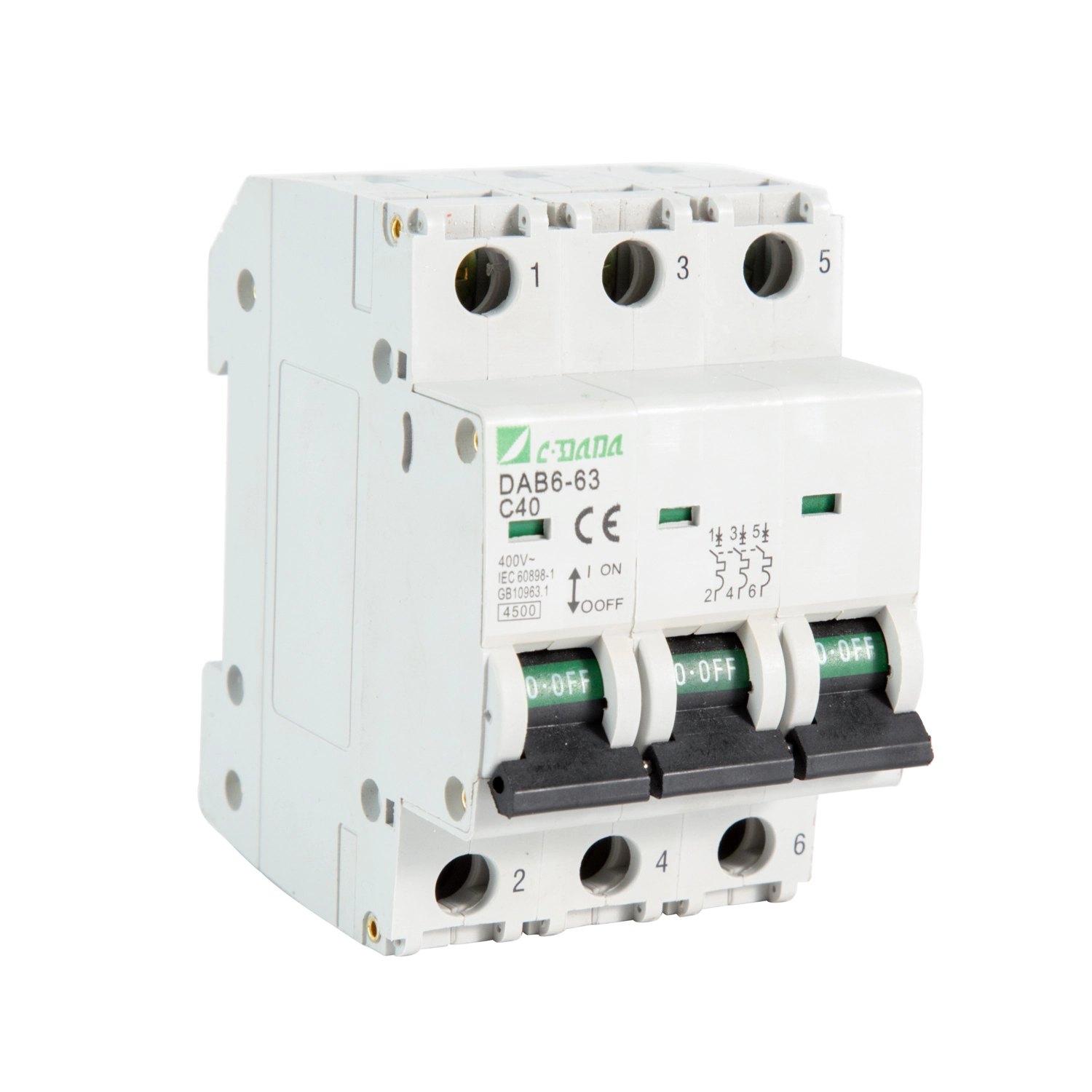

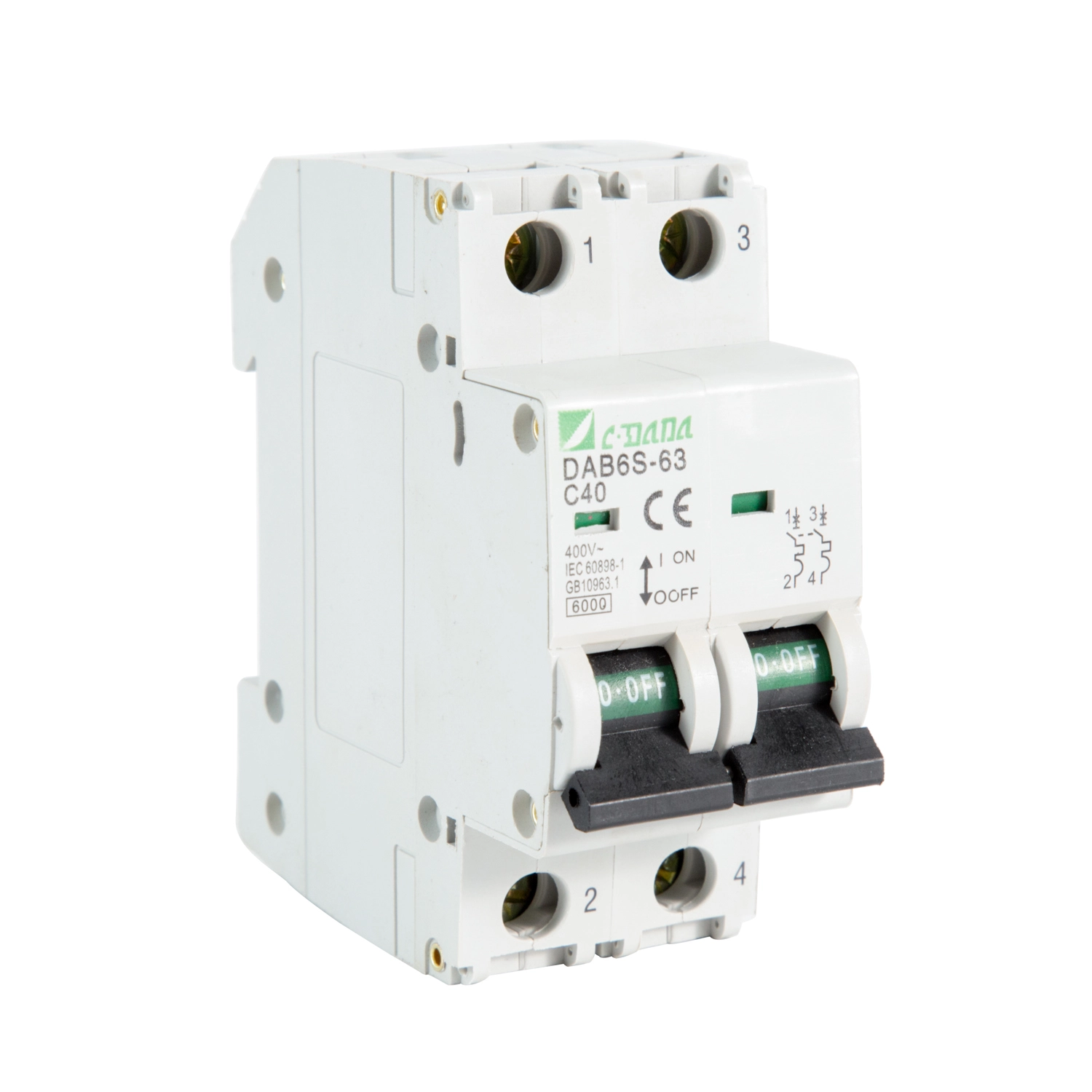

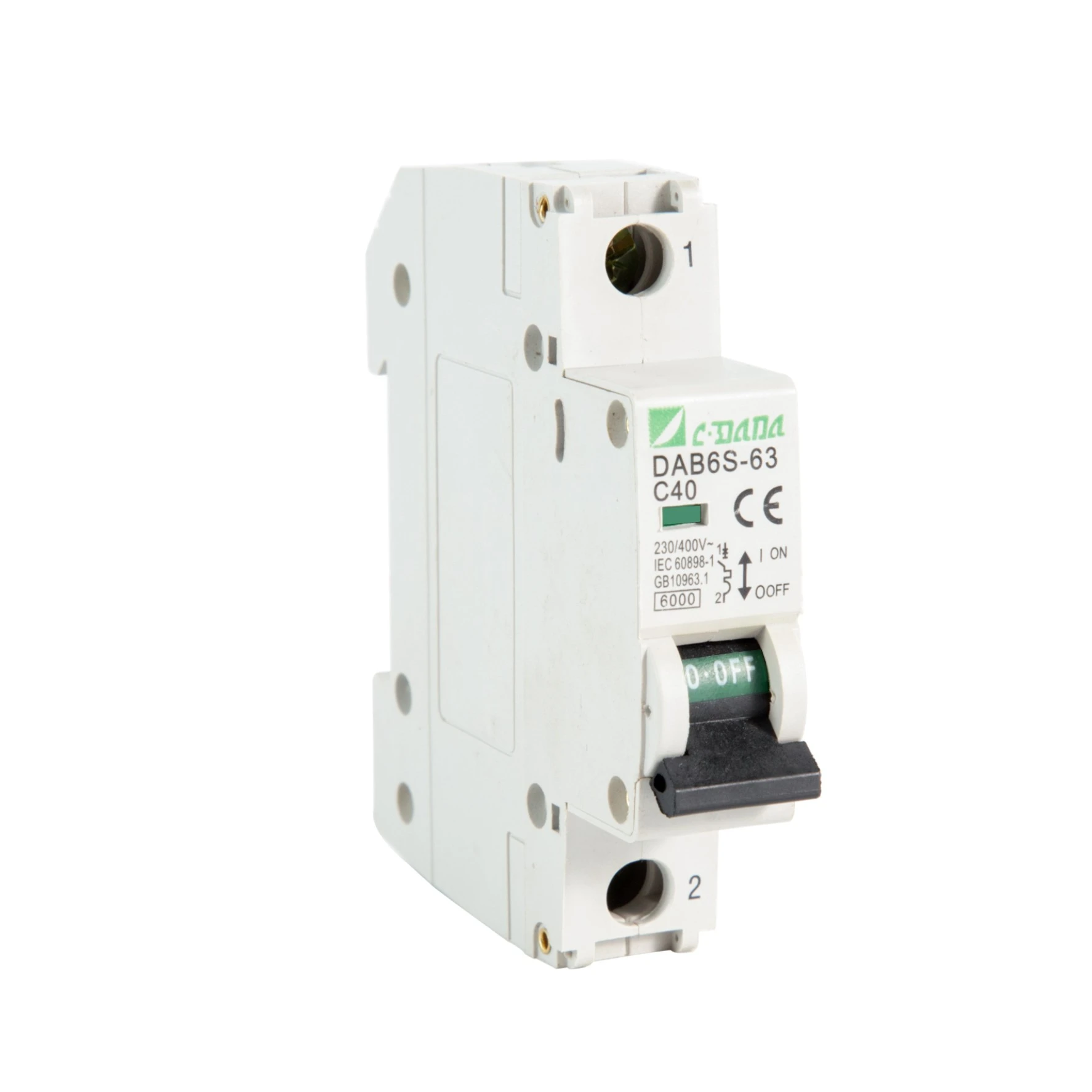

Iipali: 1P, 2P, 3P, 4P

Iijika zohambo:

B: Ngokukhanya kunye nemithwalo echasayo (3–5×In)

C: Yeenjini zenjongo jikelele (5–10×In)

D: Kwimithwalo ephezulu yokutyhala efana necompressors/impompo (10–20×In)

Ilinganiswe ngoku (Ku): 1A – 63A (amanyathelo aqhelekileyo)

Ubushushu bokusebenza: -40°C ukuya +50°C

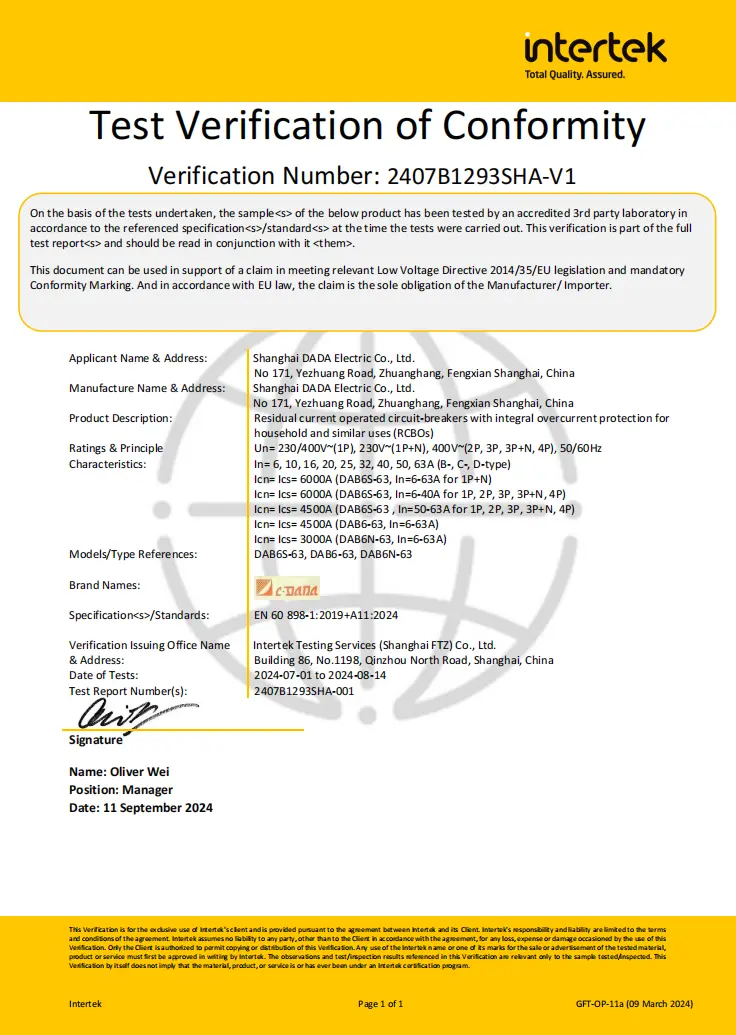

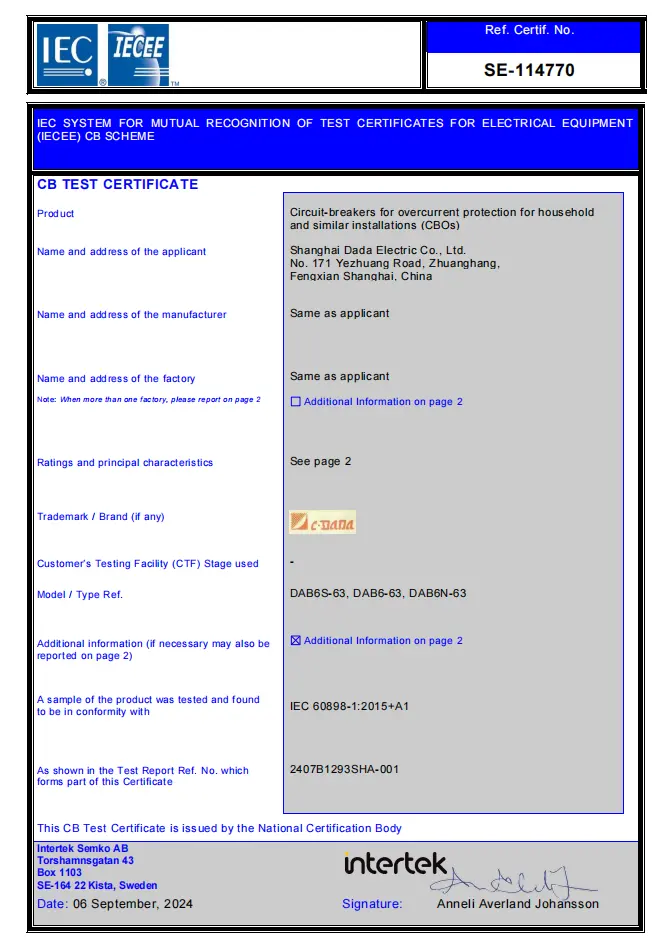

Iziqinisekiso: CE, CB

Ezona mpawu:

★ Izibambiso zetheminali ezinophawu → ilahleko esezantsi yobushushu, amandla aphezulu koomatshini

★ I-lever yokusebenza ebanzi → ukubamba ngcono kunye nendawo yoqhagamshelwano

★ iindlela zokukhusela i-short-circuit

★ DIN kaloliwe ekhwelekayo (standard 35mm)

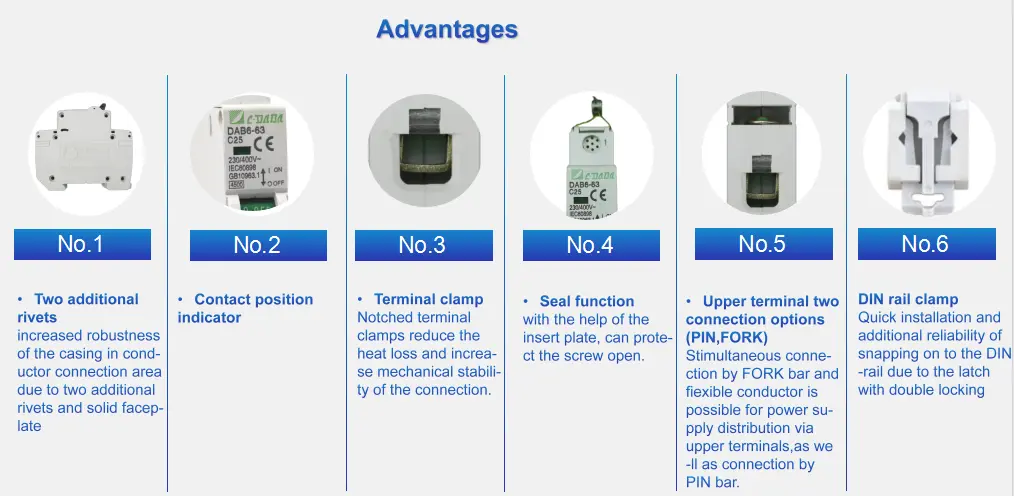

Iingenelo

Iphepha leDatha lobuGcisa

Kutheni Khetha i-CDADA 6kA AC Miniature Circuit Breaker?

★ Ukhuseleko olulungiselelweyo kuwo wonke umthwalo

Khetha ijika lokuhamba elichanekileyo (B/C/D) ukuze litshatise isicelo sakho-ukuphepha iihambo eziphazamisayo ngelixa uqinisekisa ukhuseleko.

	Uvavanyo lwangoku	Ixesha lokuhamba	Usetyenziso
B Ijika	3ln 5ln	0.132A)	Uhlobo B lusebenza kuphela kwimithwalo esebenzayo: -Isifudumezi sombane-Isifudumezi samanzi-I-furmace yombane
C Ijika	5Ngaphakathi 10ln	0.132A)t<0.1s	Uhlobo C lulungele imithwalo eqhelekileyo: -Isibane -Isokethi yamandla -Injini yamandla amancinci
D Ijika	10ln 20Ngaphakathi	0.132A) t <0.1s	Lawula kwaye ukhusele iisekethe ngokutyabukwa ngoko nangoko (iinjini ezinkulu)

★ Yenzelwe ukuthembeka kwimozulu egqithisileyo

Isebenza ngokugqibeleleyo ukusuka kwingqele yeArctic (-40°C) ukuya kubushushu betropikhi (+50°C)—ilungele iiprojekthi zehlabathi.

★ Ilahleko yaMandla asezantsi, uKhuseleko oluPhezulu

Izithinteli zetheminali ezinelungelo elilodwa lomenzi wechiza zonyusa uxinzelelo loqhagamshelwano, zinciphisa ukuxhathisa, ukwenziwa kobushushu, kunye nomngcipheko womlilo.

★ Uyilo oluLungelelekileyo lomsebenzisi

I-lever ebanzi iphucula ukusebenza kwe-manual-ebaluleke kakhulu ngexesha likaxakeka okanye ukutshintsha rhoqo.

★ Ukuthotyelwa okuThenjiweyo kweHlabathi

Izatifikethi ze-CE kunye ne-CB ziqinisekisa ukwamkelwa eYurophu, kuMbindi Mpuma, e-Afrika nase-Asia-exhaswa yi-Shanghai-based control quality control.

★ Ifanelekile kuSetyenziso lweNdawo yokuHlala nokuKhanya kuRhwebo I-Compact, ingabizi kakhulu, kwaye kulula ukuyifaka-ilungele amagumbi, ii-ofisi, izikolo kunye neendawo zokuthengisa.

Usetyenziso oluqhelekileyo

Amakhaya: Iisekethe zokukhanyisa, iisokethi, izixhobo zasekhitshini

IiApartments & Condos: Iibhodi zokuhambisa ezikumgangatho osezantsi

Iiofisi ezincinci: I-HVAC, izixhobo ze-IT, iimpawu

IiVenkile zokuthengisa: Ukukhanyisa ukukhanya, iinkqubo ze-POS

Ishishini lokukhanya: Iiphaneli zokulawula abalandeli, iimpompo ezincinci, iicompressors

Imibuzo Ebuzwa Rhoqo (FAQ)

I-Q1: Ithetha ukuthini i-"6kA" kwi-MCB?

I-A1: I-short-circuit breaking capacity-i-high fault current (6,000 amps) i-MCB inokuphazamisa ngokukhuselekileyo ngaphandle komonakalo. Ifanelekile kwizicelo ezininzi zokuhlala kunye nezilula zorhwebo.

I-Q2: Yiyiphi i-curve yohambo endimele ndiyikhethe ukusetyenziswa ekhaya?

A2:

Ijika le-B: Eyona nto ingcono yokukhanyisa kunye neesokethi ngokubanzi

Igophe C: Kucetyiswa kwiziyolo zomoya, oomatshini bokuhlamba, okanye iimotor ezincinci

Ijiko le-D: Ifuneka kuphela kwizixhobo eziphezulu zokutyhalela amanzi njengeempompo zamanzi okanye izinyusi

I-Q3: Ngaba le MCB ingasetyenziswa kwiipaneli zangaphandle?

I-A3: Ewe-ukuba nje i-enclosure inika ukhuseleko lwe-IP. I-6kA AC Miniature Circuit Breaker ngokwayo isebenza ngokuthembekileyo ukusuka kwi-40 ° C ukuya ku-50 ° C, iyenza ifaneleke kwiigaraji, iishedi, okanye iibhokisi zeemitha kwiindawo ezinqabileyo zemozulu.

I-Q4: Ngaba iitheminali ziyahambelana neentambo eziqhelekileyo?

I-A4: Ewe-yamkela iintambo zobhedu eziqinileyo okanye ezixineneyo ukuya kuthi ga kwi-25mm², kwaye uyilo lwe-clamp olunotshisiweyo luqinisekisa uqhagamshelo olukhuselekileyo, oluphantsi.

Q5: Kutheni ukhethe CDADA ngaphezu kwezinye 6kA MCB brand?

A5: CDADA inikeza:

● Isiqinisekiso se-CE kunye ne-CB esiyinyani (hayi nje ukuzichaza)

● Uluhlu olubanzi lobushushu bokusebenza kunabaninzi abakhuphisana nabo

● Uyilo oluphuculweyo lwetheminali ukwenzela ubushushu obuphantsi kunye nobomi obude

● Sula iileyibhile ze-B/C/D ukuze ukhethe ngokulula

● Ixabiso le-OEM-friendly kunye nomgangatho ongaguqukiyo ovela kumvelisi oqinisekisiweyo waseTshayina
