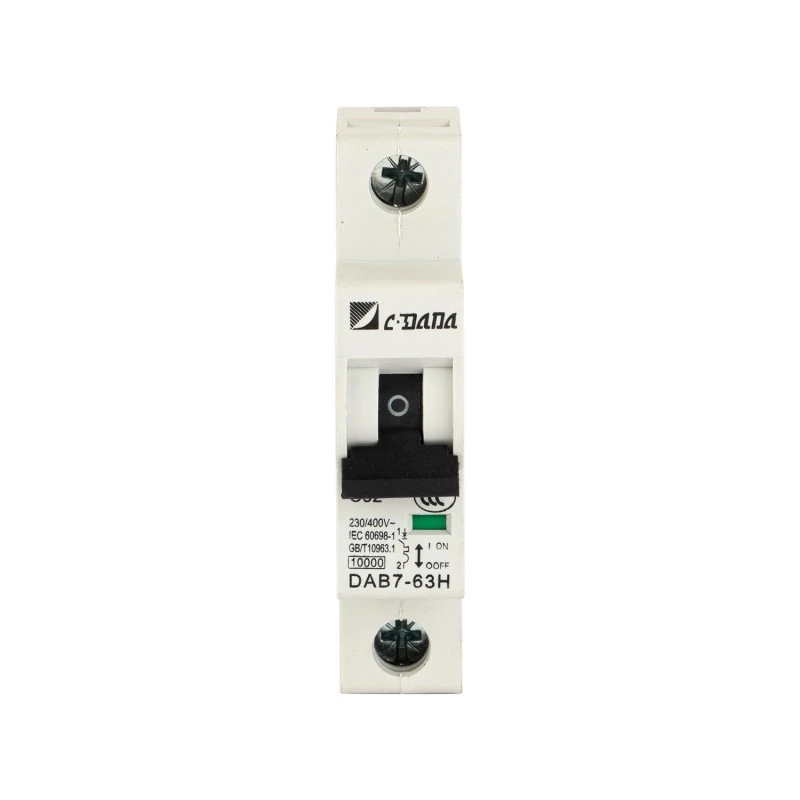

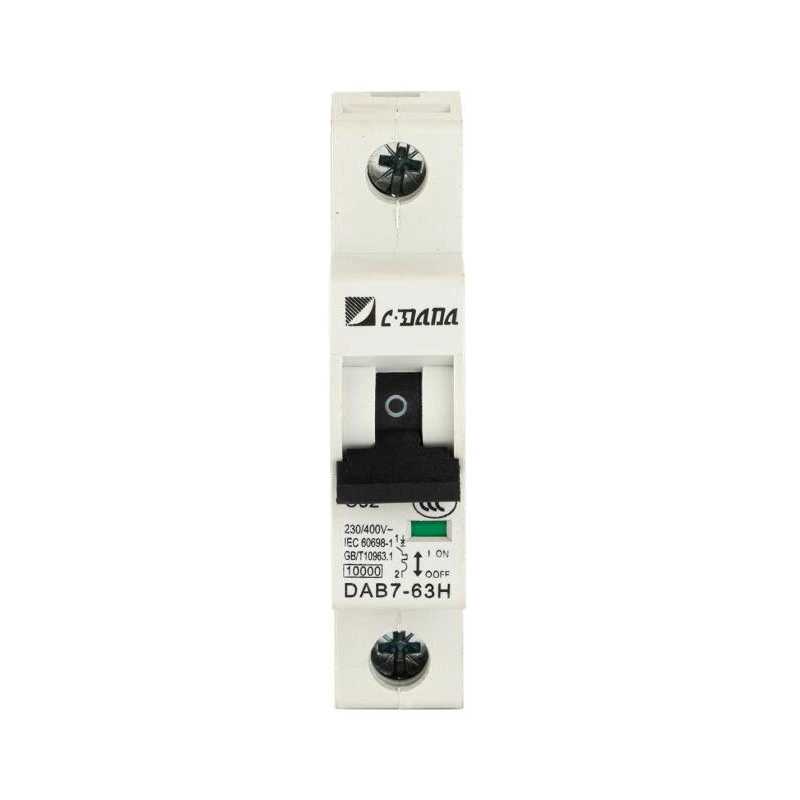

10KA AC Miniature Circuit Breaker

Ukufumana izicelo ezifunayo apho i-fault currents ephezulu kunye nokhuseleko olongeziweyo lungenakuxoxisana, i-CDADA DAB7-63H 10KA AC Miniature Circuit Breaker ihambisa ukhuseleko lwe-industrial-grade kwifomathi encinci. Injineli yi-Shanghai DADA Electric CO., LTD., Le 10kA i-breaker circuit encinci yenzelwe iipaneli zeqela, iibhodi zokuhambisa kwiindawo zokuhlala, zorhwebo, kunye nokukhanya kwemizi mveliso-ukubonelela nge-thermal ethembekileyo (i-overload) kunye ne-electromagnetic (i-short-circuit) ukhuseleko kwii-8 zangoku (6A-63A) kunye ne-1P / 2P / 3P configations

Iqinisekiswe kwi-CE, CB, ASTA, kunye ne-SEMKO, ihlangabezana nemigangatho engqongqo yokhuseleko lwehlabathi. Ngegumbi eliphambili le-arc ye-13-plate, i-alloy ene-silver-containing alloy, kunye neenketho ezimbini zokudibanisa (i-PIN / FORK), i-DAB7-63H iqinisekisa ukutshatyalaliswa kwe-arc ngokukhawuleza, ukulahleka kobushushu obuphantsi, kunye nokwandisa ubomi bombane-naphantsi kokutshintsha rhoqo okanye ukushisa okuphezulu.

IiNgcaciso eziphambili

Umzekelo: DAB7-63H Series

Uhlobo: I-AC Miniature Circuit Breaker (MCB)

Ukuqhawuka kwamandla: 10kA @ 230/400V AC

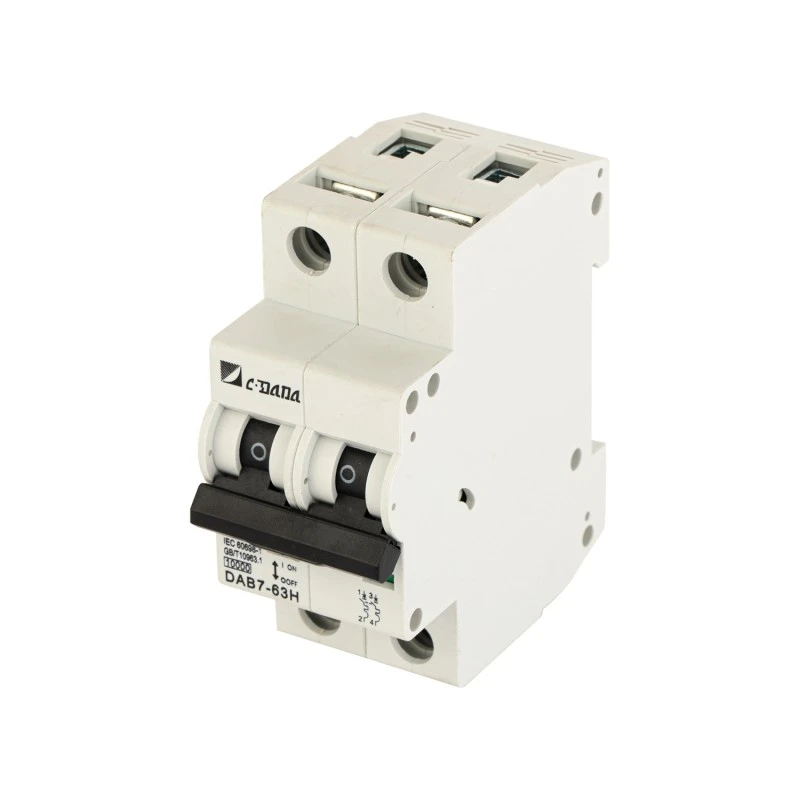

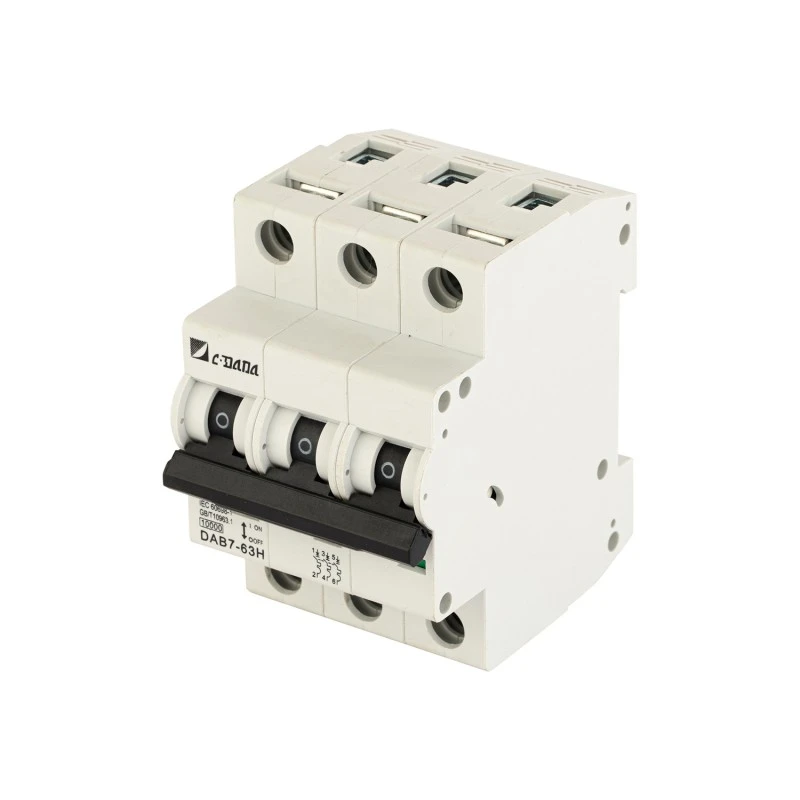

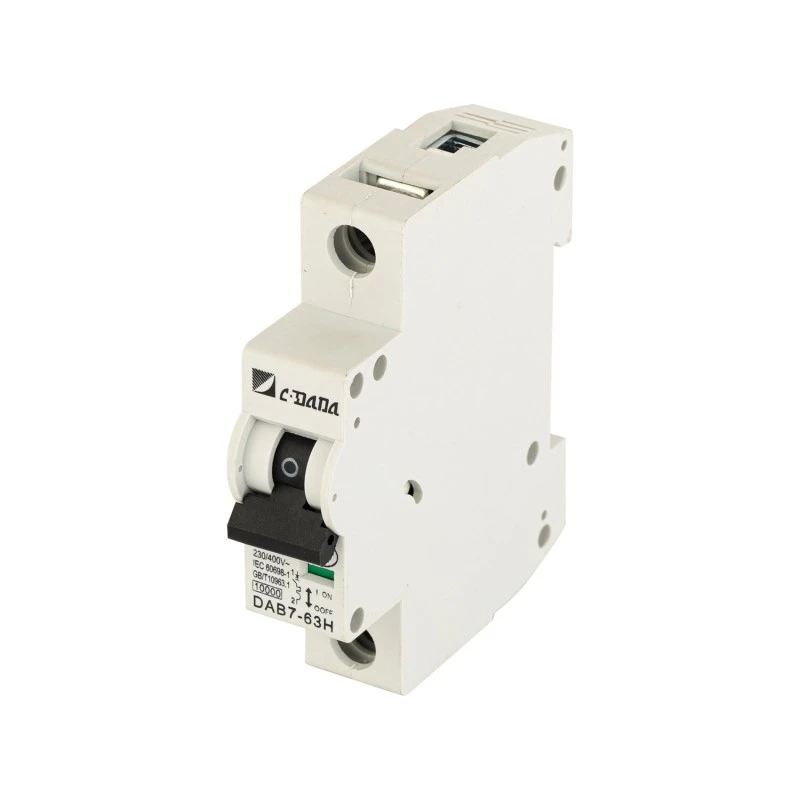

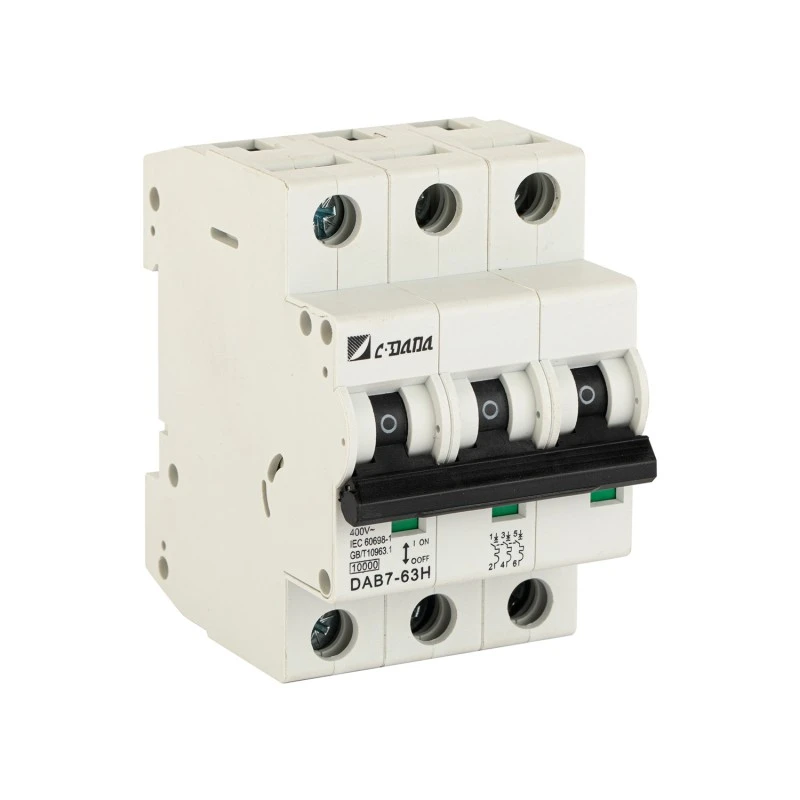

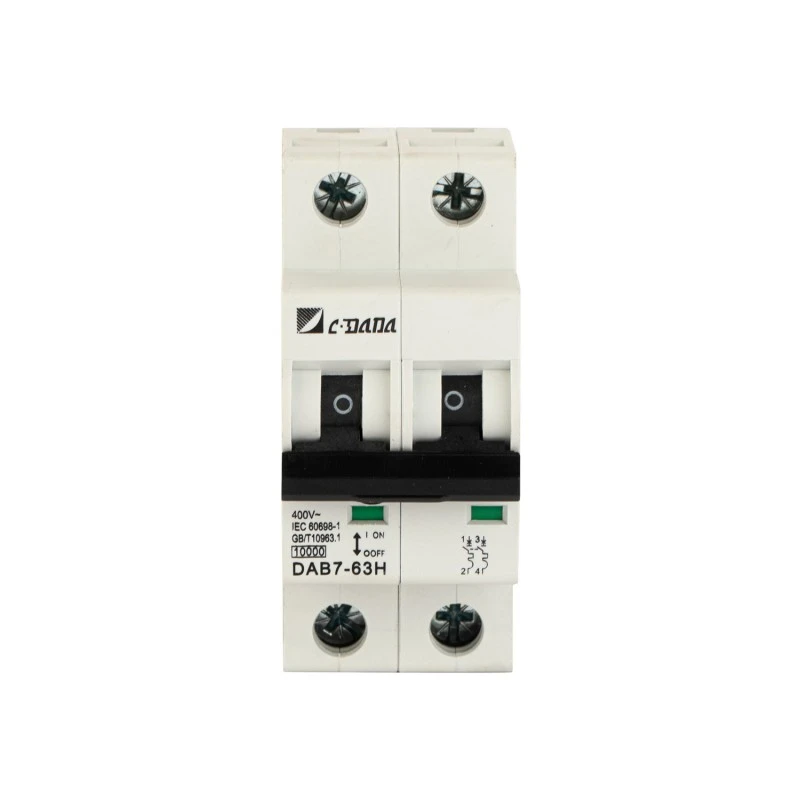

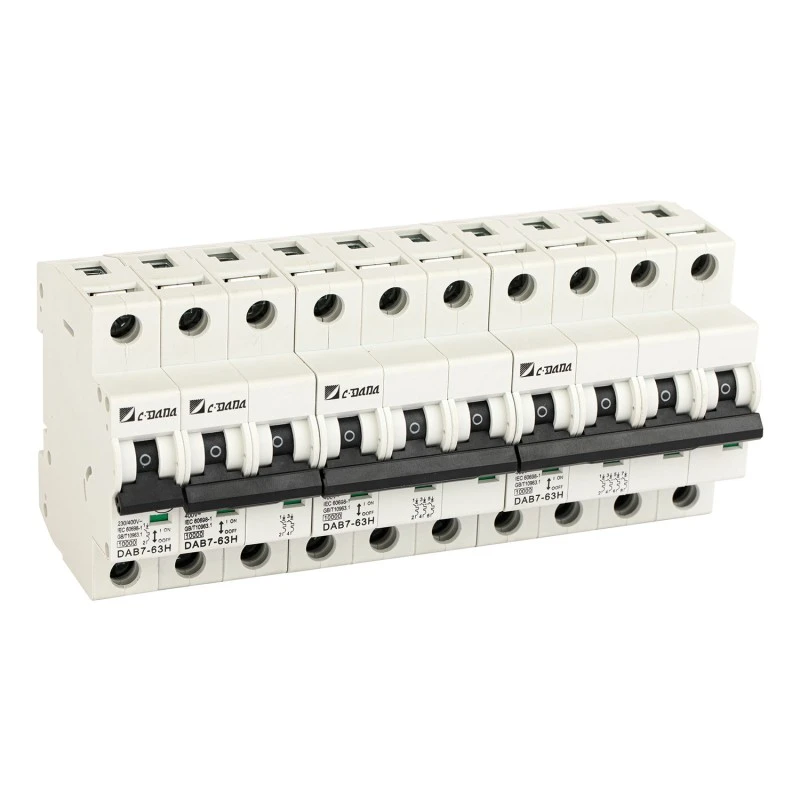

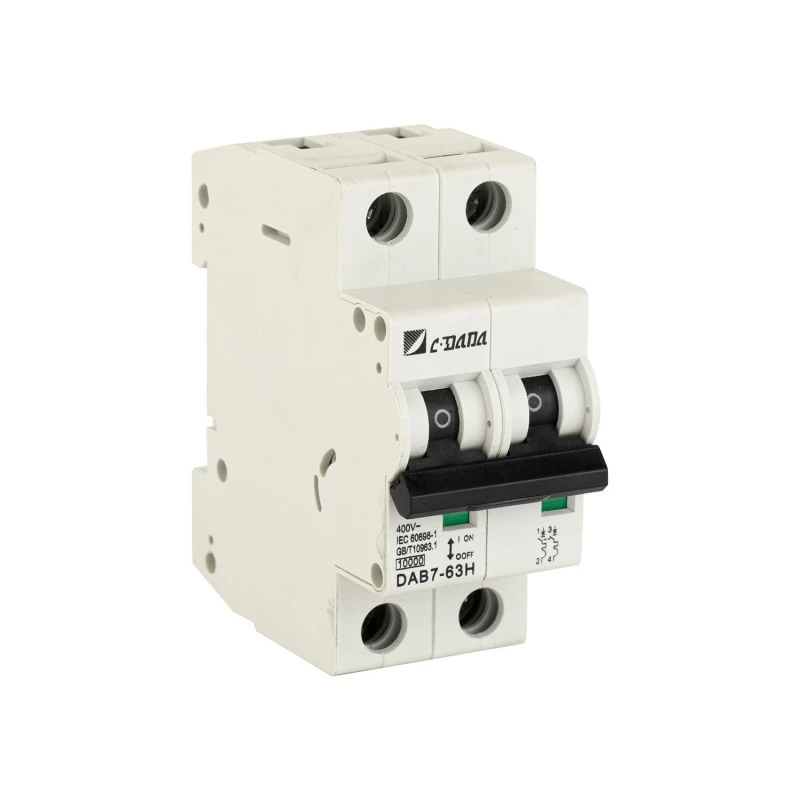

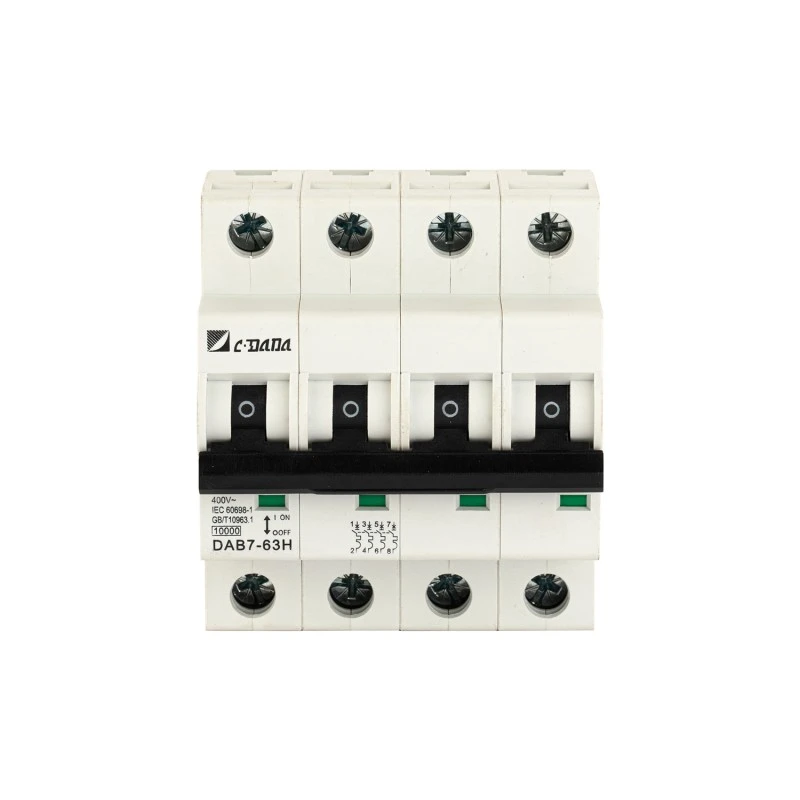

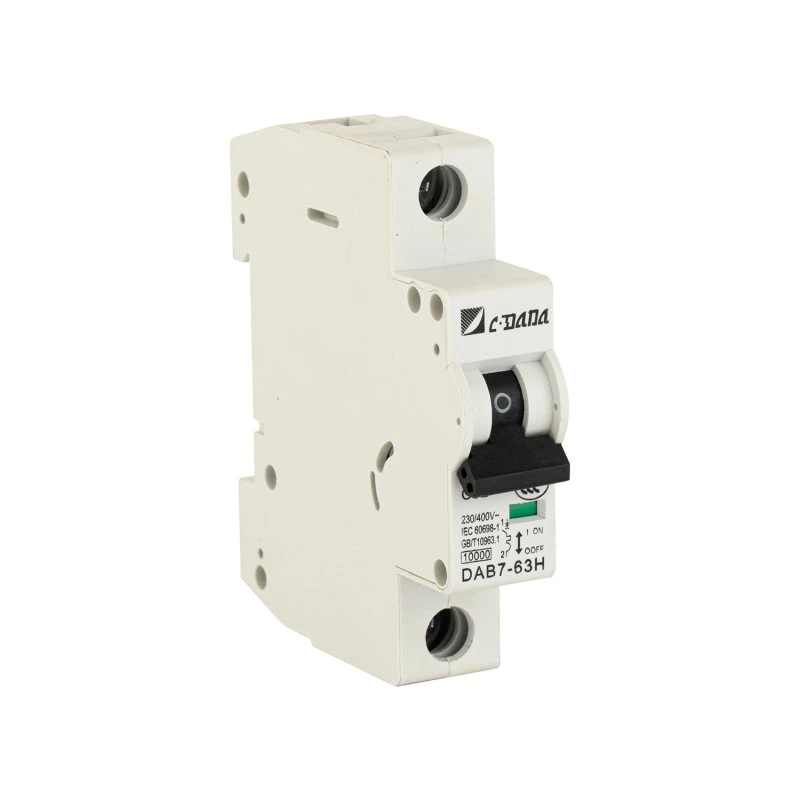

Iipali: 1P, 2P, 3P

Ikalwe ngoku (kwi): 1A,2A,3A,4A,5A,6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A

Ubushushu bokusebenza: -40°C ukuya +50°C

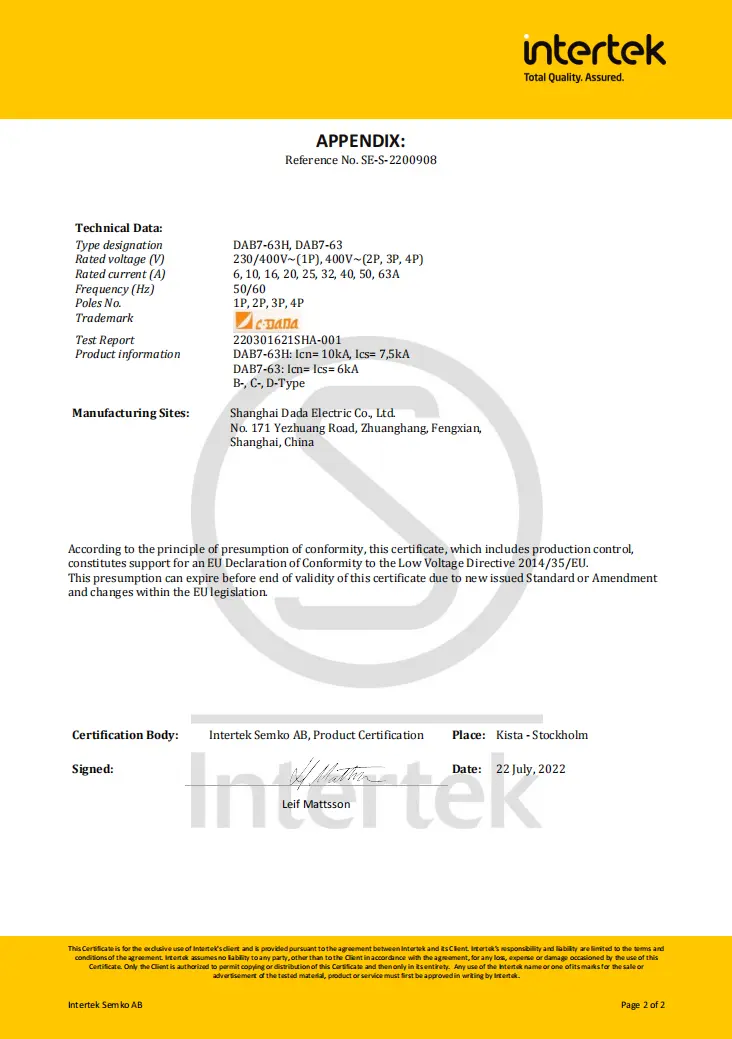

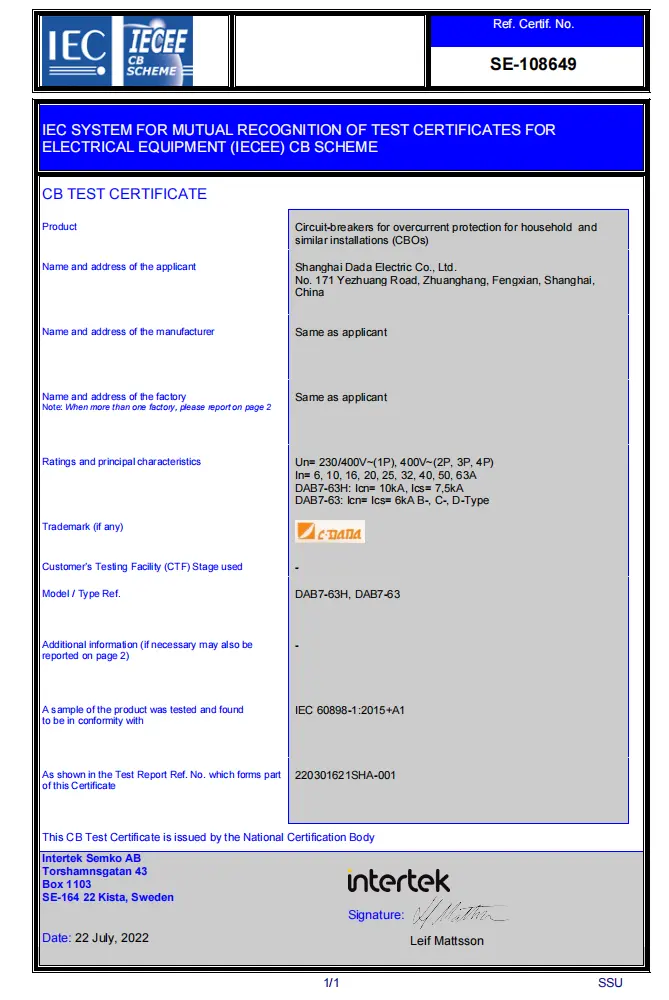

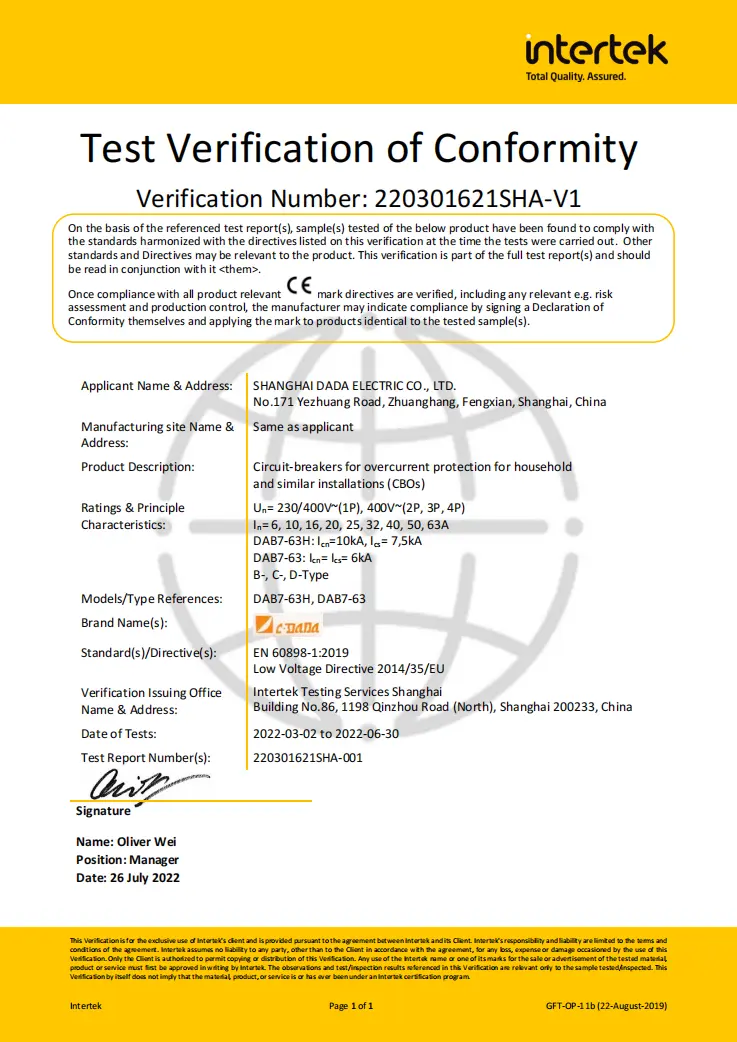

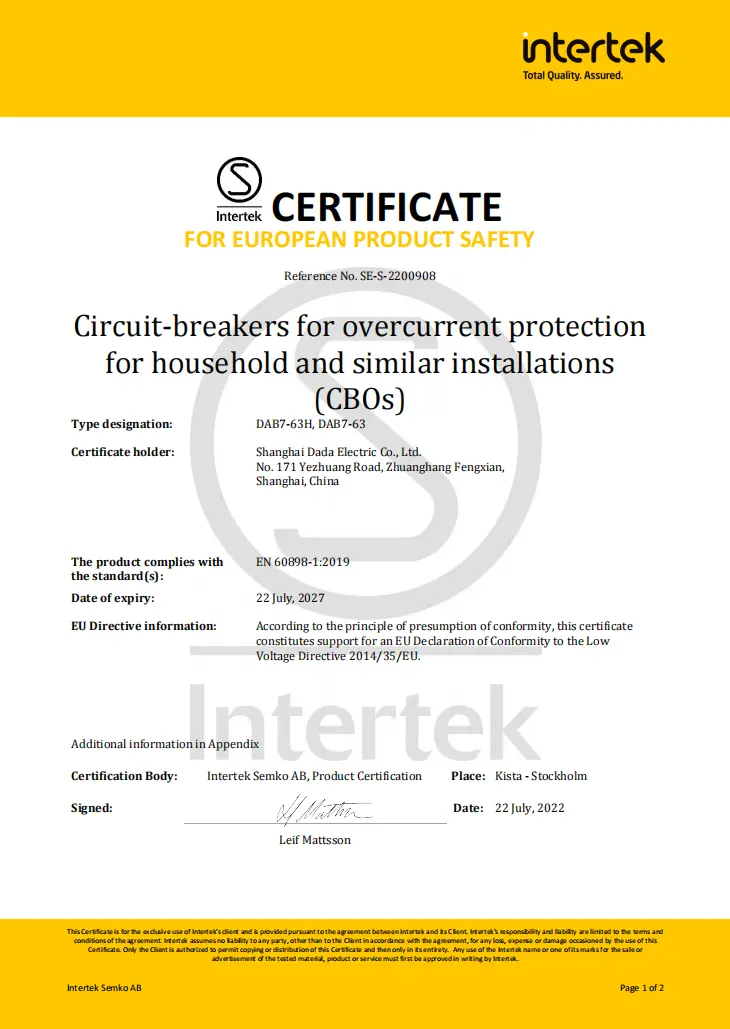

Iziqinisekiso: CE, CB, ASTA, SEMKO

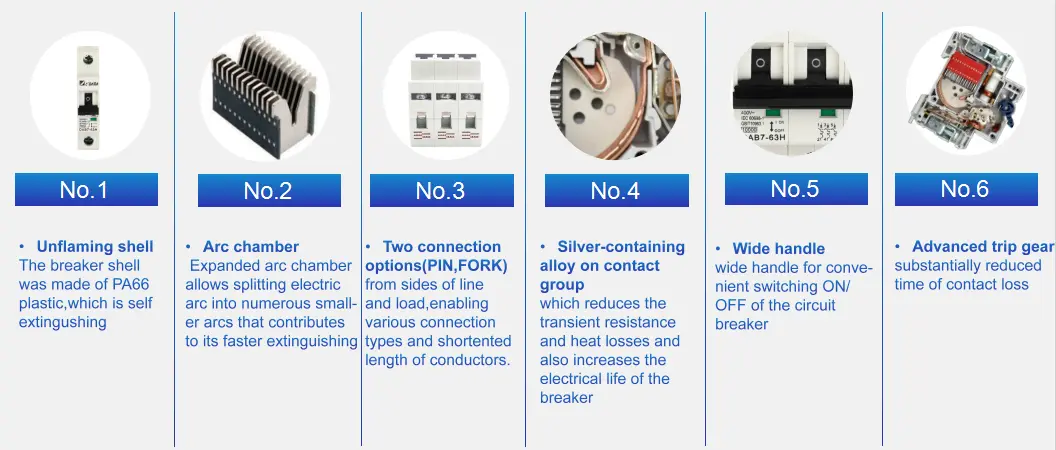

Iimpawu eziphambili zoYilo:

Igumbi le-arc elineepleyiti ezili-13 → uqhekeko olukhawulezayo lwearc kunye nokuphela

Abafowunelwa beSilver-alloy → ukuxhathisa okuphantsi, ubomi obude

Iinketho ezimbini zetheminali: iPIN okanye FORK (umgca & necala lomthwalo)

Okubonakalayo ON/OFF/Isalathisi sohambo lwefestile

Umqheba obanzi we-ergonomic ukuze usebenze lula

Izindlu ezinqanda amadangatya, ezichasene nomthubi (UL94 V-0 ngokulinganayo)

Izikrufu zetorque ezinkulu (zivavanywe ukuya kwi-3 Nm) ezine + / – iintloko ezisebenza ngokunqamlezileyo

Ilatshi kaloliwe ye-DIN eneendawo ezimbini zokutshixa → ukuxhoma okukhuselekileyo

Iphepha leDatha lobuGcisa

Kutheni Khetha CDADA AC MCB 10kA?

★ Ukwenziwa koMzi-mveliso-kwiBanga kwiFom encinci

Ngelixa i-MCBs eqhelekileyo inikezela nge-6kA, ukulinganiswa kwe-10kA ye-DAB7-63H yenza ukuba ifaneleke kwiindawo ezikufutshane nokubonelela okuphambili-njengamagumbi okusasaza angaphantsi, imigangatho yorhwebo, okanye iiworkshops ezilula zoshishino-apho ama-fault currents alindelekileyo aphezulu.

★ Ukhuseleko olomeleziweyo kunye noKuhlala ixesha elide

● Iqokobhe elingatshiyo liyaxhathisa ukuvutha kunye nokuguquka kombala

● Ukucima igridi kabini kuthintela ukukhutshwa kwerhasi eshushu

● Isixhobo esingenahambo siqinisekisa ukuqhawulwa nokuba isiphatho sivuliwe

★ Iindleko eziphantsi zoBomi

I-Silver-alloy contacts kunye neeterminals eziphuculweyo zinciphisa ukulahlekelwa kwe-thermal kunye ne-welding yoqhagamshelwano, ukwandisa ubomi benkonzo-ngokukodwa kwizicelo eziphezulu.

★ Ukwamkelwa kwehlabathi

Nge-ASTA (UK), i-SEMKO (Nordic), i-CE (EU), kunye ne-CB (ihlabathi), i-CDADA MCBs yamkelwa kumazwe angaphezu kwama-70-elungele abakhi bamapaneli abajoliswe kumazwe angaphandle.

★ Uyilo oluLuhlobo oluFanayo

★ Umqheba obanzi = ukusebenza lula

★ Izikrufu ezisebenza ngokunqamlezayo = akukho ziqhoboshi eziwisiweyo

★ Sula ifestile yesimo = ukuxilongwa ngokukhawuleza okubonakalayo

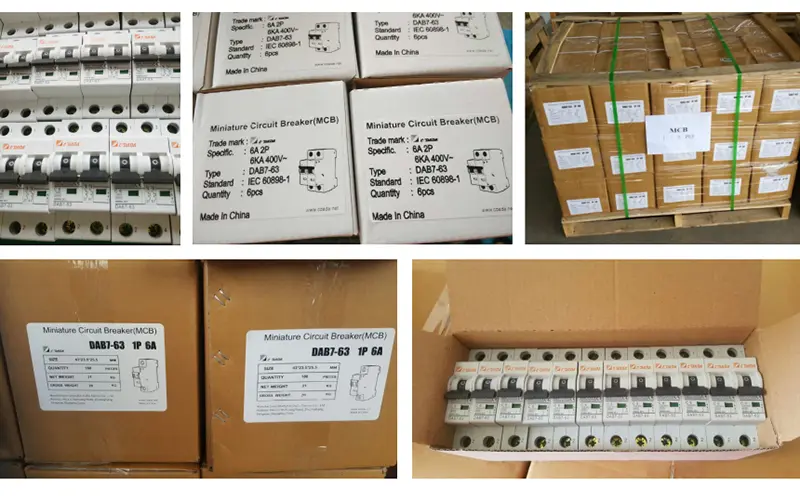

★ Iikhathoni zamandla aphezulu, ukhuseleko lwe-pallet, lulungele ukuthuthwa kwamanye amazwe kumgama omde

★ Ukuhanjiswa kwexesha elikhawulezayo kwii-odolo ezifanelekileyo.

Izicelo ezifanelekileyo

IZakhiwo zoRhwebo: Iiphaneli zokuhambisa umgangatho, amagumbi omncedisi, iivenkile zokuthengisa

Umzi-mveliso wokuKhanya: Iisekethe zokulawula oomatshini, ii-motor feeder ezincinci, iisokethi zokusebenzela

Iziseko zophuhliso zikaRhulumente: Izikolo, izibhedlele, ii-ofisi zikarhulumente

Indawo yokuhlala enoxinano oluphezulu: Iibhloko zezindlu ezinemitha esembindini

Iipaneli zokuThumela ngaphandle: Kwiiprojekthi ezifuna isiqinisekiso samazwe ngamazwe

Imibuzo ebuzwa qho

Q1: Uthini umahluko phakathi kwe-6kA kunye ne-10kA MCBs?

I-A1: I-10kA ye-MCBs inokuphazamisa ngokukhuselekileyo i-fault currents ephezulu-eyenza ukuba ifaneleke ukufakwa ngokusondeleyo kwi-transformer okanye umrhwebi oyintloko, apho amanqanaba amafutshane adlula i-6kA. Sebenzisa i-10kA kwiiphaneli zorhwebo/zemizi-mveliso; I-6kA ngokuqhelekileyo yanele kwiisekethe zokuphela emakhaya.

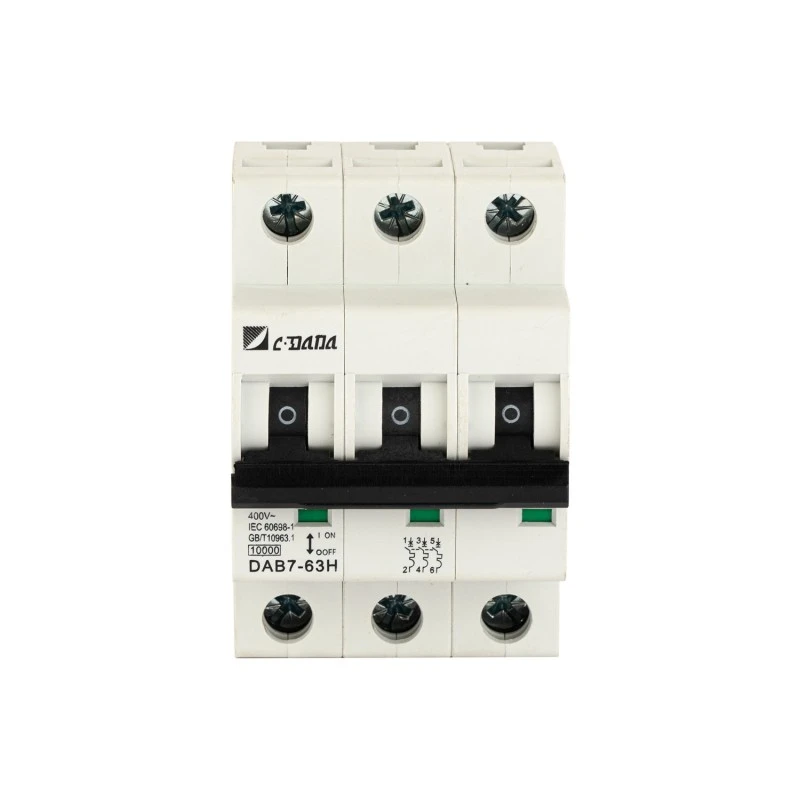

I-Q2: Ngaba i-10KA AC Miniature Circuit Breaker ifumaneka kwi-3P kwiinkqubo zezigaba ezintathu?

A2: Ewe! I-DAB7-63H ifumaneka kwi-1P, 2P, kunye ne-3P-ilungele ukukhanyisa isigaba sesithathu, i-HVAC, okanye iisekethe zoomatshini.

I-Q3: Ithetha ukuthini "i-alloy equlethe isilivere kubafowunelwa" malunga nokusebenza?

I-A3: Inciphisa ukuchasana noqhagamshelwano, inciphisa i-arcing ngexesha lokutshintsha, kwaye yandisa ubomi bombane-ibaluleke kakhulu kwiisekethe ngokusebenza rhoqo okanye imithwalo ye-inductive.

I-Q4: Ngaba ndingasebenzisa izihlanganisi zohlobo lwefolokhwe ngale MCB?

A4: Ngokuqinisekileyo! Ixhasa zombini i-PIN kunye ne-FORK terminals kumgca kunye nomthwalo emacaleni-ivumela i-flexible, i-wire-profile ephantsi kunye neentambo ezimfutshane.

Q5: Kutheni ukhethe CDADA ngaphezu kwezinye 10kA MCB brand?

A5: I-CDADA igqamile ngenxa yokuba:

● Iqondo lokwenyani le-10kA enezatifikethi ezipheleleyo (hayi nje ibango)

● Igumbi eliphezulu le-arc (iipleyiti ze-13) zokuphazamiseka okuphezulu

● Iinketho ezimbini zetheminali azifane zifumaneke kolu didi

● -40 ° C ukuya +50 ° C ukusebenza-banzi kunabaninzi abakhuphisana nabo

● Ukulungelelaniswa kwe-OEM: umgangatho ohambelanayo, inkxaso yesiNgesi, amaxabiso amaninzi
