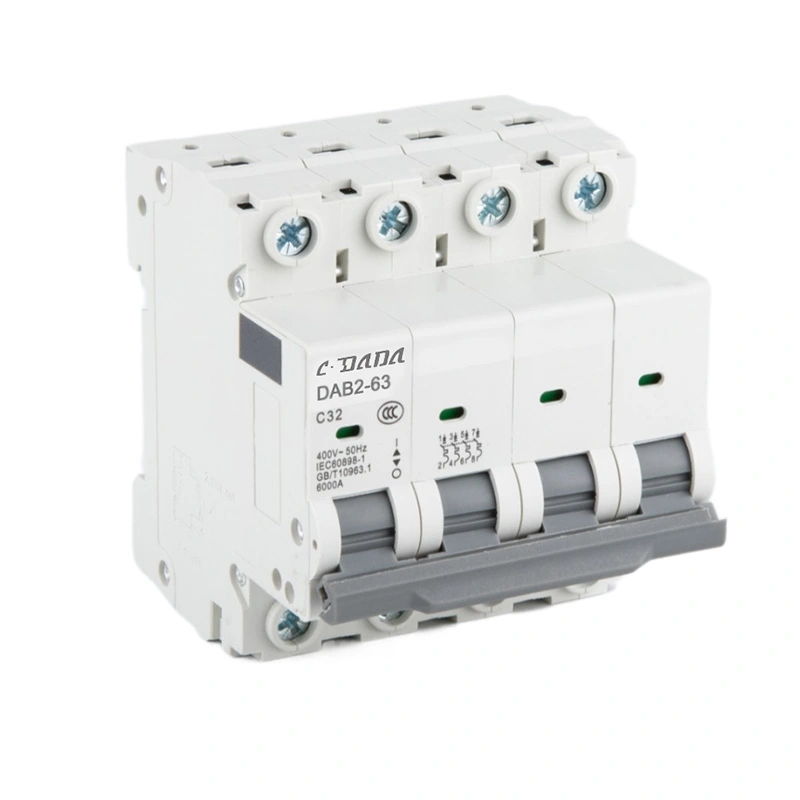

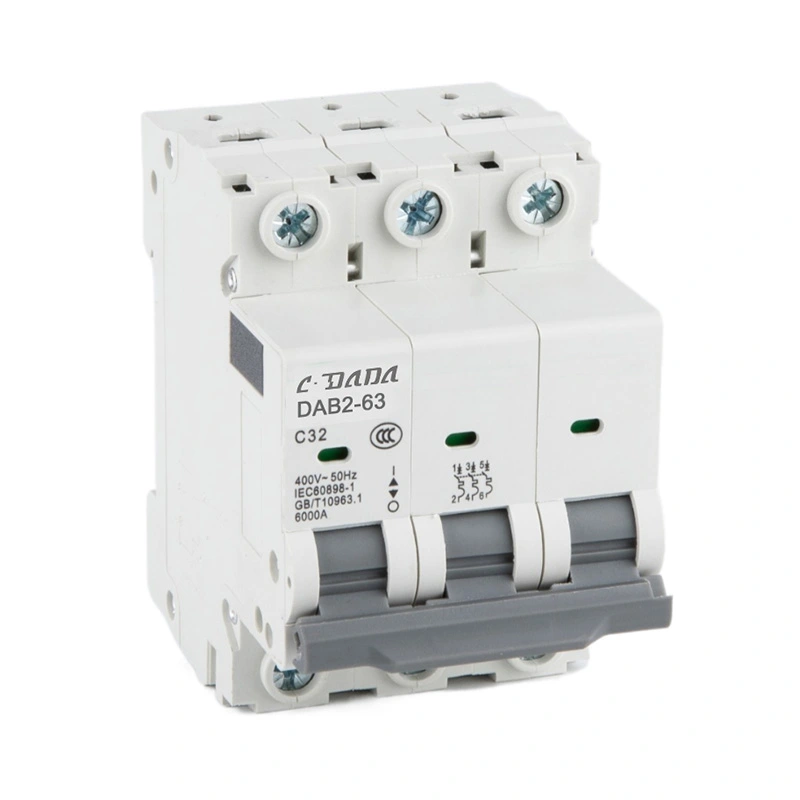

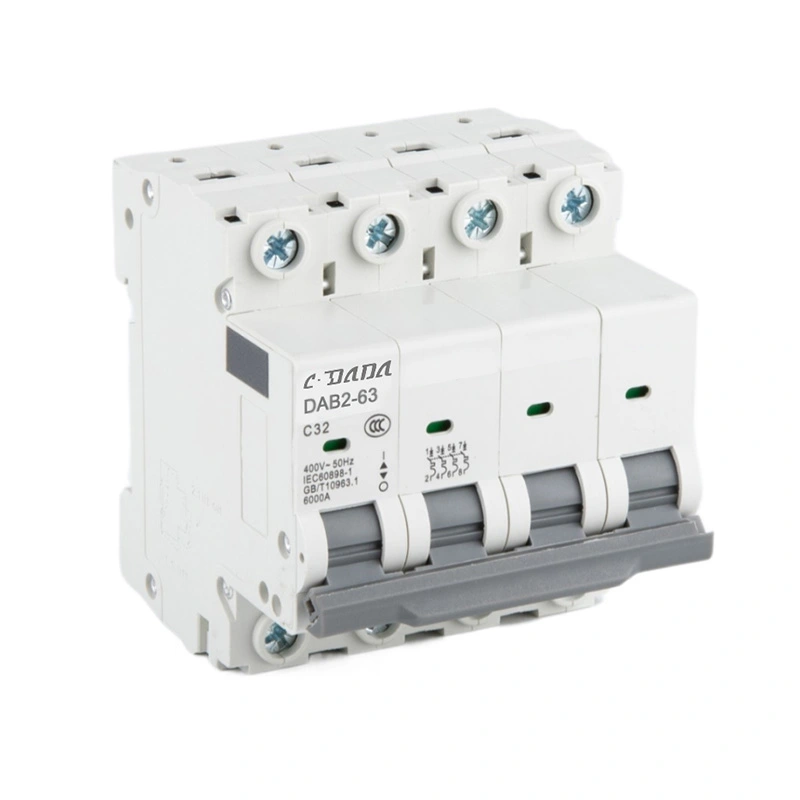

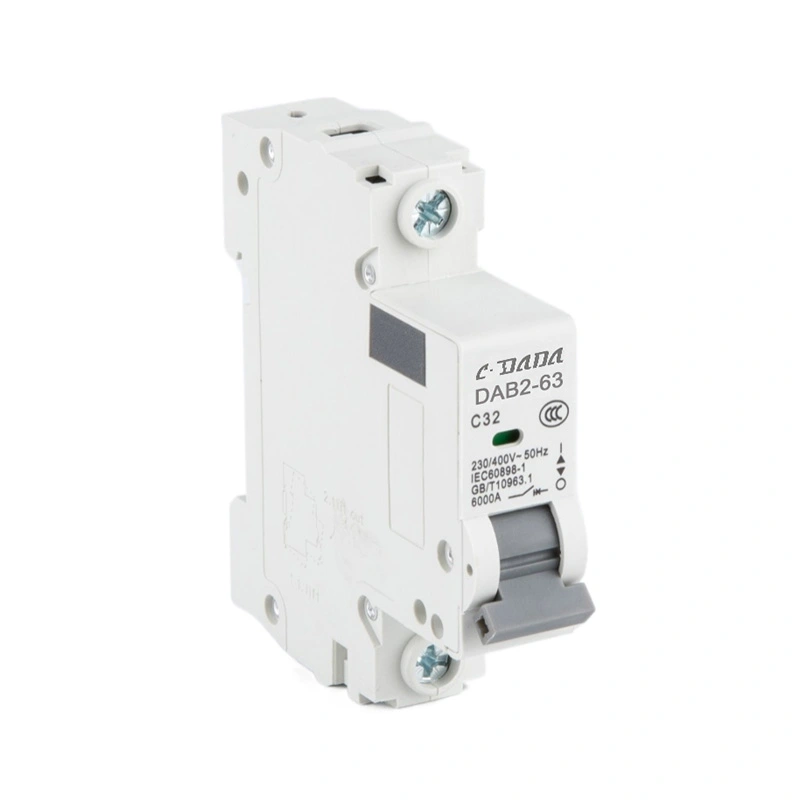

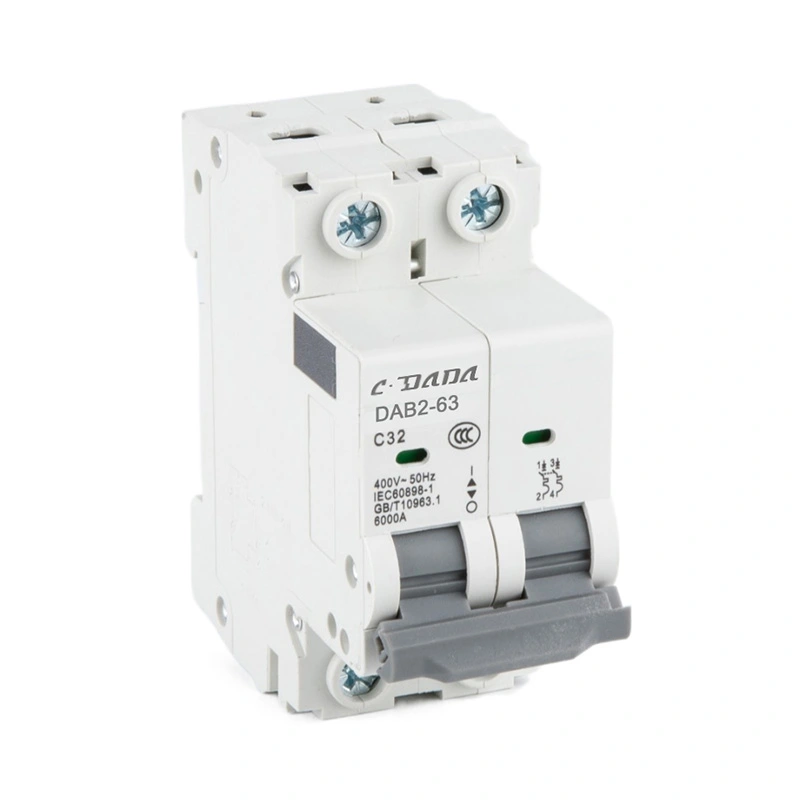

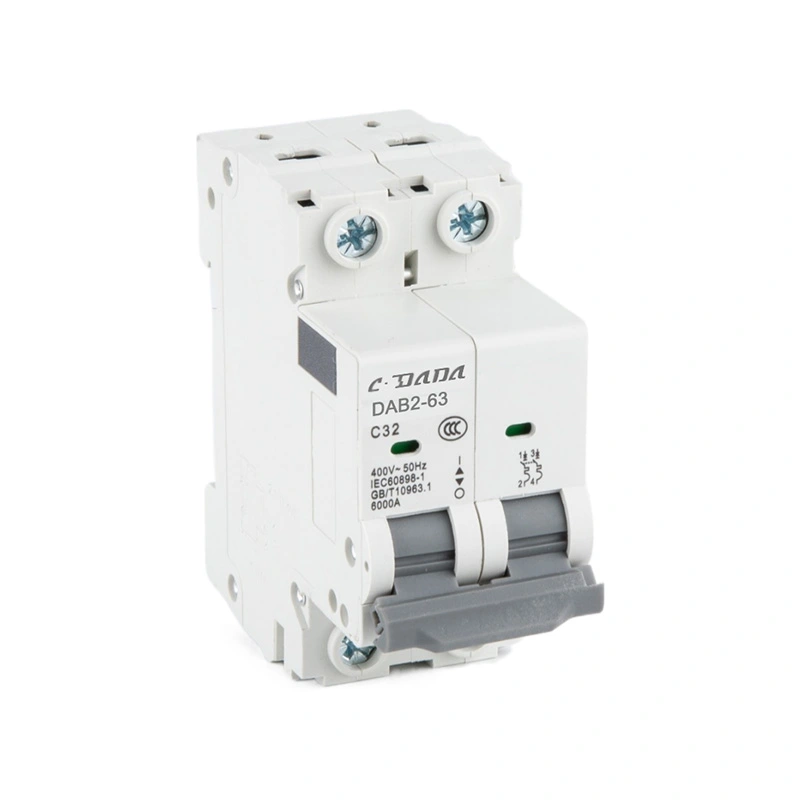

ISigaba se-3 i-MCB Breaker
Model:DAB2-63
Khetha i-CDADA njengomvelisi wakho kunye nomthengisi, kwaye ufumane i-3 Phase yethu ye-MCB Breaker, i-CE CB CCC eqinisekisiweyo nge-6kA yokuqhawula umthamo wokusasazwa kwamandla oshishino kunye nezorhwebo. Le mveliso isebenzisa iqokobhe elibuyisela idangatye kunye nokuhamba ngokuthe ngqo kwe-thermal-magnetic, kulula ukukhwela kwi-DIN kaloliwe kwaye kulula ukuyigcina. Idibanisa ukusebenza okuzinzileyo kunye nobomi obude bomatshini kunye nombane, ukuqinisekisa ukukhuselwa okukhuselekileyo kweesekethe kwiinkqubo zamandla ezithathu.
I-CDADA DAB2-63 3 Phase MCB Breaker yi-high-quality miniature breaker circuit breaker eyenzelwe izigaba ezintathu zeenkqubo zokuhambisa amandla e-AC. Ibonelela ngokugcwala okupheleleyo kunye nokhuseleko olufutshane lwesekethe, kunye ne-B / C / D yee-curves zokukhwela ukuhambelana nemithwalo eyahlukeneyo.
Eyakhelwe ngezinto ezithintela umlilo kunye namacandelo achanekileyo, le MCB yesigaba se-3 isetyenziswa ngokubanzi kwiibhodi zokusasaza, izixhobo zoshishino, kunye nokwakha iinkqubo zombane.
Izinto Eziluncedo Ezingundoqo
★ i-3-phase compact design, ifanelekile kwiibhokisi zokuhambisa eziqhelekileyo
★ 6kA umthamo ophezulu wokuqhawula ukhuseleko oluthembekileyo lwe-short-circuit
★ Ifestile yesalathiso esibonakalayo: ebomvu ON / eluhlaza OFF kwimo ecacileyo
★ Umqheba obanzi wokusebenza okuzinzileyo kunye noqhagamshelwano olukhuselekileyo
★ Izibambo ze-terminal ezichongiweyo zokunciphisa ubushushu kunye nokuphucula uzinzo lwe-wiring
★ Ukutshixa kabini ikliphu kaloliwe ye-DIN yokukhawuleza, ufakelo oluqinileyo
★ Iqokobhe le-flame-retardant, ukumelana nobushushu obuphezulu
★ 100% yovavanyo olupheleleyo lwefektri ngaphambi kokuthunyelwa
Usetyenziso
★ CDADA 3 Phase MCB Breaker isetyenziswa ngokubanzi kwi:
★ Iiphaneli zokusasaza iindawo zokuhlala, zorhwebo kunye nezakhiwo zikawonke-wonke
★ Ucweyo lwemizi-mveliso, iifektri, kunye nezixhobo zombane ezincinci
★ Iifeni, iicompressor, iimpompo, oomatshini bokunyusa
★ Iinkqubo zokukhanyisa, iisokethi zamandla, kunye neesekethe zeemoto zesigaba sesithathu
★ Iziseko zophuhliso, iigridi zombane, kunye neeprojekthi zekhabhathi yombane
Iiparamitha zobuGcisa
|
Into |
Inkcazo |
|
Umzekelo |
DAB2-63 1P/1P+N/2P/3P/3P+N/4P |
|
Umgangatho |
IEC60898-1, GB10963.1 |
|
Izatifikethi |
CE, CB, CCC, ASTA |
|
Ukwaphulwa kweSakhono |
4.5kA, 6kA |
|
Ikalwe ngoku |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Ijika elijikajikayo |
B(3-5In), C(5-10In), D(10-20In) |
|
Ulinganiso lweVoltage |
400/415V AC |
|
I-Insulation Voltage |
500V AC |
|
Impulse Voltage |
4kV |
|
Isidanga soKhuseleko |
IP20 |
|
Ukuhlohla |
35mm DIN kaloliwe |
|
Ubomi boomatshini |
20,000 imijikelo |
|
Ubomi boMbane |
10,000 imijikelo |
|
Flame Class |
UL94 V0 |
|
I-Ambient Temp |
-25℃ ~ +45℃ |
|
Uluhlu lweeNcingo |
0.75–35mm² eyomeleleyo / exineneyo |
Imilinganiselo yolwandlalo
★ Ububanzi obuqhelekileyo: 17.8mm ngepali nganye
★ 3P iyonke ububanzi: 53.4mm
★ Ukunyuka: 35mm DIN kaloliwe (nasiphi na isikhundla)
★ Wiring torque: 3.5N · m
★ Ubume obuqinileyo kwiikhabhathi zombane eziqhelekileyo
Ulawulo lwemeko
★ ISO9001 inkqubo yolawulo lomgangatho
★ 90% yamacandelo angundoqo avelisiweyo endlwini
★ 100% ulungelelwaniso: 1.13In non-hambo, 1.45In uhambo
★ uvavanyo lwemagnethi lokuhamba (5In / 10In yeC-curve)
★ Uvavanyo lokunyamezela ubushushu obuphezulu noluphantsi
★ Ukuguga kunye nokuqinisekisa ubomi oomatshini
Ukupakishwa kunye nokuThunyelwa
★ Ibhokisi esemgangathweni yokuthumela ngaphandle enelinen eyothusayo
★ Ileyibhile ecacileyo: imodeli, iipali, okwangoku, ubuninzi, iicerts
★ Ukupakishwa kwebhokisi yeqela ukunqanda umkrwelo kunye nomonakalo
★ Ilungele ukuhamba elwandle, emoyeni, nasemhlabeni
★ Inkxaso yokupakishwa kwe-OEM kunye nokuleyibhelishwa kwesiko
Iimeko zeMpumelelo yoMthengi
★ I-CDADA 3 Phase ye-MCB Breaker inentsebenziswano yexesha elide kunye nabathengi behlabathi:
★ Iiprojekthi zolwakhiwo lweendawo zokuhlala nezorhwebo eYurophu, kuMzantsi-mpuma Asia, kuMbindi Mpuma
★ Ukuhanjiswa kwamandla kwimizi-mveliso e-Afrika, eMzantsi Melika, eAsia
★ OEM & ODM ubambiswano kunye brand zombane jikelele
★ Unikezelo lwexesha elide lwesambuku kubasasazi bamazwe ngamazwe kunye neekontraka
★ Isetyenziswa kakhulu kwiigridi zamandla, iziseko ezingundoqo, kunye nezihlanganisi zenkqubo yombane
