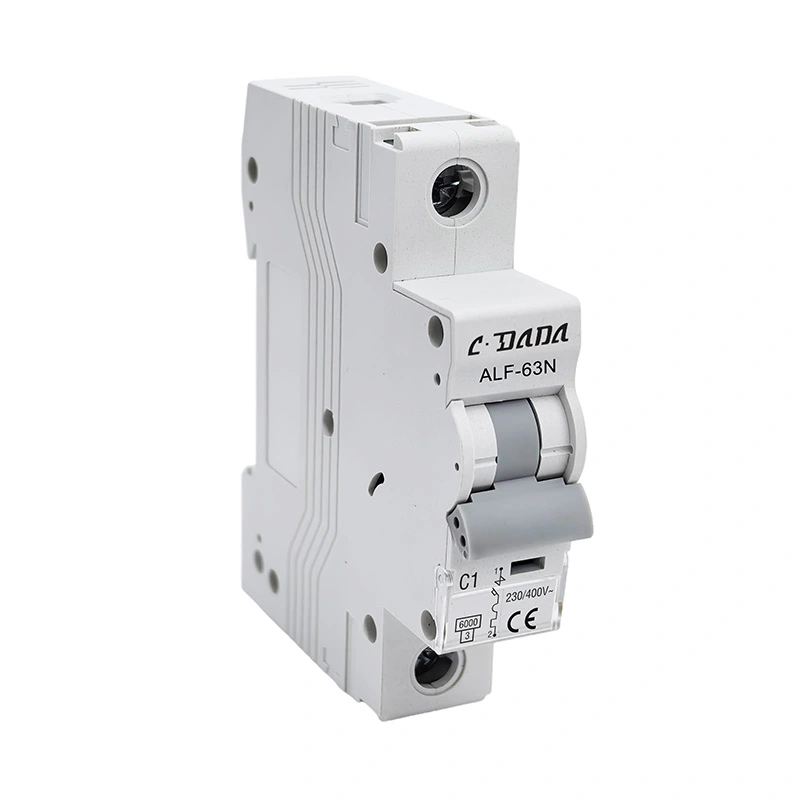

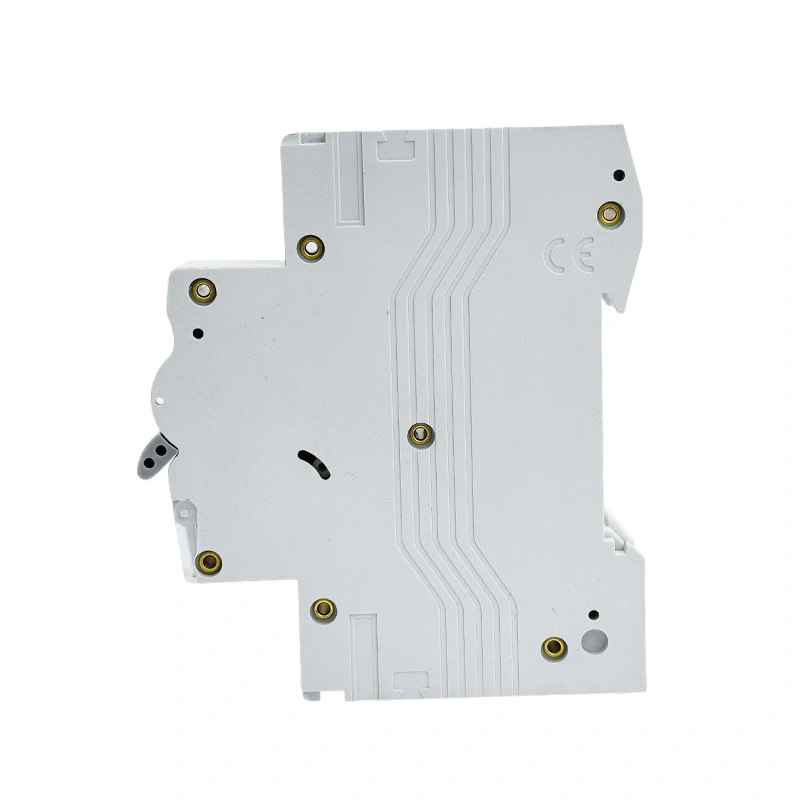

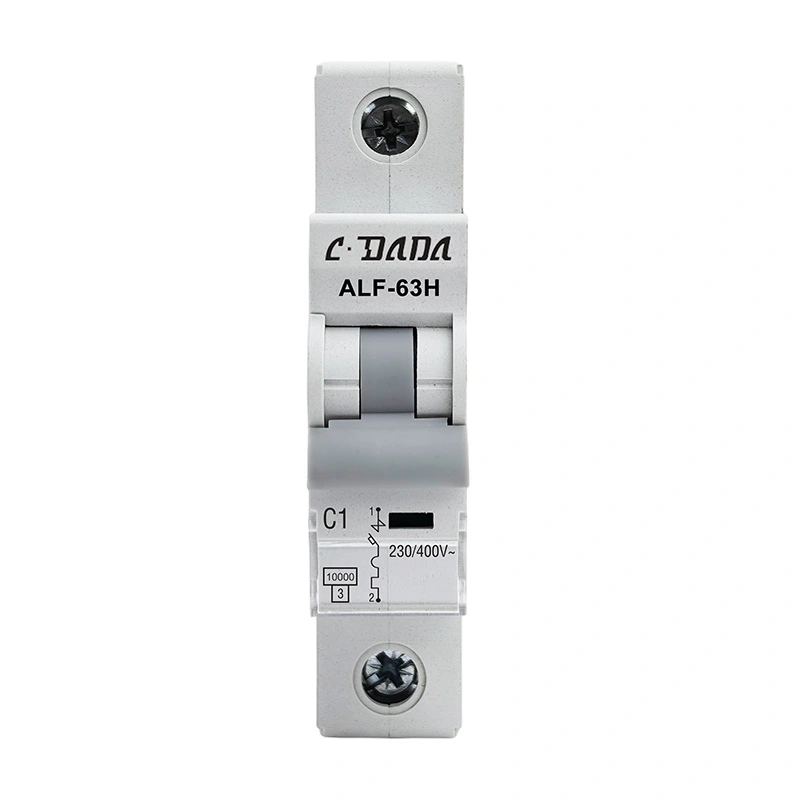

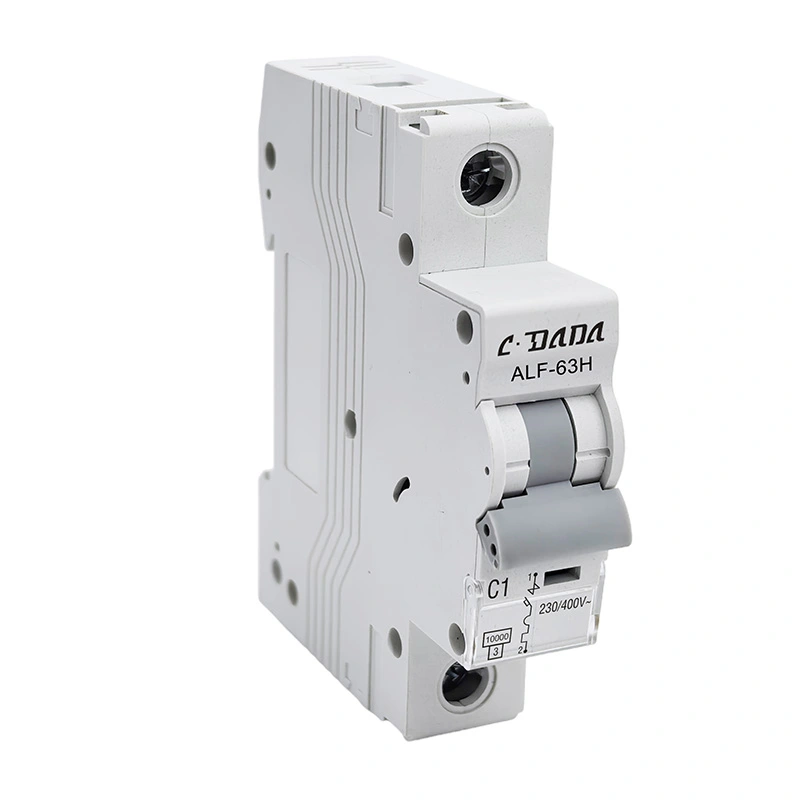

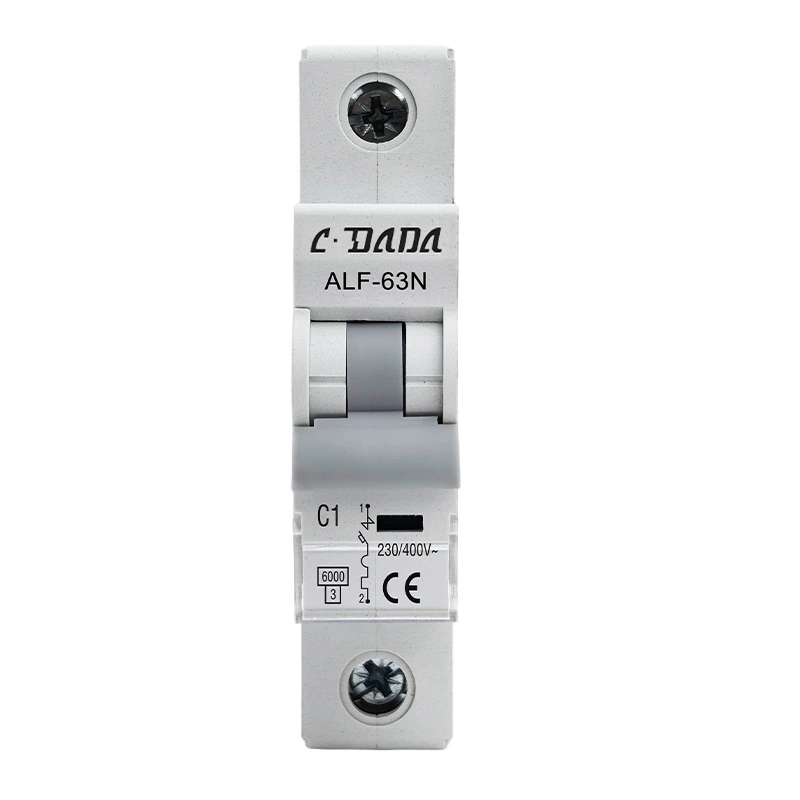

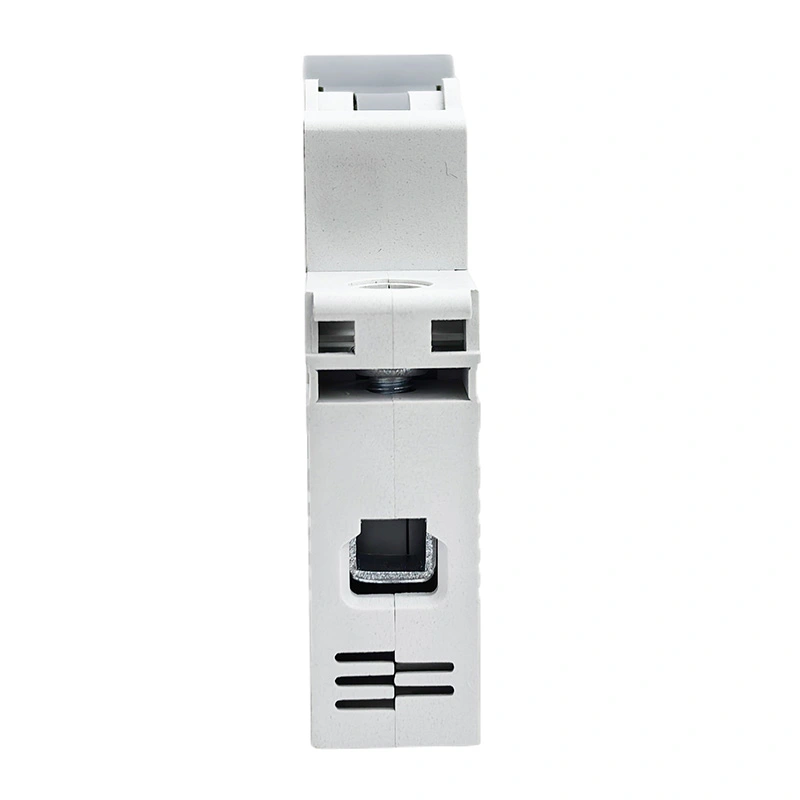

I-6KA 10kA Iqhekeza leSekethe eliNcinci

Uluhlu lwe-ALF-63N/H oluphezulu lwe-6KA 10kA Miniature Circuit Breaker (MCB), luhambelana nomgangatho we-IEC60898, i-MCB inophawu lokusebenza okuthembekileyo, umsebenzi okhuselekileyo wokukhusela, ixesha elifutshane lokukhululwa, kunye nomthamo ophezulu wekhefu, umthamo omncinci ngokunjalo. Isetyenziswa ngokubanzi ngaphakathi kunye nomthwalo ogqithisileyo wabanxibelelanisi, izixhobo zokutshintsha, kunye nezixhobo zombane.

Qhagamshelana ne-CDADA kwaye ukhethe thina njengomvelisi wakho, sinokunikezela ngeenkonzo ze-OEM/ODM.

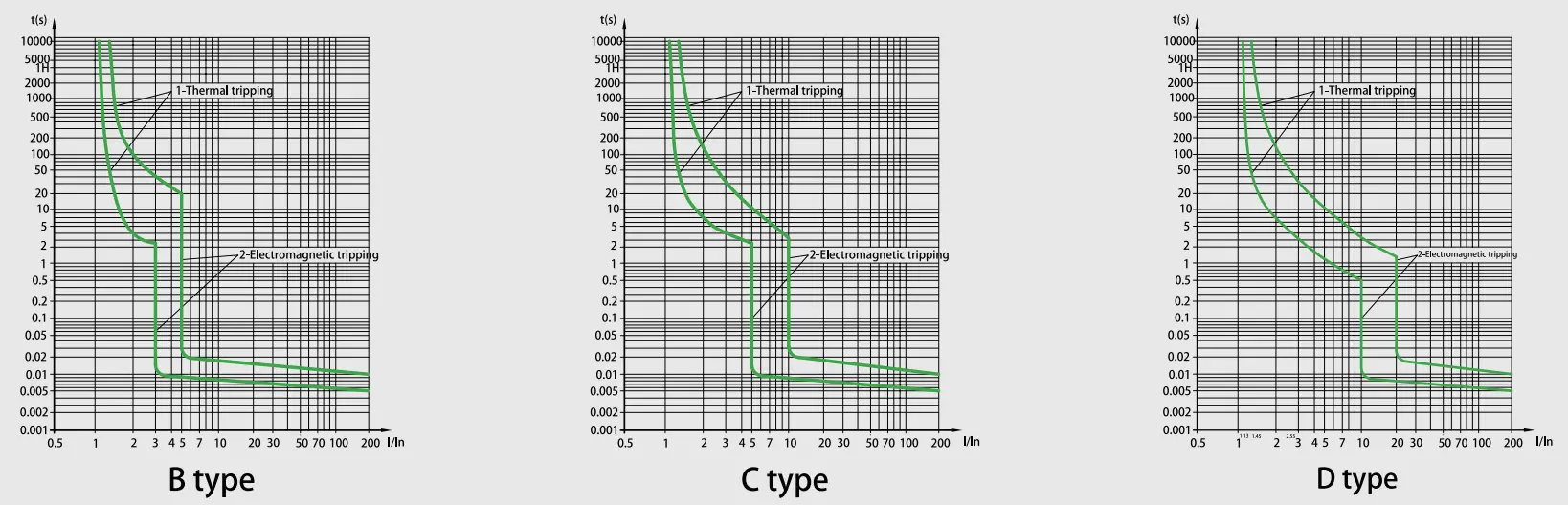

Ijika lophawu

Inkcazo yobuGcisa

ALF-63N / H Series 6KA 10kA Miniature Circuit Breaker
Umgangatho	EN/IEC60898-1
Ukophula amandla(kA)	6,10
Ukhuseleko	Ngokuchasene nokugqithiswa kunye nesiphaluka esifutshane
Ikalwe ngoku(A)Ngaphakathi	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Umbane olinganisiweyo(V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Impembelelo elinganisiweyo yokumelana kwamandla ombane i-Uimp(kV)	4
Umgangatho wombane wokugquma i-Ui(V)	500
Ikhasi yokunciphisa amandla	3
Ubushushu be-ambient(℃)	-25 ~+40,Max.95%ukufuma
Umda wokusebenza ngokushushu	1.13xln Akukho ukukhubeka kwiyure enye
	1.45xIn Ukuhamba ngeyure
Ukusebenza kwemagnethi	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Inani leepali	1P,1P+N,2P,3P,3P+N kunye ne4P
Uhlobo lohambo	Ukukhutshwa kwe-Thermal / magnetic
Umthamo wetheminali	I-16mm² eguquguqukayo okanye i-25mm² eqinile ukuya kuthi ga kwi-25A yokulinganisa
	I-25mm² eguquguqukayo okanye i-35mm² eqinile ukusuka kwi-32A ukuya kwi-63A yokulinganisa
Isidanga soKhuseleko	IP20
Ukuhlohla	Ukuxhoma kwi-35mm DIN kaloliwe
Ububanzi	17.8mm ipali nganye

Uphawu lokukhululwa kwe-circuit breaker

HAYI.	Ireyithwe ngokhupho lwangoku(A)	Imeko yokuqala	Uvavanyo lwangoku	Ixesha elichaziweyo	Kufuneka kufunyanwe isiphumo	Amagqabantshintshi
1	1-63	Isimo esibandayo	1.13Ngaphakathi	t≤1h	Ayilohambo
2	1-63	kuvavanyo lwangaphambili	1.45ln	t <1h	uhambo	Ukucwangcisa yangoku ukuya kwixabiso elikhankanyiweyo ngokuthe chu kwi-5s
3	Kwi≤32	Isimo esibandayo	2.55Ngaphakathi	1s	uhambo
	Kwi>32
4	1-63	Isimo esibandayo	3Ngaphakathi	t≤0.1s	Ayilohambo	Uhlobo B
			5Ngaphakathi	t <0.1s	uhambo	Uhlobo B
			5Nge-10ln	t≤0.1s	Ayilohambo	C uhlobo
			10Ngaphakathi	t <0.1s	uhambo	C uhlobo
			20ln	t≤0.1s	Ayilohambo	D uhlobo
				t <0.1s	uhambo	D uhlobo

Ukunyamezela(Imisebenzi)

Udidi	Imijikelo yokuSebenza	Ukusebenza rhoqo	Ikalwe ngoku
Ukunyamezela kombane	4000	240/h	1-32
		120/h	40-63
Ukunyamezela komatshini	10000	240/h	1-63

Iimbonakalo

★ Ultra-High Short-Circuit Breaking Capacity

Itekhnoloji yolawulo oluphezulu lwe-arc ifezekisa amandla aphezulu okuphazamiseka xa kuthelekiswa nemigangatho yoshishino, iqinisekisa ukukhuselwa okuthembekileyo kwiinkqubo zombane zodidi lweshishini phantsi kweemeko ezigwenxa.

★ iNxibelelwano yoQhagamshelwano lweNdlela ezimbini

Uyilo oludityanisiweyo lwetheminali ye-terminal ixhasa zombini i-busbar docking kunye ne-flexible cable clamping, eyenza ukulungelelaniswa kwesixhobo esingenazo kwiimeko ezahlukeneyo zofakelo ngelixa unciphisa ixesha locingo nge-40%.

★ Indlela yokuGcina Amandla kubomi obude

Inkqubo yokusebenza encediswa yintwasa-hlobo kunye ne-10,000 yonyamezelo lwemijikelezo yoomatshini, ebonisa itekhnoloji yembuyekezo yokunxiba

★ Advanced Composite Eyenziweyo

ezineepropathi ezine-fame-retarcant, ukumelana nobushushu, kunye ne-impulse-proof-proof adityaniswe ne-arc-quenching amagumbi kwiziganeko ezinempazamo.

★ I-Dynamic Current-Limiting Topology

Ukucutha amandla okukrelekrele kunciphisa amandla ombane aphezulu ngama-65-80%, oko kuvumela ukucaciswa kwesixhobo esisezantsi nge-30% enokwenzeka yokunciphisa iindleko zenkqubo.

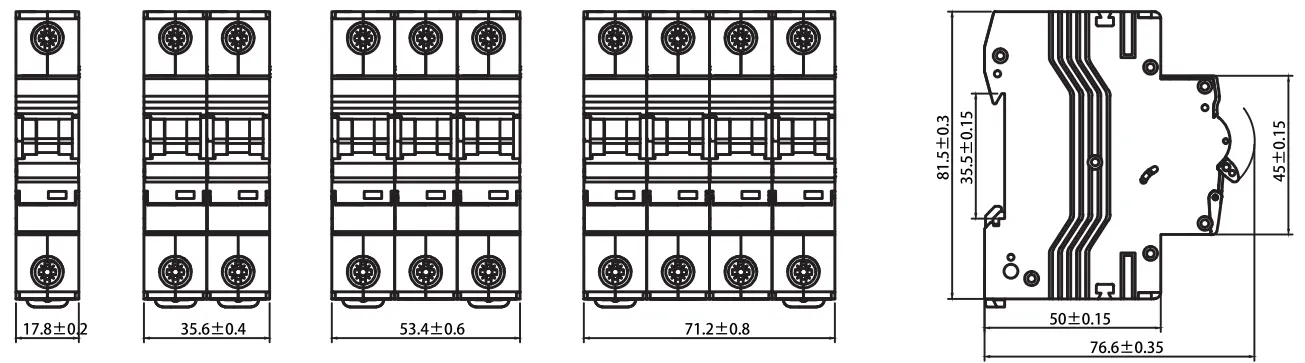

Imilinganiselo yolwandlalo

Iimeko zeSicelo

★ Indawo yokuhlala: Iiyunithi zabathengi kunye neebhodi zokuhambisa ukhuseleko ekhaya.

★ Ishishini: Ukhuseleko lwabafowunelwa, izixhobo zokutshintsha, kunye nezixhobo zombane ezinzima.

★ Urhwebo: Izakhiwo zeofisi kunye nodederhu lweevenkile ezifuna ukuthembeka okukhulu.

Ulawulo loMgangatho kunye noVavanyo oluMgangatho

★ Yonke i-CDADA MCB ivavanywa ngokuqatha ukuqinisekisa ukuthotyelwa kwe-IEC60898-1:

★ Uvavanyo lokuHamba lwe-Thermal: luqinisekisiwe kwi-1.13In (engekho uhambo) kunye ne-1.45In (uhambo ngaphakathi kweyure eli-1).

★ Uvavanyo lweMagnetic Tripping: Uvavanyo oluchanekileyo lokukhululwa kwe-B, C, kunye neempawu ze-D.

★ Ukunyamezela koMbane: Kuvavanyelwe imijikelo ye-4,000 yokusebenza.

★ Mechanical Unyamezelo: Kuqinisekiswe 10,000 imijikelo.

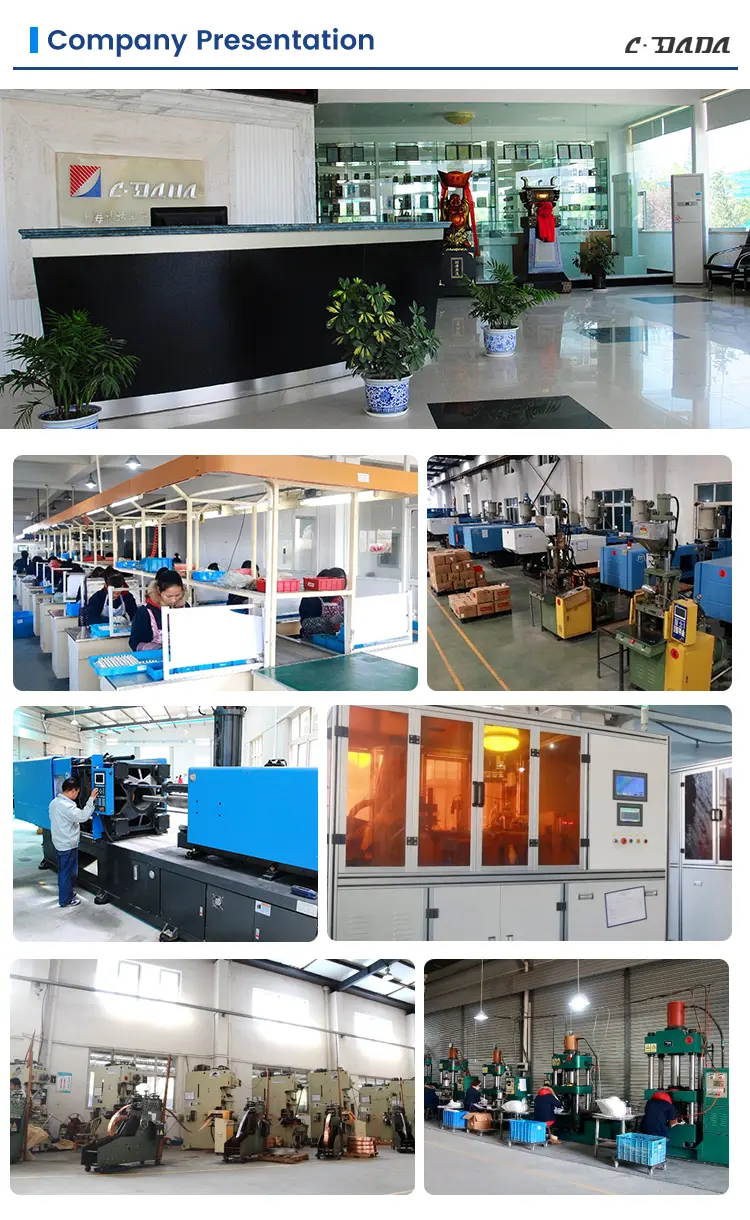

Amandla eFactory & Inkxaso

I-Shanghai DADA Electric Co., Ltd. ngumenzi ohamba phambili onemigca yemveliso ephucukileyo kunye neqela lobunjineli lobuchwephesha. Sibonelela:

★ Iinkonzo ze-OEM/ODM ezilungiselelwe iimpawu zehlabathi.

★ Izixhobo zokuvavanya ezisemgangathweni ukuqinisekisa ukuhanjiswa kwe-zero-defect.

★ Inkxaso yeGlobal Logistics: Ukupakishwa okulungiselelwe ukuthutha ulwandle kunye nomoya ukuqinisekisa ukuba iimveliso zifika zikwimeko egqibeleleyo.
