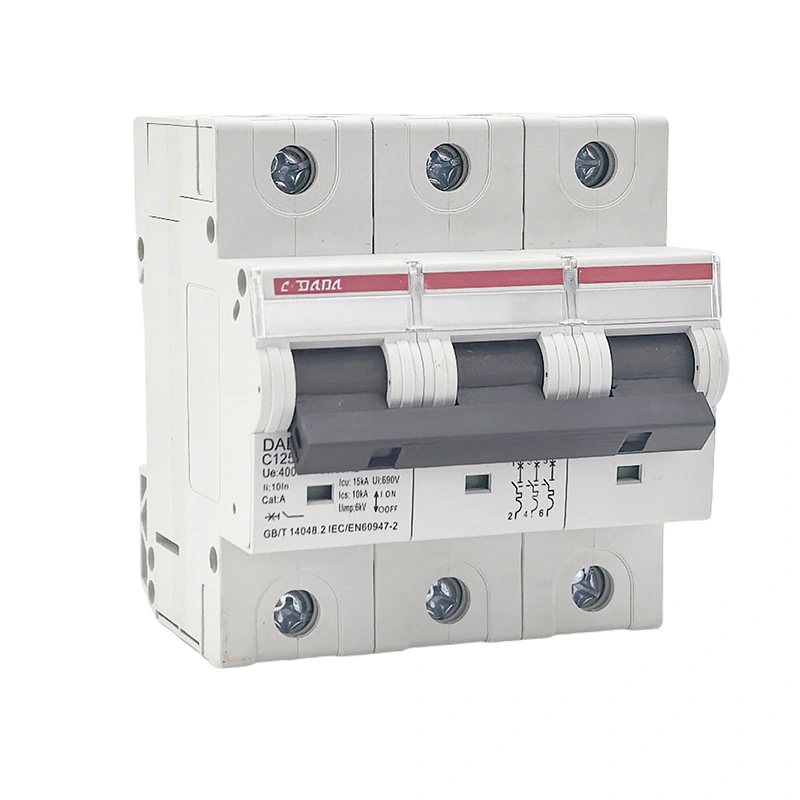

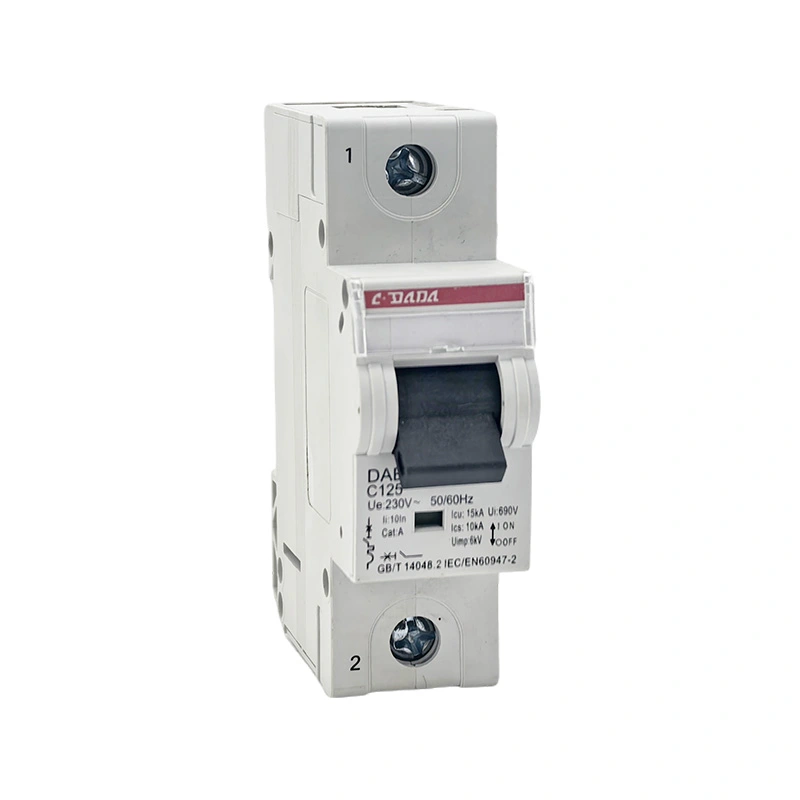

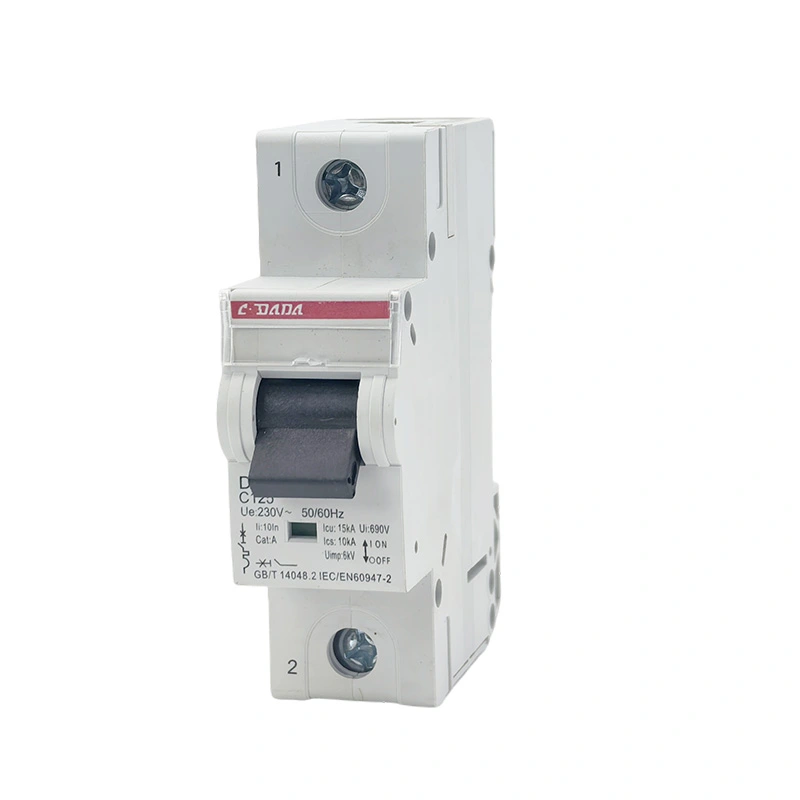

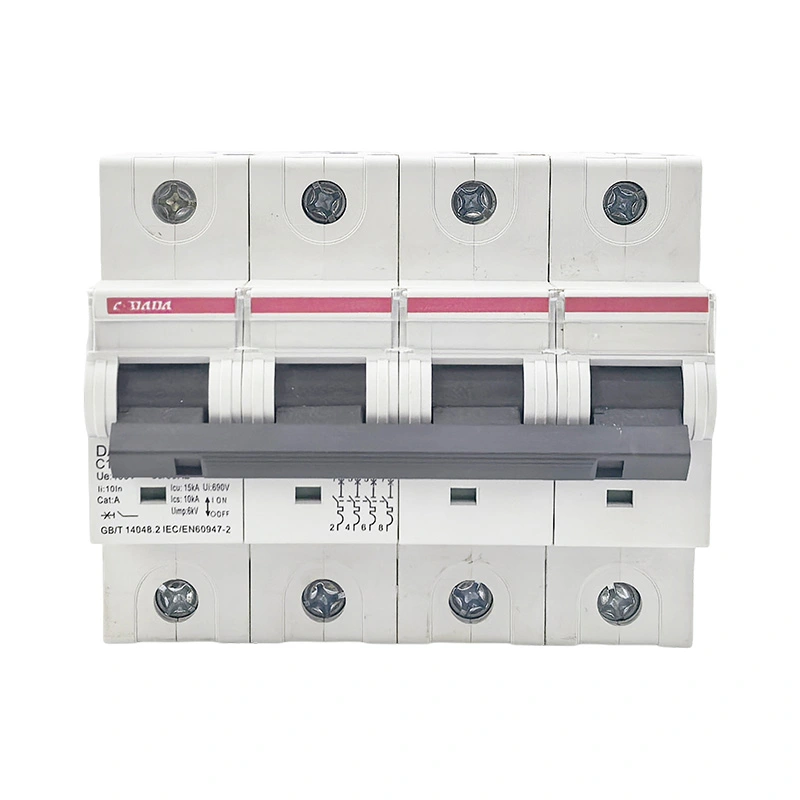

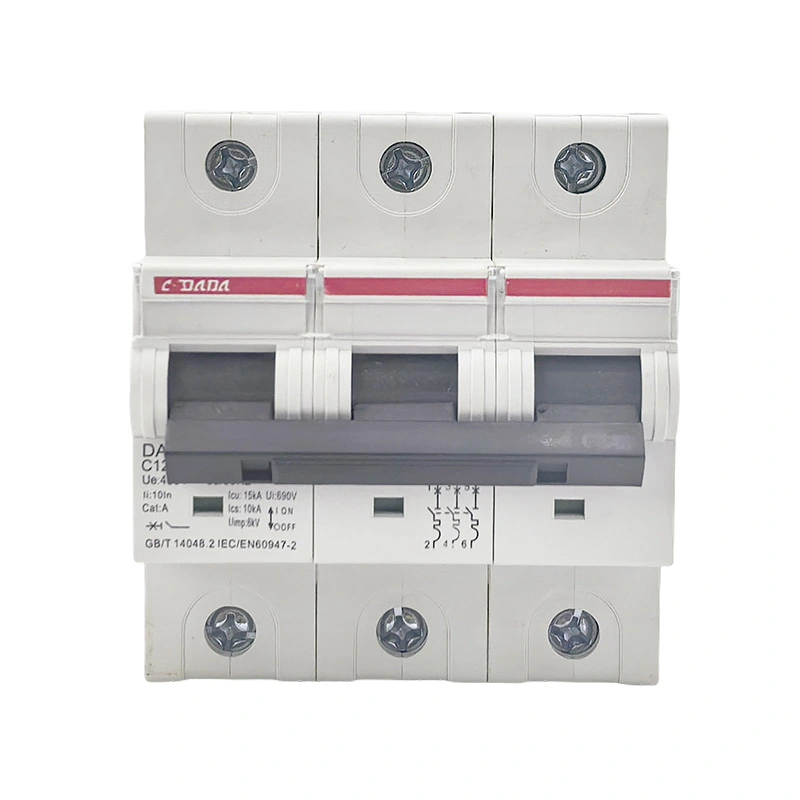

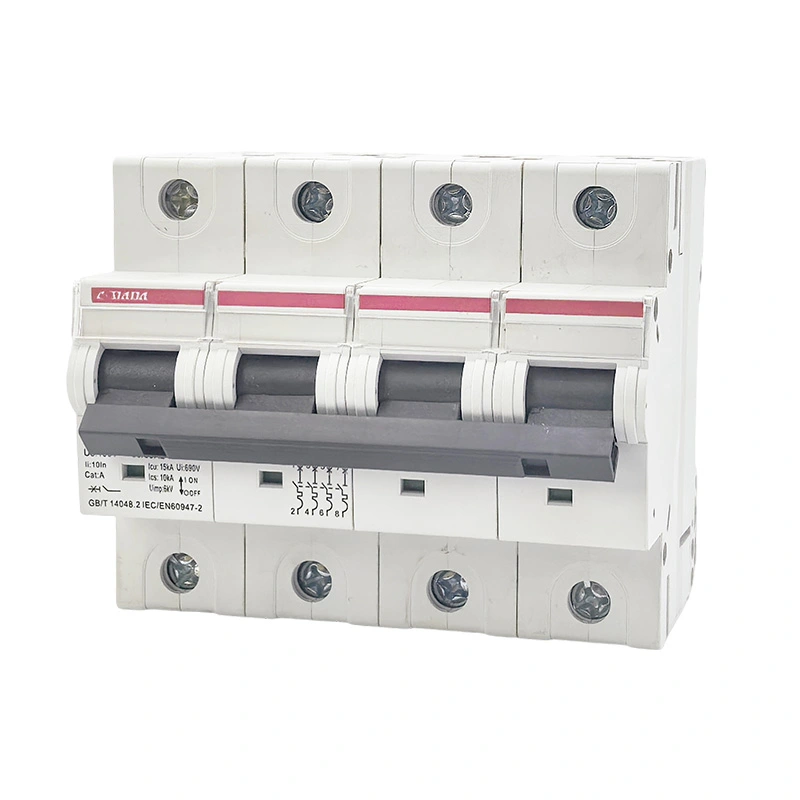

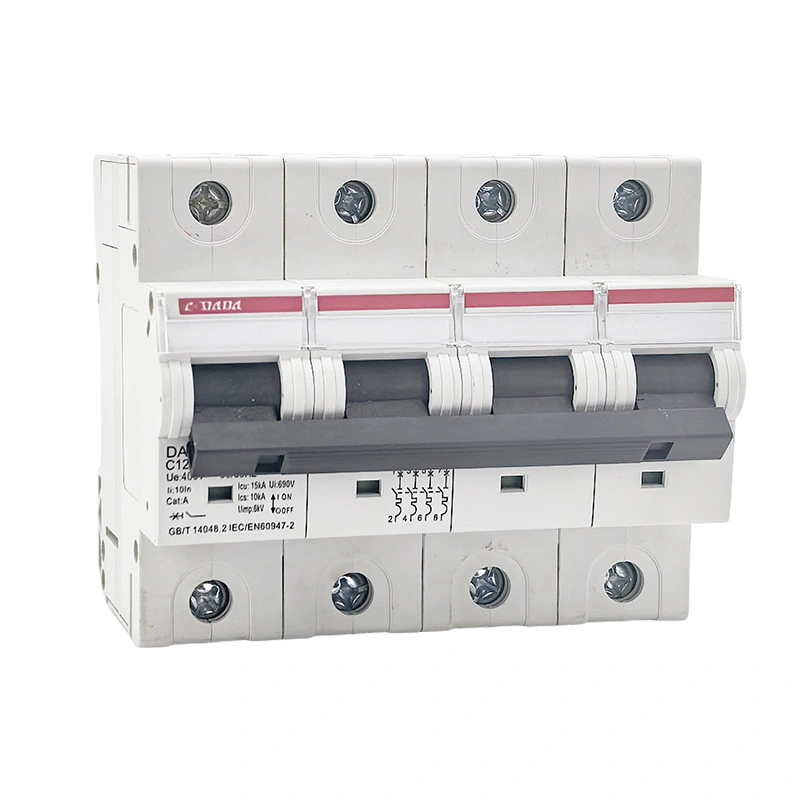

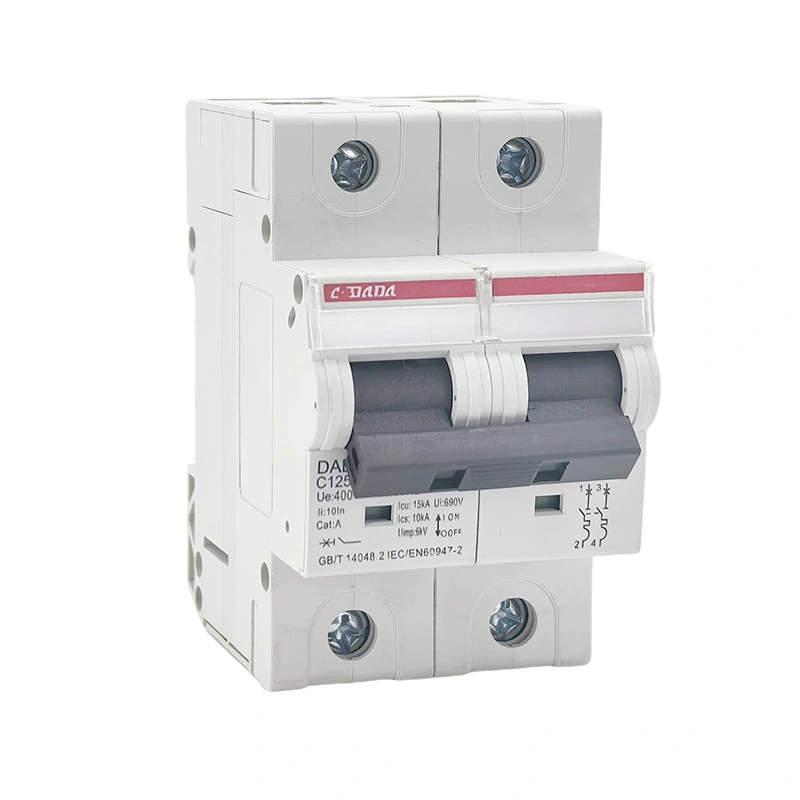

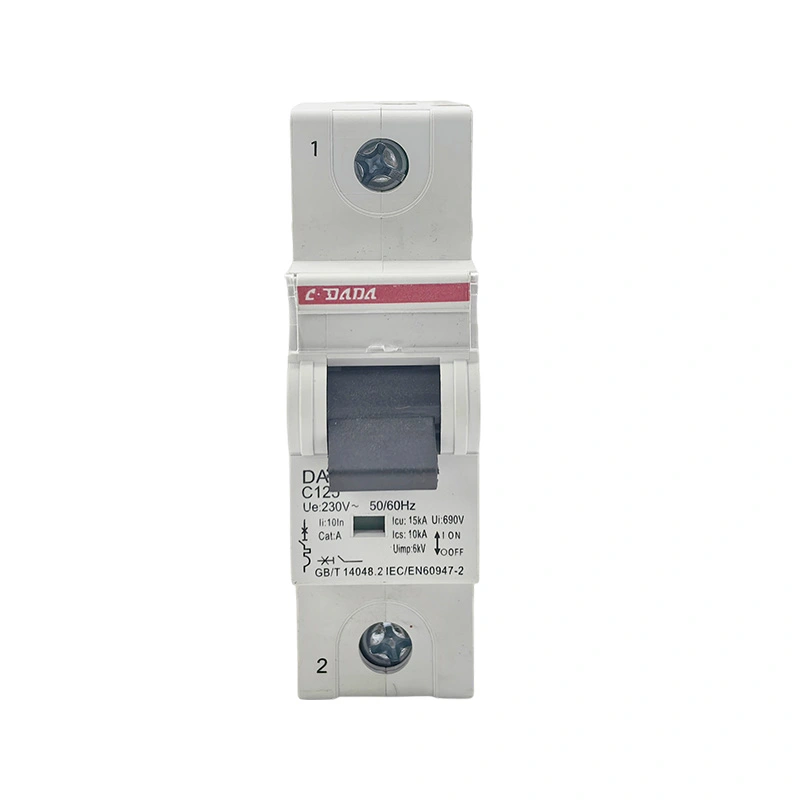

125 15KA Iqhekeza elincinane leSekethe
Model:DAB7-125N / DAB7-125H
Njengomvelisi othembekileyo we-125 15KA Miniature Circuit Breaker, imveliso ye-CDADA yintsebenzo ephezulu ye-125A MCB ene-15kA yokuqhawula umthamo wokuhambisa amandla obunzima. Isebenzisa i-PA66 igobolondo elibuyisela amadangatya kunye noyilo lwegumbi learc ezimbini, kulula ukukhwela kuloliwe weDIN kwaye kulula ukuyigcina. Idibanisa ubume boqhagamshelwano obunesiliva kunye nokuqina komgangatho weshishini, ukufezekisa ubomi benkonzo yexesha elide kwiisekethe ezinkulu zangoku.
I-CDADA DAB7-125 125 15KA Miniature Circuit Breaker yi-heavy-duty high-breaking miniature breaker circuit breaker ngokuzimeleyo iphuhliswe yi-Shanghai DADA Electric. Ngomthamo we-10kA/15kA we-ultra-high, i-125A enkulu yangoku, kunye ne-27mm (1.5M) ububanzi obuhlangeneyo, ingathatha indawo yesiqhelo esibunjiweyo sesekhethi yecala lokukhusela ukhuseleko olunzima.
Ukwamkela igumbi le-arc eliphindwe kabini, unxibelelwano olunesilivere, kunye ne-PA66-isixhobo esibuyisela idangatye, ibonelela ngokugcwala okukhuselekileyo nozinzileyo, i-short-circuit, kunye nokhuseleko lokuhlala wedwa kwimizi-mveliso, urhwebo, kunye neesekethe ezinamandla zokuhlala.
Imisebenzi yeMveliso
★ Ukhuseleko lomthwalo ogqithisileyo
★ Ukhuseleko lwesiphaluka esifutshane
★ Ukwahlulwa kwesekethe ekhuselekileyo
★ Ulawulo lwe-Manual on/off
★ Ugqithiso oluzinzileyo olukhulu lwangoku

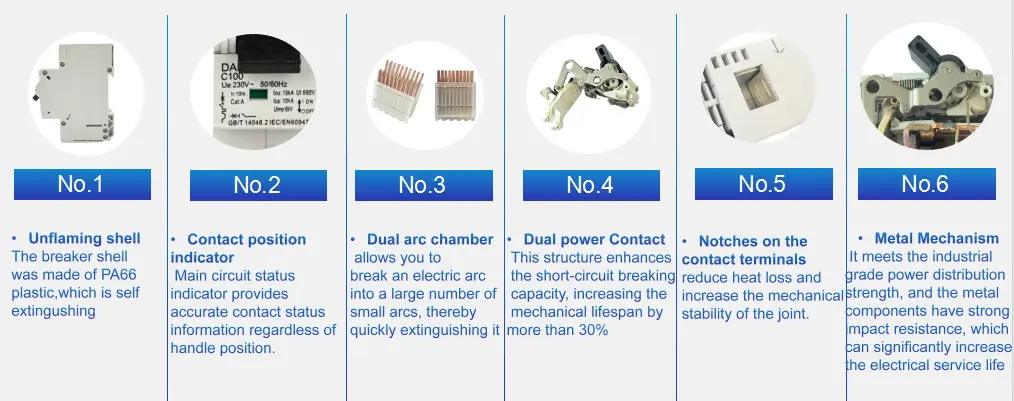

Izinto eziluncedo kwiMveliso ePhambili
★ 15kA ultra-high ukophuka umthamo, indawo MCCB ukusetyenziswa enzima-umsebenzi
★ Igumbi le-arc eliphindwe kabini, isantya sokucima i-arc sinyuke nge-30%
★ Abafowunelwa basentwasahlobo eSilvered, ilahleko yobushushu obuphantsi, ubomi obude benkonzo
★ I-PA66 igobolondo elivuthayo, elizicimayo, ukumelana nobushushu obuphezulu
★ Ulwakhiwo loqhagamshelwano lwamandla amabini, olunamandla oluqinileyo olufutshane lwesekethe
★ Iitheminali ezinophawu, uzinzo oluphezulu lomatshini kunye nokuqina kweengcingo
★ I-industrial-grade metal mechanism, ukumelana nempembelelo enamandla
★ 27mm ububanzi emxinwa, igcina indawo yekhabhinethi yokusasazwa

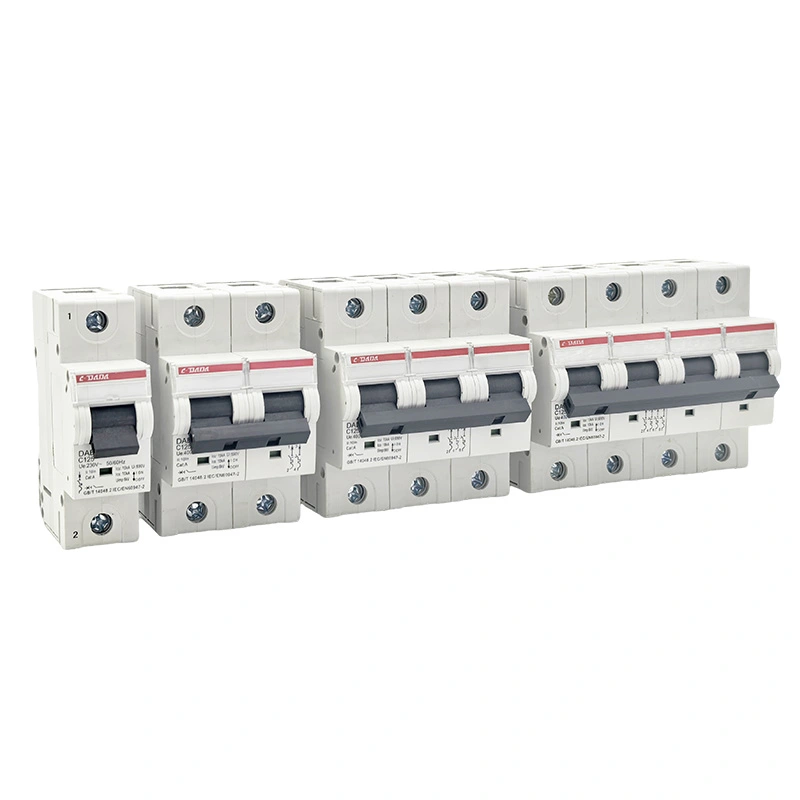

★ 1P / 2P / 3P / 4P izibonda ezipheleleyo, uluhlu olubanzi lwangoku ukuya kwi-125A
★ Ixhasa uqhagamshelo ngocingo lobhedu kunye ne-aluminiyam
Usetyenziso kunye nokuSebenzisa iMizekeliso
★ CDADA 125 15KA Miniature Circuit Breaker isetyenziswa ngokubanzi kwi:
★ Iifektri zemizi-mveliso, iindibano zocweyo, kunye nonikezelo lombane lwezixhobo ezinkulu
★ Izakhiwo zorhwebo, iivenkile ezinkulu, iihotele, kunye nezakhiwo zeeofisi
★ Iivillas zokuhlala, izakhiwo eziphakamileyo, kunye neesekethe eziphambili ezingenayo
★ Iikhabhathi zokuhambisa amandla, izitishi zohlobo lwebhokisi, kunye neenkqubo zokugqibela zokusasaza
★ Iimpompo zamandla amakhulu, iifeni, iicompressor, kunye neesekethe zeemoto
★ Iziseko zophuhliso, ulwakhiwo, kunye neeprojekthi zohlaziyo
Itheyibhile yeeParameters zobuGcisa
|
Into |
Inkcazo |
|
Umzekelo |
DAB7-125N / DAB7-125H |
|
Igama lemveliso |
MCB 125 15KA |
|
Umgangatho |
IEC60898-1 |
|
Ikalwe ngoku |
Ukuya kuthi ga kwi-125A |
|
Ukwaphulwa kweSakhono |
10kA (N), 15kA (H) |
|
Iipali |
1P, 2P, 3P, 4P |
|
Ulinganiso lweVoltage |
400/415V AC |
|
Ukuphindaphinda |
50/60Hz |
|
I-Insulation Voltage |
500V |
|
Impulse Voltage |
4kV |
|
Ijika elijikajikayo |
B, C, D |
|
Isidanga soKhuseleko |
IP20 |
|
Ubomi boomatshini |
8,500 amaxesha |
|
Ubomi boMbane |
4,000–15,000 amaxesha |
|
Umthamo wocingo |
1–35mm² |
|
ITemp yokuSebenza |
-5℃ ~ +40℃ |
|
Ukuhlohla |
35mm DIN kaloliwe |
|
Ububanzi |
27mm (1.5M) |
Imilinganiselo yolwandlalo
★ Ububanzi: 27mm (1P), 54mm (2P), 81mm (3P), 108mm (4P)
★ Ukuphakama: 90mm
★ Ubude: 75.5mm
★ Ukunyuka: Umgangatho we-35mm DIN kaloliwe
★ Ifanelekile kwiibhokisi eziqhelekileyo zokuhambisa i-voltage ephantsi
Izinto eziMgangatho zoVavanyo
★ 1.13Kuvavanyo olungakhubekiyo (≥1h)
★ 1.45Kuvavanyo lokuhamba (<1h)
★ 2.55In overload action test
★ Uvavanyo lokukhubeka lweMagnetic ngoko nangoko
★ Uvavanyo lokunyuka kobushushu
★ Dielectric ukumelana novavanyo lombane
★ 10kA/15kA uvavanyo loqhawulo lwesekethe emfutshane
★ Uvavanyo lobomi boomatshini kunye nombane
★ Uvavanyo lokusebenza oluphezulu noluphantsi lobushushu
Ulawulo lwemeko
Inkqubo yoVavanyo
★ 1. Uhlolo olungenayo impahla ekrwada
★ 2. Ukunyathela ngokuzenzekela kunye nokubumba isitofu
★ 3. Indibano echanekileyo kunye novavanyo olugqityiweyo
★ 4. 100% ulungelelwaniso lokuhamba olupheleleyo
★ 5. Ukumelana novavanyo lombane kunye novavanyo lokugquma
★ 6. Ukuqinisekisa umthamo wokophulwa kwesekethe emfutshane
★ 7. Ukuhlolwa kwembonakalo kunye nobukhulu
★ 8. Kugqityiwe ukuguga kwemveliso & uvavanyo lokugqibela

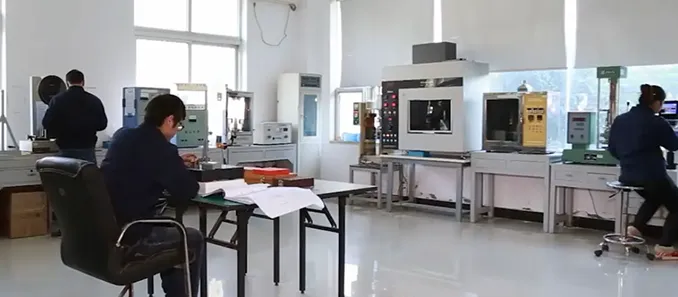

Izixhobo zokuvavanya
★ Inkqubo yolungelelaniso lokuhamba oluzenzekelayo
★ Iqonga lovavanyo lwesekethe emfutshane
★ Igumbi lovavanyo lokunyuka kobushushu
★ ukumelana novavanyo lombane
★ Umatshini wokuvavanya umjikelo wobomi
★ Igumbi lokusingqongileyo eliphezulu neliphantsi lobushushu

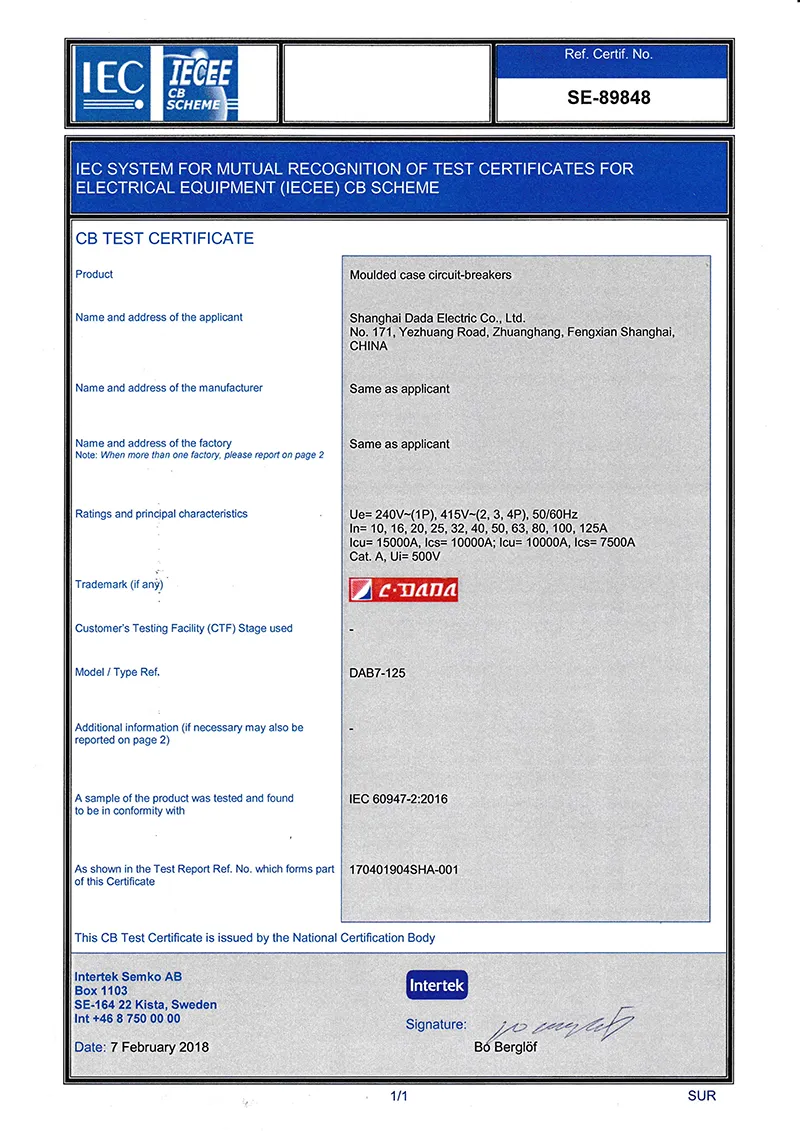

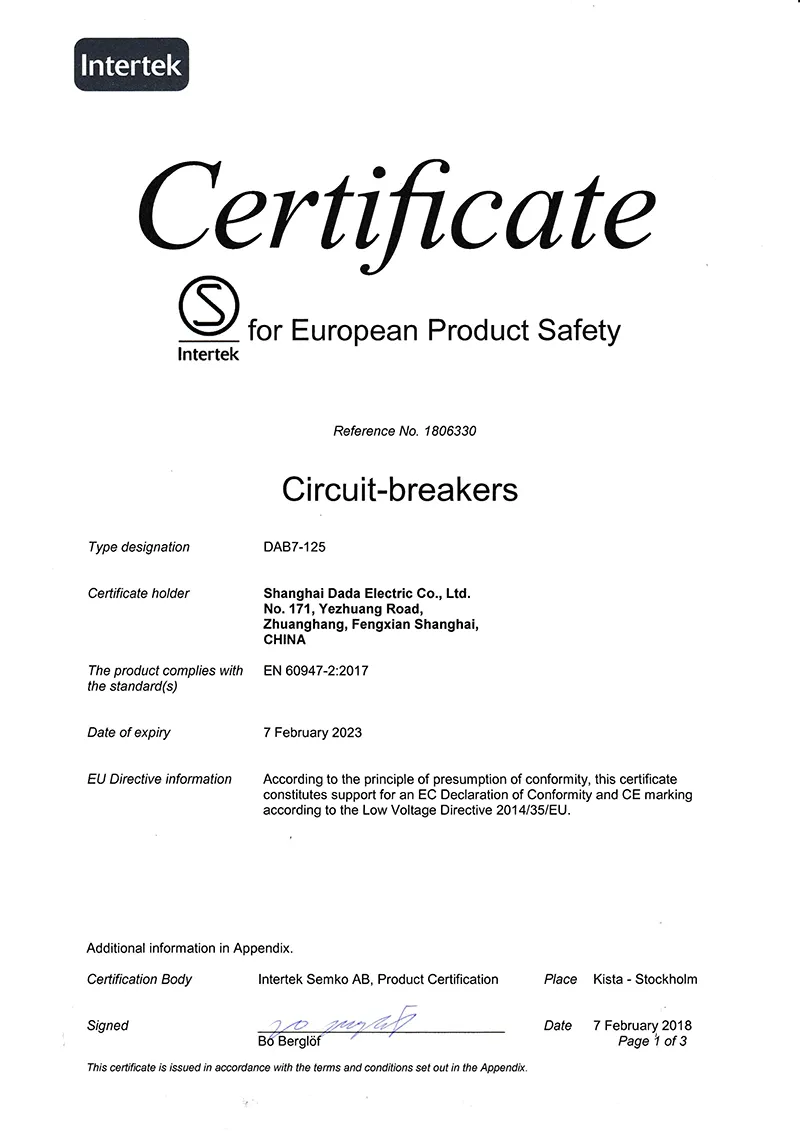

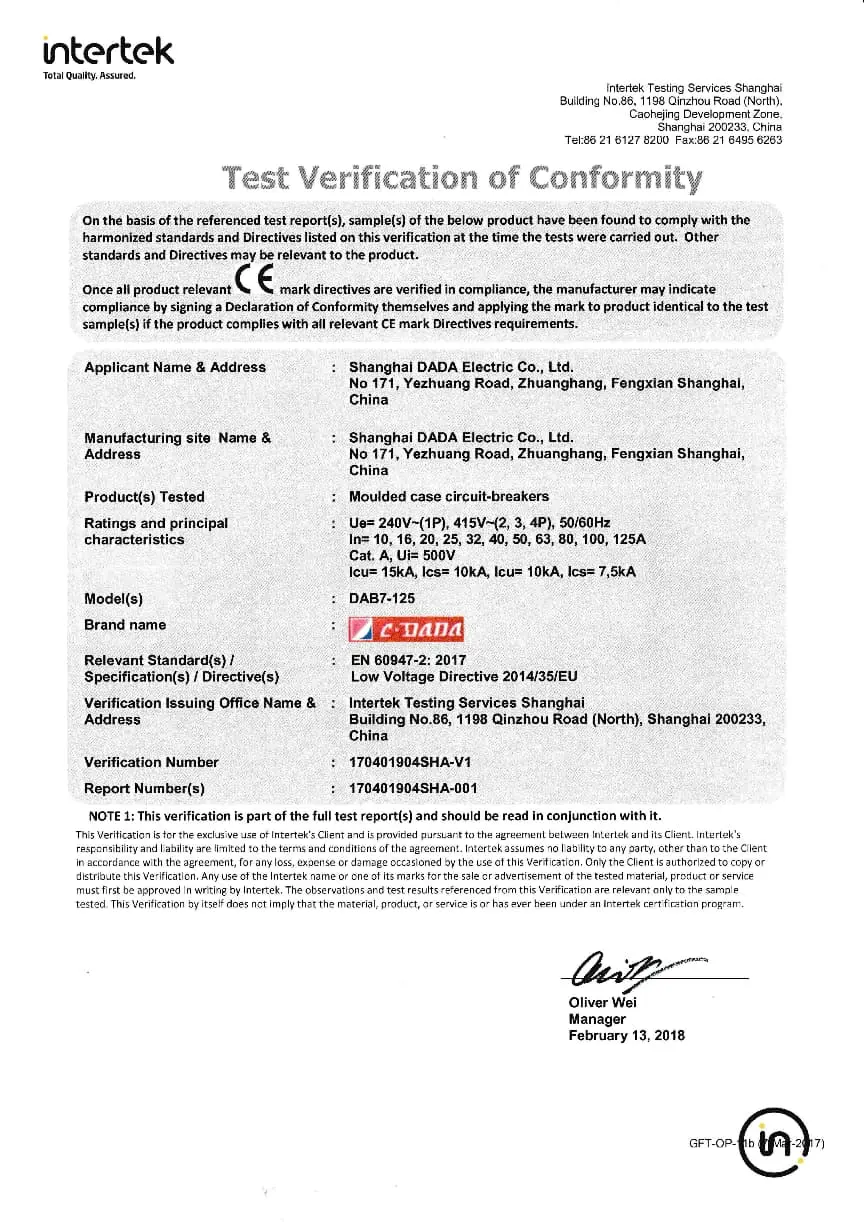

Iziqinisekiso
CE, CB, IEC60898-1, ISO9001, CCC, ROHS
Ukupakishwa kunye nokuThunyelwa
★ Ibhokisi yokuthumela ngaphandle eqhelekileyo + i-shockproof lining yangaphakathi
★ Ukupakishwa kweqela kwimveliso nganye
★ Ileyibhile ecacileyo: imodeli, yangoku, iipali, ubuninzi, isiqinisekiso
★ Ilungele ulwandle, umoya, uthutho lomhlaba
★ Inkxaso yokupakishwa kwe-OEM & uphawu lwesiko
Izicelo zoMthengi kunye neeMpumelelo zeemeko
★ Ukhuseleko oluphambili lwesekethe kwishishini eYurophu, eMzantsi-mpuma Asia, kuMbindi Mpuma
★ Indawo enkulu yokuhlala & nezakhiwo zorhwebo iiprojekthi zamandla angenayo
★ intsebenziswano OEM kunye brand zombane jikelele
★ Unikezelo lwexesha elide lobuninzi kubasasazi bamazwe ngamazwe
★ Ukuhanjiswa kombane kwiiprojekthi zeziseko ezingundoqo e-Afrika nakuMzantsi Melika
★ Izixhobo eziphezulu zangoku ezixhasa iifektri kunye nemigodi

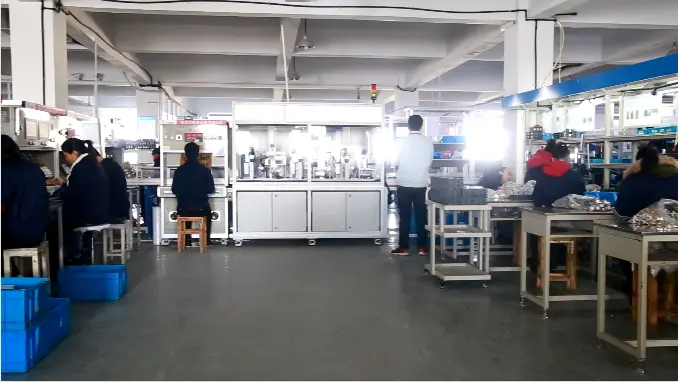

Amandla e-CDADA Factory
★ 40+ iminyaka yobungcali be-R&D kunye namava okuvelisa
★ 50,000 ㎡ isiseko semveliso yanamhlanje
★ Isitofu esizisebenzelayo esipheleleyo, isitampu, ukuwelda, imigca yokuhlanganisa
★ 90% amacandelo angundoqo avelisiweyo endlwini
★ Iqela le-R&D yobungcali & neqela lolawulo lomgangatho
★ Umthamo wenyanga ngaphezu kwezigidi ezi-5 zamaqhekeza
★ Gqibezela uphuhliso lokungunda kunye nobuchule bokwenza ngokwezifiso
Kutheni Khetha iCDADA?
★ Umgangatho ozinzileyo, i-100% yokuhlolwa okupheleleyo ngaphambi kokuthunyelwa
★ Ultra-high cost-performance, ithatha indawo ye-MCCB ngexabiso eliphantsi
★ Ukuhanjiswa ngokukhawuleza, isitokhwe esikhulu seemodeli eziqhelekileyo
★ Inkxaso yobuchwephesha kunye nenkonzo yasemva kokuthengisa
★ Yamkela OEM / ODM ngokwezifiso
★ Isiqinisekiso sehlabathi, esilungele iimarike zehlabathi
★ Intsebenziswano yexesha elide kunye nabathengi abavela kumazwe angama-80+

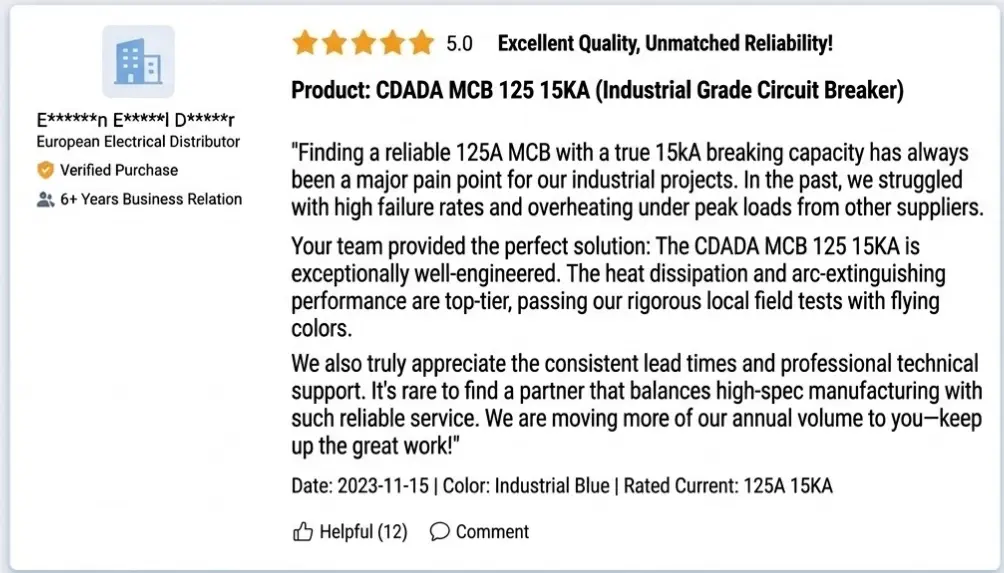

Ingxelo yoMthengi
"I-CDADA 125 15KA Miniature Circuit Breaker izinzile kwaye inokwethenjelwa, ifanelekile kwiisekethe zethu eziphambili zemizi-mveliso. Umthamo wokuqhawula yi-15kA yokwenene, umgangatho ulungile njengeempawu zaseYurophu. Sisebenzisana iminyaka emi-5, ukuhanjiswa ngexesha, inkonzo igqwesileyo." - Distributor
