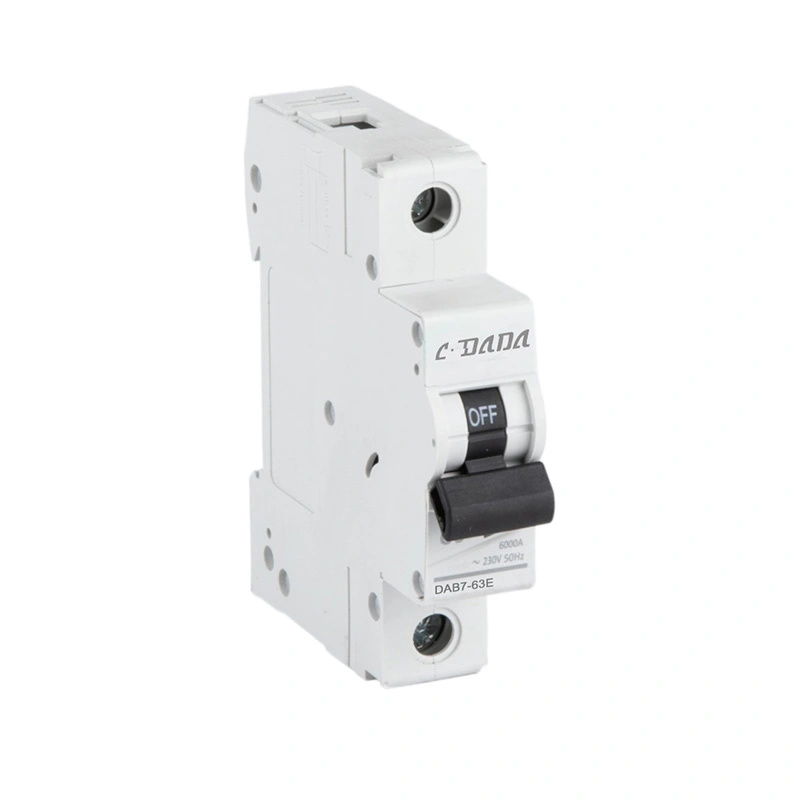

1P 6kA AC Miniature Circuit Breaker
Model:CDADA Series AC MCB
Zive ukhululekile ukuqhagamshelana ne-CDADA, kwaye ufumane i-1P 6kA AC Miniature Circuit Breaker yethu kunye nexabiso elithe ngqo kwifektri, enikezela ngokugqithiswa okuthembekileyo kunye nokukhusela i-short-circuit kunye ne-compact DIN-rail design. Le mveliso ibonakalisa ukushukuma okuchanekileyo kwe-thermal-magnetic kunye nesalathisi esicacileyo, kulula ukuyifaka kunye nokugcina. Ihambisa ukusebenza okuzinzileyo kwiisekethe zokuhlala kunye nezilula zorhwebo, ukuqinisekisa ukunikezelwa kwamandla okukhuselekileyo kunye nobomi benkonzo ende.
I-CDADA 1P 6kA AC Miniature Circuit Breaker yi-high-quality single-pole miniature breaker circuit breaker eyenzelwe i-AC low-voltage systems. Inika ukhuseleko oluthembekileyo malunga nokugqithiswa kunye neesekethe ezimfutshane, ukukhusela ngokufanelekileyo iisekethe zombane kunye nezixhobo ezixhunyiwe. Yenziwe kwimigangatho engqongqo yamazwe ngamazwe, le AC MCB ilungele abasasazi, ii-OEMs kunye neekontraka zombane ezifuna izisombululo zokhuseleko ezihlala ixesha elide, ezingabizi kakhulu.
Iimpawu zeMveliso kunye nezinto eziluncedo
★ Uyilo oluQinisekisiweyo: Isakhiwo sokugcina indawo esilungele iibhodi zokuhambisa eziqhelekileyo
★ Umthamo oPhakamileyo wokuQhawuka: 6kA uphazamiseko lwendlela emfutshane yokuphazamiseka kokhuseleko oluphuculweyo
★ UkuHamba ngokuchanekileyo: Iyunithi yohambo lwe-Thermal-magnetic iqinisekisa ukugcwala okuchanekileyo kunye nokhuseleko lwesekethe emfutshane
★ Isalathisi seSimo esicacileyo: Ifestile ebonakalayo ye-ON / OFF yokuqinisekisa ubume besiphaluka ngokukhawuleza
★ I-Wiring ekhuselekileyo: Ii-terminals ezikumgangatho ophezulu kunye noqhagamshelo oluzinzileyo, ukunciphisa ukuxhathisa koqhagamshelwano
★ Ulwakhiwo oluZinzileyo: Izindlu ezingenamlilo ezinokumelana nobushushu obuphezulu
★ Ufakelo olulula: I-Standard 35mm ye-DIN-rail mount yokudibanisa ngokukhawuleza
★ Umgangatho othembekileyo: I-100% yokuhlolwa okupheleleyo ngaphambi kokuthunyelwa, ukusebenza okuhambelanayo
Usetyenziso
★ CDADA 1P 6kA AC Miniature Circuit Breaker isetyenziswa ngokubanzi kwi:
★ Izakhiwo zokuhlala, iiflethi kunye neevillas
★ Izakhiwo zeeofisi, iivenkile ezinkulu kunye nezibonelelo zorhwebo
★ Iindibano zocweyo zemizi-mveliso kunye nezityalo zokuvelisa
★ Amaziko okuthenga, iihotele kunye neeresityu
★ Amaziko oluntu kunye neeprojekthi zeziseko ezingundoqo
★ Iisekethe zokukhanyisa kunye nokukhusela izixhobo zombane ezincinci
Iiparamitha zobuGcisa
|
Into |
Inkcazo |
|
Umzekelo |
CDADA Series AC MCB |
|
Umgangatho |
IEC60898 |
|
Uhlobo |
I-AC MCB (iSaphuli seSekethe esiNcinci) |
|
Iipali |
1P,2P,3P,4P |
|
Ukwaphulwa kweSakhono |
6kA |
|
Ikalwe ngoku |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Ijika elijikajikayo |
B, C, D (uyazikhethela) |
|
Ulinganiso lweVoltage |
AC 230V, 400V |
|
I-Insulation Voltage |
600V |
|
Impulse Voltage |
6kV |
|
Isidanga soKhuseleko |
IP20 |
|
Ukuhlohla |
35mm DIN kaloliwe |
|
Ubushushu bokusebenza |
-5℃ ~ +40℃ |
|
Ubomi boomatshini |
≥20,000 imisebenzi |
|
Ubomi boMbane |
≥4,000 imisebenzi (kwireyithingi yangoku) |
|
Ukuthotyelwa kweMigangatho |
IEC60898-1, IEC60898-2 |
Imilinganiselo yolwandlalo
Ububanzi: 17.8mm ngepali nganye (ubungakanani bepali enye eqhelekileyo)
★ Ubude: Malunga ne-85-92mm (iyahluka ngokwereyithingi yangoku)
★ Ubunzulu: Ngokumalunga ne-68-72mm
★ Umthamo weeNcingo: 1.5-16mm² intambo yobhedu ebhetyebhetye okanye eqinileyo
★ Ukuhambelana okusemgangathweni: Ifanela zonke iinkqubo zikaloliwe ze-DIN ezingama-35mm (TS35/7.5, TS35/15)
IEC 60898-1

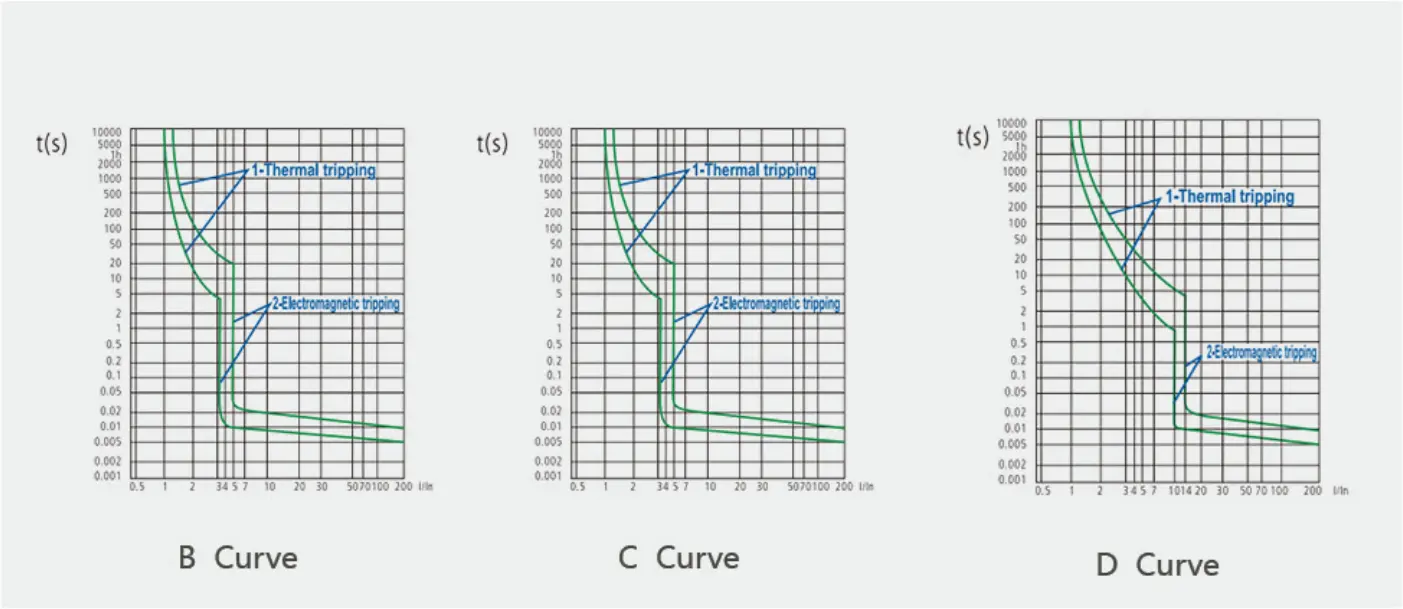

Ukukhutshwa kweMagnetic
Xa umjikelezo omfutshane wesekethe usenzeka, ukukhubeka kwangoko kuphunyezwa yimagnethi enombindi wentsimbi. Ngokomgangatho we-1EC60898, le mveliso inokwahlulwa ibe ziindidi ezintathu: B, C, kunye noD.
|
|
Uvavanyo lwangoku |
Ixesha lokuhamba |
Usetyenziso |
|
B Ijika |
3ln 5ln |
0.1 |
Uhlobo B lusebenza kuphela kwimithwalo esebenzayo: -Isifudumezi sombane-Isifudumezi samanzi-I-furmace yombane |
|
C Ijika |
5Ngaphakathi 10ln |
0.1 |
Uhlobo C lulungele imithwalo eqhelekileyo: -Isibane -Isokethi yamandla -Injini yamandla amancinci |
|
D Ijika |
10ln 20Ngaphakathi |
0.1 |
Lawula kwaye ukhusele iisekethe ngokutyabukwa ngoko nangoko (iinjini ezinkulu) |
Ukukhutshwa kweThermal
● Emva kokuba ukugqithisa kwenzeka kwisekethe, umgca we-bimetallic we-breaker circuit uya kugoba ngenxa yokushisa, okubangela ukuba abafowunelwa baqhawule kwaye kubangele ukuhamba kwe-thermal;
● Umgangatho we-IEC uchaza uluhlu lwexesha lokuhamba kwimisinga eyahlukeneyo yokulayisha ngaphezulu;
●Iqondo lobushushu lereferensi yovavanyo yi-30 °C.
|
Uvavanyo lwangoku |
Ixesha lokuhamba |
|
1.13ln |
t z 1h(ku ≦ 63A) |
|
1.45ln |
t<1h(Ku ≦ 63A) |
|
2.55ln |
1s<1h<60s(Ku≤32A)1s |

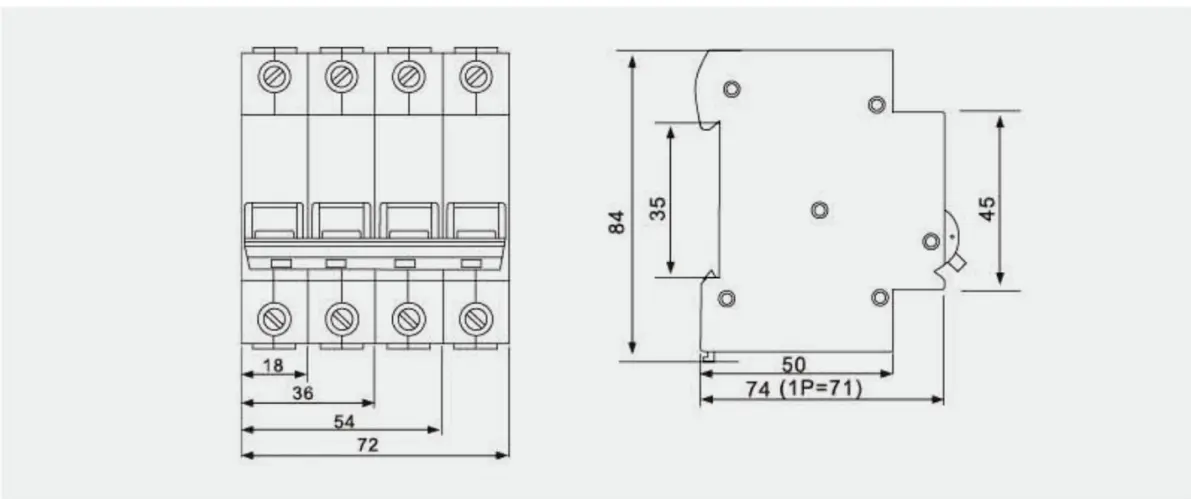

●Ubungakanani bemveliso kunye nofakelo (MM)
Imveliso ifakwe kumzila wesikhokelo kunye nomthamo omkhulu wokudibanisa we-25mm2.
Ulawulo lwemeko
★ ISO9001 Certified Manufacturing: Inkqubo engqongqo yolawulo lomgangatho kuyo yonke imveliso
★ Uvavanyo oluBanzi: Ukuhlolwa kwe-100% kubandakanya iimpawu zokukhubeka, ukunyuka kobushushu kunye novavanyo lombane
★ IMveliso yangaphakathi: I-90% yamacandelo angundoqo enziwe ngaphakathi ukwenzela ukuhambelana komgangatho
★ Uvavanyo lweNdawo: Ukusebenza kobushushu obuphezulu / obuphantsi, ukuqinisekiswa kokumelana nokufuma
★ Uqinisekiso loNtembeko: Uvavanyo lokuqina kwexesha elide ukwenzela ubomi obude benkonzo
Ukupakishwa kunye nokuThunyelwa
★ Ukupakishwa koMgangatho wokuThunyela ngaphandle: Iikhathoni ezibotshelelweyo ezinokhuseleko
★ Ukuleyibhile okucacileyo: Inombolo yomzekelo, umlinganiselo wangoku, ubalo lwepali, ubungakanani kunye nolwazi lwesiqinisekiso
★ Ukupakishwa koKhuseleko: ibhokisi yeqela leyunithi ye-12 ukukhusela umonakalo ngexesha lokuhamba
★ IiKhetho zokuThumela: Ilungele ukuthutha elwandle, emoyeni nasemhlabeni; ekhoyo ngokuthunyelwa ngobuninzi
★ Ukupakishwa ngokweSiko: iinketho zokupakisha ze-OEM ezikhoyo kumaqabane ohlobo
Iimeko zeMpumelelo yoMthengi
★ I-CDADA 1P 6kA AC Miniature Circuit Breaker iseke intsebenziswano yexesha elide kunye nabathengi kwihlabathi jikelele:
★ IiProjekthi zeNdawo zokuHlala: zibonelelwa kubaphuhlisi bezindlu kuMzantsi-mpuma Asia, kuMbindi Mpuma nakuMzantsi Melika
★ UFakelo lwezoRhwebo: Ubambiswano neekontraka zombane eYurophu, eAfrika naseAsia kwiiprojekthi zokwakha zorhwebo
★ Ubudlelwane be-OEM: Ibambisene neempawu zombane zehlabathi zokuleyibhelishwa kwabucala kunye nezisombululo ezilungiselelweyo
★ Izicelo zoShishino: Kubonelelwe kumaziko okuvelisa oomatshini kunye nokhuseleko lwezixhobo
★ Uthungelwano lwabasasazi: Ukusebenza nabasasazi bengingqi kumazwe angaphezu kwama-30 ukuhlangabezana nemarike yasekhaya
