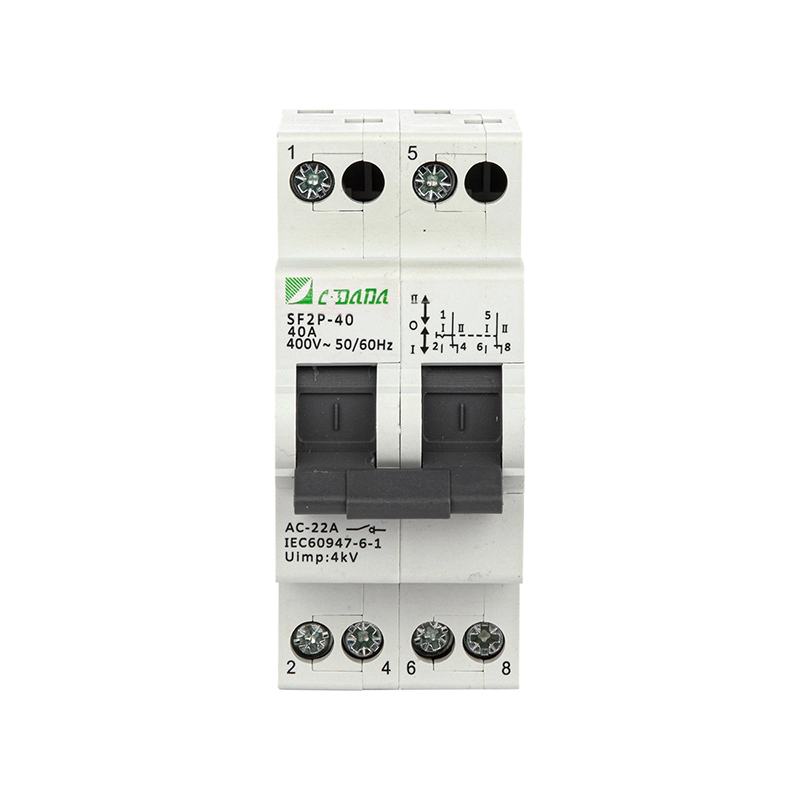

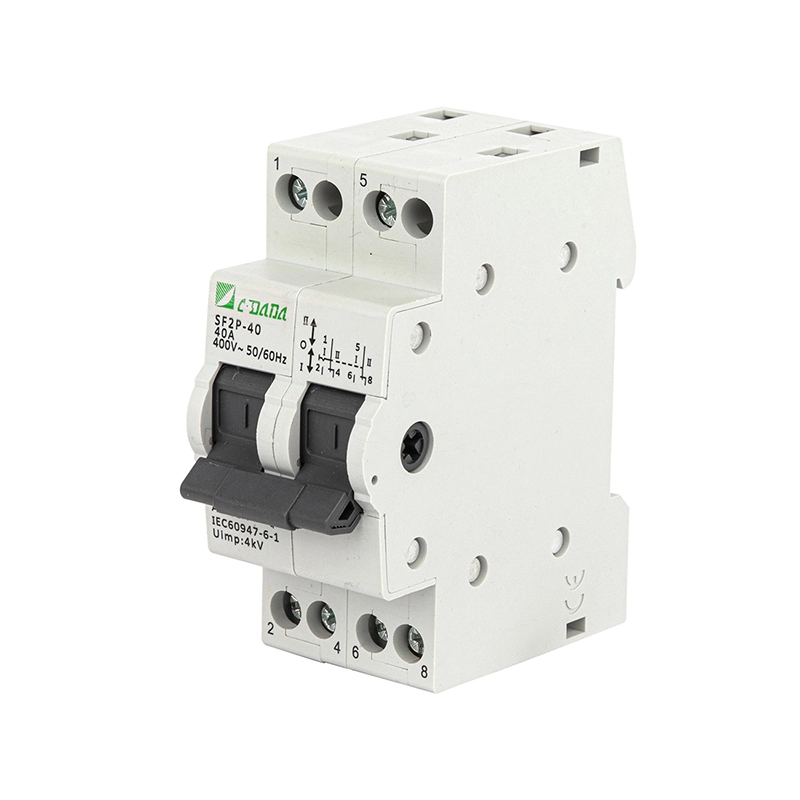

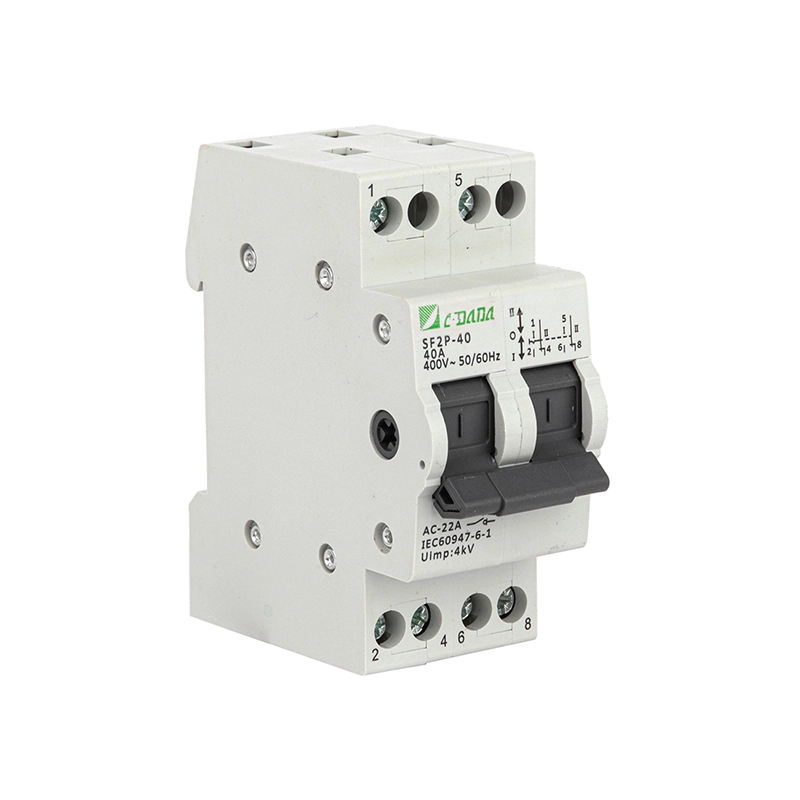

2P Tshintsho Tshintshela

Qinisekisa ukutshintshwa komthombo wamandla okhuselekileyo nothembekileyo kunye neCDADA SF Series 2P Changeover Switch, ifanelekile ukuguqulwa kwesekethe ebalulekileyo kwiindawo zokuhlala, zorhwebo, kunye nokukhanya kwezoshishino. Le DIN-kaloliwe inyuswe micro changeover iswitshi ixhasa ezimbini imithombo yamandla okanye imithwalo kunye nokusebenza ecacileyo 3-indawo: I -OFF-II, eyenza utshintsho ingenamthungo phakathi mains / igridi kunye ne-backup / unikezelo generator, motor phambili / ulawulo umva, okanye iisekethe esweni isigaba / voltage.

Ilinganiswe kwi-AC 50 / 60Hz, i-230-400V, kunye nemisinga ukusuka kwi-16A ukuya kwi-125A, i-CDADA 2P yokutshintsha utshintsho ihambelana ne-IEC 60947-3 kunye ne-EN 60947-3 imigangatho. Ibonisa izibonakaliso ze-ON / OFF, uqhagamshelwano oluphezulu, kunye ne-spring-assisted-make-make / break mechanism, iqinisekisa ukusebenza okuzinzile naphantsi kokusebenza rhoqo ngesandla. Yenzelwe ukufakwa kwemodyuli ecaleni kwe-MCBs kunye nabafowunelwa, ilungele iibhodi zokuhambisa kwizakhiwo, amagumbi okumpompa, iikhabhathi zonxibelelwano, kunye neenkqubo zokukhanyisa ezingxamisekileyo.

IiNgcaciso eziphambili

Series: SF Series 2P Manual Changeover Switch

Uphawu: CDADA | Umenzi: Shanghai DADA Electric CO.,LTD

Iipali: I-2P (i-Dual Pole) - ifumaneka kwi-1P ukuya kwii-4P ezahlukeneyo

Ilinganiswe ngoku: 16A - 125A (iphakathi ukuya kwi-80% ngaphezu kwe-40 ° C ambient)

I-Voltage elinganisiweyo: 230/400V AC, 50/60Hz

I-Insulation Voltage (Ui): 500V

UDidi lokuSetyenziswa: AC-22A (ingxubevange yokuxhathisa kunye nemithwalo engenisayo)

Ixesha elifutshane lokumelana nokumelana kwangoku (Icw): 12 × Ie kwi-1s

Ukwenza Umthamo: 20×Ie, t=0.1s

Ubomi boomatshini: imisebenzi eyi-8,500

Ubomi boMbane: 1,500 imisebenzi (phantsi komthwalo)

Isidanga soNgcoliseko: II

Ukunyuka: Umzila kaloliwe we-TH35 DIN oqhelekileyo

Ukusebenza: I-Manual 3-position handle (I-O - II)

Izalathisi: Indawo ebonakalayo ON/OFF ngokusebenzisa ulungelelwaniso lomqheba

Izikhululo: Uqhagamshelo lwentambo okanye ibha yebhasi

Ukuqinisa iTorque:

1.2 N·m (16–40A)

3.5 N·m (63–125A)

Qaphela ngokhuseleko: Akukho gumbi lokucima i-arc → kufuneka lisetyenziswe kunye ne-fuses/MCBs kukhuseleko lwendlela emfutshane

Iphepha ledatha yobugcisa

Kutheni Khetha i-CDADA 2P Guqula iTshintsho?

★ Ekhuselekileyo 3-Isikhundla Ukwahlulwa

Inyani ye-OFF (O) isikhundla siqhawula zombini imithombo-ibaluleke kakhulu kulondolozo kunye nokhuseleko oluchasene ne-backfeed.

★ I-DIN-Rail yoyilo lweModyuli

Ufakelo ngemizuzwana ecaleni kwe-MCBs-konga indawo kwaye lwenza lula uyilo lwephaneli kwizakhiwo ezikrelekrele okanye ii-OEM ezivaliweyo.

★ Ukuthembeka okuphezulu abafowunelwa

I-Optimized dynamic-static contact geometry iqinisekisa ukuxhathisa okuphantsi kunye nokuzinza kwexesha elide.

★ Ukuthotyelwa kweHlabathi

Iqinisekisiwe kwi-IEC 60947-3 eyamkelwe eYurophu, e-Asia, e-Afrika, naseLatin America.

★ Umsebenzisi-oKhuselekileyo oSebenzayo

Indlela encediswa yintwasa-hlobo inqanda uthethathethwano oluyinxenye; umqheba owandisiweyo ozikhethela 63A+ imifuziselo.

★ Ii-Aplikeshini ezininzi

Ukusuka kutshintshelo lwejenereyitha ukuya kwisalathiso semotor-utshintsho olunye, imisebenzi emininzi.

Usetyenziso oluqhelekileyo

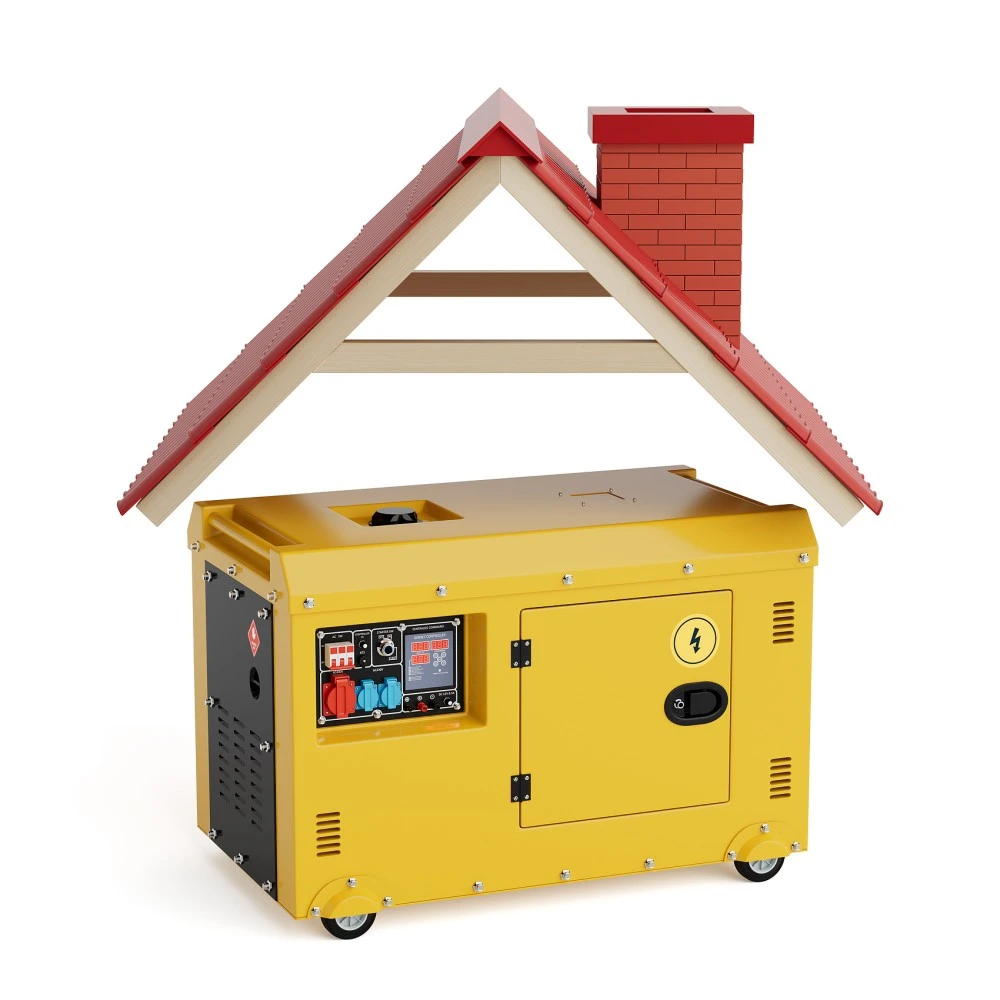

IiNkqubo zaMandla ogcino: Tshintshela phakathi kwezinto eziluncedo kunye nejenereyitha

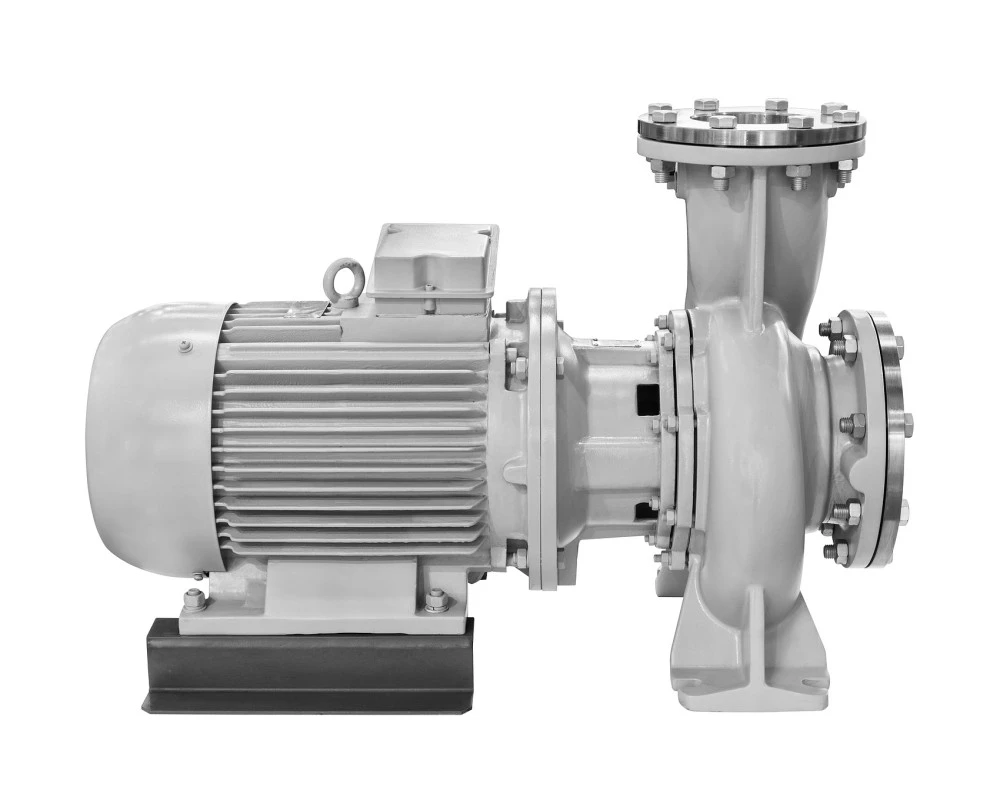

Ulawulo lweeMoto: Ukuqhubela phambili / ukubuyisela umva ukujikeleza kweepompo ezincinci okanye abalandeli

Iisekethe zokulinganisa: Ukukhethwa kwe-Voltge / isigaba kwiipaneli zokulinganisa

I-Automation yokwakha: Ukutshintsha kweyunithi ye-HVAC kabini, ukuhanjiswa kokukhanya okungxamisekileyo

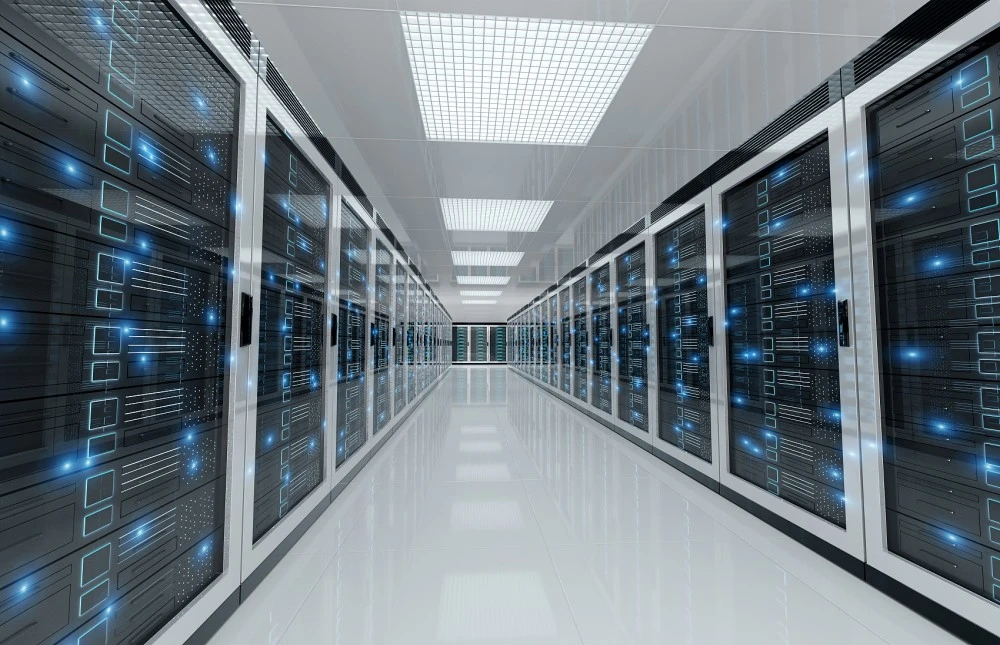

I-Telecom kunye namaZiko eeNkcukacha: Ukungafuneki kwe-PSU yokukhetha umthombo

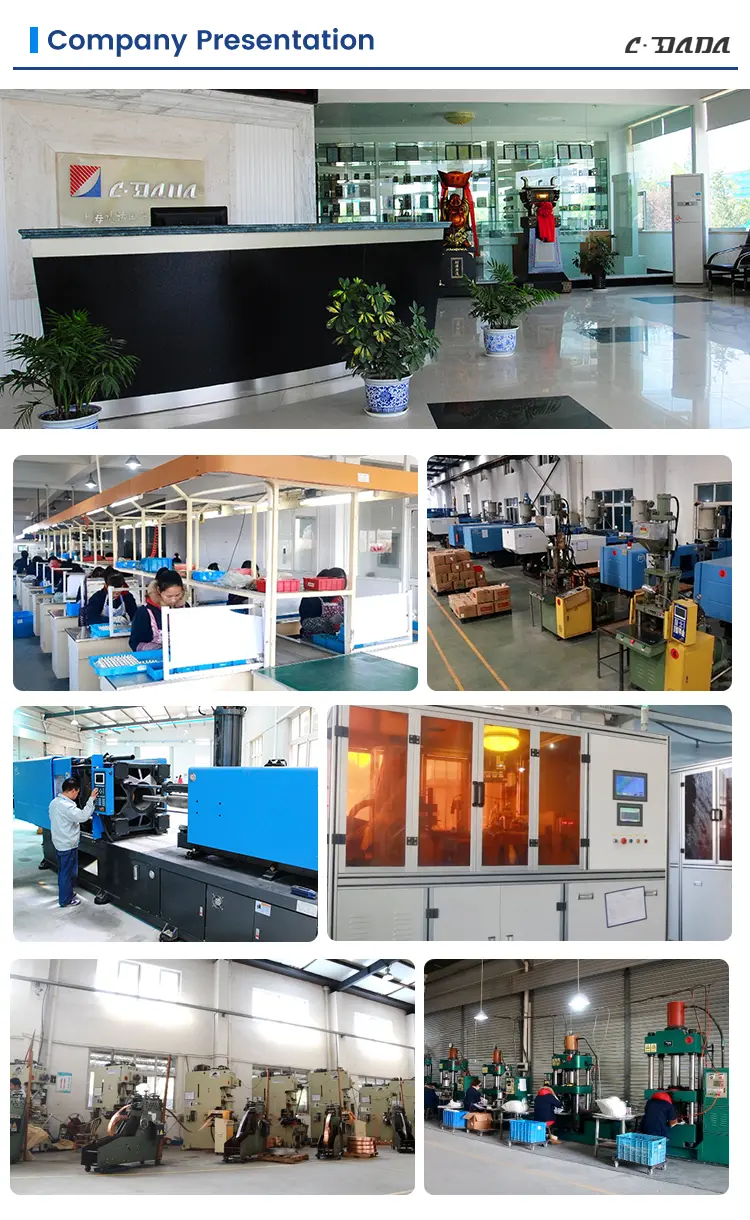

Malunga neCDADA

★ Ezona zinto ziluncedo zethu zezi:

1) Gqibezela izatifikethi zamazwe ngamazwe,

2) Ikhono le-OEM/ODM elinamandla,

3) Umlinganiselo weendleko eziphezulu zokusebenza,

4) Umthamo wemveliso othembekileyo omkhulu,

5) Amava abanzi okuthumela ngaphandle.

★ Iimveliso zethu zithunyelwa ngempumelelo kuMzantsi-mpuma we-Asia, kuMbindi Mpuma, eMzantsi Melika, e-Afrika, eYurophu, nakumazwe e-CIS, ngokugxininisa ngamandla kwiimarike zeBhanti kunye neNdlela.

★ Sityala imali ngokuqhubekayo kwi-R&D, sibeka iliso kwimigangatho yehlabathi kunye nentsingiselo yemarike, kwaye sisebenzisana neengcaphephe zeshishini ukuphucula ipotfoliyo yemveliso yethu.

Imibuzo ebuzwa qho

I-Q1: Ngaba ndingatshintsha phantsi komthwalo?

A1: Ayikhuthazwa. Uthotho lwe-SF 2P Changeover Switch ayinayo i-arc yokucima igumbi. Soloko ususa amandla esekethe phambi kokutshintsha, okanye sebenzisa kuphela ugqithiselo olungathwali mthwalo (umzekelo, umsebenzi wokuhlukanisa). Ukutshintsha komthwalo ophilayo, qwalasela i-ATS enemoto okanye izidibanisi ezidityanisiweyo.

I-Q2: Kutheni kukho indawo ethi "O" (OFF)?

A2: Iziko OFF isikhundla siqinisekisa ukwahlukaniswa okupheleleyo kuyo yomibini imithombo yamandla-ibalulekile kukhuseleko lolondolozo kunye nokuthintela i-backfeed kwiijenereyitha okanye ii-inverters.

I-Q3: Ngaba ndifuna i-fuses ngolu tshintsho?

A3: Ewe. Kuba ingakwazi ukuphazamisa imisinga yempazamo, soloko uyidibanisa neefuse ezinyukayo okanye ii-MCBs ezithelekelwe kwisixokelelwano sakho esilindelekileyo sesetyhula yangoku.

I-Q4: Ngaba inokulawula indlela yemoto?

I-A4: Ewe-kwimotor encinci, i-2P switch inokuguqula ukulandelelana kwesigaba xa ifakwe ngokuchanekileyo. Qinisekisa ukuba imoto imisiwe kwaye ikhutshwe amandla phambi kokutshintsha indlela.

I-Q5: Kutheni ukhetha i-CDADA ngaphezu kwezinye iimpawu?

A5: CDADA inikeza:

● Inene-indawo ezi-3 zokudityaniswa koomatshini (akukho mazwe adadayo)

● I-DIN-umzila kaloliwe ohambelana nemigangatho yephaneli yehlabathi

● Imbonakalo ecacileyo yendawo yokutshintsha

● Indlela eyomeleleyo yasentwasahlobo yoxinzelelo oluthembekileyo loqhagamshelwano

● Amaxabiso akhuphisanayo anesatifikethi esipheleleyo se-IEC kunye nenkxaso yobugcisa
