I-DIN yokuTshintsha umzila kaloliwe 125A

Thenga i-CDADA DIN Rail Changeover Switch 125A, njengomvelisi e-China kunye neminyaka engama-40 + yamava, imveliso yethu yi-IEC60947-3 eqinisekisiweyo, i-3-position (I-O-II), yokudluliselwa kwamandla amabini ukuya kwi-400V. I-Manual, i-DIN-inyuswe, ilungele ukugcinwa kwejeneretha kunye neepaneli zamashishini.

Thumela uMbuzo

Ingcaciso yeMveliso

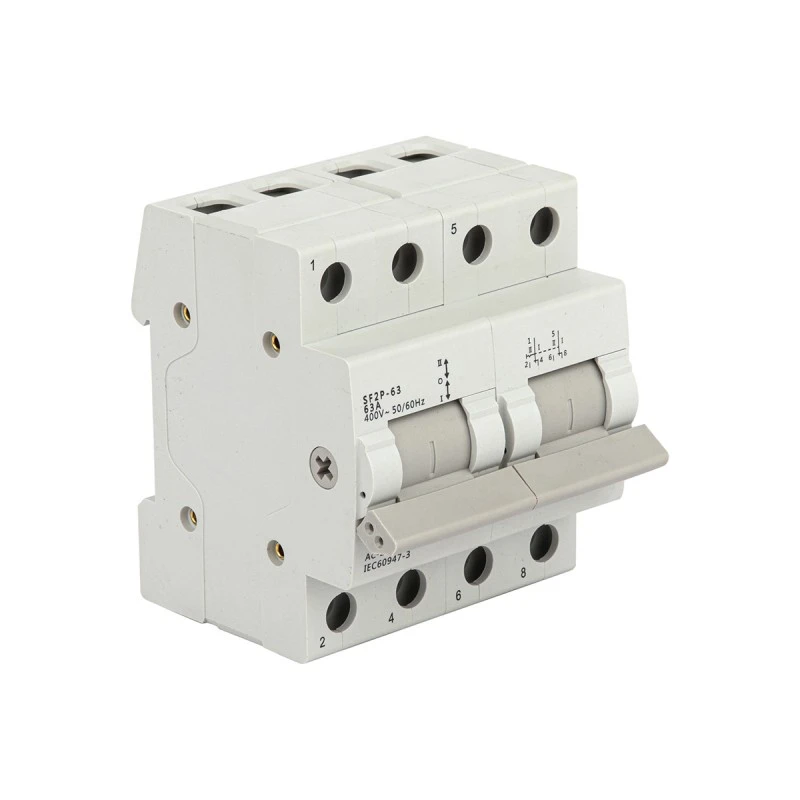

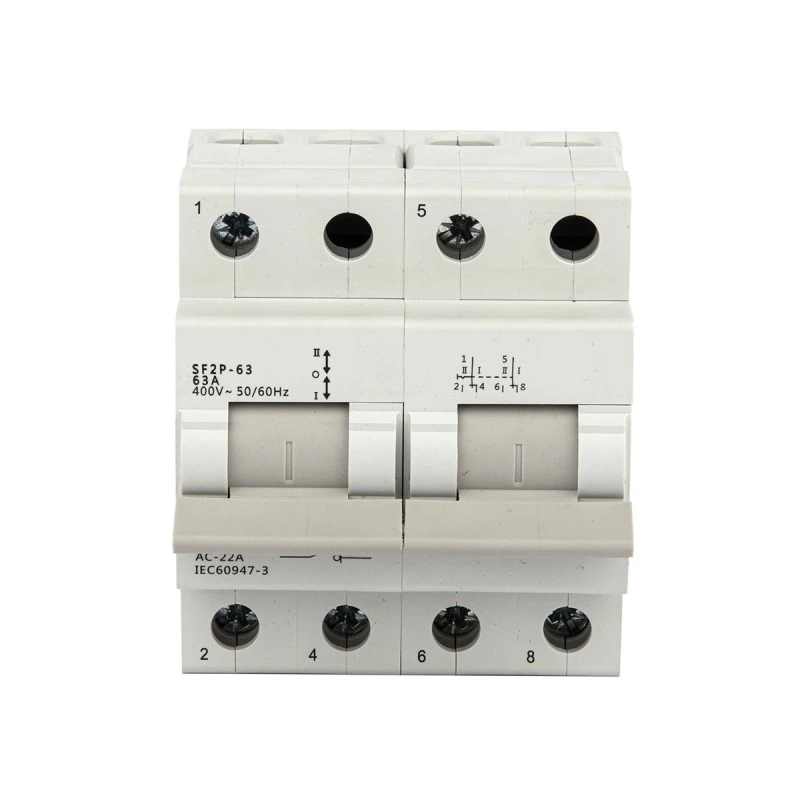

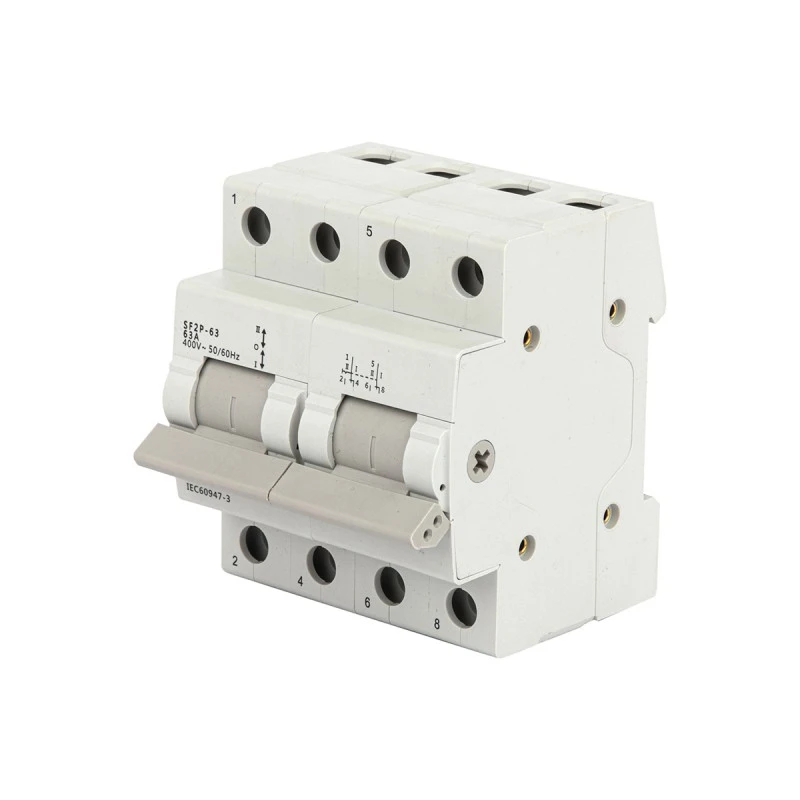

I-CDADA SF Series ye-DIN Rail Changeover Switch 125A iyisisombululo esinamandla, esisebenza ngesandla esenziwe yi-Shanghai DADA Electric CO., LTD yomthombo wamandla amabini athembekileyo okanye ukuguqulwa komthwalo kwintengiso, kwimizi-mveliso kunye nezicelo zeziseko. Ihambelana ne-IEC 60947-3 kunye ne-EN 60947-3, olu tshintsho luxhasa iinkqubo ze-AC 50 / 60Hz ukuya kwi-400V kunye nokusingatha imisinga eqhubekayo ukuya kwi-125A phantsi kwecandelo lokusetyenziswa kwe-AC-22A (imithwalo edibeneyo yokumelana kunye ne-inductive).

Ibandakanya i-3-position manual hand handle (I - OFF - II), yenza ukutshintshwa okukhuselekileyo phakathi kwegridi engundoqo kunye nejeneretha yokulondoloza, i-transformers ezimbini, okanye ii-circuits ezingasebenziyo, ngelixa indawo ye-OFF iqinisekisa ukuhlukaniswa okupheleleyo-okubalulekileyo ekugcinweni nasekukhuseleni. Yenzelwe umgangatho we-TH35 DIN wokunyuswa kukaloliwe, idibanisa ngaphandle komthungo kwiibhodi zokusasaza zangoku ecaleni kwee-MCBs, abafowunelwa, kunye nabakhuseli botyando.

Ngoqhagamshelwano oluphezulu lwe-conductivity, i-spring-assisted-make-make / break mechanism, kunye ne-precision-lubricated components yangaphakathi, imodeli ye-125A ihambisa imisebenzi ye-8,500 yemishini kunye ne-1,500 yombane ojikelezayo phantsi kweemeko ezilinganisiweyo. Qaphela: ayinayo igumbi lokucima i-arc, ngoko ke kufuneka isetyenziswe kunye ne-fuses ephezulu okanye i-breaker circuit ukukhusela i-short-circuit.

IiNgcaciso eziPhambili (125A Model)

Umzekelo:	I-SF Series ye-DIN kaloliwe yoTshintsho kwiTshintsho – 125A
Uphawu:	CDADA \| Umenzi: Shanghai DADA Electric CO., LTD
Iipali:	Ifumaneka kwi-1P, 2P, 3P, 4P (chaza njengoko kufuneka)
Ikalwe ngoku:	125A (derate ukuya ku-100A ukuba i-ambient>40°C)
Ulinganiso lombane:	230V / 400V AC, 50/60Hz
I-Insulation Voltage (Ui):	500V
Udidi losetyenziso:	I-AC-22A
Ixesha Elifutshane Ukumelana Nangoku (Icw):	12 × 125A = 1, 500A kwi-1 yesibini
Ukwenza isakhono:	20 × 125A = 2, 500A kwi-t = 0.1s
Ubomi boomatshini:	8, 500 imisebenzi
Ubomi boMbane:	1, 500 imisebenzi (phantsi komthwalo)
Isidanga songcoliseko:	II
Ukunyuswa:	TH35 DIN kaloliwe, ufakelo nkqo kuphela
Umsebenzi:	Incwadi yesibambo sendawo ezi-3 (I – O – II)
Izikhululo:	Ikhebula okanye ibhasbar, max 50mm² ucingo lobhedu
Ukuqinisa iTorque:	3.5 Nm
Ukuthotyelwa koKhuseleko:	IEC 60947-3, EN 60947-3
Uphazamiseko lweArc:	❌ Akukho gumbi le-arc → hayi ngenxa yokuphazamiseka kwangoku

Kutheni Khetha i-CDADA DIN Rail Changeover Switch 125A?

★ Ukuthembeka okuphezulu kwangoku

Yenzelwe umsebenzi oqhubekayo we-125A-ilungele iimpompo ezinkulu, iiyunithi ze-HVAC, okanye iinkqubo zokugcina iziko ledatha.

★ Ukwahlula Okwenyani nge OFF Isikhundla

Indawo ethi “O” yeZiko iqhawula yomibini imithombo yolwazi, ishenxisa umngcipheko we-backfeed okanye amandla ngempazamo.

★ I-DIN-Rail ilungele iiPaneli zanamhlanje

Igcina indawo kwaye yenza lula ukufakwa kwiibhodi ezidibeneyo okanye zeemodyuli zokusabalalisa.

★ Ulwakhiwo lweBanga loShishino

Abafowunelwa abalayishwe entwasahlobo, i-spindle ethambisayo, kunye ne-50mm² umthamo wetheminali uqinisekisa uzinzo lwexesha elide.

★ Ukuthotyelwa kweMigangatho yeHlabathi

Iqinisekisiwe kwi-IEC 60947-3-eyamkelwe kwihlabathi jikelele ukusetyenziswa kwezorhwebo kunye nokukhanya-kwemveliso.

★ Isikhokelo sokuSebenza esiKhuselekileyo

Ibandakanya isincomo sokubamba esandisiweyo kwiimodeli ze-125A-iqinisekisa ukutshintshwa, ukuhamba okugcweleyo.
