Uhlobo lwe-AC lwe-Circuit Breaker kunye neNxalenye yokuSebenza ngoku

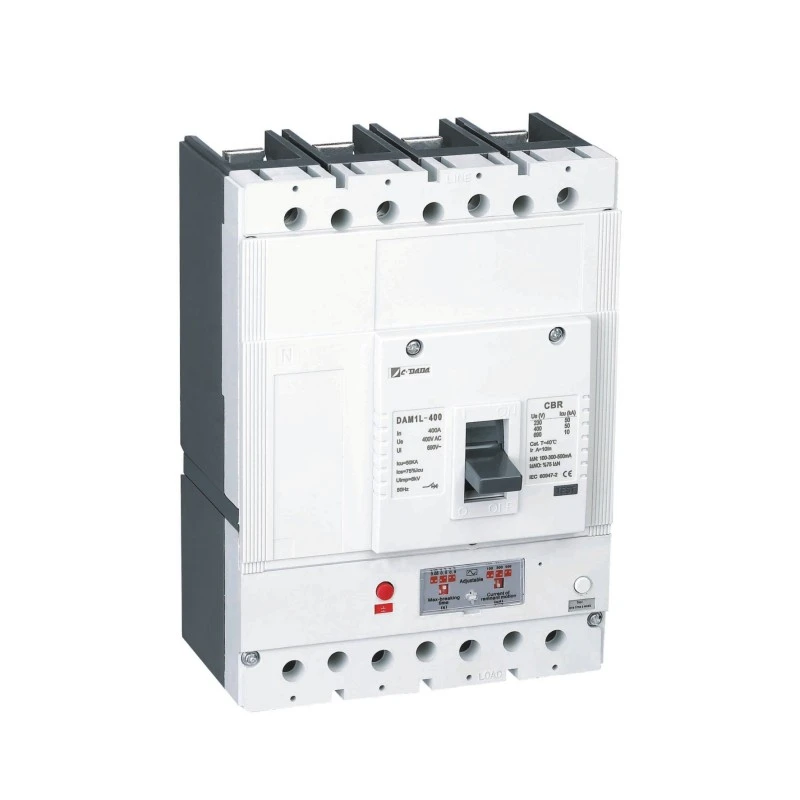

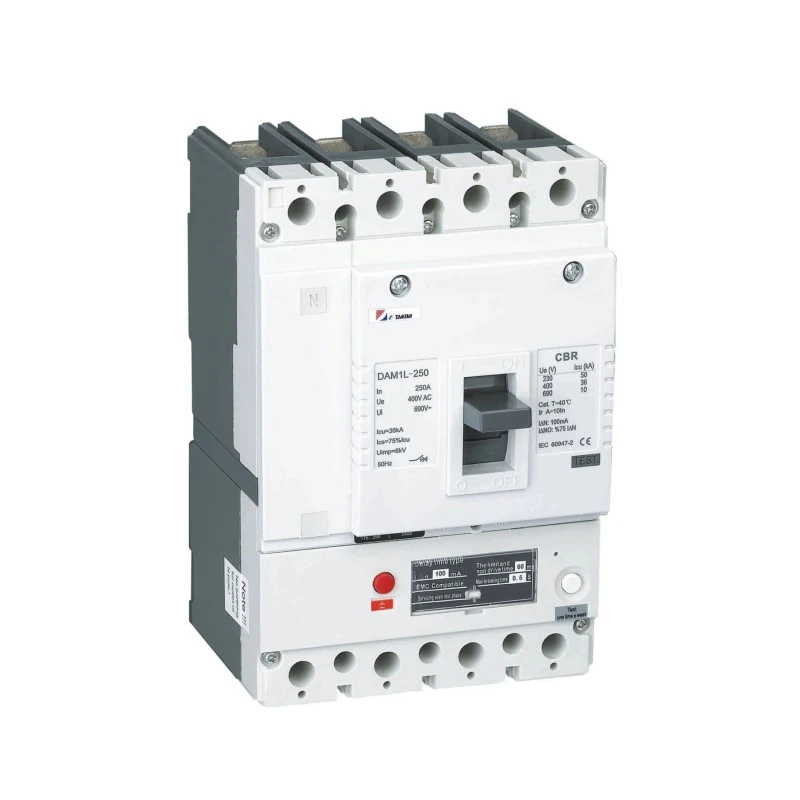

Hlangana nemigangatho yokhuseleko yehlabathi kunye ne-CDADA DAM1L AC Type Circuit Breaker kunye neResidual Current Operation i-MCCB yomhlaba evuzayo ephezulu eyenziwe ngu-Shanghai DADA Electric CO., LTD. ukhuseleko oluthembekileyo kwiimpazamo zomhlaba we-sinusoidal AC kuphela (nge-IEC 60755).

Eyilwe njenge-4P i-molded case breaker ilinganiswe kwi-10A ukuya kwi-500A kwi-400V / 415V, idibanisa ukugqithiswa, i-short-circuit, kunye nokukhusela ngoku okushiyekileyo kwiyunithi enye. Ukuqinisekiswa kwi-CE, CB, kunye ne-SEMKO, i-DAM1L ifanelekile kwizicelo apho ukukhangela ukuvuza okucocekileyo kwe-AC kwanele njengendawo yokuhlala eqhelekileyo, iisekethe zokukhanyisa, okanye imithwalo yemoto ngaphandle kwe-electronic drives.

Nge-adjustable I△n (30mA-1000mA), i-electronics multi-phase powered powered (ukusebenza phantsi ukuya kwi-50V), kunye nokuhlukana okuqinileyo kwe-arc, inikezela ukusebenza okungaphumeleliyo kwizakhiwo, iitonela kunye neziseko-ngelixa ithobela ngokungqongqo iimfuno ze-ACD ze-RCD.

IiNgcaciso eziphambili

Ezona mpawu:

★ I-multi-phase powered RCD circuit → isebenza kwi-≥50V

★ Push-to-test iqhosha

★ Yahlula abafowunelwa abaphambili kunye ne-arcing

★ Uhambo lwemagnethi olunokulungiswa (0.8–1.0×In)

★ olomeleleyo EMI immunity

★ Inkxaso epheleleyo ye-accessory (uhambo lwe-shunt, abafowunelwa be-aux, umqheba wokujikeleza)

Kutheni Khetha i-CDADA AC TYPE CBR?

★ Ukuthotyelwa kweNyaniso ye-AC-Type

Ngokungafaniyo nezixhobo "zendalo yonke" ye-A-type, i-CDADA ye-AC-uhlobo lwe-CBR ilungiselelwe kuphela ukuvuza kwe-sinusoidal AC-ukubonelela ngeendleko eziphezulu zeendleko apho imithwalo ye-elektroniki (umzekelo, i-VFDs, i-SMPS) ingekho.

★ Ukungaphumeleli-uKhuseleko loyilo lwaMandla

I-electronics ye-RCD idonsa amandla kuzo zonke izigaba, iqinisekisa ukusebenza nangexesha lokulahleka kwesigaba esisodwa okanye ukungabikho kwamandla obunzima-inzuzo ebalulekileyo ngaphezu kwabakhuphisana besigaba esisodwa.

★ Iindima ezimbini zoKhuseleko

● 30mA: Idibana ne-IEC yokukhusela ukothuka komntu

● 100mA–1000mA: Ikhusela ukugquma-ukusilela kwimililo kwiintambo kunye neebhokisi zokuhlangana

★ Ukhuseleko olunokulungiswa kwibala

Tune uvakalelo kunye nokulibaziseka kwexesha ukuze utshatise iimeko zofakelo-ukuphepha iihambo eziphazamisayo ngelixa ugcina ukuthotyelwa kwekhowudi.

★ I-Industrial-Grade Integration

Idibanisa i-MCCB kunye ne-RCD kwiyunithi enye etywiniweyo-ukugcina indawo, ukunciphisa iimpazamo ze-wiring, kunye nokuqinisekisa ukulungelelaniswa okugqibeleleyo.

★ Yamkelwe kwihlabathi jikelele

Nge-CE, CB, kunye ne-SEMKO, ivunyiwe ukuba isetyenziswe kulo lonke elaseYurophu, kuMbindi Mpuma, e-Afrika, nase-Asia-ilungele abakhi bamaphaneli abajolise kumazwe angaphandle.

★ Iimveliso zethu zibonelelwe ngeeprojekthi zegridi yombane, imizi-mveliso, izakhiwo zorhwebo, kunye neeprojekthi zeziseko ezingundoqo kumazwe amaninzi.

★ Sityala imali ngokuqhubekayo kwi-R&D, sibeka iliso kwimigangatho yehlabathi kunye nentsingiselo yemarike, kwaye sisebenzisana neengcaphephe zeshishini ukuphucula ipotfoliyo yemveliso yethu.

Usetyenziso oluqhelekileyo

Izakhiwo zokuhlala: Iiphaneli eziphambili okanye iisekethe ezincinci (izibane, iisokethi) ngaphandle kombane

Izibane zoRhwebo: Iisekethe zesilingi zeofisi, izibane zepaseji

Imithwalo yeMoto yesiNtu: Iimpompo, iifeni, iicompressors (ezingaqhutywanga yi-VFD)

Iziseko zophuhliso: Izibane zetonela, iikhabhathi zasezitalatweni, amagumbi omatshini wokuphakamisa umgangatho

IiProjekthi eziBalulekileyo kwiindleko: Apho ii-RCD zohlobo lwe-A zingafunekiyo kwaye zichazwe ngokugqithisileyo

FAQ

I-Q1: Ithetha ukuthini i-"AC TYPE" kwisixhobo sangoku esishiyekileyo?

I-A1: I-AC TYPE CBRs iphendula kuphela kwi-smooth, sinusoidal alternating residual currents (umzekelo, ukusuka kwi-insulation eyonakalisiweyo kwii-heaters okanye ii-motor). Abayiboni i-DC ejikelezayo kwizinto zombane ezifana neetshaja zefowuni okanye abaqhubi be-LED. Sebenzisa u-A-uhlobo ukuba imithwalo enjalo ikhona.

Q2: Ndingayisebenzisa le AC CBR 63A kwisekethe yesokethi yasekhaya?

I-A2: Kuphela ukuba isekethe ayinazo izixhobo zombane (umzekelo, imithwalo ecocekileyo yokumelana nezibane ze-incandescent okanye iiketile zesidala). Kumakhaya anamhlanje anomabonakude, iilaptops, okanye izibane ze-LED, khetha i-A-type RCD endaweni yoko.

Q3: Kutheni ndingakhetha uhlobo lwe-AC kunohlobo lwe-A?

A3: Ixabiso eliphantsi kunye nokungakhuseleki okuphezulu kukukhubekisa okungeyonyani kwimeko ye-AC kuphela. Ukuba isixokelelwano sakho asinazo izinto zokulungisa, iziguquli, okanye izixhobo zombane zendlela yokutshintsha, uhlobo lwe-AC lwanele kwaye lunoqoqosho ngakumbi.

I-Q4: Ngaba iyasebenza ukuba isigaba esinye siyasilela?

A4: Ewe! Isekethe ye-RCD inikwe amandla ngokubonelela ngezigaba ezininzi, ngoko ihlala isebenza nangexesha lokulahleka kwesigaba okanye ukuhla kwe-voltage ukuya kwi-50V-ukuqinisekisa ukukhuselwa kokuvuza okuqhubekayo.

I-Q5: Kutheni ukhetha i-CDADA ye-AC Type Circuit Breaker nge-Residual Current Operation?

A5: CDADA inikeza:

● I-IEC ye-IEC 60755 yoyilo oluhambelana nohlobo lwe-AC

● I-MCCB edibeneyo + ne-RCD kwiyunithi enye (akukho miba yokuhambelana)

● Ii-electronics ezixhaswe ngamanqanaba amaninzi ukwenzela ukuthembeka

● Ukulungelelaniswa kwendawo ye-I△n kunye nokulibaziseka kwexesha

● Iziqinisekiso zehlabathi (CE/CB/SEMKO) ngexabiso le-OEM-friendly
