I-MCCB enoKhuseleko lokuvuza

Ukuphucula ukhuseleko lombane ngaphaya komthwalo ogqithisiweyo kunye nokukhusela i-short-circuit kunye ne-CDADA DAM1L Series MCCB kunye noKhuseleko lwe-Leakage i-molded leakage circuit breaker kunye ne-built-in residual current (RCD / ELCB) ukusebenza. Eyilwe ngumvelisi oqeqeshiweyo we-Shanghai DADA Electric CO., LTD ukuya kwimigangatho yamazwe ngamazwe, oku kuvuza kwe-MCCB 4P idibanisa ukuhanjiswa kwamandla okusebenza okuphezulu kunye nobomi kunye nokugcinwa kwempazamo emhlabeni.

Ilinganiswe ukusuka kwi-10A ukuya kwi-500A kwi-400V / 415V, inika i-residual residual current current (30mA-1000mA) kunye nokulibaziseka kwexesha lokuzikhethela-ukuvumela ukukhuselwa okulungiselelwe ukhuseleko lomntu (≤30mA) okanye ukukhusela umlilo (100mA-500mA +). Ngee-electronics ezinezigaba ezininzi, zihlala zisebenza nokuba isigaba esinye siyasilela okanye i-voltage yehla ukuya kwi-50V, iqinisekisa ukuthembeka okungahambelaniyo kwiziseko ezingundoqo ezifana neetonela, ukuphakama okuphezulu, iindawo zokuhamba, kunye nezityalo zemizi-mveliso.

IiNgcaciso eziphambili

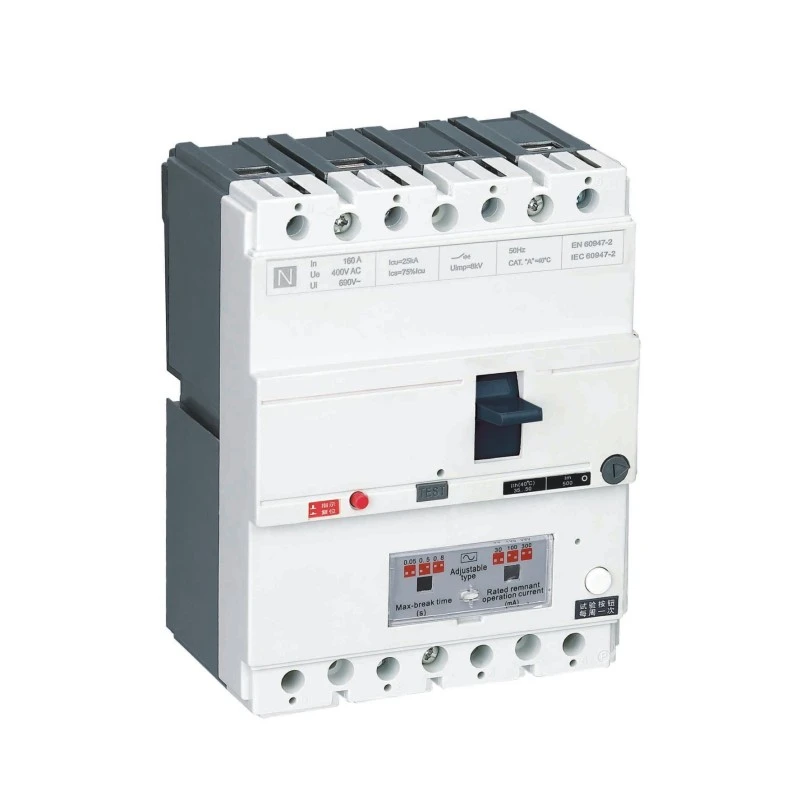

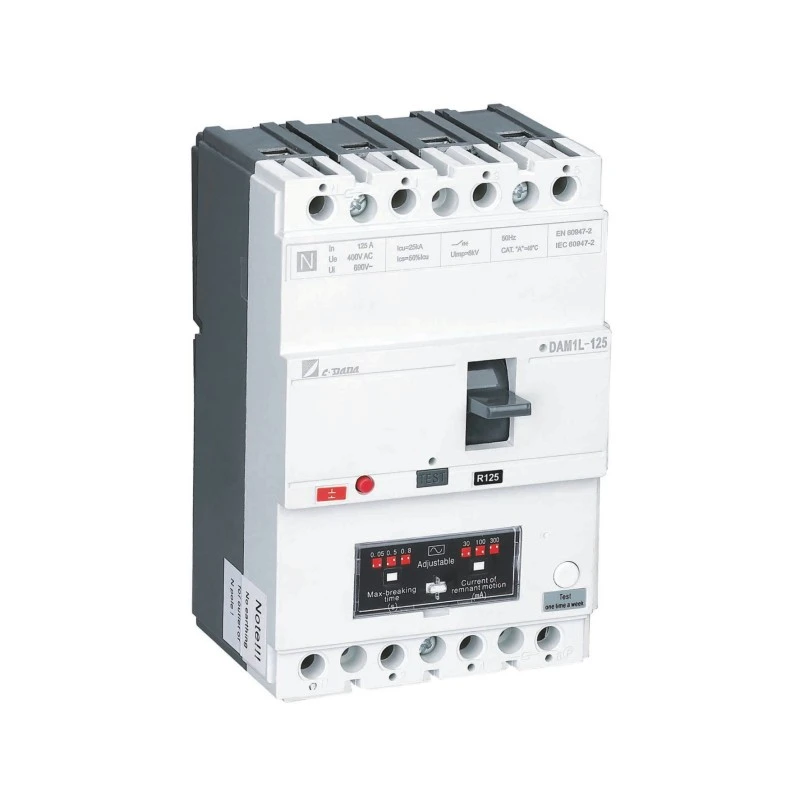

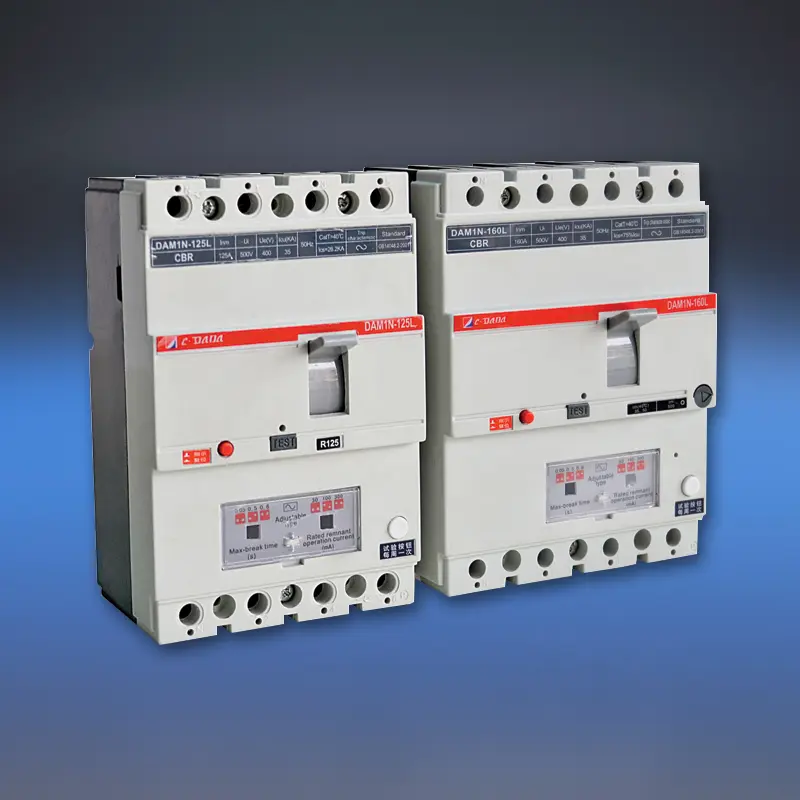

Umzekelo: I-DAM1L Series-Earth Leakage MCCB (CBR-type MCCB)

Iipali: 4P (esemgangathweni; 3P iyafumaneka xa iceliwe)

Ilinganiswe ngoku (Ku): 10A - 500A

I-Voltage elinganisiweyo: 400V / 415V AC, 50Hz

I-Insulation Voltage (Ui): 400V (≤160A), 690V (>250A)

Iisetingi zangoku ezishiyekileyo (I△n): 30mA, 100mA, 300mA, 500mA, 1000mA

Ulungelelwaniso: Uhlengahlengiso kwisiza se-I△n kunye nexesha lohambo (ngoko nangoko okanye ulibazisekile)

Iintlobo zesakhono sokuqhawuka:

B Uhlobo: Undoqo (Inm < 100A)

Uhlobo lwe-S: Umgangatho

H Uhlobo: Ukwaphuka okuphezulu (>160A)

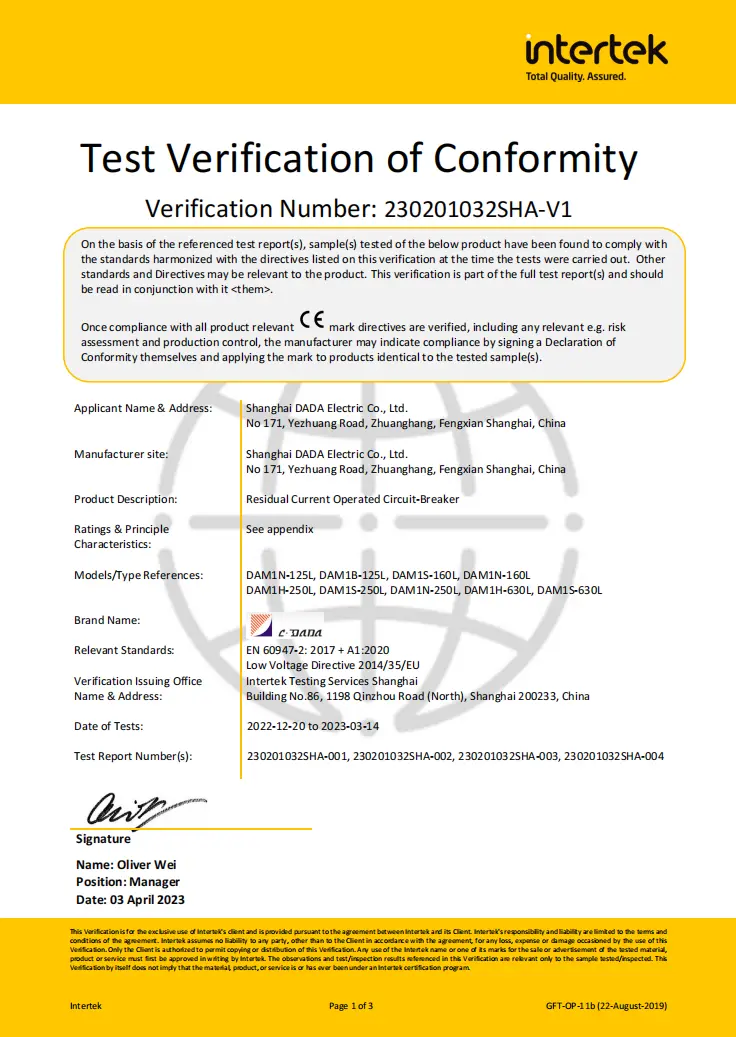

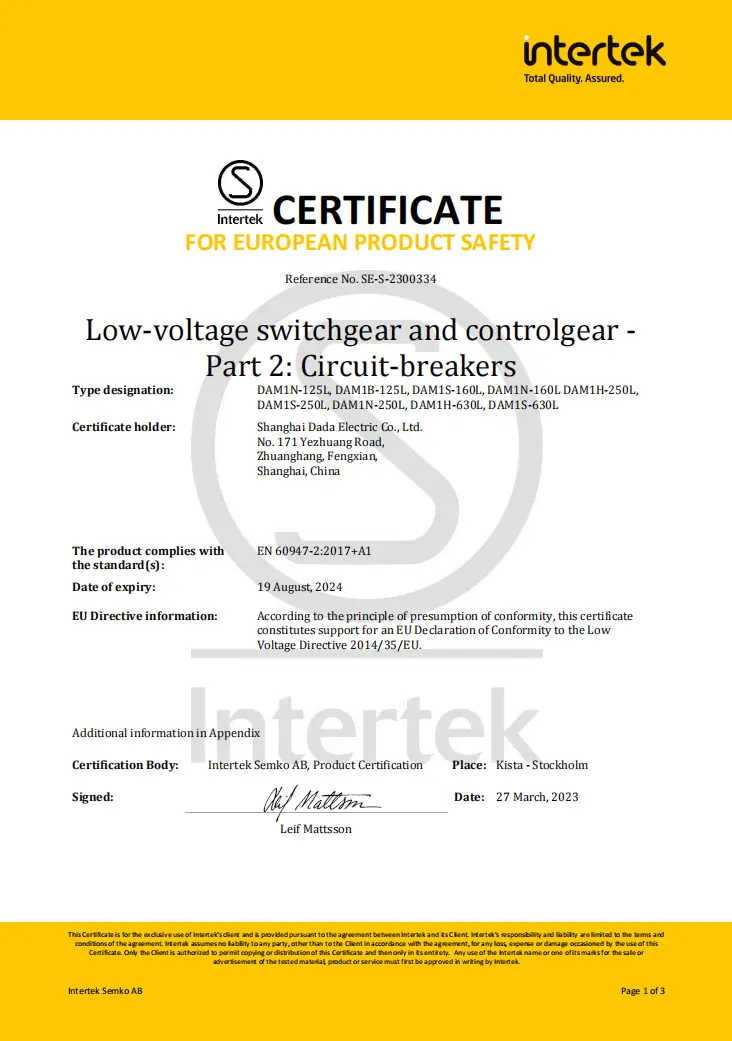

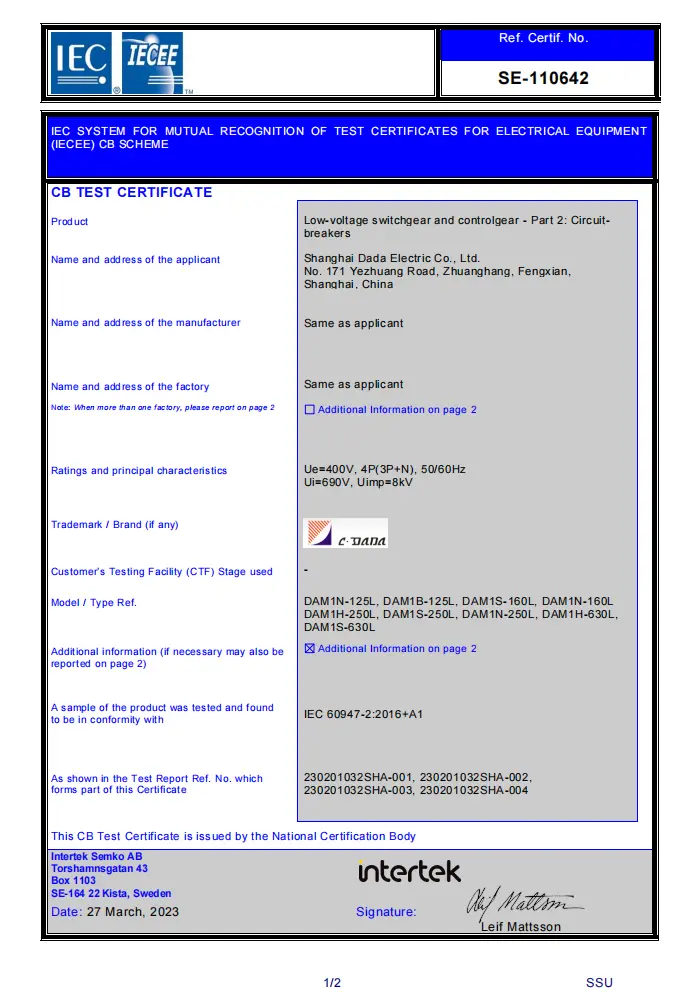

Iziqinisekiso: CE, CB, SEMKO

Ezona mpawu:

★ I-multi-phase powered RCD circuit → isebenza ukuya kutsho kwi-50V

★ Yahlula abafowunelwa abaphambili kunye ne-arcing

★ Tyhala-ukuya-uhambo iqhosha lovavanyo

★ Ulungiselelo lwemagnethi oluhlengahlengiswayo (0.8–1.0×In)

★ Eyomeleleyo EMI/RFI anti-ukuphazamiseka isakhono

★ Uluhlu olupheleleyo lwe-accessory: uhambo lwe-shunt, abafowunelwa abancedisayo / be-alarm, isiphatho esijikelezayo

Iphepha ledatha yobugcisa

Izaphuli zeSekethe zokuvuza (ELCB)
Umzekelo			I-DAM1-125L			I-DAM1-160L
Ukwaphulwa kweKhowudi yoMmandla			B	N	S	B	N	S
Ilinganiswe ngoku kubungakanani beSakhelo- i-Inm (A)			125A			160A
Ilinganiswe ngoku-kwi-(40,50 okanye 55℃) (A)			10 - 12,5 - 16 - 20 - 25 - 32(30) - 40 - 50 - 63(60) - 80 - 100 - 125A			10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A
Ui (V)			690V			690V
Ue (V)			400V			400/415V
Inani lePole			4P			4P
Icu (KA)			25	35	50	25	35	50
Ics(KA)			12.5	17.5	37.5	12.5	26.25	37.5
Icm(incopho)/cos ф (KA)			40/0.3	73.5/0.25	105/0.25	41/0.3	73.5/0.25	110/0.25
(I△m)KA/cosф			9/0.5			19/0.5
Umyinge wangoku oshiyekileyo (mA)			100-300-500			100-300-500
Ulibaziseko lwexesha(ms)			50-500-800			50-500-800
Uimp (V)			10000			8000
Ipropathi yeDielectric (V)			2500			3000
umgama wobude (mm)			≤30/0			≤30/0
Unyamezelo	Iyonke imijikelo		8000			8000
	Ubomi boMbane		1000			1000
	Ubomi boomatshini		7000			7000
Udidi (EN 60947-2/IEC 60947-2)	Isekethe ephambili		A/0			A/0
	Isiphaluka esincedisayo		AC-15			AC-15
Ngaphantsi kokukhutshwa kweVoltage			√			√
Shunt Khupha			√			√
Uqhagamshelwano oluncedisayo			√			√
Uqhagamshelwano lweAlam			√			√
UQhagamshelwano oluNcedisayo kunye noQhagamshelwano lweAlarm			√			√
Ukuphatha iNkqubo yokuSebenza			√			√
Indlela yokuSebenza koMbane			√			√
Isigqubuthelo setheminali			√			√
Isahluli senqanaba			√			√
	W (mm)	3P	-			-
		4P	101			120
	L (mm)	3P	-			-
		4P	155			120
	H (mm)	3P	-			-
		4P	70			70
Ubunzima	Uguqulelo oluzinzileyo 3P/4P		-			-
	Iplagi-in version 3P/4P		-			-
	Zoba inguqulelo 3P/4P		-			-

Kutheni Khetha i-CDADA MCCB enoKhuseleko lokuvuza?

★ Ukhuseleko oluDityanisiweyo lwenene

Ngokungafaniyo neemodyuli ze-RCD ezongeziweyo, i-DAM1L ine-built-in, i-factory-calibrated ukukhuselwa kokuvuza-ukuqinisekisa ukulungelelaniswa okugqibeleleyo kunye nokuphelisa imiba ehambelanayo.

★ Amandla amanqanaba amaninzi kwi-RCD Circuit

Ii-RCD zangaphambili zasilela ukuba isigaba esinye silahlekile. Uyilo lwe-CDADA lusebenzisa zonke izigaba ukunika amandla ukhuseleko lwe-elektroniki, ngoko luhlala lusebenza nangexesha lokulahleka kwesigaba okanye ukungabikho kwamandla.

★ Iinjongo zoKhuseleko oluBini kwisixhobo esinye

◆ 30mA: Idibana neemfuno ze-IEC zokhuseleko lomntu kumntu

◆ 100mA–1000mA: Ikhusela ukuthotywa komlilo kwimililo encinci, eqhubekayo emhlabeni.

★ Field-Adjustable for Real-World Conditions

I-Fine-tune sensitivity kunye nokulibaziseka kwexesha ukuphepha ukuphazamiseka kokuhamba kwiindawo ezimanzi (umzekelo, ukuhlamba iimoto, iifama) ngelixa ugcina ukhuseleko.

★ Ukuthembeka kweBanga loShishino

Umthamo ophezulu wokuqhawula (uhlobo lwe-H), ukuhlukana kwe-arc eyomeleleyo, kunye ne-IP20 + yokukhusela i-terminal yenza ukuba ifaneleke kwimimiselo enzima yezorhwebo kunye nezoshishino.

★ Ukuthotyelwa kweHlabathi, Ixabiso leNdawo

Ukuqinisekiswa kweYurophu (CE / CB), amazwe aseNordic (SEMKO) -ilungele iiprojekthi zokuthumela ngaphandle-kunye nexabiso elikhuphisanayo kumenzi othembekileyo waseTshayina.

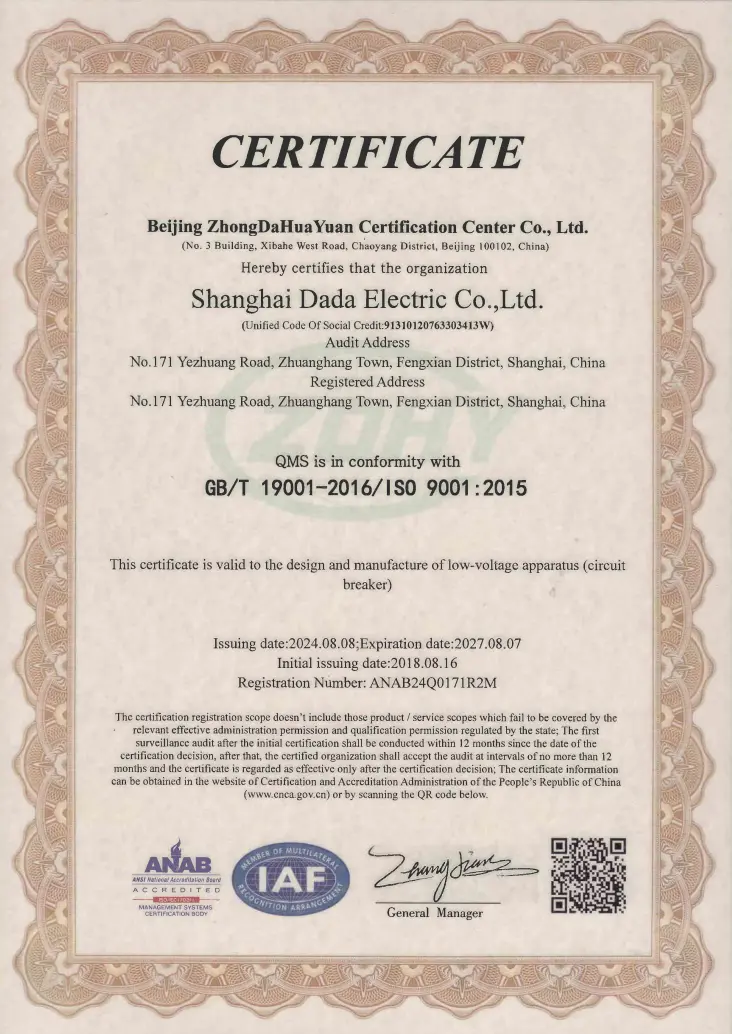

★ Indawo yethu yokuvelisa iqinisekisiwe phantsi kwe-ISO9001: Inkqubo yoLawulo loMgangatho we-2015.

Usetyenziso oluqhelekileyo

Indawo yokuHlala ekwiNdawo yokuHlala: Oyena mntu umkela umvuzo okanye iiphaneli zomgangatho (300mA yokunciphisa umngcipheko womlilo)

Iitonela kunye neSulana: Iziseko ezingundoqo ezifuna ukubonwa okuvuzayo okungaphumeleliyo

Izibhedlele kunye neZikolo: 30mA ukhuseleko kwiindawo ezimanzi (iilebhu, iindawo zangasese)

I-Industrial Plants: Iimotor feeds ezinoqwalaselo lwempazamo emhlabeni

Iindawo zokwakha: Ukuhanjiswa kwamandla okwethutyana kunye nokhuseleko lwabasebenzi

FAQ

I-Q1: Uthini umahluko phakathi kwe-MCCB eqhelekileyo kunye ne-MCCB enokukhusela ukuvuza?

I-A1: I-MCCB eqhelekileyo ikhusela kuphela ekugqithiseni kunye neesekethe ezimfutshane. I-DAM1L yongeza i-residual current (ukuvuza komhlaba) ukufumanisa-i-tripping xa ukuvuza kwangoku kumhlaba (umzekelo, ngomntu okanye i-insulation eyonakalisiweyo), ukukhusela ukutshatyalaliswa kombane okanye umlilo.

I-Q2: Ngaba ndingasebenzisa i-100A MCCB RCD yokukhusela umntu?

A2: Kuphela ukuba imiselwe kwi-30mA. Ireyithingi yangoku (100A) ichaza umthamo womthwalo; useto olushiyekileyo (I△n) luchaza umsebenzi wokhuseleko. Ukukhusela umothuko, I△n kufuneka ibe ≤30mA, nokuba i-In.

I-Q3: Kutheni isekethe ye-RCD idinga amandla amanqanaba amaninzi?

I-A3: Ukuba inikwe amandla ngesigaba esinye kuphela, ukungaphumeleli kwesigaba esinye kuya kukhubaza ukukhuselwa kokuvuza. I-CDADA yoyilo lwezigaba ezininzi luqinisekisa ukuba i-RCD ihlala isebenza nangexesha lokulahleka kwesigaba okanye i-voltage ephantsi (ukuya kwi-50V) -ibaluleke kakhulu ekuqhubekeni kokhuseleko.

I-Q4: Ngaba i-4P yokuvuza i-MCCB ifanelekile kwiinkqubo ze-TT okanye ze-TN-S?

A4: Ewe-yenzelwe iTT, TN-S, kunye neenkqubo ze-IT. Uyilo lwe-4P luphula zonke izigaba kunye nokungathathi hlangothi, okuyimfuneko kwiinkqubo ze-TT apho ukungathathi hlangothi kungasekelwanga ngokuthembekileyo phezulu.

I-Q5: Kutheni ukhetha i-CDADA ngaphezu kweemodyuli ze-RCD + MCCB indibaniselwano?

A5: CDADA DAM1L inikeza:

● Unyawo oluncinci (oludityanisiweyo vs. izixhobo ezibini)

● Ulungelelwaniso oluqinisekisiweyo (akukho mngcipheko ungafaniyo)

● Ixabiso eliphantsi kunye nobunzima bocingo

● Ukuthembeka okuphezulu (iyunithi enye etywiniweyo)

● Ukulungelelaniswa kwendawo akukwazeki ngee-RCD zobuthathaka obusisigxina
