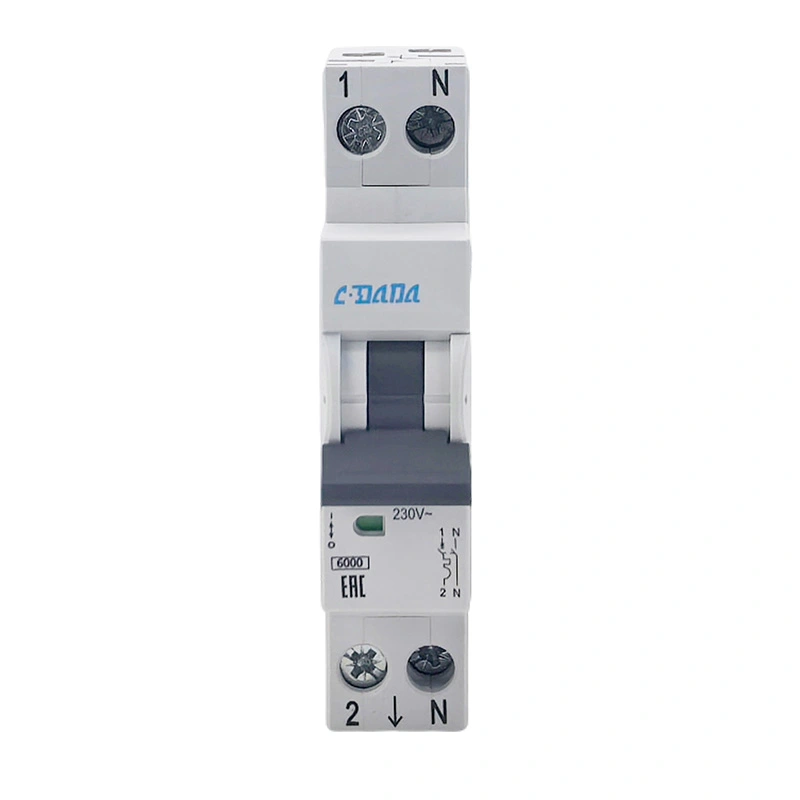

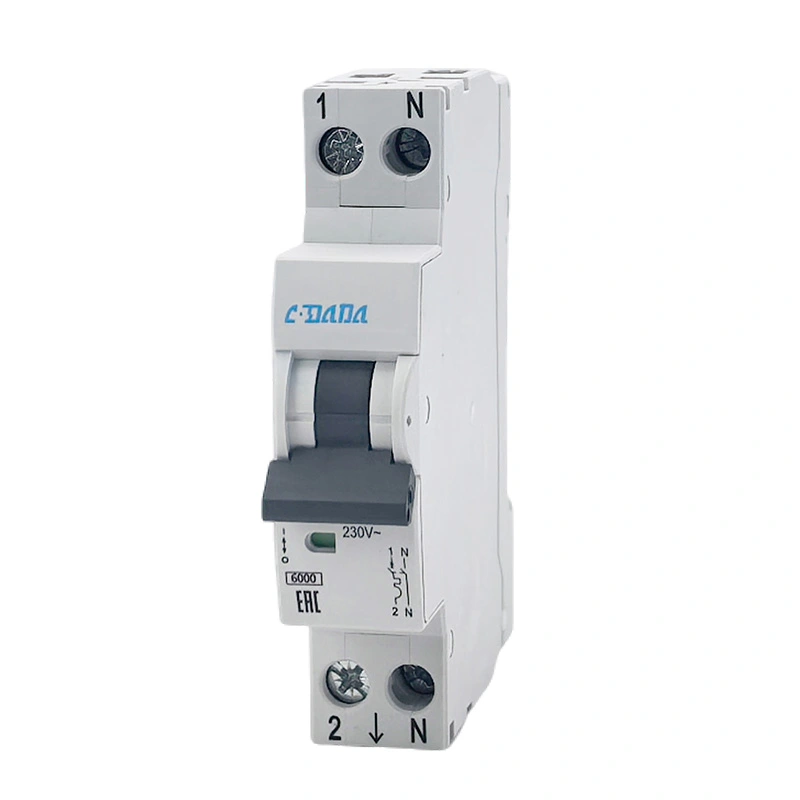

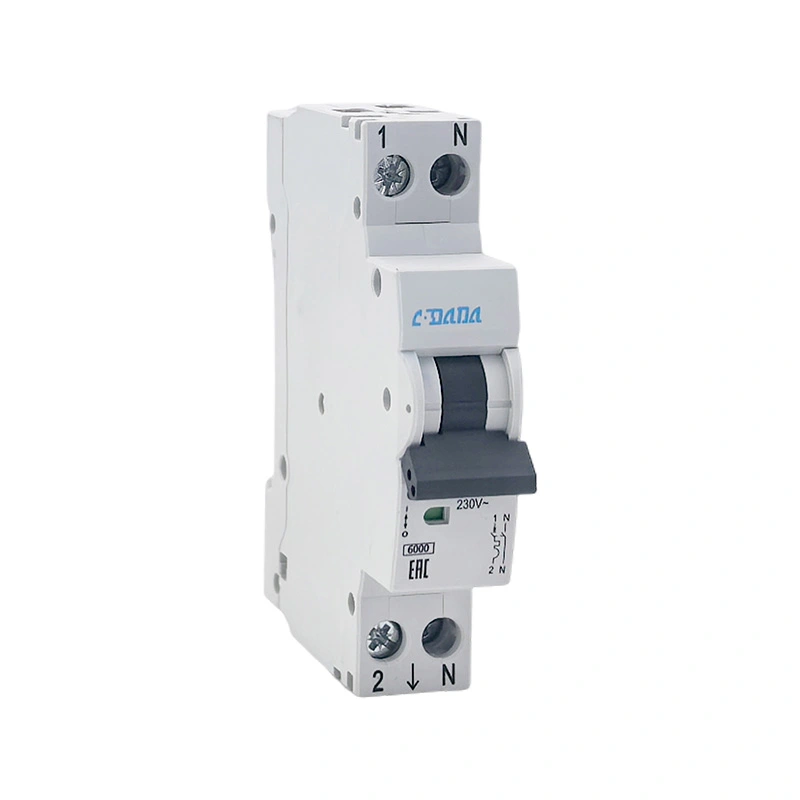

I-Miniature Circuit Breaker DPN 6KA
Model:DAB7N
I-CDADA Miniature Circuit Breaker DPN 6KA igqibelele ukuthengwa kwezinto ezininzi, i-high-quality 1P + N encinci ye-circuit breaker ehambelana ne-IEC60898-1 yokukhusela ikhaya elikhuselekileyo kunye nezorhwebo. Isebenzisa uyilo lweendawo ezimbini zokuqhawula kunye nokuhamba okuzinzile kwe-thermal-magnetic, kulula ukuyifaka kwi-DIN kaloliwe kwaye kulula ukuyigcina. Idibanisa isakhiwo esithembekileyo kunye nobomi benkonzo ende, ukuqinisekisa ukunikezelwa kwamandla okukhuselekileyo kwiinkqubo ezahlukeneyo zamandla aphantsi.
I-CDADA DAB7N I-Miniature Circuit Breaker DPN 6KA yingcali ye-1P + N ye-dual-break miniature breaker circuit breaker ngokuzimeleyo yi-Shanghai DADA Electric, umenzi othembekileyo oneminyaka engama-40 + yamava. Ngomthamo ophezulu we-6kA wokuphuka, ukusebenza ngokubambisana, kunye ne-N-pole "yenza kuqala, ikhefu kamva" uyilo, iphucula ngokufanelekileyo ukusebenza kwe-arc yokucima kwaye ikhusela iisekethe kunye nezixhobo ngokukhuselekileyo. Isetyenziswa kakhulu kwiibhokisi zokuhambisa, ukuhombisa ikhaya, amandla orhwebo, kunye neesekethe zokukhanyisa, lukhetho lokuqala kubathengi behlabathi, abasasazi kunye nabathengi be-OEM.

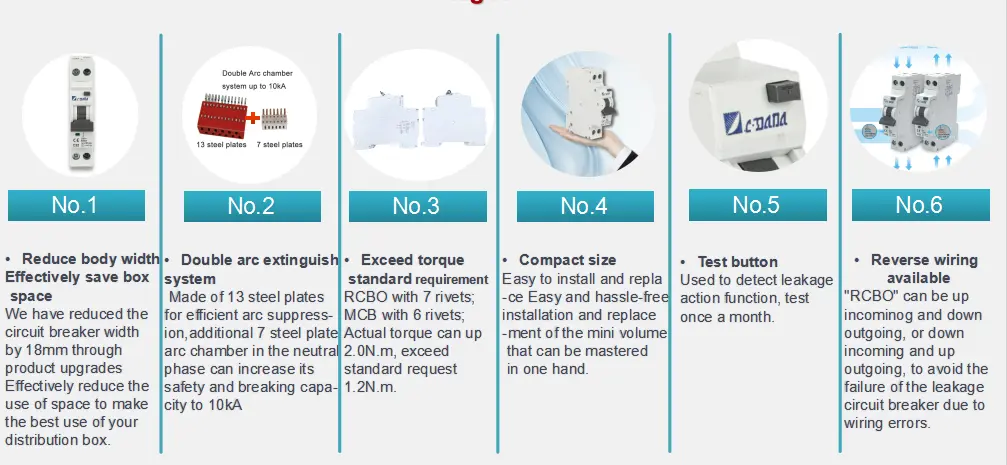

Ziziphi izinto eziluncedo ze-MCB DPN 6KA?
★ Isakhiwo se-DPN ye-1P + N, iindawo zokuqhawula ezimbini, zikhuselekile kwaye zithembeke ngakumbi
★ Ipali ye-N yenza kuqala kwaye iphuke kamva, iphucula isakhono sokuqhawuka kwe-arc
★ 6kA umthamo wokwenyani wokwephula, ukhuseleko oluqinileyo lwesekethe emfutshane
★ Compact 17.8mm ububanzi, igcina indawo yekhabhinethi
★ I-B / C ijika ijika ekhoyo kwimithwalo eyahlukeneyo
★ IP20 ibakala lokukhusela, ukhuselekile ukuba uchukumise
Uluhlu olubanzi lweengcingo: 1–25mm² intambo eguquguqukayo
★ I-DIN yokufakwa kukaloliwe, ukufakwa ngokukhawuleza kunye nokuzinza
★ Ukumelana nokushisa okuphezulu kunye nokuphantsi: -25 ℃ ~ + 50 ℃
★ Ubomi obude boomatshini ukuya kuthi ga kumaxesha angama-20,000
Usetyenziso
I-CDADA Miniature Circuit Breaker DPN 6KA isetyenziswa ngokubanzi kwi:
★ Izakhiwo zokuhlala, iiflethi, iivillas, ukuhombisa ikhaya
★ Iiofisi, iivenkile, iihotele, izikolo, izibhedlele
★ Iisekethe zokukhanyisa, iziseko zombane, izixhobo zombane ezincinci
★ Izixhobo zasekhaya: izifudumezi zamanzi, izifudumezi-moya, izifudumezi zombane
★ Ukwakhiwa kwakhona kwesekethe endala kunye nokuphuculwa kwebhokisi yokuhambisa
★ Iinkqubo zokurhweba kunye nezoluntu eziphantsi kwamandla ombane
Itheyibhile yeeParameters zobuGcisa
| Into | Inkcazo |
| Umzekelo | I-DAB7N-40 |
| Igama lemveliso | MCB DPN 6KA |
| Umgangatho | IEC60898-1 |
| Iipali | 1P+N (2P) |
| Ukwaphulwa kweSakhono | 6kA |
| Ikalwe ngoku | 6A,16A,20A,25A,32A,40A |
| Ulinganiso lweVoltage | AC 220/230/240V |
| Ukuphindaphinda | 50/60Hz |
| Ijika elijikajikayo | B / C |
| I-Insulation Voltage | 500V |
| Impulse Voltage | 4kV |
| Isidanga soKhuseleko | IP20 |
| Ubomi boomatshini | 20,000 amaxesha |
| Ubomi boMbane | 6,000 amaxesha |
| ITorque yeTheminali | 1.5Nm |
| Umthamo wocingo | 1–25mm² |
| ITemp yokuSebenza | -25℃ ~ +50℃ |
| Imilinganiselo | 82.5×73.2×17.8mm |

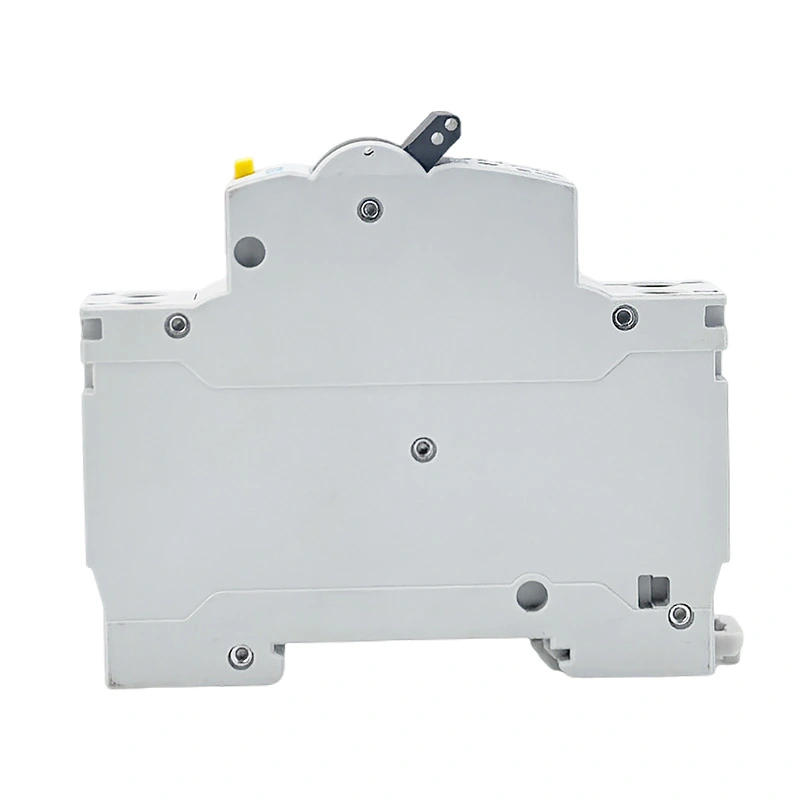

Imilinganiselo yolwandlalo
★ Ubude: 82.5mm
★ Ukuphakama: 73.2mm
★ Ububanzi: 17.8mm (ububanzi obuqhelekileyo bemodyuli e-1)
★ Ukunyuka: 35mm DIN kaloliwe
★ Iintambo zombane: zilungele i-1–25mm² intambo eguquguqukayo/eqinile
★ Busbar ubukhulu: 0.8–2mm

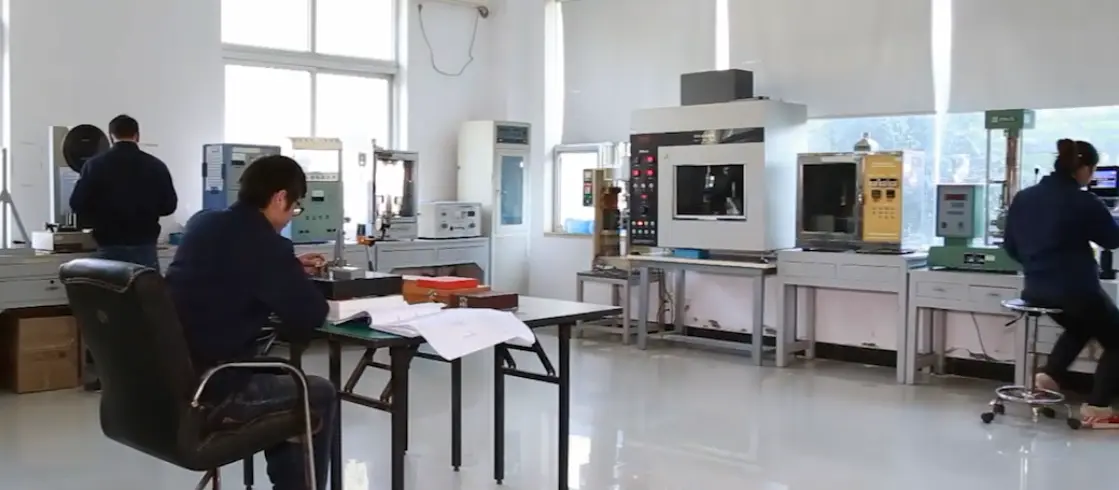

Izinto eziMgangatho zoVavanyo
★ 1.13Kuvavanyo olungakhubekiyo (≥1 iyure)
★ 1.45Kuvavanyo lokuhamba (<1 iyure)
★ 2.55In overload action test
★ Uvavanyo lokukhubeka lwemagnethi olukhawulezileyo (3In/5In yeB/C ijiko)
★ Dielectric ukumelana novavanyo lombane
★ Uvavanyo lokunyuka kobushushu
★ Uvavanyo lwesakhono sokwaphuka kwesekethi emfutshane (6kA)
★ Uvavanyo lobomi boomatshini kunye nombane
★ Uvavanyo lokusebenza oluphezulu noluphantsi lobushushu

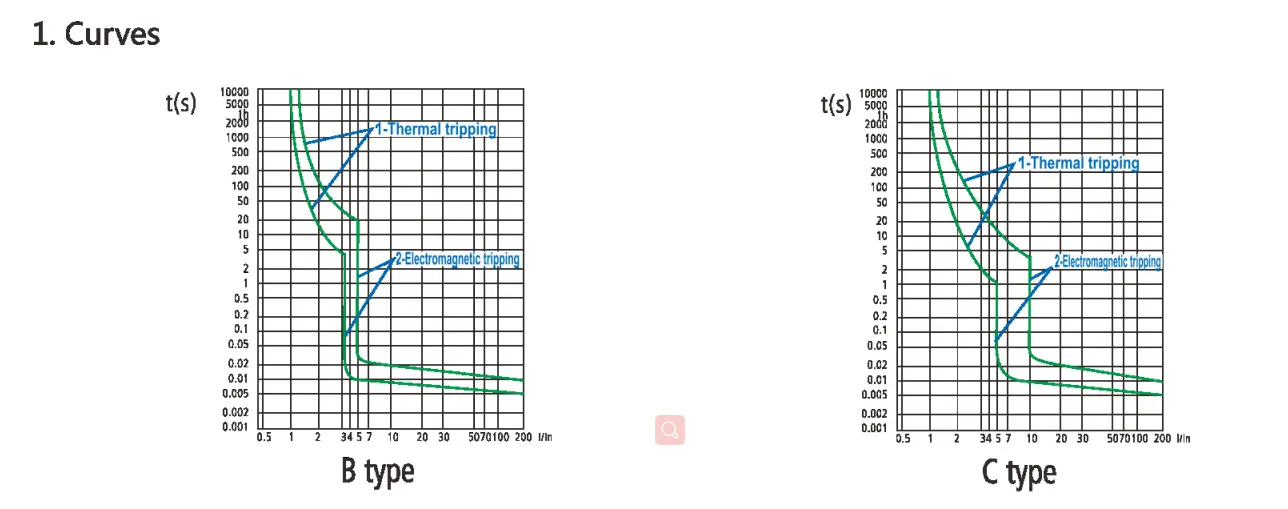

Tripping Characters Curves
IEC 60898-1
Ukukhutshwa kweMagnetic
Xa umjikelezo omfutshane wesekethe usenzeka, ukukhubeka kwangoko kuphunyezwa yimagnethi enombindi wentsimbi. Ngokomgangatho we-IEC60898, le mveliso inokwahlulwa ibe ziindidi ezintathu: B, C, kunye noD.
|
|
Uvavanyo lwangoku | Ixesha lokuhamba | Usetyenziso |
| B Ijika | 3ln 5ln |
0.1 |
Uhlobo B lusebenza kuphela kwimithwalo esebenzayo: -Isifudumezi sombane-Isifudumezi samanzi-Isifudumezi sombane |
| C Ijika | 5Nge-10ln |
0.1 |
Uhlobo C lufanelekile kwimithwalo eqhelekileyo: -Isibane -Isokhethi yamandla -Injini yamandla amancinci |
Ukukhutshwa kweThermal
● Emva kokuba ukugqithisa kwenzeka kwisekethe, umgca we-bimetallic we-breaker circuit uya kugoba ngenxa yokushisa, okubangela ukuba abafowunelwa baqhawule kwaye kubangele ukuhamba kwe-thermal;
● Umgangatho we-IEC uchaza uluhlu lwexesha lokuhamba kwimisinga eyahlukeneyo yokulayisha ngaphezulu;
●Iqondo lobushushu lereferensi yovavanyo yi-30 °C.
| Uvavanyo lwangoku | Ixesha lokuhamba |
| 1.13ln | t z 1h(ku ≦ 63A) |
| 1.45ln | t<1h(Ku ≦ 63A) |
| 2.55ln | 1s<1h<60s(Ku≤32A)1s |
Inkqubo yoLawulo loMgangatho
1. Uhlolo olungenayo lwemathiriyeli kunye noqinisekiso lwesatifikethi
2. Isitofu esizenzekelayo sokubumba kunye nesitampu sesinyithi esichanekileyo
3. Indibano yemveliso egqityiweyo kunye nokulinganisa
4. 100% yovavanyo olupheleleyo lweempawu zokuhamba
5. Ukumelana ne-voltage kunye novavanyo lokusebenza kwe-insulation
6. Uvavanyo lokuguga oluphezulu noluphantsi lobushushu
7. Imbonakalo, idimension & nokuhlolwa kwelogo
8. Ukupakishwa kokugqibela kunye nokuhlolwa kokuthunyelwa
Ukupakishwa kunye nokuThunyelwa
★ Ibhokisi esemgangathweni yokuthumela ngaphandle enelinen eyothusayo
★ Ibhokisi yeqela ipakishwe ukunqanda umkrwelo
★ Ileyibhile ecacileyo: imodeli, yangoku, iipali, ubuninzi, isiqinisekiso
★ Ilungele ukuthuthwa elwandle, emoyeni nasemhlabeni
★ Inkxaso yokupakishwa kwe-OEM, ilogo yesiko kunye nelebhile
Iimeko zeMpumelelo yoMthengi
I-CDADA MCB DPN 6KA ithunyelwe kumazwe angaphezu kwama-50 nakwimimandla:
★ Unikezelo lwexesha elide luninzi lwabasasazi baseYurophu nabaseAsia
★ Iiprojekthi zokulungiswa kweesekethe zasekhaya kuMbindi Mpuma naseAfrika
★ intsebenziswano OEM kunye brand zombane ezaziwayo-kakuhle ngamazwe
★ Ukunikezelwa kwamandla okuxhasa abaphuhlisi bezindlu
★ Iiodolo ezizinzileyo ezivela kwiikontraka zombane kunye nezihlanganisi zenkqubo
Kutheni Khetha i-DADA yoMbane?
★ Iminyaka engama-40+ yamava omsebenzi kwi-circuit breaker R&D kunye nemveliso
★ 90% amacandelo angundoqo avelisiweyo endlwini, ulawulo oluzinzileyo lomgangatho
★ ISO9001 eqinisekisiweyo, ukuthotyelwa ngokupheleleyo nemigangatho yamazwe ngamazwe
★ Iziqinisekiso ezipheleleyo: CE, CB, CCC, njl.
★ Umthamo omkhulu wemveliso, ukuhanjiswa ngokukhawuleza kwii-odolo ezininzi
★ Inkxaso yobuchwephesha kunye nenkonzo emva kokuthengisa
★ Yamkela OEM & ODM ngokwezifiso ukuhlangabezana neemfuno zemarike
★ Inkqubo yolungiselelo lwehlabathi, unikezelo olukhuselekileyo nolufika ngexesha
