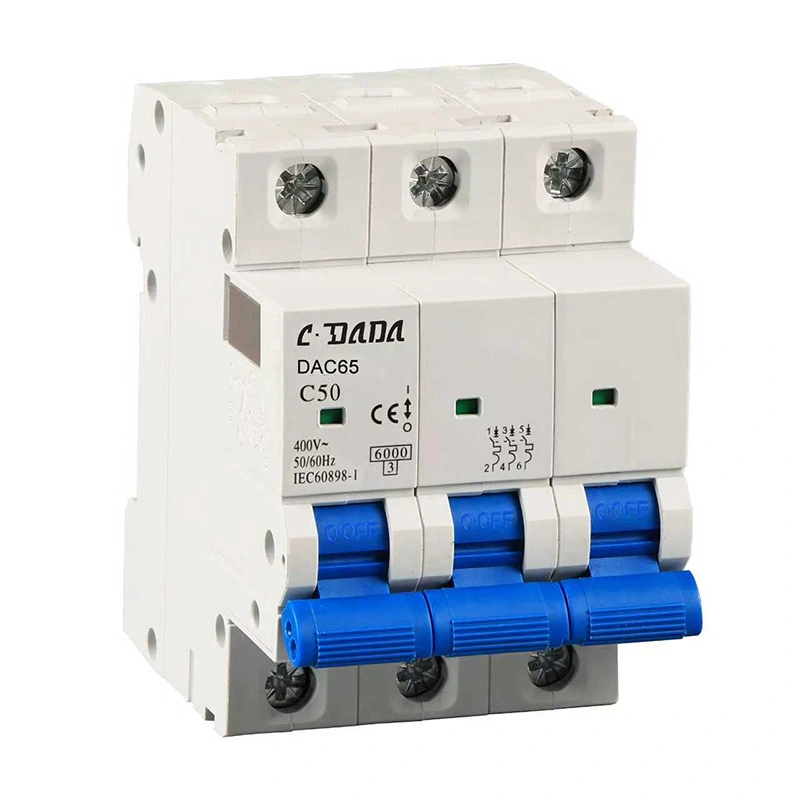

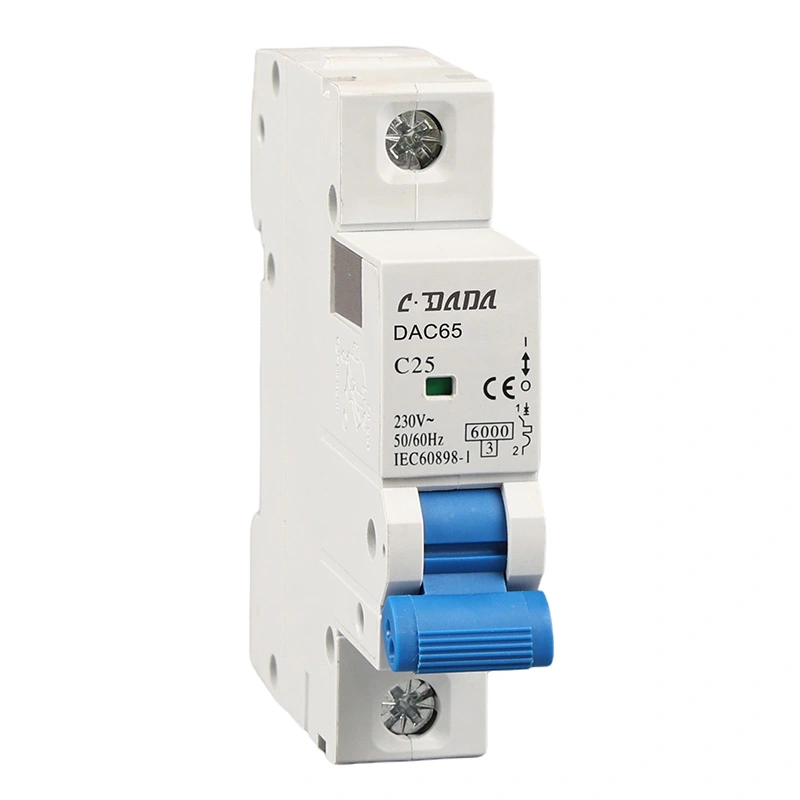

I-Miniature Circuit Breaker REAL 6KA
Model:DAC65
Qhagamshelana ne-CDADA namhlanje kwaye masibe ngumthengisi wakho we-Miniature Circuit Breaker REAL 6KA, i-high-quality miniature breaker ihambelana ne-IEC / EN60898 yokukhusela isiphaluka esithembekileyo. Ibonisa ukuhamba ngemagnethi ye-thermal kunye negobolondo elibuyisela amadangatya, kulula ukuyifaka kuloliwe we-DIN, kwaye kulula ukuyigcina. Idibanisa ukusebenza okuzinzileyo kunye noyilo oluzinzileyo, ukufezekisa ubomi obude benkonzo yendawo yokuhlala kunye nokuhanjiswa kwamandla oshishino.
I-CDADA DAC65 Miniature Circuit Breaker REAL 6KA yi-high-performance miniature breaker circuit breaker eyenzelwe i-AC 50/60Hz iinkqubo zamandla. Ibonelela ngokugqithiswa okusebenzayo kunye nokhuseleko lwesekethe emfutshane, kunye ne-B/C/D yeegophe zokukhwela ukuze ilingane nemithwalo eyahlukeneyo. Isetyenziswa kakhulu kwiibhodi zokuhambisa, izakhiwo zokuhlala, iifektri, kunye nezibonelelo zorhwebo, lolona khetho luphezulu kubathengi behlabathi kunye namaqabane e-OEM.
Izinto Eziluncedo Ezingundoqo
★ OKWENENE 6kA amandla aphezulu okuqhawula ukhuseleko oluzinzileyo lwe-short-circuit
★ Ukukhutshwa kwe-Thermal-magnetic kuhambo oluchanekileyo kunye nokukhawuleza
★ Ubungakanani obubambeneyo: 17.8mm ngepali nganye, ukonga indawo kwiikhabhathi
★ IP20 idigri yokukhusela, ikhuselekile ukuyiphatha nokusebenza
★ Uluhlu olubanzi lwe-wiring: ixhasa i-0.5-63A, iintambo eziguquguqukayo kunye neziqinileyo
★ I-DIN kaloliwe yokufaka ukufakwa ngokukhawuleza
★ Iqokobhe le-flame-retardant, ukumelana nobushushu obuphezulu
★ Ukusebenza okuzinzileyo kwi -5℃~+40℃ imo engqongileyo
Usetyenziso
I-CDADA Miniature Circuit Breaker REAL 6KA isetyenziswa ngokubanzi kwi:
★ Izakhiwo zokuhlala, iiflethi, iivillas
★ Iiofisi, iivenkile ezinkulu, iihotele, izakhiwo zikawonke-wonke
★ Iindibano zocweyo zamashishini, izixhobo zombane ezincinci
★ Iinkqubo zokukhanyisa, iziseko zombane, iipaneli zokuhambisa
★ Iifeni, iimpompo, iicompressor kunye neenjini ezincinci
★ Iiprojekthi zeziseko ezingundoqo kunye nokulungiswa kombane
Iiparamitha zobuGcisa
| Into | Inkcazo |
| Umzekelo | DAC65 MCB REAL 6KA |
| Umgangatho | IEC/EN60898 |
| Ukwaphulwa kweSakhono | 6kA |
| Ikalwe ngoku | 0.5,1,2,3,4,5,6,10,16,20,25,32,40,50,63A |

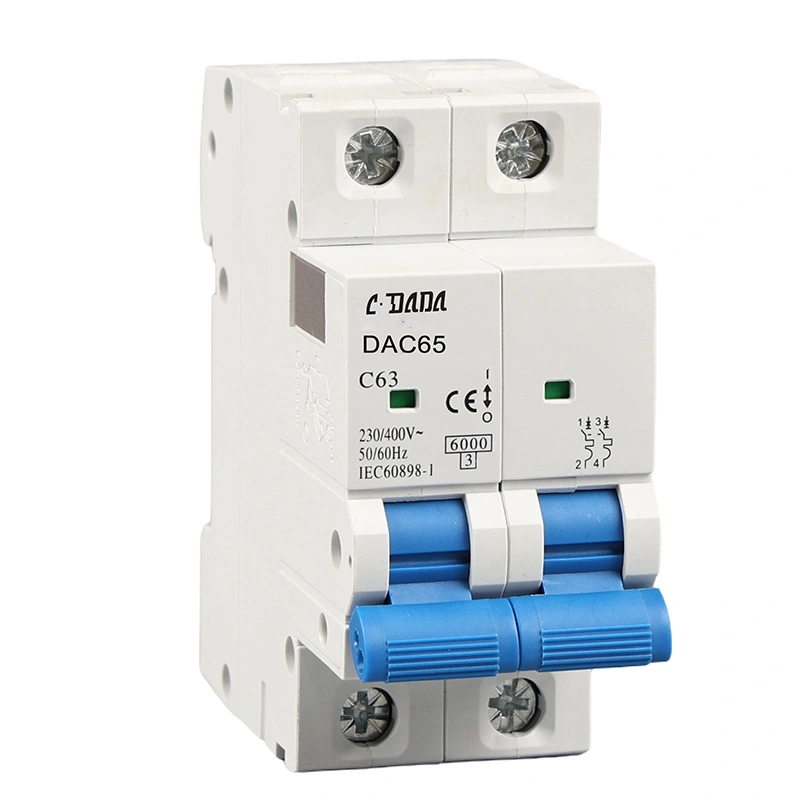

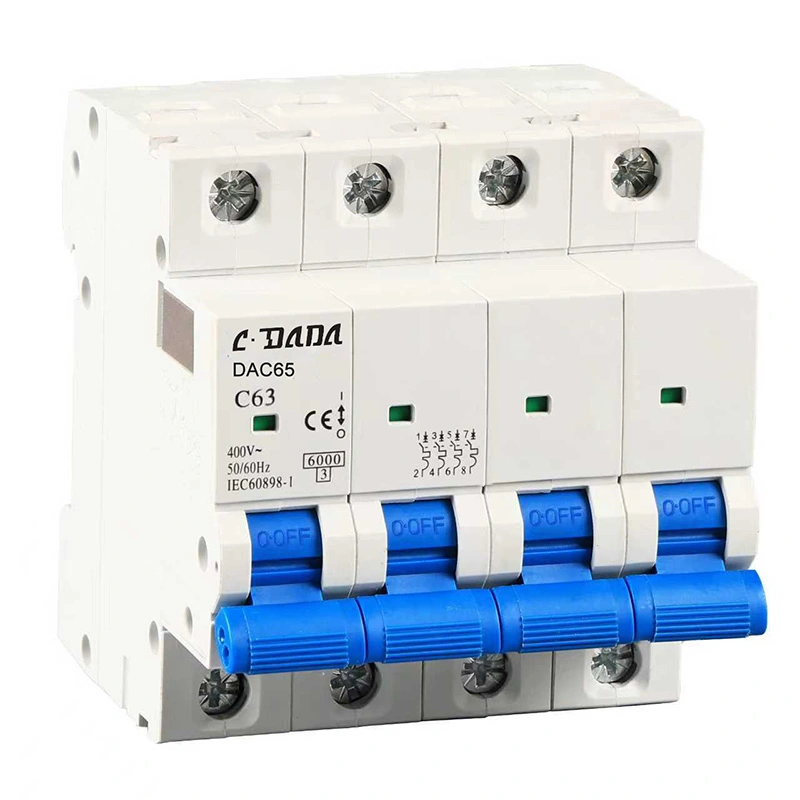

| Iipali | 1P,1P+N,2P,3P,3P+N,4P |
| Ijika elijikajikayo | B(3-5In), C(5-10In), D(10-20In) |
| Ulinganiso lweVoltage | 1P:240V; 2P:240/415V; 3P/4P:415V |
| I-Insulation Voltage | 500V |
| Impulse Voltage | 6kV |
| I-Energy Limiting Class | 3 |
| Isidanga soKhuseleko | IP20 |
| Ukuhlohla | 35mm DIN kaloliwe |
| Uhlobo lwetheminali | Uhlobo lweLug / uhlobo lwePin |
| Ubushushu obugciniwe | -5℃ ~ +40℃ |

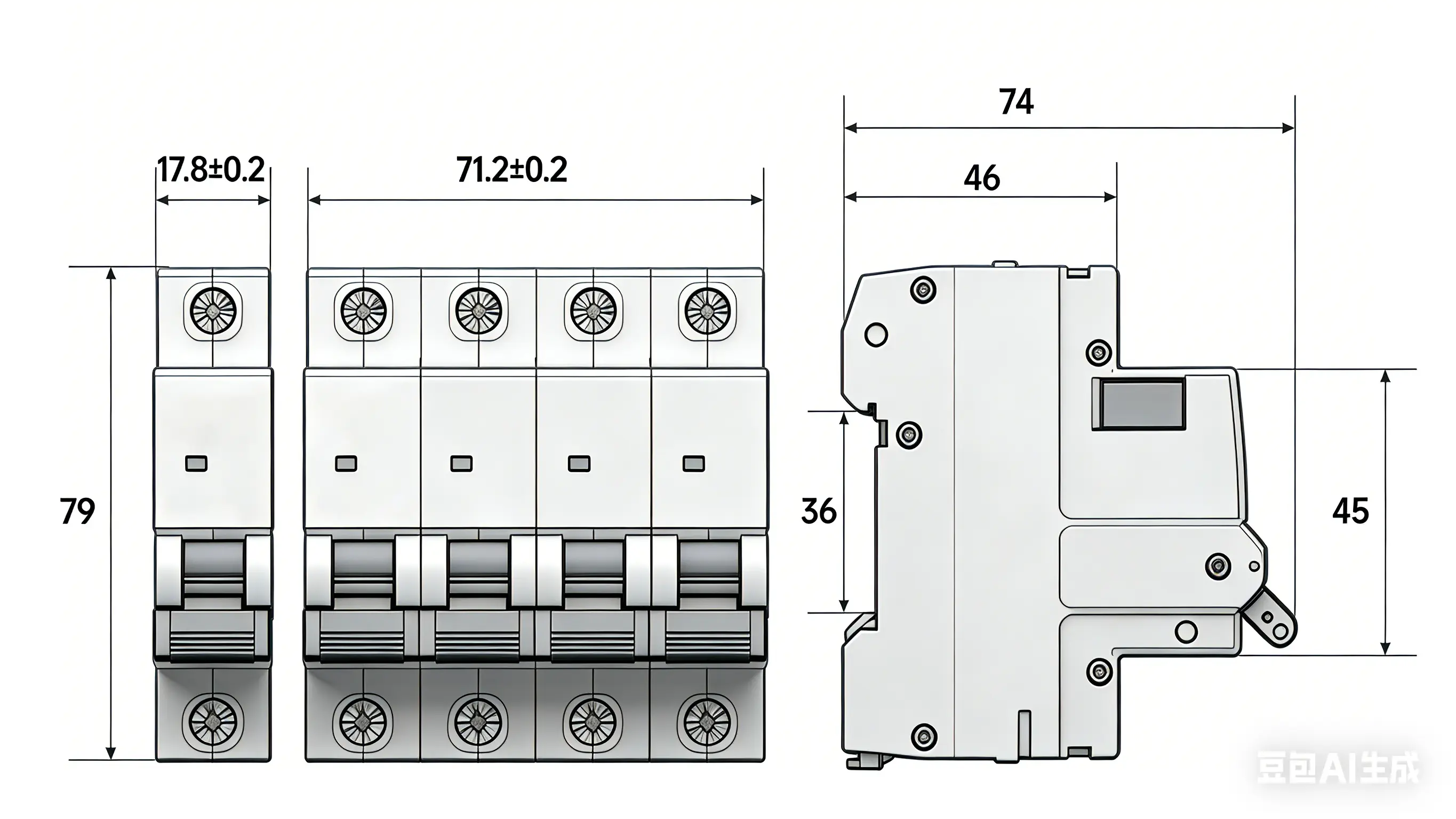

Imilinganiselo yolwandlalo
★ Ububanzi: 17.8mm ipali nganye
★ Ukunyuka: Umgangatho we-35mm DIN kaloliwe
★ Umthamo wocingo: Ukuya kuthi ga kwi-35mm² intambo eqinileyo
★ Ulwakhiwo olubambeneyo lweebhokisi zokuhambisa eziqhelekileyo

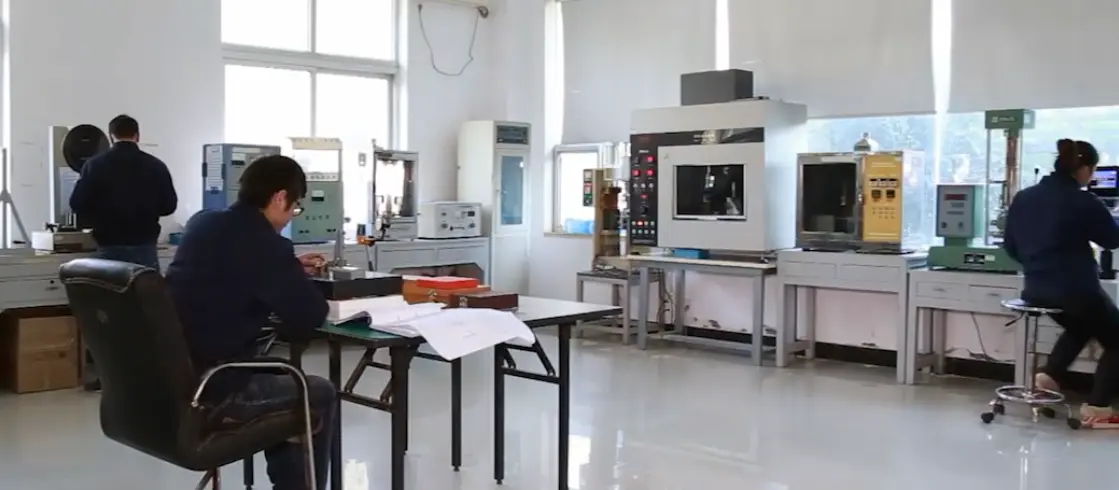

Izinto eziMgangatho zoVavanyo
★ 1.13Kuvavanyo olungakhubekiyo (≥1h)
★ 1.45Kuvavanyo lokuhamba (<1h)
★ Uvavanyo lweempawu zokukhubeka ngemagnethi
★ Uvavanyo lokunyuka kobushushu
★ Amandla ombane weDielectric ukumelana novavanyo
★ Uvavanyo lwesakhono sokwaphuka kwesekethi emfutshane (6kA)
★ Uvavanyo lokunyamezela komatshini kunye nombane
Inkqubo yoLawulo loMgangatho
1. Uhlolo olungenayo lwemathiriyeli ekrwada
2. Imveliso ezenzekelayo kunye nendibano echanekileyo
3.100% ulungelelwaniso olupheleleyo lokuhamba
4. Uvavanyo olusebenzayo lobushushu obuphezulu / obuphantsi
5. Ukumelana novavanyo lombane kunye novavanyo lokugquma
6. Ukuhlolwa kwembonakalo kunye nobukhulu
7. Ukuhlolwa kokugqibela ngaphambi kokupakishwa
Ukupakishwa kunye nokuThunyelwa
★ Ibhokisi esemgangathweni yokuthumela ngaphandle kunye nelinen eyothusayo yangaphakathi
★ Ileyibhile ecacileyo: imodeli, yangoku, iipali, ubuninzi, isiqinisekiso
★ Ukupakishwa kwebhokisi yeqela ukuphepha umkrwelo kunye nomonakalo
★ Ilungele ukuthuthwa elwandle, emoyeni nasemhlabeni
★ Inkxaso yeleyibhile ye-OEM & ukupakishwa kwesiko
Iimeko zeMpumelelo yoMthengi
I-CDADA Miniature Circuit Breaker REAL 6KA inobambiswano lwexesha elide kwihlabathi liphela:
★ Unikezelo oluninzi lwabasasazi kunye neekontraka zaseYurophu
★ Iiprojekthi zokuhlala kunye nezorhwebo kuMbindi Mpuma & Afrika
★ intsebenziswano OEM kunye brand zombane jikelele
★ Iinkqubo zokuhambisa amandla kuMzantsi-mpuma Asia & eMzantsi Melika
★ Iiodolo zexesha elide ezivela kubathumeli bangaphandle kunye nezihlanganisi zombane
